Ametherm
- Ametherm is a leading manufacturer of Power Thermistors. Ametherm offers the highest rated steady state current rating as well as highest rated energy handling capability offered in the market. Their excellent long-term stability and rugged structure makes them ideally suited for limiting Inrush current in the motors (1/3 HP to 3.0 HP range), medical (Power supplies, MRI), Security systems (X-Ray machines), transformers (up to 8.0 KVA), telecom (Power supplies up to 4000 watt out put power) and motor drives, in the most cost effective method.
Part Number
Manufacturer
Description
Unit Price
In Stock

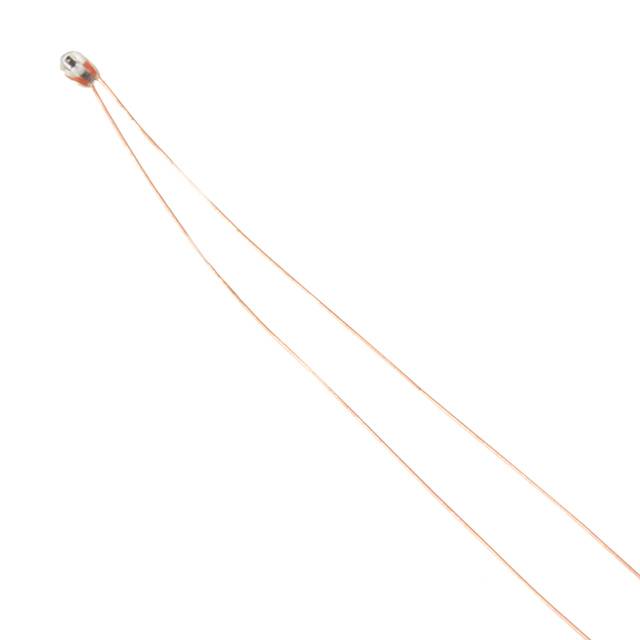

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : *
Part Status : Active
Resistance in Ohms @ 25°C : 100k
Resistance Tolerance : ±5%
B Value Tolerance : ±3%
B0/50 : 4143K
B25/50 : 4201K
B25/75 : 4246K
B25/85 : 4263K
B25/100 : 4280K
Operating Temperature : -55°C ~ 300°C
Power - Max : 30mW
Length - Lead Wire : 2.56" (65.00mm)
Mounting Type : Through Hole
Package / Case : Bead, Glass
0
100 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : *
Part Status : Active
Resistance in Ohms @ 25°C : 40k
Resistance Tolerance : ±5%
B Value Tolerance : ±3%
B0/50 : 4143K
B25/50 : 4201K
B25/75 : 4246K
B25/85 : 4263K
B25/100 : 4280K
Operating Temperature : -55°C ~ 300°C
Power - Max : 30mW
Length - Lead Wire : 2.56" (65.00mm)
Mounting Type : Through Hole
Package / Case : Bead, Glass
0
197 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : *
Part Status : Active
Resistance in Ohms @ 25°C : 50k
Resistance Tolerance : ±5%
B Value Tolerance : ±3%
B0/50 : 4143K
B25/50 : 4201K
B25/75 : 4246K
B25/85 : 4263K
B25/100 : 4280K
Operating Temperature : -55°C ~ 300°C
Power - Max : 30mW
Length - Lead Wire : 2.56" (65.00mm)
Mounting Type : Through Hole
Package / Case : Bead, Glass
0
270 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : -
Part Status : Active
Type : -
Voltage - Max : 680V
Current - Max : -
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 400mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -50°C ~ 150°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.748" Dia x 0.354" T (19.00mm x 9.00mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : 0.307" (7.80mm)
0
743 in stock

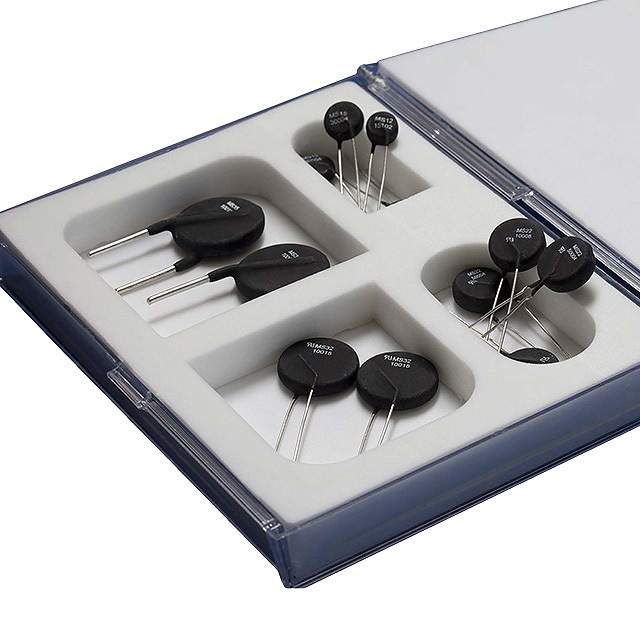

Ametherm
Manufacturer : Ametherm
Packaging : Plastic Box with Bin Guide
Series : MegaSurge™
Part Status : Active
Kit Type : Inrush Current Limiters (ICL)
Kit Contents : 10 pcs - 5 values
0
22 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Plastic Box with Bin Guide
Series : SL
Part Status : Active
Kit Type : Inrush Current Limiters (ICL)
Kit Contents : 16 pcs - 8 values
0
19 in stock

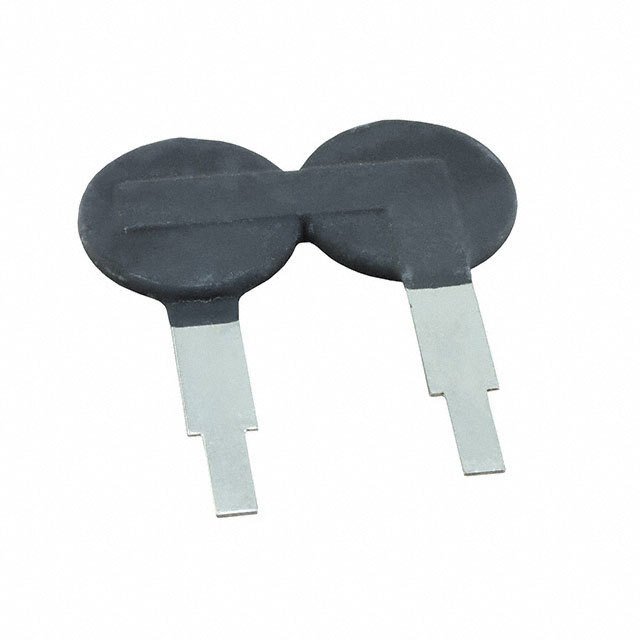

Ametherm
Manufacturer : Ametherm
Packaging : -
Series : MM35
Part Status : Active
R @ 25°C : 200 mOhms
Tolerance : ±25%
Current - Steady State Max : 80A
R @ Current : 0.004 Ohms
Diameter : 2.677" (68.00mm)
Lead Spacing : 1.339" (34.00mm)
Approvals : -
0
31 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : MM35
Part Status : Active
R @ 25°C : 200 mOhms
Tolerance : ±25%
Current - Steady State Max : 80A
R @ Current : 0.004 Ohms
Diameter : 2.677" (68.00mm)
Lead Spacing : 1.339" (34.00mm)
Approvals : -
0
67 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : MM35
Part Status : Active
R @ 25°C : 500 mOhms
Tolerance : ±25%
Current - Steady State Max : 60A
R @ Current : 0.008 Ohms
Diameter : 2.677" (68.00mm)
Lead Spacing : 1.339" (34.00mm)
Approvals : -
0
37 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : MM35
Part Status : Active
R @ 25°C : 500 mOhms
Tolerance : ±25%
Current - Steady State Max : 60A
R @ Current : 0.008 Ohms
Diameter : 2.677" (68.00mm)
Lead Spacing : 1.339" (34.00mm)
Approvals : -
0
41 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : MM35
Part Status : Active
R @ 25°C : 1 Ohms
Tolerance : ±25%
Current - Steady State Max : 50A
R @ Current : 0.001 Ohms
Diameter : 2.677" (68.00mm)
Lead Spacing : 1.339" (34.00mm)
Approvals : -
0
50 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : MM35
Part Status : Active
R @ 25°C : 1 Ohms
Tolerance : ±25%
Current - Steady State Max : 50A
R @ Current : 0.011 Ohms
Diameter : 2.677" (68.00mm)
Lead Spacing : 1.339" (34.00mm)
Approvals : -
0
46 in stock
