Apex Microtechnology

- Apex Microtechnology develops and manufactures precision power analog monolithic, hybrid and open frame components for a wide range of industrial, test and measurement, medical, aerospace and defense applications. These devices are typically used to generate motion control, such as driving piezo electrical devices, and brush and brushless DC motors. With more than 300 catalog “off-the-shelf” products, Apex Microtechnology is a recognized leader for consistently developing products that lead the industry in terms of performance, quality, and reliability. Founded in 1980, Apex Microtechnology was acquired in 2007 by Cirrus Logic, a premier supplier of mixed-signal processing components for audio and energy markets. Following a five-year tenure as a division of the Austin, Texas, based developer of complex chip designs, Apex Microtechnology has returned to a stand-alone, privately-held corporation with its sale to a private investor group. The company is headquartered in Tucson, Ariz., USA.

Part Number
Manufacturer
Description
Unit Price
In Stock

PA99 PA99

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Box
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 1
Output Type : -
Slew Rate : 30 V/µs
Gain Bandwidth Product : 28MHz
-3db Bandwidth : -
Current - Input Bias : 50pA
Voltage - Input Offset : 2mV
Current - Supply : 4mA
Current - Output / Channel : 50mA
Voltage - Supply, Single/Dual (±) : ±100 V ~ 1250 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-DIP
Supplier Device Package : 12-DIP
0
17 in stock

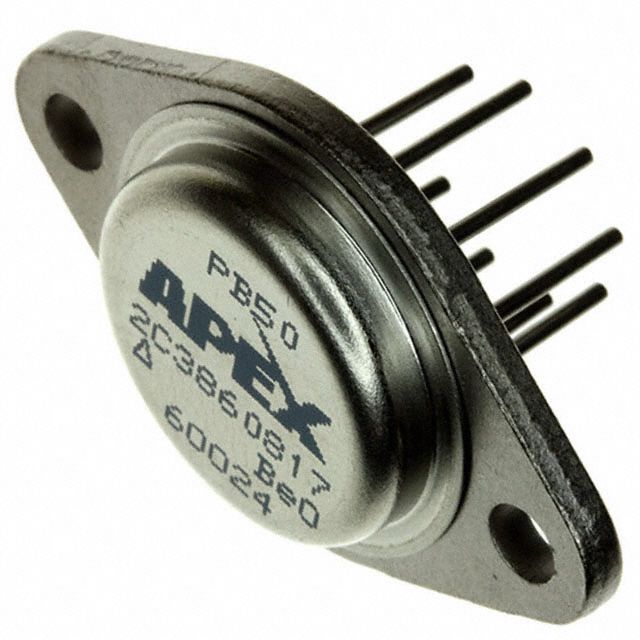

PB50 PB50

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 100 V/µs
Gain Bandwidth Product : -
-3db Bandwidth : 1MHz
Current - Input Bias : -
Voltage - Input Offset : 750mV
Current - Supply : 17mA
Current - Output / Channel : 2A
Voltage - Supply, Single/Dual (±) : 60 V ~ 200 V, ±30 V ~ 100 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
94 in stock

PB51 PB51

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 100 V/µs
Gain Bandwidth Product : -
-3db Bandwidth : 1MHz
Current - Input Bias : -
Voltage - Input Offset : 750mV
Current - Supply : 14mA
Current - Output / Channel : 1.5A
Voltage - Supply, Single/Dual (±) : 30 V ~ 300 V, ±15 V ~ 150 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
10 in stock

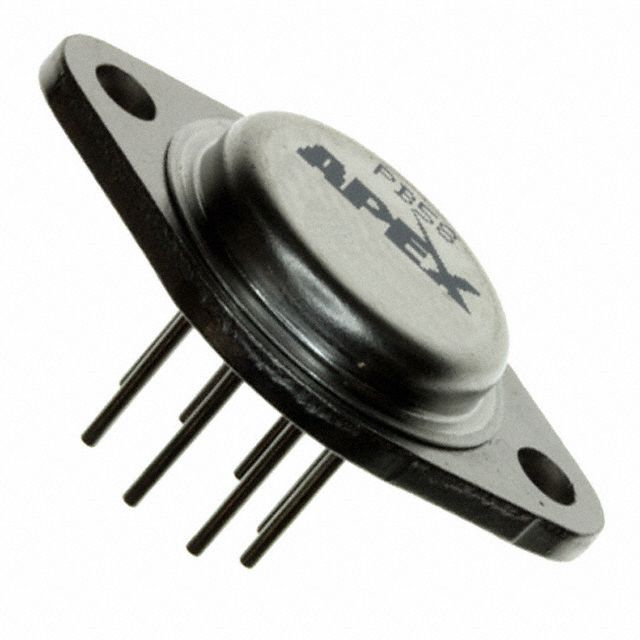

PB58 PB58

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 100 V/µs
Gain Bandwidth Product : -
-3db Bandwidth : 1MHz
Current - Input Bias : -
Voltage - Input Offset : 750mV
Current - Supply : 14mA
Current - Output / Channel : 1.5A
Voltage - Supply, Single/Dual (±) : 30 V ~ 300 V, ±15 V ~ 150 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
113 in stock

PB58A PB58A

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tray
Series : Apex Precision Power®
Part Status : Active
Amplifier Type : Power
Number of Circuits : 1
Output Type : -
Slew Rate : 100 V/µs
Gain Bandwidth Product : -
-3db Bandwidth : 1MHz
Current - Input Bias : -
Voltage - Input Offset : 750mV
Current - Supply : 14mA
Current - Output / Channel : 2A
Voltage - Supply, Single/Dual (±) : 30 V ~ 300 V, ±15 V ~ 150 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-3-8
Supplier Device Package : TO-3-8
0
220 in stock

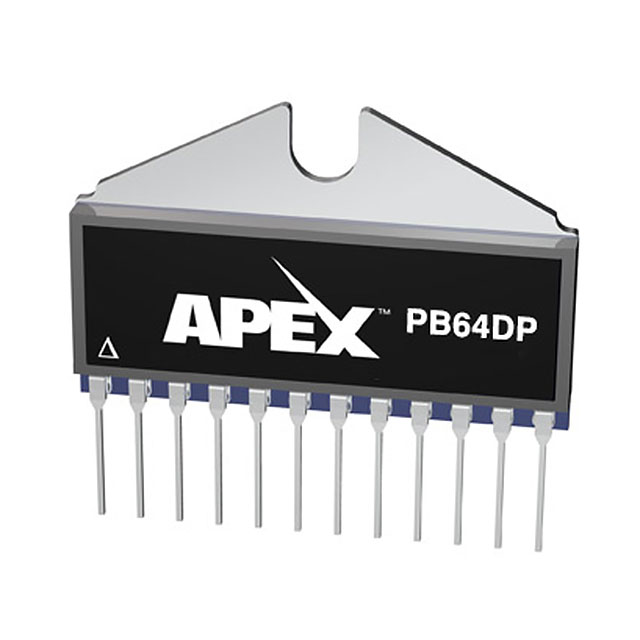

PB64DP PB64DP

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 1
Output Type : -
Slew Rate : 800 V/µs
Gain Bandwidth Product : -
-3db Bandwidth : 600kHz
Current - Input Bias : 25µA
Voltage - Input Offset : 10mV
Current - Supply : 20mA
Current - Output / Channel : 2A
Voltage - Supply, Single/Dual (±) : ±20 V ~ 75 V
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-POWER SIP
0
14 in stock

SA01 SA01

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 250 mOhm LS + HS
Current - Output / Channel : 20A
Current - Peak Output : 30A
Voltage - Supply : 16 V ~ 100 V
Voltage - Load : 16 V ~ 100 V
Operating Temperature : -55°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature
Mounting Type : Through Hole
Package / Case : 10-PowerDIP, Module
Supplier Device Package : 10-PowerDip
0
100 in stock

SA01-4 SA01-4

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : -
Series : *
Part Status : Active
Output Configuration : -
Applications : -
Interface : -
Load Type : -
Technology : -
Rds On (Typ) : -
Current - Output / Channel : -
Current - Peak Output : -
Voltage - Supply : -
Voltage - Load : -
Operating Temperature : -
Features : -
Fault Protection : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock

SA03 SA03

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : DC Motors, Piezo Devices
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 160 mOhm (Max)
Current - Output / Channel : 30A
Current - Peak Output : 40A
Voltage - Supply : 14 V ~ 16 V
Voltage - Load : 16 V ~ 100 V
Operating Temperature : -55°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting
Mounting Type : Through Hole
Package / Case : 12-PowerDIP, Module
Supplier Device Package : 12-PowerDip
0
4 in stock

SA07 SA07

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : DC Motors, General Purpose
Interface : PWM
Load Type : Inductive
Technology : Power MOSFET
Rds On (Typ) : 550 mOhm (Max)
Current - Output / Channel : 5A
Current - Peak Output : 7A
Voltage - Supply : 10 V ~ 16 V
Voltage - Load : 5 V ~ 40 V
Operating Temperature : -55°C ~ 150°C (TJ)
Features : -
Fault Protection : Over Temperature
Mounting Type : Through Hole
Package / Case : 18-DIP Module
Supplier Device Package : 18-DIP
0
100 in stock

SA08 SA08

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : Apex Precision Power®
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : AC Motors, Piezo Devices
Interface : PWM
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 20A
Current - Peak Output : 28A
Voltage - Supply : 14 V ~ 16 V
Voltage - Load : 16 V ~ 450 V
Operating Temperature : -55°C ~ 150°C (TJ)
Features : Status Flag
Fault Protection : Over Temperature
Mounting Type : Through Hole
Package / Case : 12-PowerDIP, Module
Supplier Device Package : 12-PowerDip
0
100 in stock

SA12 SA12

Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (2)
Applications : AC Motors, Piezo Devices
Interface : PWM
Load Type : Inductive, Capacitive
Technology : Power MOSFET
Rds On (Typ) : 400 mOhm (Max)
Current - Output / Channel : 15A
Current - Peak Output : 20A
Voltage - Supply : 14 V ~ 16 V
Voltage - Load : 16 V ~ 200 V
Operating Temperature : -55°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature
Mounting Type : Through Hole
Package / Case : 12-PowerDIP, Module
Supplier Device Package : 12-PowerDip
0
18 in stock
