Welcome to Weijie Semiconductor

Bridgelux

- At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering products that create better environments, experiences and returns—both experiential and financial. From our successful Vero® Series to smart lighting, Bridgelux patented technology drives new platforms for commercial and industrial luminaires.

Part Number
Manufacturer
Description
Unit Price
In Stock

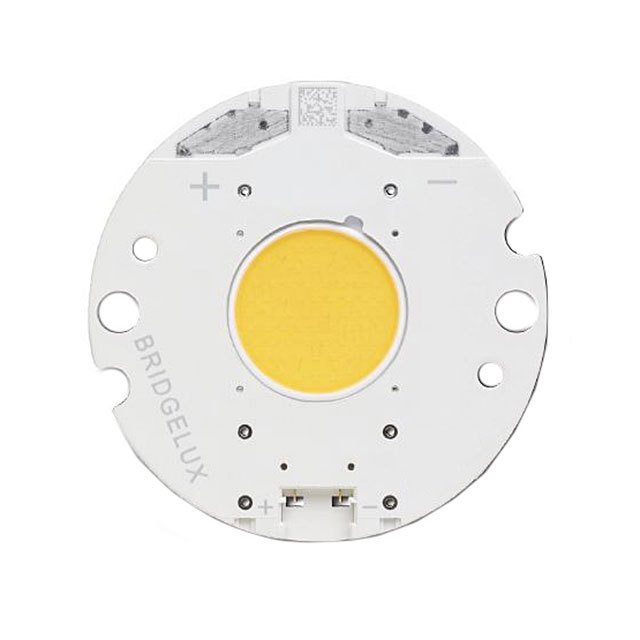

BXRC-50C2001-C-74 BXRC-50C2001-C-74

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Gen 7 Vero® 13 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3475 lm (Typ)
Current - Test : 630mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.1V
Lumens/Watt @ Current - Test : 162 lm/W
Current - Max : 1.26A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 13.20mm Diameter
Lens Type : Flat
0
399 in stock

BXRC-50C2001-C-74-SE BXRC-50C2001-C-74-SE

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® SE 13 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3405 lm (Typ)
Current - Test : 630mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.1V
Lumens/Watt @ Current - Test : 158 lm/W
Current - Max : 1.26A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 36.20mm Diameter
Height : 3.60mm
Light Emitting Surface (LES) : 13.40mm Diameter
Lens Type : Flat
0
83 in stock

BXRC-50C2001-D-74 BXRC-50C2001-D-74

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Gen 7 Vero® 13 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 2528 lm (Typ)
Current - Test : 500mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 30.9V
Lumens/Watt @ Current - Test : 164 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 13.20mm Diameter
Lens Type : Flat
0
200 in stock

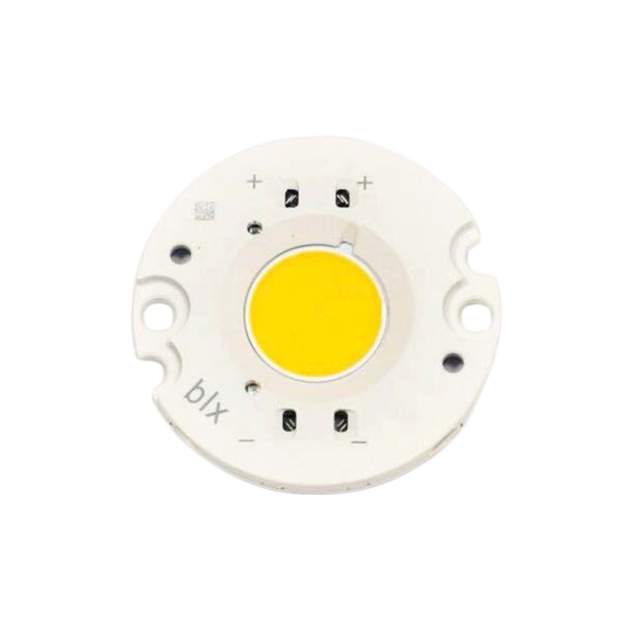

BXRC-50C2001-D-74-SE BXRC-50C2001-D-74-SE

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® SE 13 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 2477 lm (Typ)
Current - Test : 500mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 30.9V
Lumens/Watt @ Current - Test : 160 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 36.20mm Diameter
Height : 3.60mm
Light Emitting Surface (LES) : 13.40mm Diameter
Lens Type : Flat
0
172 in stock

BXRC-50C4000-F-04 BXRC-50C4000-F-04

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : -
Series : Vero® 18 Array
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 4400 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 29.5V
Lumens/Watt @ Current - Test : 142 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
100 in stock

BXRC-50C4000-F-24 BXRC-50C4000-F-24

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® 18 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3898 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 28.6V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
3053 in stock

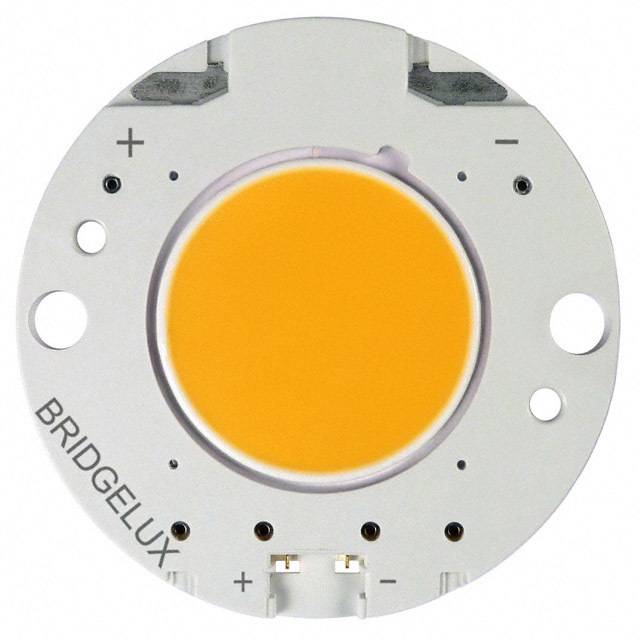

BXRC-50C4000-F-Z4 BXRC-50C4000-F-Z4

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® 18 Array
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3898 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 28.6V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
100 in stock

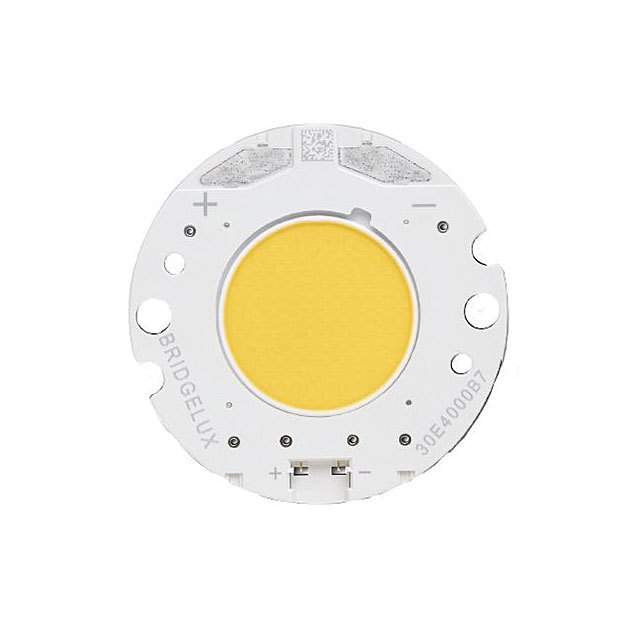

BXRC-50C4001-B-74 BXRC-50C4001-B-74

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Gen 7 Vero® 18 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 4963 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.1V
Lumens/Watt @ Current - Test : 162 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
96 in stock

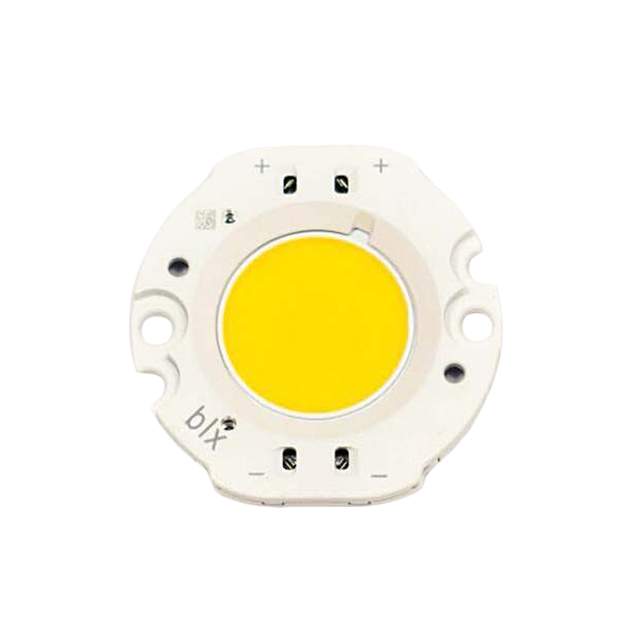

BXRC-50C4001-B-74-SE BXRC-50C4001-B-74-SE

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® SE 18 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 4899 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.1V
Lumens/Watt @ Current - Test : 160 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 36.20mm Diameter
Height : 3.60mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
89 in stock

BXRC-50C4001-C-74 BXRC-50C4001-C-74

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Gen 7 Vero® 18 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 6453 lm (Typ)
Current - Test : 1.17A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.1V
Lumens/Watt @ Current - Test : 162 lm/W
Current - Max : 2.34A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
387 in stock

BXRC-50C4001-C-74-SE BXRC-50C4001-C-74-SE

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® SE 18 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 6370 lm (Typ)
Current - Test : 1.17A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.1V
Lumens/Watt @ Current - Test : 160 lm/W
Current - Max : 2.34A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 36.20mm Diameter
Height : 3.60mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
183 in stock

BXRC-50C4001-D-74 BXRC-50C4001-D-74

Bridgelux, Inc.
Manufacturer : Bridgelux
Packaging : Tray
Series : Gen 7 Vero® 18 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 4826 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 28.3V
Lumens/Watt @ Current - Test : 162 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
0
140 in stock
