Comair Rotron
Since its beginning in 1947, Comair Rotron has been the leading supplier of standard and value-added fans and blowers for a broad range of markets including electronics, computers, telecommunications and HVAC. In December of 2014, Ammon & Rizos a manufacturers rep company purchased Comair Rotron from Gentherm. Ammon & Rizos has represented Comair since 1954 and has offices in the US, Mexico and Brazil. Our Comair Rotron Shanghai operation is a state of the art fan and blower manufacturing facility.
Comair Rotron Shanghai is currently producing a wide range of DC fans and blowers with a standard range of 5 to 48 volts DC and 115 or 230 volts AC, supplying 5 to 1070+ cfm and sizes from 40 mm to 281 mm.
Comair Rotron has developed many new Air Moving solutions and is always open to new challenges and opportunities.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comair Rotron

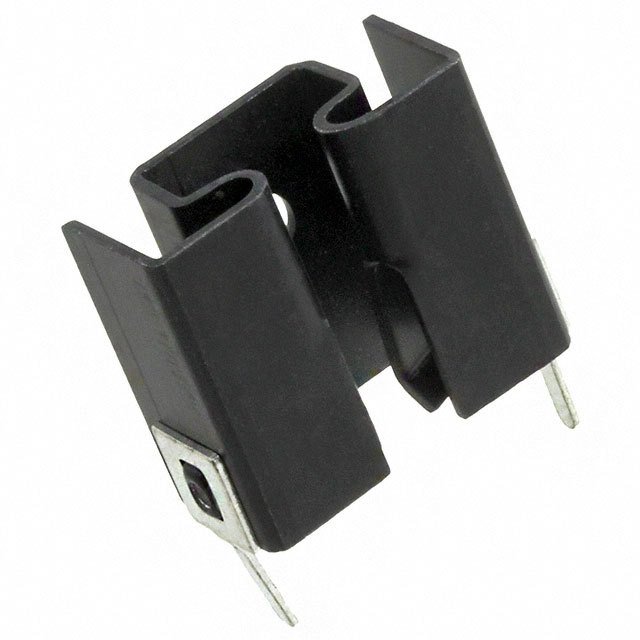

Manufacturer : Comair Rotron
Series : -
Part Status : Obsolete
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.835" (21.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 12.00°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
924 in stock
Comair Rotron

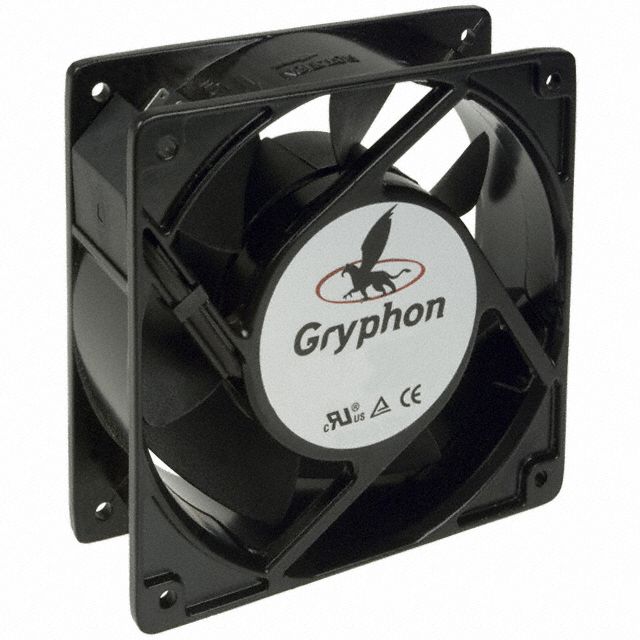

Manufacturer : Comair Rotron
Series : Gryphon
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 111.0 CFM (3.11m鲁/min)
Static Pressure : 0.370 in H2O (92.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB(A)
Power (Watts) : 24.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
100 in stock
Comair Rotron
Manufacturer : Comair Rotron
Series : Gryphon
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 111.0 CFM (3.11m鲁/min)
Static Pressure : 0.370 in H2O (92.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB(A)
Power (Watts) : 10.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)
0
100 in stock
Comair Rotron

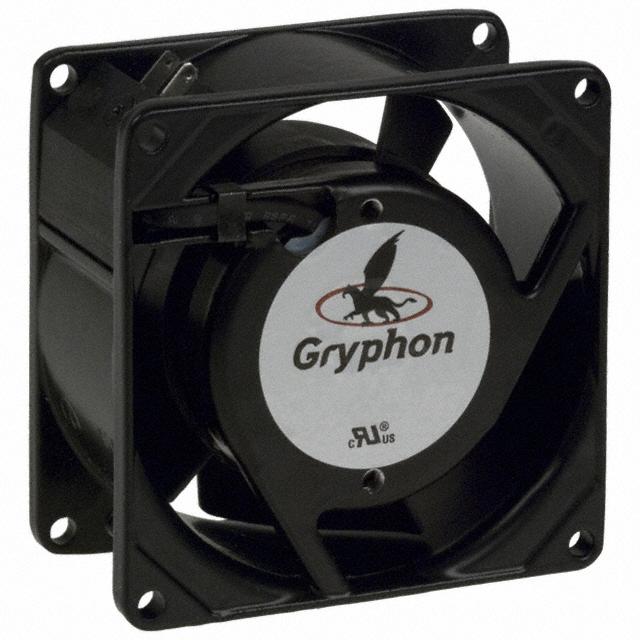

Manufacturer : Comair Rotron
Series : Gryphon
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 29.0 CFM (0.812m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB(A)
Power (Watts) : 14.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.75 lb (340.19g)
0
100 in stock
Comair Rotron

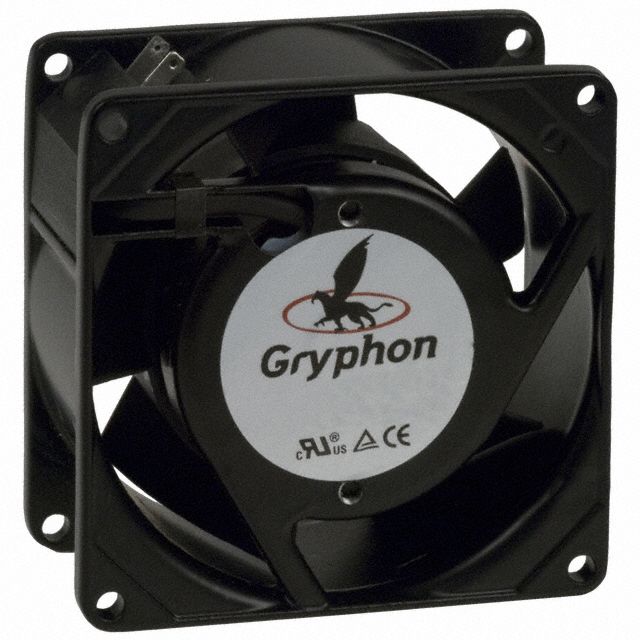

Manufacturer : Comair Rotron
Series : Gryphon
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 29.0 CFM (0.812m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB(A)
Power (Watts) : 10.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.75 lb (340.19g)
0
100 in stock
