Curtis Industries

- Curtis Industries/Tri-Mag is a quality-driven manufacturer of terminal blocks, EMI filters, power supplies, and DC-DC converters. Terminal block designs include barrier style and European style designs to address both panel and PCB applications. EMI/RFI filter designs include configurations for noise reduction on single-phase, three-phase, and DC power lines. Curtis Industries/Tri-Mag's Filter Networks Division offers Mil-Spec EMI filter products. Modifications and custom solutions for moldings, filters, or power supplies are made available through their talented and innovative engineering resources.

Part Number
Manufacturer
Description
Unit Price
In Stock

06ERM1 06ERM1

Curtis Industries
Manufacturer : Curtis Industries
Packaging : Bulk
Series : ER
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 6A
Voltage - IEC : 250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : -
Features : -
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Rectangular - 32.98mm x 23.11mm
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE
0
100 in stock

06HB11 06HB11

Curtis Industries
Manufacturer : Curtis Industries
Series : HB, Curtis Industries/PREO
Part Status : Obsolete
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 6A
Frequency - Operating : 50/60Hz
Applications : Medical
Approvals : CSA, UR, VDE
Operating Temperature : -
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Inductance : -
0
100 in stock

06HB33 06HB33

Curtis Industries
Manufacturer : Curtis Industries
Series : HB, Curtis Industries/PREO
Part Status : Obsolete
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 6A
Frequency - Operating : 50/60Hz
Applications : Medical
Approvals : CSA, UR, VDE
Operating Temperature : -
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Inductance : -
0
100 in stock

06HBM1 06HBM1

Curtis Industries
Manufacturer : Curtis Industries
Packaging : Bulk
Series : HB
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 6A
Voltage - IEC : 250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : -
Features : Front or Rear Side Mount
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Variable Size
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE
0
100 in stock

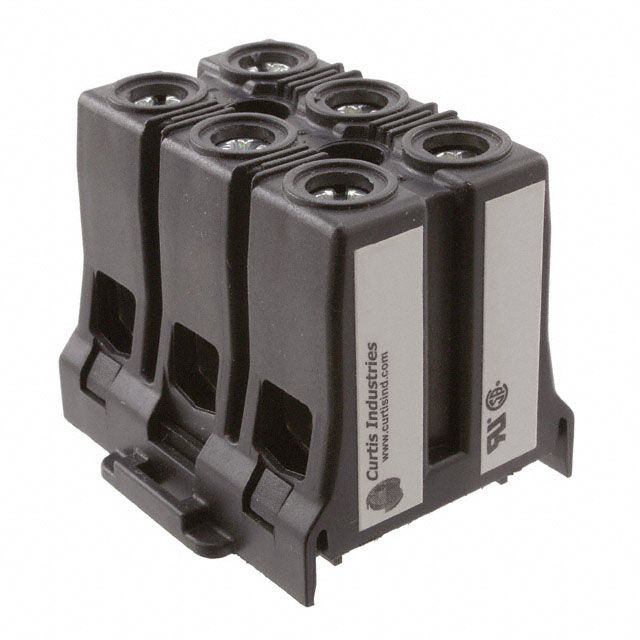

071023000 071023000

Curtis Industries
Manufacturer : Curtis Industries
Packaging : Bulk
Series : 71000
Part Status : Active
Terminal Block Type : Barrier Block
Number of Circuits : 3
Number of Wire Entries : 6
Pitch : 0.629" (15.98mm)
Number of Rows : 2
Current Rating : 50A, 86A
Voltage Rating : 600V
Wire Gauge : 1-22 AWG
Top Termination : Screws
Bottom Termination : Closed
Barrier Type : Enclosed
Features : -
Color : -
0
89 in stock

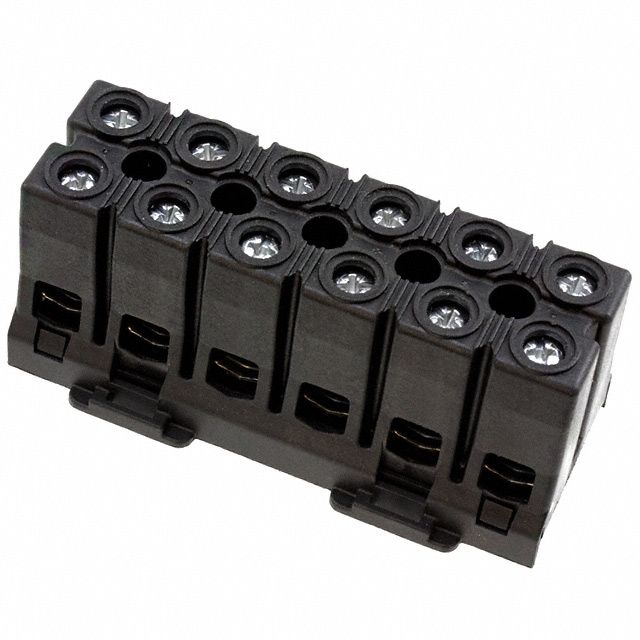

071026000 071026000

Curtis Industries
Manufacturer : Curtis Industries
Packaging : Bulk
Series : 71000
Part Status : Active
Terminal Block Type : Barrier Block
Number of Circuits : 6
Number of Wire Entries : 12
Pitch : 0.629" (15.98mm)
Number of Rows : 2
Current Rating : 50A, 86A
Voltage Rating : 600V
Wire Gauge : 1-22 AWG
Top Termination : Screws
Bottom Termination : Closed
Barrier Type : Enclosed
Features : -
Color : -
0
716 in stock

10EB11 10EB11

Curtis Industries
Manufacturer : Curtis Industries
Series : EB, Curtis Industries/PREO
Part Status : Obsolete
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 10A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect
Inductance : -
0
100 in stock

10EB33 10EB33

Curtis Industries
Manufacturer : Curtis Industries
Series : EB, Curtis Industries/PREO
Part Status : Obsolete
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 10A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Inductance : -
0
100 in stock

10EB66 10EB66

Curtis Industries
Manufacturer : Curtis Industries
Series : EB, Curtis Industries/PREO
Part Status : Obsolete
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 10A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect
Inductance : -
0
100 in stock

10EBM1 10EBM1

Curtis Industries
Manufacturer : Curtis Industries
Packaging : Bulk
Series : EB
Part Status : Obsolete
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades
Current - IEC : 10A
Voltage - IEC : 250VAC
Current - UL : -
Voltage - UL : -
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : No
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : -
Features : Front or Rear Side Mount
Fuse Holder, Drawer : -
Panel Cutout Dimensions : Variable Size
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : CSA, UL, VDE
0
100 in stock

10EK11 10EK11

Curtis Industries
Manufacturer : Curtis Industries
Series : EK, Curtis Industries/PREO
Part Status : Obsolete
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 10A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect
Inductance : -
0
100 in stock

10EK33 10EK33

Curtis Industries
Manufacturer : Curtis Industries
Series : EK, Curtis Industries/PREO
Part Status : Obsolete
Filter Type : Single Phase
Configuration : Single Stage
Voltage - Rated DC : -
Voltage - Rated AC : 250V
Voltage - Rated AC (Phase to Ground/Neutral) : -
Voltage - Rated AC (Phase to Phase) : -
Current : 10A
Frequency - Operating : 50/60Hz
Applications : General Purpose
Approvals : CSA, UR, VDE
Operating Temperature : -
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Inductance : -
0
100 in stock
