EPCOS
- TDK Corporation is one of the world's leading manufacturers of electronic components and systems. TDK's portfolio includes passive components, such as ceramic, aluminum electrolytic and film capacitors, ferrites and inductors, high-frequency products, and piezo and protection components, as well as sensors and sensor systems. These products are marketed under the product brands TDK, EPCOS, InvenSense, Micronas, and Tronics. TDK focuses on demanding markets in the areas of information and communication technology and automotive, industrial and consumer electronics.
Part Number
Manufacturer
Description
Unit Price
In Stock

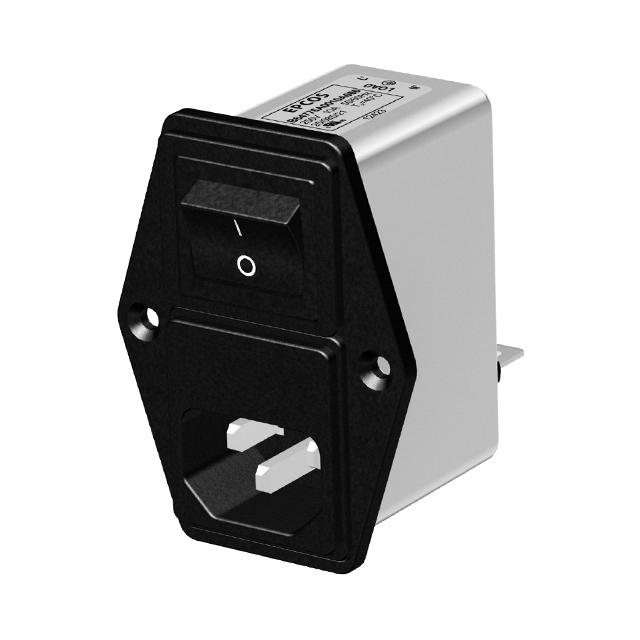

EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : B84776
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades - Module
Current - IEC : 10A
Voltage - IEC : 250VAC/DC
Current - UL : 10A
Voltage - UL : 250VAC
Filter Type : Filtered (EMI, RFI) - Commercial, Medical
Fuse : Yes
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : Switch On-Off
Features : Front or Rear Side Mount
Fuse Holder, Drawer : Fuse Holder
Panel Cutout Dimensions : Variable Size
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : cUL, ENEC, UL
0
173 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : B84776
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades - Module
Current - IEC : 2A
Voltage - IEC : 250VAC/DC
Current - UL : 2A
Voltage - UL : 250VAC
Filter Type : Filtered (EMI, RFI) - Commercial, Medical
Fuse : Yes
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : Switch On-Off
Features : Front or Rear Side Mount
Fuse Holder, Drawer : Fuse Holder
Panel Cutout Dimensions : Variable Size
Panel Thickness : -
Material Flammability Rating : -
Ingress Protection : -
Approvals : cUL, ENEC, UL
0
2 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B85121
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 600V
Current : 63A
DC Resistance (DCR) (Max) : -
Operating Temperature : -40°C ~ 85°C
Insertion Loss : 90dB @ 100MHz
Temperature Coefficient : -
Ratings : -
Mounting Type : -
Package / Case : Axial - Threaded Terminals
Size / Dimension : 2.165" Dia x 2.362" L (55.00mm x 60.00mm)
Height (Max) : -
Thread Size : M6
0
16 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B85321
Part Status : Active
Type : Low Pass
Filter Order : -
Technology : -
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 60dB @ 1MHz
Resistance - Channel (Ohms) : -
Current : 100A
Values : C = 1µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Axial - Threaded Terminals
Size / Dimension : -
Height : -
0
8 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B85321
Part Status : Active
Type : Low Pass
Filter Order : -
Technology : -
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 90dB @ 10MHz
Resistance - Channel (Ohms) : -
Current : 25A
Values : C = 1µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 500V
Mounting Type : Through Hole
Package / Case : Axial - Threaded Terminals
Size / Dimension : -
Height : -
0
17 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : -
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage - Rated : -
Current : -
DC Resistance (DCR) (Max) : -
Operating Temperature : -
Insertion Loss : -
Temperature Coefficient : -
Ratings : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height (Max) : -
Thread Size : -
0
6 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : B85321
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 60dB @ 1MHz
Resistance - Channel (Ohms) : -
Current : 63A
Values : C = 1µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : -
Height : -
0
8 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : -
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage - Rated : -
Current : -
DC Resistance (DCR) (Max) : -
Operating Temperature : -
Insertion Loss : -
Temperature Coefficient : -
Ratings : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height (Max) : -
Thread Size : -
0
100 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B85321
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 100dB @ 100MHz ~ 1GHz
Resistance - Channel (Ohms) : -
Current : 30A
Values : C = 0.018µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Axial - Threaded Terminals
Size / Dimension : -
Height : -
0
100 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : B85321
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 70dB @ 1MHz
Resistance - Channel (Ohms) : -
Current : 63A
Values : C = 2µF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 2.165" Dia x 4.528" L (55.00mm x 115.00mm)
Height : -
0
100 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B85321
Part Status : Active
Type : Low Pass
Filter Order : -
Technology : -
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 10MHz
Resistance - Channel (Ohms) : -
Current : 16A
Values : C = 2500pF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Axial - Threaded Terminals
Size / Dimension : -
Height : -
0
1342 in stock
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : -
Series : B85321
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 10MHz
Resistance - Channel (Ohms) : -
Current : 16A
Values : C = 2500pF
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 250VAC
Mounting Type : Through Hole
Package / Case : Axial - Threaded Terminals
Size / Dimension : 0.630" Dia x 2.362" L (16.00mm x 60.00mm)
Height : -
0
27 in stock
