Epson

- Epson integrates American marketing, sales, and engineering expertise with Japanese manufacturing prowess to bring a "best-of-class" level of service to our customers. Epson's proximity to leaders in the high-tech industry, easy access to the developmental resources of Epson Research and Development, and the ability to tap into the resources of America's leading universities allows EEA to offer products and solutions that are tailored to meet the requirements of leading-edge systems customers quickly and effectively. Epson's sophisticated business operation systems and flexible business practices help our customers lower their cost of procurement, inventory holding, and inventory obsolescence, thereby contributing significantly to the reduction in the overall cost of materials during the life of their products.

Part Number
Manufacturer
Description
Unit Price
In Stock

SGR-8002JF-PTC SGR-8002JF-PTC

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 125MHz
Function : Enable/Disable
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-PTM SGR-8002JF-PTM

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 40MHz
Function : Enable/Disable
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -40°C ~ 85°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-SCB SGR-8002JF-SCB

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 125MHz
Function : Standby
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 28mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-SCC SGR-8002JF-SCC

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 125MHz
Function : Standby
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 28mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-SCM SGR-8002JF-SCM

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 125MHz
Function : Standby
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -40°C ~ 85°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 28mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

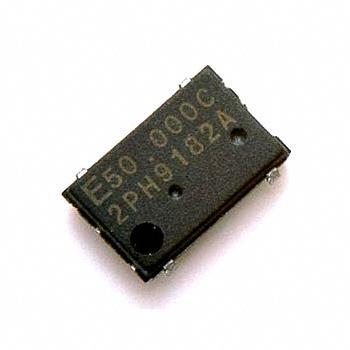

SGR-8002JF-SHB SGR-8002JF-SHB

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 125MHz
Function : Standby
Output : CMOS
Voltage - Supply : 5V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-SHC SGR-8002JF-SHC

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 125MHz
Function : Standby
Output : CMOS
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-SHM SGR-8002JF-SHM

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 40MHz
Function : Standby
Output : CMOS
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -40°C ~ 85°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-STB SGR-8002JF-STB

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 125MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-STC SGR-8002JF-STC

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 125MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

SGR-8002JF-STM SGR-8002JF-STM

Epson
Manufacturer : EPSON
Packaging : Tube
Series : SG-8002
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 40MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -40°C ~ 85°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 5.08mm pitch
Size / Dimension : 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height : 0.059" (1.50mm)
0
100 in stock

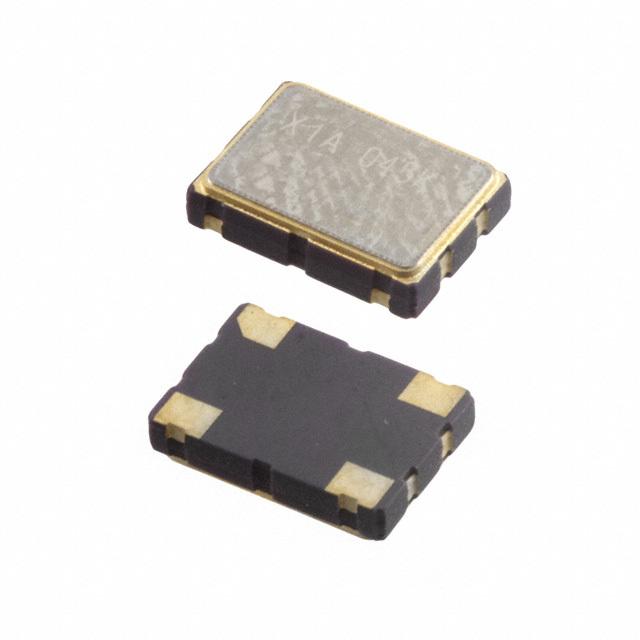

TCO-7086X1A4 75.0000M3 TCO-7086X1A4 75.0000M3

Epson
Manufacturer : EPSON
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TCO-708x
Part Status : Not For New Designs
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 75MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 20mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.071" (1.80mm)
0
250 in stock
