Ethertronics

- Ethertronics is a leading provider of embedded antenna solutions for wideband and multi-band wireless devices. Ethertronics’ leading-edge product lines, including Prestta™ stamped metal, Savvi™ ceramic, and Tavvel™ active antennas support a wide range of wireless applications including cellular, M2M, LTE, UMTS, WiFi, WiMAX, Bluetooth, GPS, FM, MediaFLO, Analog Mobile TV, CMMB, ISDB-T, and DVB-H/T among others.

Ethertronics’ embedded antenna solutions are designed using the company’s patented Isolated Magnetic Dipole (IMDTM) technology, enabling Ethertronics to confine the electromagnetic currents on the antenna element to deliver higher isolation. With higher isolation, Ethertronics’ technology delivers a powerful combination of maximizing network coverage, shrinking antenna size and lowering emissions. These benefits significantly reduce time-to-market and design risks for Ethertronics’ customers, while improving connectivity, battery life and data rates for end-users. Ethertronics’ antennas have been selected by major customers worldwide garnering an installed base of over 250 million units.

Headquartered in San Diego, Ethertronics’ global footprint of design centers and high-volume, ISO-certified manufacturing facilities span from the United States to China, Korea, Europe and Taiwan. The company’s award-winning technology has secured more than 50 patents.

Part Number
Manufacturer
Description
Unit Price
In Stock

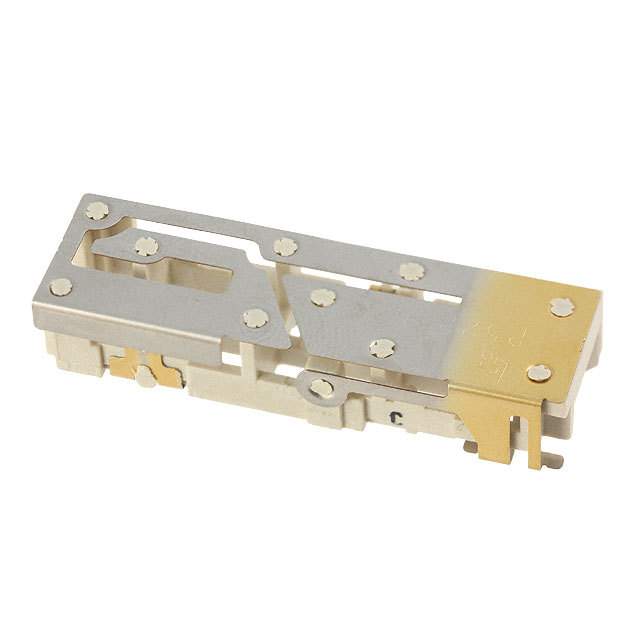

P522303 P522303

Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Tray
Series : Prestta™
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Stamped Metal
Number of Bands : 5
VSWR : 2.5
Return Loss : -
Gain : 1.4dBi, 1.2dBi, 2.7dBi, 2.6dBi, 2.8dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.319" (8.10mm)
Applications : CDMA, DCS, GSM, PCS, UMTS, WCDMA
0
5748 in stock

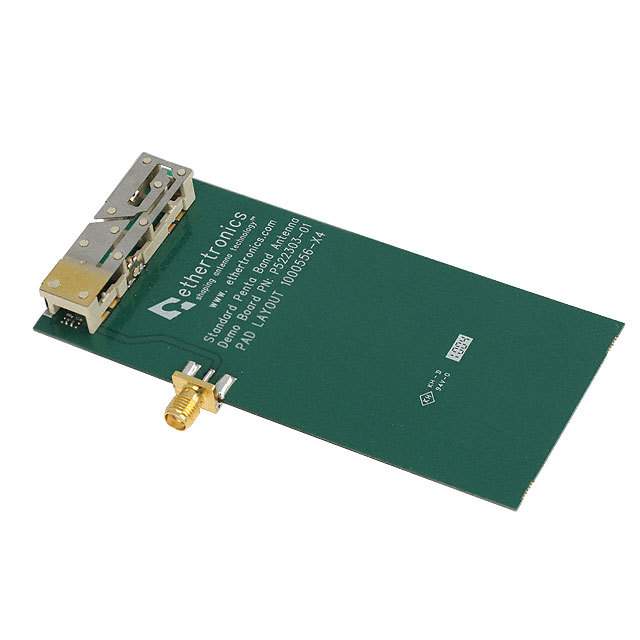

P522303-01 P522303-01

Ethertronics
Manufacturer : Ethertronics/AVX
Series : -
Part Status : Obsolete
Type : Antenna
Frequency : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
For Use With/Related Products : P522303
Supplied Contents : Board(s)
0
100 in stock

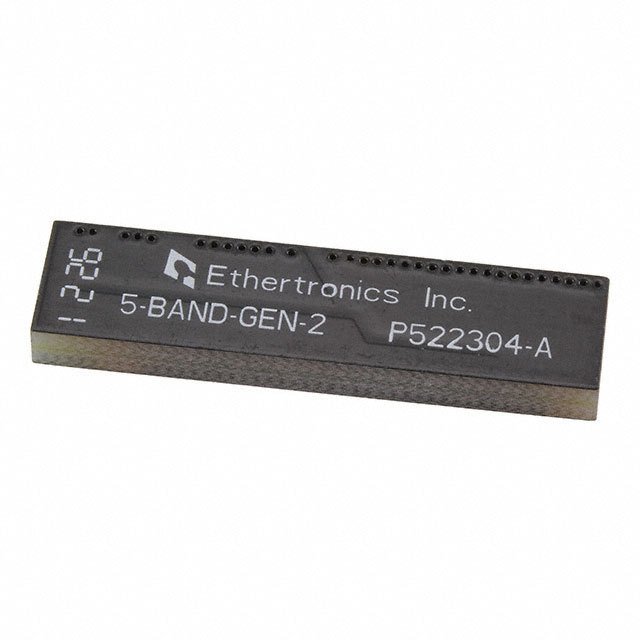

P522304 P522304

Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 5
VSWR : 2.5
Return Loss : -
Gain : 1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.126" (3.20mm)
Applications : CDMA, DCS, GSM, PCS, UMTS, WCDMA
0
13713 in stock

P522304-02 P522304-02

Ethertronics
Manufacturer : Ethertronics/AVX
Series : Prestta™
Part Status : Active
Type : Antenna
Frequency : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
For Use With/Related Products : P522304
Supplied Contents : Board(s)
0
17 in stock

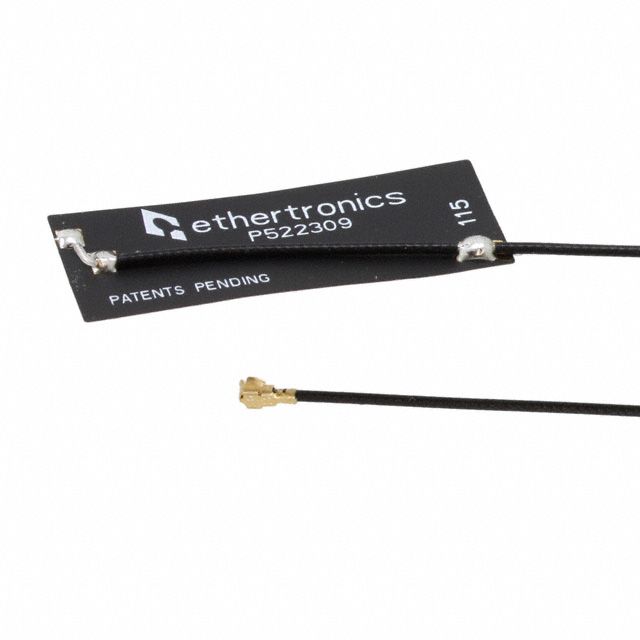

P522309 P522309

Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Flat Patch
Number of Bands : 5
VSWR : 3
Return Loss : -
Gain : 2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi
Power - Max : 2W
Features : -
Termination : Cable (100mm) - U.FL
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.049" (1.25mm)
Applications : CDMA, DCS, GSM, PCS, UMTS, WCDMA
0
4 in stock

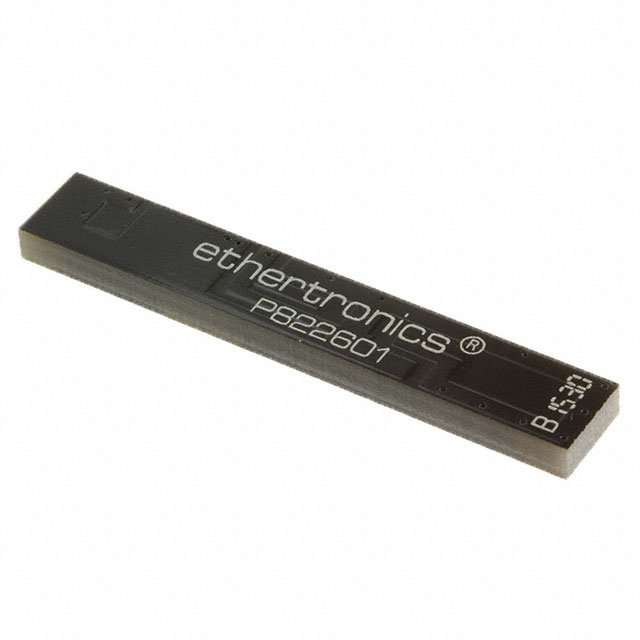

P822601 P822601

Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz
Frequency Range : 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Antenna Type : Flat Bar
Number of Bands : 8
VSWR : 2.5
Return Loss : -
Gain : 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.126" (3.20mm)
Applications : CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
0
35 in stock

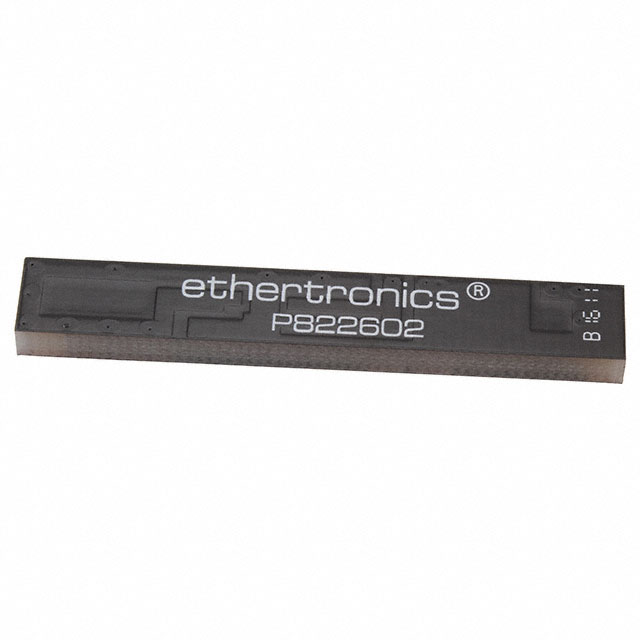

P822602 P822602

Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz
Frequency Range : 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Antenna Type : Flat Bar
Number of Bands : 8
VSWR : 2.5
Return Loss : -
Gain : 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.126" (3.20mm)
Applications : CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
0
6854 in stock
