Grayhill, Inc.
- Grayhill, Inc. is a leading manufacturer of electronic components including, optical and mechanical encoders, rotary switches, joysticks, surface mount and thru-hole DIP switches, rotary DIP switches, toggle switches, standard & custom keypads, custom operator interface front panels, I/O modules, and mounting racks.
Part Number
Manufacturer
Description
Unit Price
In Stock

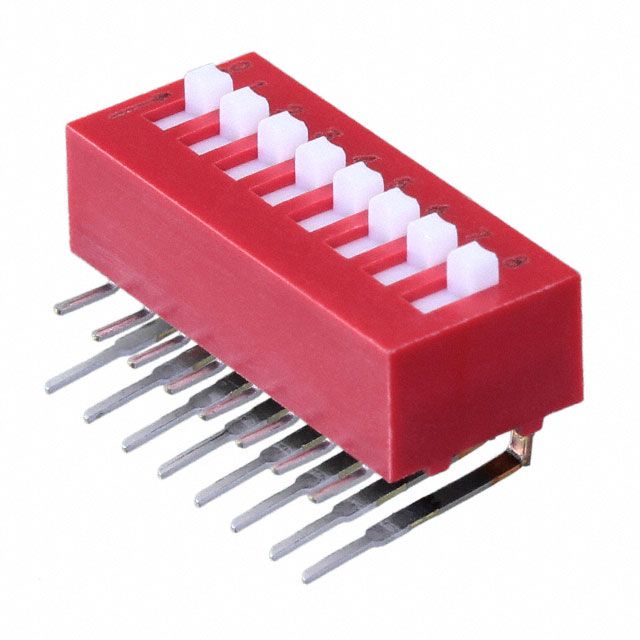

Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.380" (9.64mm)
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : -
Operating Temperature : -40°C ~ 85°C
0
78 in stock

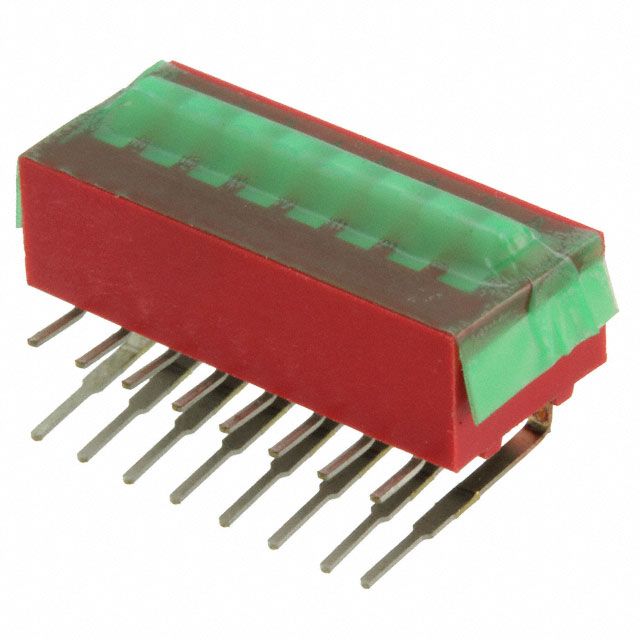

Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.380" (9.64mm)
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
3534 in stock
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.315" (8.00mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
7014 in stock

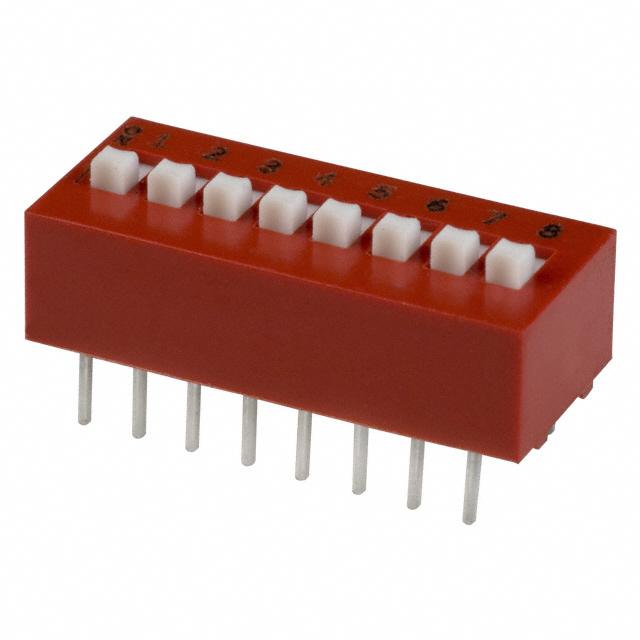

Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.315" (8.00mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : -
Operating Temperature : -40°C ~ 85°C
0
4732 in stock
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 9
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.315" (8.00mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
460 in stock

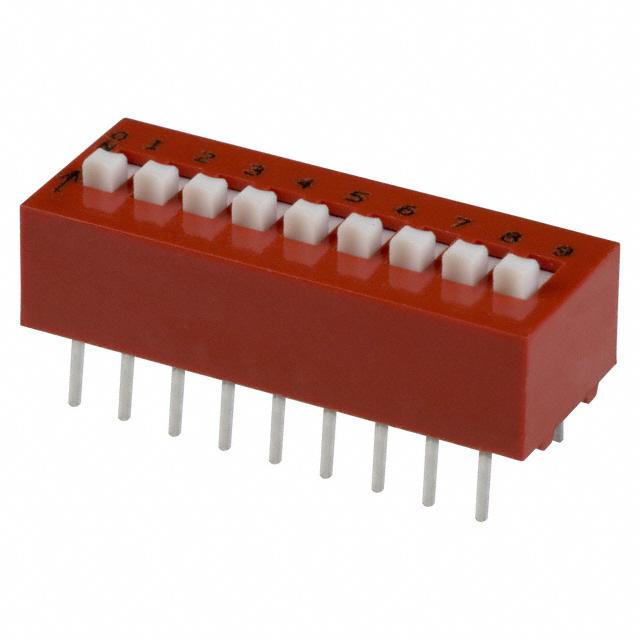

Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 9
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.315" (8.00mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : -
Operating Temperature : -40°C ~ 85°C
0
237 in stock

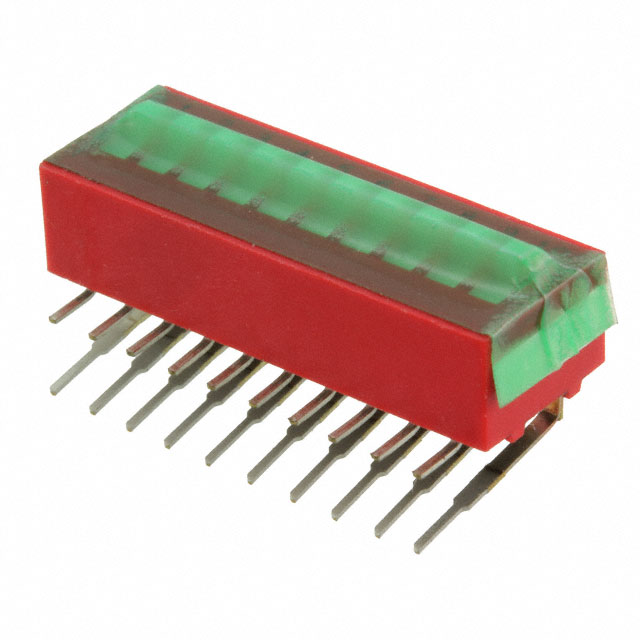

Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 10
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.380" (9.64mm)
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
33 in stock
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 10
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.315" (8.00mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
18661 in stock

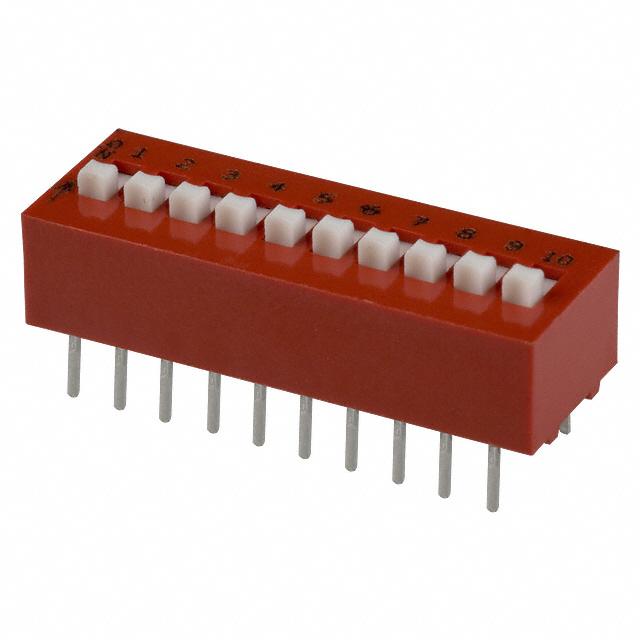

Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 10
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.315" (8.00mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : -
Operating Temperature : -40°C ~ 85°C
0
3624 in stock

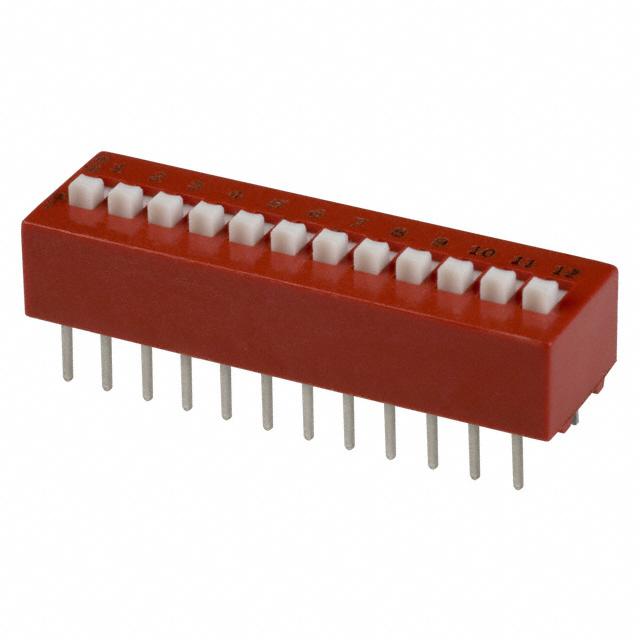

Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 12
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.315" (8.00mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Tape Seal
Operating Temperature : -40°C ~ 85°C
0
2683 in stock
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Packaging : Tube
Series : 78
Part Status : Active
Circuit : SPST
Number of Positions : 12
Current Rating : 150mA
Voltage Rating : 30VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Copper Alloy
Contact Finish : Gold
Height Above Board : 0.315" (8.00mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : -
Operating Temperature : -40°C ~ 85°C
0
197 in stock
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : *
Part Status : Active
Switch Type : -
Shape : -
Color : -
Illumination : -
For Use With/Related Products : -
Mounting Type : -
Size : -
0
100 in stock
