Hammond Manufacturing
- Hammond Manufacturing Co. is a manufacturer of a wide range of standard electronic enclosures and transformers, since 1917. The Electronics Group manufactures general purpose, hand-held and instrument enclosures in plastic (either economical styrene or high impact, flame retardant ABS), aluminum, die-cast aluminum and steel. A complete line of chassis and accessories is also offered.
Part Number
Manufacturer
Description
Unit Price
In Stock

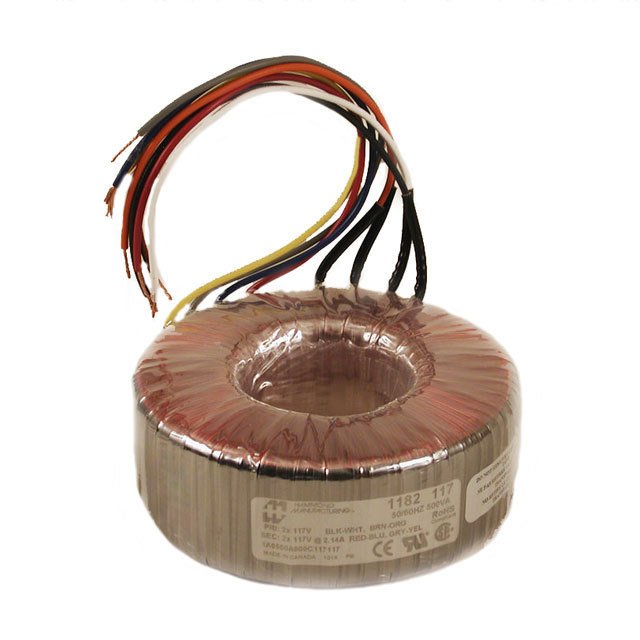

Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 2.04A, Series 1.02A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 225 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 114.30mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 4.7 lbs (2.1kg)
0
4 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 1.92A, Series 960mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 225 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 114.30mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 4.7 lbs (2.1kg)
0
5 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 1.5 lbs (680.4g)
0
8 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 4.44A, Series 2.22A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
0
8 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 22V, Series 44V
Current - Output (Max) : Parallel 3.64A, Series 1.82A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
0
6 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 2.08A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
0
4 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
7 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 5A, Series 2.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 76.20mm Dia
Height - Seated (Max) : 31.75mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
0
9 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 5A, Series 2.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 300 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 127.00mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 6 lbs (2.7kg)
0
5 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 2.72A, Series 1.36A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 300 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 127.00mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 6 lbs (2.7kg)
0
5 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 2.56A, Series 1.28A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 300 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 127.00mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 6 lbs (2.7kg)
0
4 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
0
7 in stock
