On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics.
Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.
Part Number
Manufacturer
Description
Unit Price
In Stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9.5 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1996pF @ 10V
FET Feature : -
Power Dissipation (Max) : 90W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 55V
Current - Continuous Drain (Id) @ 25°C : 31A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 60 mOhm @ 16A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 63nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1200pF @ 25V
FET Feature : -
Power Dissipation (Max) : 3.8W (Ta), 110W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 33A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 31 mOhm @ 18A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 29nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 750pF @ 25V
FET Feature : -
Power Dissipation (Max) : 57W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 55V
Current - Continuous Drain (Id) @ 25°C : 27A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 45 mOhm @ 16A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 34nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 700pF @ 25V
FET Feature : -
Power Dissipation (Max) : 68W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock

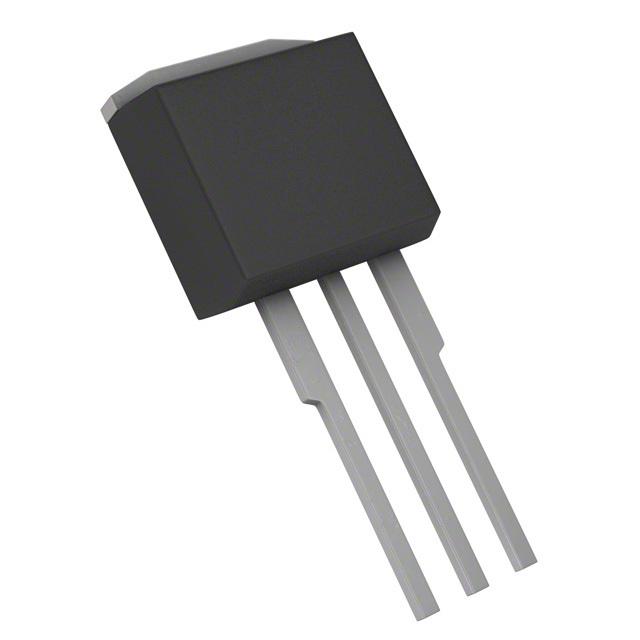

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 140A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6 mOhm @ 71A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 140nC @ 4.5V
Vgs (Max) : ±16V
Input Capacitance (Ciss) (Max) @ Vds : 5000pF @ 25V
FET Feature : -
Power Dissipation (Max) : 3.8W (Ta), 200W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-262
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 55V
Current - Continuous Drain (Id) @ 25°C : 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 11 mOhm @ 43A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 120nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3210pF @ 25V
FET Feature : -
Power Dissipation (Max) : 180W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : -
Series : -
Part Status : Obsolete
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT, N-Channel MOSFET
Voltage - Supply : 10 V ~ 20 V
Logic Voltage - VIL, VIH : 0.8V, 2.2V
Current - Peak Output (Source, Sink) : 250mA, 500mA
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 80ns, 35ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 44-LCC (J-Lead), 32 Leads
Supplier Device Package : 44-PLCC, 32 Leads (16.58x16.58)
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
Driven Configuration : High-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel MOSFET
Voltage - Supply : 10 V ~ 20 V
Logic Voltage - VIL, VIH : 6V, 9.5V
Current - Peak Output (Source, Sink) : 250mA, 500mA
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 80ns, 40ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
Driven Configuration : High-Side or Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel MOSFET
Voltage - Supply : 12 V ~ 20 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 250mA, 500mA
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 80ns, 40ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock

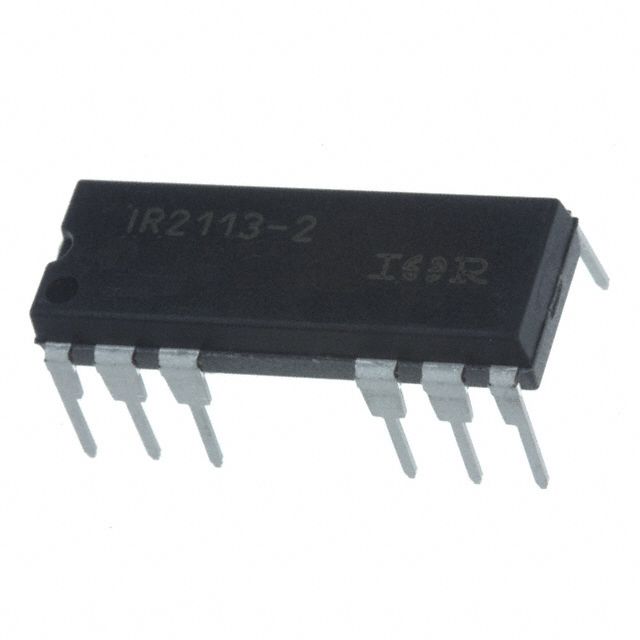

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
Driven Configuration : Half-Bridge
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel MOSFET
Voltage - Supply : 3.3 V ~ 20 V
Logic Voltage - VIL, VIH : 6V, 9.5V
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 25ns, 17ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm), 14 Leads
Supplier Device Package : 16-PDIP
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : -
Series : *
Part Status : Obsolete
Type : -
Frequency : -
Voltage - Supply : -
Current - Supply : -
Current - Output Source/Sink : -
Dimming : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
