IXYS Corporation
- IXYS Corporation/Littelfuse has gained a worldwide reputation as a premier power semiconductor manufacturer. Its diversified product base of specialized power semiconductors, integrated circuits and RF power include low on-resistance Power MOSFETs, Ultra Fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs for applications ranging across industrial, transportation, telecommunications, computer, medical, consumer and clean tech markets.
With the acquisition of IXYS, Littelfuse significantly expands the breadth of its power semiconductor portfolio, with solutions spanning a full range of technologies. This diverse portfolio will provide customers with the best technology and enhanced, differentiated capabilities in target markets and geographies as well as deliver greater industry access and increased growth opportunities.
Part Number
Manufacturer
Description
Unit Price
In Stock

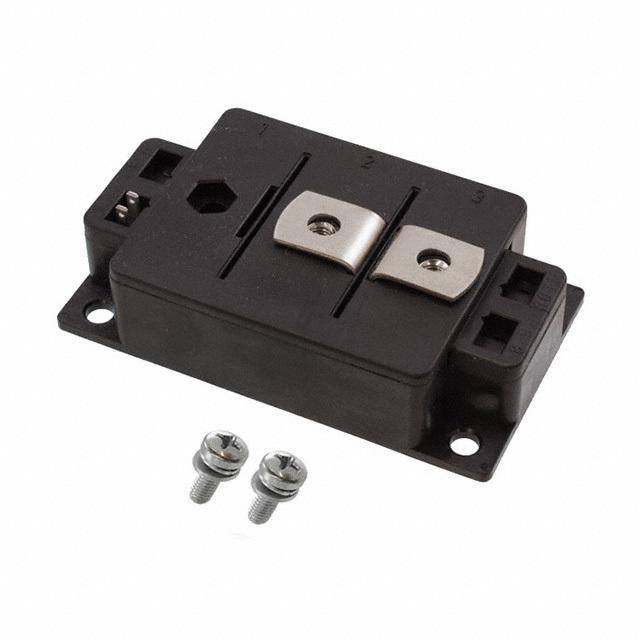

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : HiPerFET™
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 590A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 2.1 mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id : 6V @ 110mA
Gate Charge (Qg) (Max) @ Vgs : 2000nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50000pF @ 25V
FET Feature : -
Power Dissipation (Max) : 2200W (Tc)
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Supplier Device Package : Y3-DCB
Package / Case : Y3-DCB
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : HiPerFET™
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 580A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 3.8 mOhm @ 430A, 10V
Vgs(th) (Max) @ Id : 4V @ 50mA
Gate Charge (Qg) (Max) @ Vgs : 2750nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Supplier Device Package : Y3-Li
Package / Case : Y3-Li
0
31 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : HiPerFET™
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 690A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.8 mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id : 6V @ 130mA
Gate Charge (Qg) (Max) @ Vgs : 2300nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 59000pF @ 25V
FET Feature : -
Power Dissipation (Max) : 2500W (Tc)
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Supplier Device Package : Y3-DCB
Package / Case : Y3-DCB
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : Chassis Mount
Supplier Device Package : ECO-PAC2
Package / Case : ECO-PAC2
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, 3-Phase - All SCRs
Number of SCRs, Diodes : 6 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 110A
Current - On State (It (RMS)) (Max) : 58A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1150A, 1230A
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : PWS-E2
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, 3-Phase - All SCRs
Number of SCRs, Diodes : 6 SCRs
Voltage - Off State : 1.4kV
Current - On State (It (AV)) (Max) : 110A
Current - On State (It (RMS)) (Max) : 58A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1150A, 1230A
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : PWS-E2
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, 3-Phase - All SCRs
Number of SCRs, Diodes : 6 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 167A
Current - On State (It (RMS)) (Max) : 89A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1500A, 1600A
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : PWS-E2
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, 3-Phase - All SCRs
Number of SCRs, Diodes : 6 SCRs
Voltage - Off State : 1.4kV
Current - On State (It (AV)) (Max) : 167A
Current - On State (It (RMS)) (Max) : 89A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1500A, 1600A
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : PWS-E2
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, 3-Phase - All SCRs
Number of SCRs, Diodes : 6 SCRs
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 167A
Current - On State (It (RMS)) (Max) : 89A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1500A, 1600A
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : PWS-E2
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Bridge, 3-Phase - All SCRs
Number of SCRs, Diodes : 6 SCRs
Voltage - Off State : 800V
Current - On State (It (AV)) (Max) : 70A
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 600A
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : FO-T-A
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Bridge, 3-Phase - All SCRs
Number of SCRs, Diodes : 6 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 70A
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 600A
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : FO-T-A
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Bridge, 3-Phase - All SCRs
Number of SCRs, Diodes : 6 SCRs
Voltage - Off State : 1.4kV
Current - On State (It (AV)) (Max) : 70A
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 600A
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : FO-T-A
0
100 in stock
