IXYS Corporation
- IXYS Corporation/Littelfuse has gained a worldwide reputation as a premier power semiconductor manufacturer. Its diversified product base of specialized power semiconductors, integrated circuits and RF power include low on-resistance Power MOSFETs, Ultra Fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs for applications ranging across industrial, transportation, telecommunications, computer, medical, consumer and clean tech markets.
With the acquisition of IXYS, Littelfuse significantly expands the breadth of its power semiconductor portfolio, with solutions spanning a full range of technologies. This diverse portfolio will provide customers with the best technology and enhanced, differentiated capabilities in target markets and geographies as well as deliver greater industry access and increased growth opportunities.
Part Number
Manufacturer
Description
Unit Price
In Stock

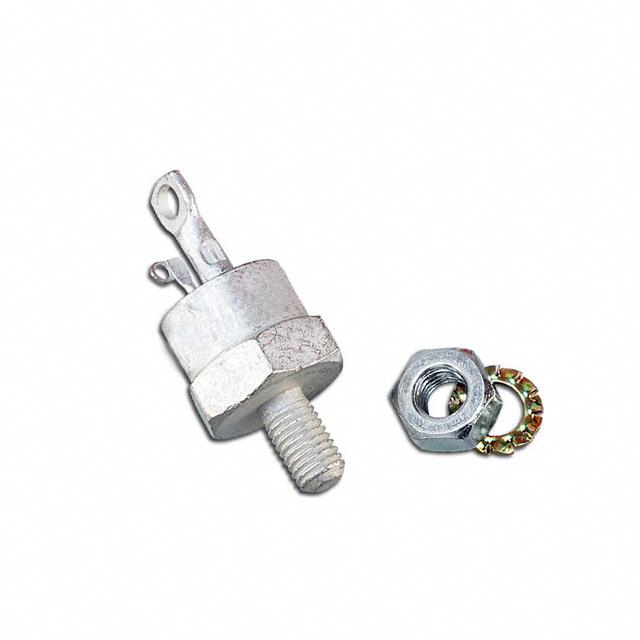

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Active
Voltage - Off State : 1.4kV
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 69A
Current - On State (It (RMS)) (Max) : 120A
Current - Hold (Ih) (Max) : 80mA
Current - Off State (Max) : 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1200A, 1340A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis, Stud Mount
Package / Case : TO-208AC, TO-65-3, Stud
Supplier Device Package : TO-208AC (TO-65)
0
100 in stock

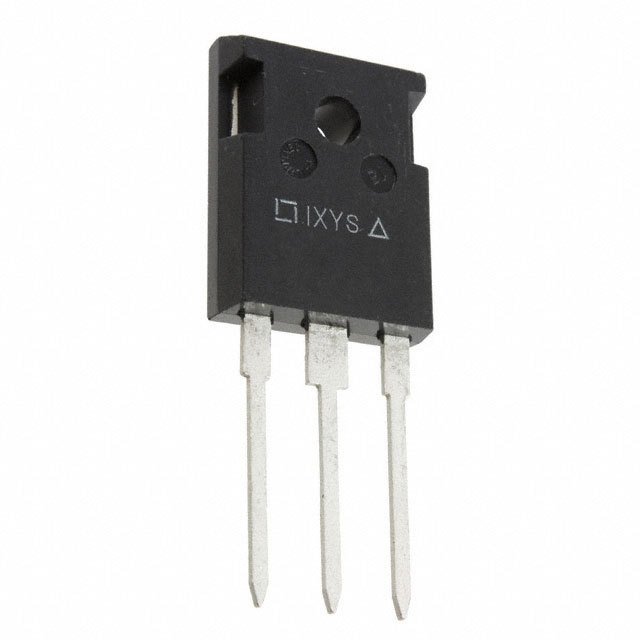

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 1.6kV
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Voltage - On State (Vtm) (Max) : 1.64V
Current - On State (It (AV)) (Max) : 48A
Current - On State (It (RMS)) (Max) : 75A
Current - Hold (Ih) (Max) : 100mA
Current - Off State (Max) : 5mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 520A, 560A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 140°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
0
100 in stock

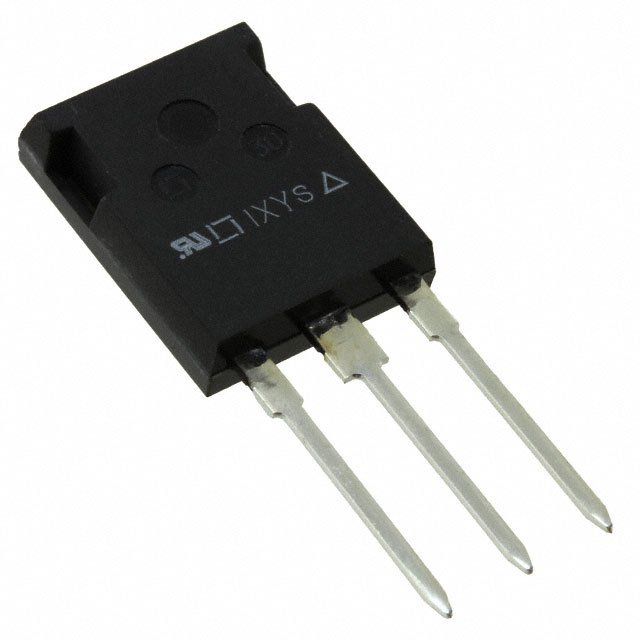

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 1.6kV
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Voltage - On State (Vtm) (Max) : 1.64V
Current - On State (It (AV)) (Max) : 48A
Current - On State (It (RMS)) (Max) : 75A
Current - Hold (Ih) (Max) : 100mA
Current - Off State (Max) : 5mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 520A, 560A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 140°C
Mounting Type : Through Hole
Package / Case : ISOPLUS247™
Supplier Device Package : ISOPLUS247™
0
100 in stock

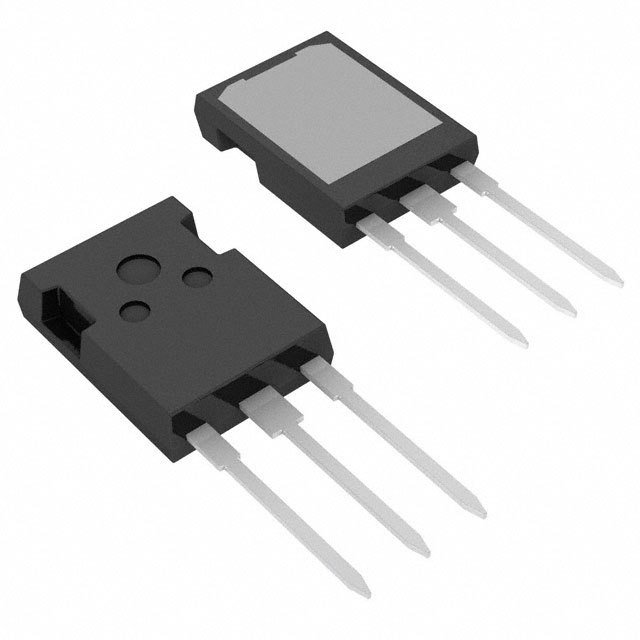

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 1.6kV
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : 48A
Current - On State (It (RMS)) (Max) : 75A
Current - Hold (Ih) (Max) : 200mA
Current - Off State (Max) : 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1500A, 1600A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 140°C
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
0
1489 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 49A
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 50A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 500µA @ 1200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 64A
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 60A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 800µA @ 1200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 22A
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 20A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 200µA @ 1200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
7 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 43A
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 40A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 400µA @ 1200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 8 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 3.5V
Current - Peak Output (Source, Sink) : 20A, 20A
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 3ns, 3ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 7-SMD, Flat Lead
Supplier Device Package : DE275
0
100 in stock

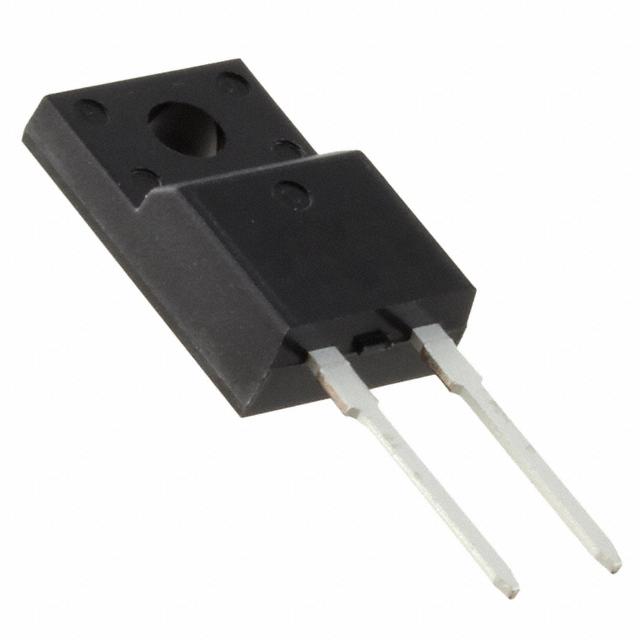

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 20µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : TO-220ACFP
Operating Temperature - Junction : -55°C ~ 150°C
0
133 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1800V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 2.01V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 230ns
Current - Reverse Leakage @ Vr : 200µA @ 1800V
Operating Temperature - Junction : -
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
304 in stock

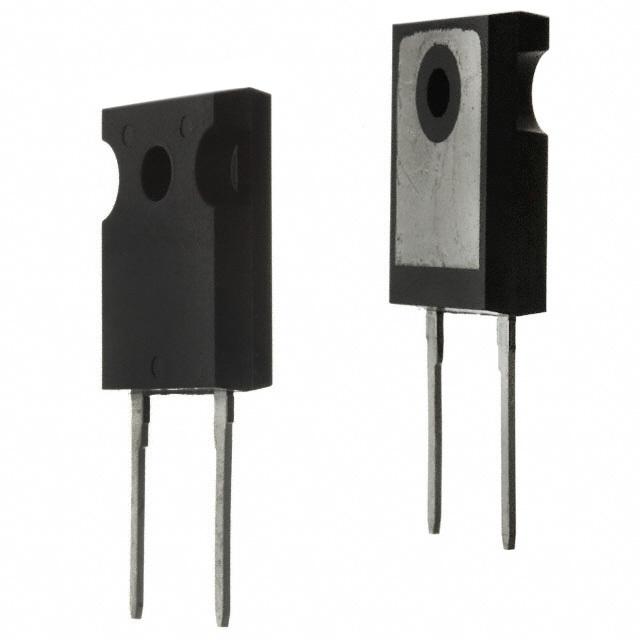

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : SONIC-FRD™
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1800V
Current - Average Rectified (Io) : 40A
Voltage - Forward (Vf) (Max) @ If : 2.7V @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 100ns
Current - Reverse Leakage @ Vr : 100µA @ 1800V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-247-2
Supplier Device Package : TO-247AD
Operating Temperature - Junction : -40°C ~ 150°C
0
113 in stock
