- JST has been dedicated to excellence in connection technology as a global manufacturer of high quality (ISO-9001/QS-9000) sub-miniature connectors since 1957. Our product offering consists of Wire-to-Wire, Wire-to-Board, Board-to-Board, Flex/Flat Cable, memory connectors, solderless terminals, chain terminals, shunts and application tooling. JST's Engineering Centers offer design and development, prototype and pre-production manufacturing, and electrical/environmental testing capabilities. Production flexibility, innovative product development, production engineering, quality assurance, value added solutions and responsiveness to customer needs are what have fueled our growth and resulted in rewarding partnerships with our valued customers.
Part Number
Manufacturer
Description
Unit Price
In Stock

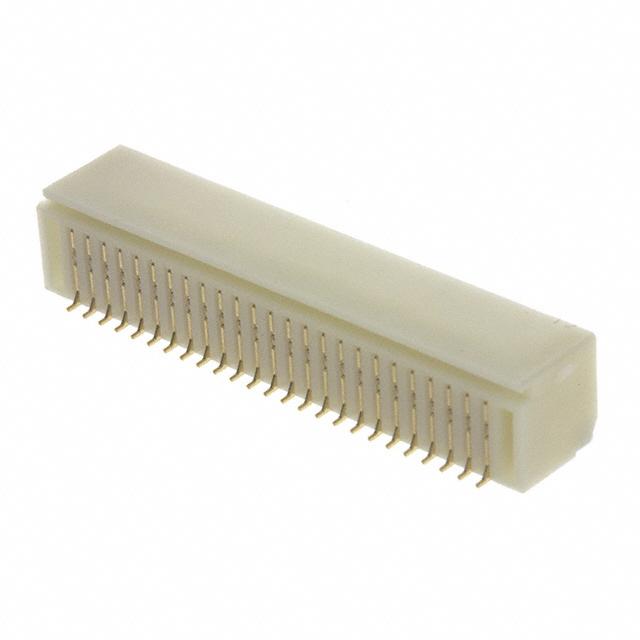

JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SHD
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.217" (5.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : Solder Retention
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : 1A
Voltage Rating : 50V
0
5790 in stock
JST
Manufacturer : JST Sales America Inc.
Series : SM
Part Status : Active
Tool Type : Extraction Tool
For Use With/Related Products : Rectangular Contacts, 22-28 AWG
0
93 in stock

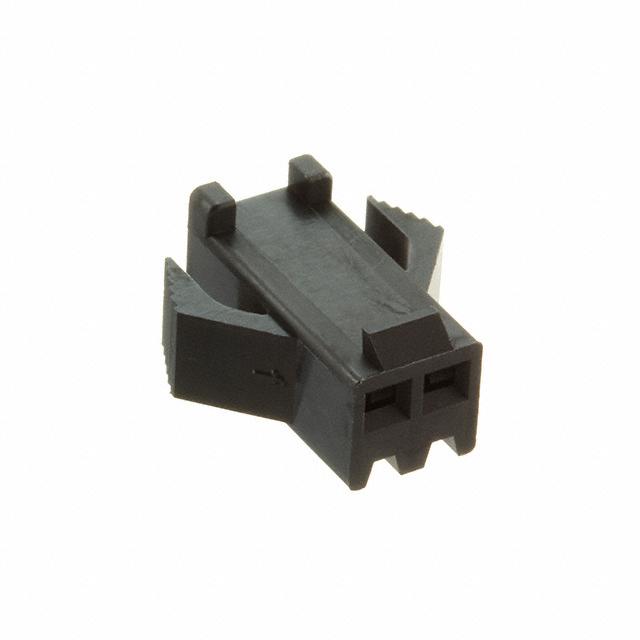

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Plug
Contact Type : Female Socket
Number of Positions : 2
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Panel Mount, Snap-In
Contact Termination : Crimp
Fastening Type : Locking Ramp
Color : Black
Features : -
0
127273 in stock

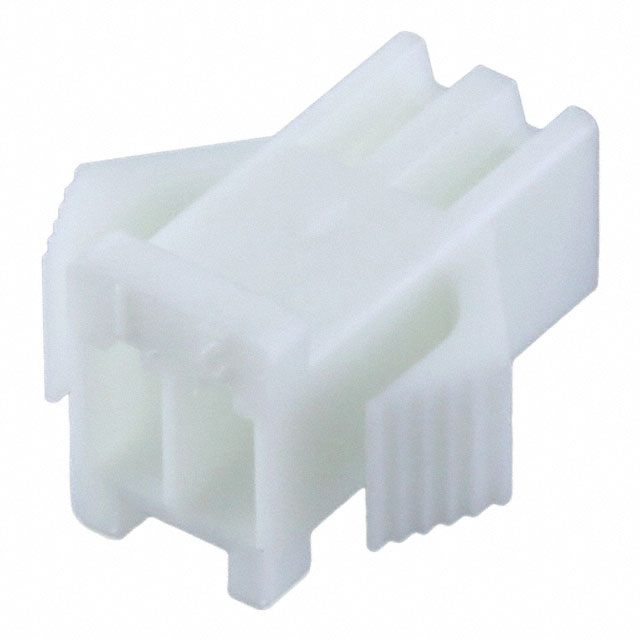

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Plug
Contact Type : Female Socket
Number of Positions : 2
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Panel Mount, Snap-In
Contact Termination : Crimp
Fastening Type : Locking Ramp
Color : Natural
Features : -
0
26508 in stock

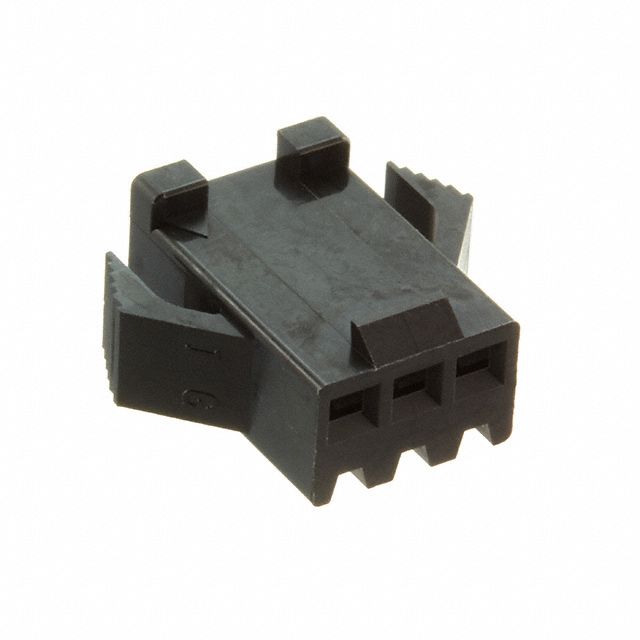

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Plug
Contact Type : Female Socket
Number of Positions : 3
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Panel Mount, Snap-In
Contact Termination : Crimp
Fastening Type : Locking Ramp
Color : Black
Features : -
0
50452 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Plug
Contact Type : Female Socket
Number of Positions : 3
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Panel Mount, Snap-In
Contact Termination : Crimp
Fastening Type : Locking Ramp
Color : Natural
Features : -
0
11113 in stock

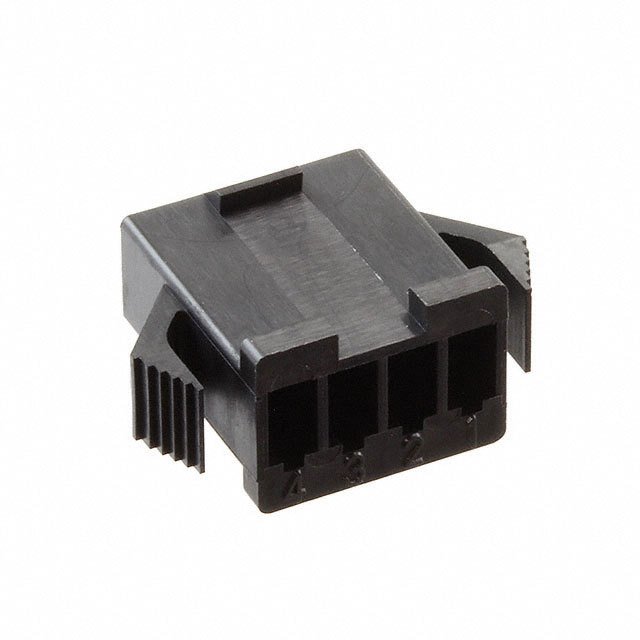

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Plug
Contact Type : Female Socket
Number of Positions : 4
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Panel Mount, Snap-In
Contact Termination : Crimp
Fastening Type : Locking Ramp
Color : Black
Features : -
0
11864 in stock

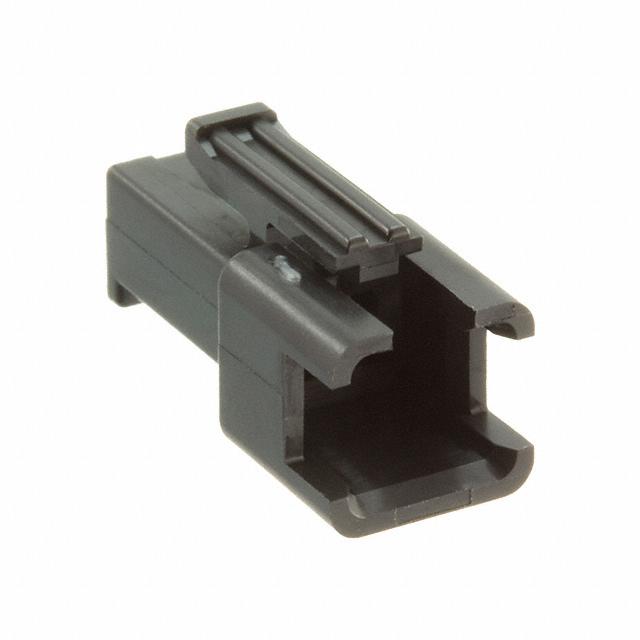

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Receptacle
Contact Type : Male Pin
Number of Positions : 2
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : Latch Lock
Color : Black
Features : -
0
101434 in stock

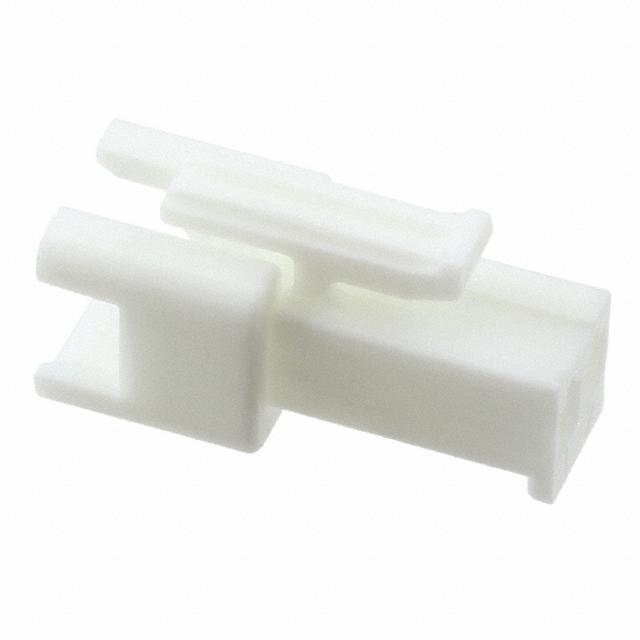

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Receptacle
Contact Type : Male Pin
Number of Positions : 2
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : Latch Lock
Color : Natural
Features : -
0
13210 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Receptacle
Contact Type : Male Pin
Number of Positions : 3
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : Latch Lock
Color : Black
Features : -
0
21763 in stock

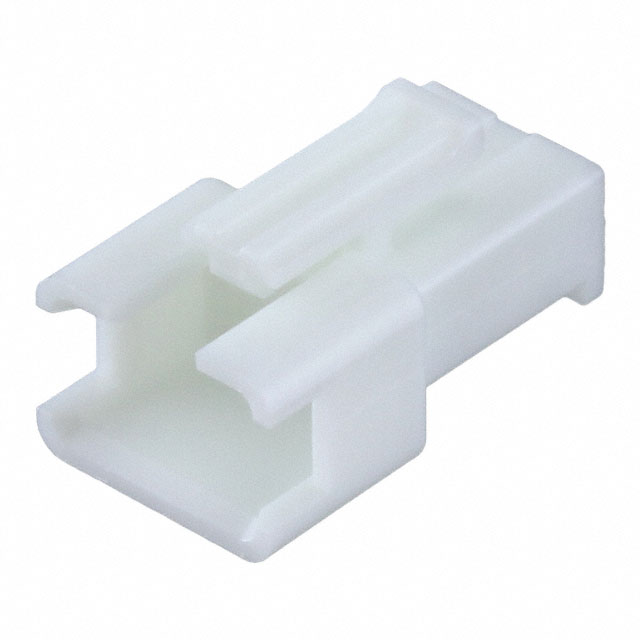

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Receptacle
Contact Type : Male Pin
Number of Positions : 3
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : Latch Lock
Color : Natural
Features : -
0
3389 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : SM
Part Status : Active
Connector Type : Receptacle
Contact Type : Male Pin
Number of Positions : 4
Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : Latch Lock
Color : Black
Features : -
0
11313 in stock
