Kingbright
- Kingbright Company LLC. is a leading LED manufacturer with a global presence. For over 29 years, Kingbright has delivered the highest quality LED products, technological innovations, and unparalleled customer service around the world. Headquartered in Taiwan, Kingbright’s dedication to vesting R&D projects and developing full line ultra-high-efficient LEDs remains the core mission. With the immense production capacity of its TS 16949, ISO 9001, ISO 14001 certified manufacturing plants in China, Kingbright continues to exceed many expectations worldwide.
Part Number
Manufacturer
Description
Unit Price
In Stock

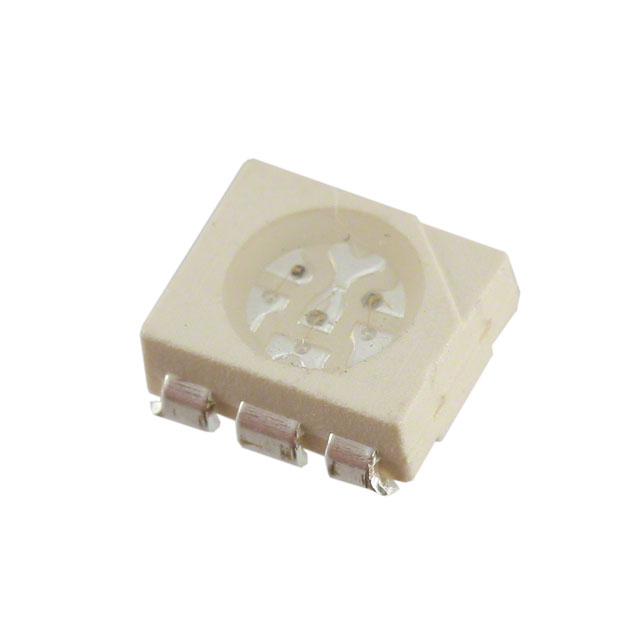

Kingbright
Manufacturer : Kingbright
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Color : Red, Green, Blue (RGB)
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 500mcd Red, 600mcd Green, 250mcd Blue
Lens Style : Round with Flat Top
Lens Size : 4.00mm Dia
Voltage - Forward (Vf) (Typ) : 1.9V Red, 3.2V Green, 3.2V Blue
Current - Test : 50mA Red, 30mA Green, 30mA Blue
Viewing Angle : 100°
Mounting Type : Surface Mount
Wavelength - Dominant : 628nm Red, 525nm Green, 470nm Blue
Wavelength - Peak : 640nm Red, 520nm Green, 468nm Blue
Features : -
Package / Case : 6-SMD, J-Lead
Supplier Device Package : SMD
Size / Dimension : 5.00mm L x 6.00mm W
Height (Max) : 2.30mm
0
100 in stock

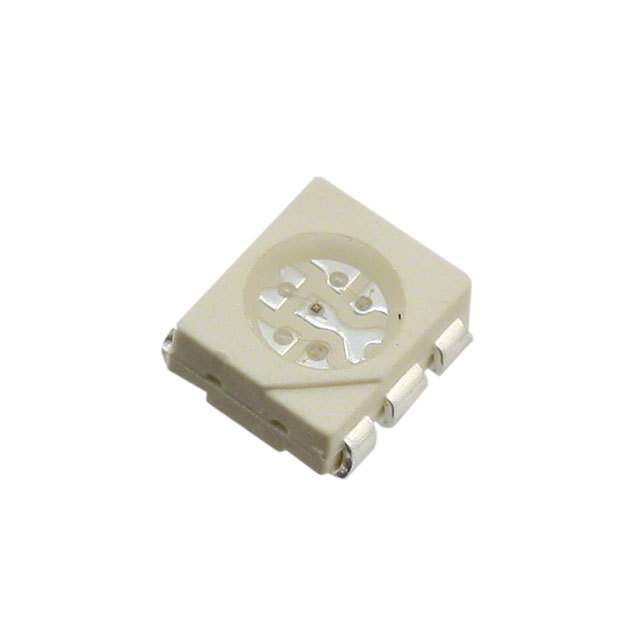

Kingbright
Manufacturer : Kingbright
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Color : Red, Green, Blue (RGB)
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 1000mcd Red, 650mcd Green, 250mcd Blue
Lens Style : Round with Flat Top
Lens Size : 4.00mm Dia
Voltage - Forward (Vf) (Typ) : 2V Red, 3.3V Green, 3.3V Blue
Current - Test : 50mA Red, 30mA Green, 30mA Blue
Viewing Angle : 100°
Mounting Type : Surface Mount
Wavelength - Dominant : 621nm Red, 525nm Green, 470nm Blue
Wavelength - Peak : 630nm Red, 515nm Green, 468nm Blue
Features : -
Package / Case : 6-SMD, J-Lead
Supplier Device Package : SMD
Size / Dimension : 5.00mm L x 6.00mm W
Height (Max) : 2.30mm
0
100 in stock
Kingbright
Manufacturer : Kingbright
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Red, Green, Blue (RGB)
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 300mcd Red, 650mcd Green, 180mcd Blue
Lens Style : Round with Flat Top
Lens Size : 4.00mm Dia
Voltage - Forward (Vf) (Typ) : 2V Red, 3.3V Green, 3.3V Blue
Current - Test : 30mA Red, 30mA Green, 30mA Blue
Viewing Angle : 100°
Mounting Type : Surface Mount
Wavelength - Dominant : 621nm Red, 525nm Green, 470nm Blue
Wavelength - Peak : 630nm Red, 515nm Green, 468nm Blue
Features : -
Package / Case : 6-SMD, J-Lead
Supplier Device Package : SMD
Size / Dimension : 5.00mm L x 6.00mm W
Height (Max) : 2.30mm
0
100 in stock

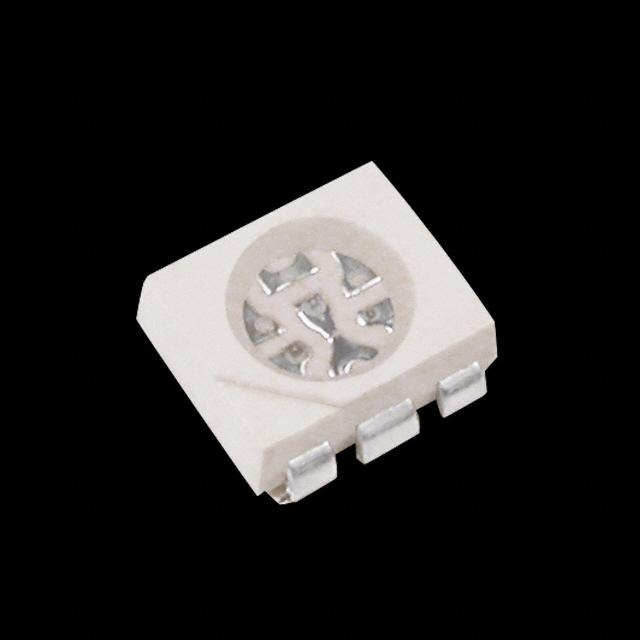

Kingbright
Manufacturer : Kingbright
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Color : Red, Green, Blue (RGB)
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 500mcd Red, 650mcd Green, 350mcd Blue
Lens Style : Round with Flat Top
Lens Size : 4.00mm Dia
Voltage - Forward (Vf) (Typ) : 1.9V Red, 3.3V Green, 3.3V Blue
Current - Test : 50mA Red, 30mA Green, 30mA Blue
Viewing Angle : 100°
Mounting Type : Surface Mount
Wavelength - Dominant : 630nm Red, 525nm Green, 465nm Blue
Wavelength - Peak : 650nm Red, 515nm Green, 461nm Blue
Features : -
Package / Case : 6-SMD, J-Lead
Supplier Device Package : SMD
Size / Dimension : 5.00mm L x 6.00mm W
Height (Max) : 2.30mm
0
100 in stock
Kingbright
Manufacturer : Kingbright
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue (RGB)
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 800mcd Red, 1000mcd Green, 400mcd Blue
Lens Style : Round with Flat Top
Lens Size : 4.00mm Dia
Voltage - Forward (Vf) (Typ) : 1.9V Red, 3.3V Green, 3.3V Blue
Current - Test : 50mA Red, 30mA Green, 30mA Blue
Viewing Angle : 100°
Mounting Type : Surface Mount
Wavelength - Dominant : 630nm Red, 525nm Green, 465nm Blue
Wavelength - Peak : 650nm Red, 515nm Green, 461nm Blue
Features : -
Package / Case : 6-SMD, J-Lead
Supplier Device Package : SMD
Size / Dimension : 5.00mm L x 6.00mm W
Height (Max) : 2.30mm
0
27976 in stock

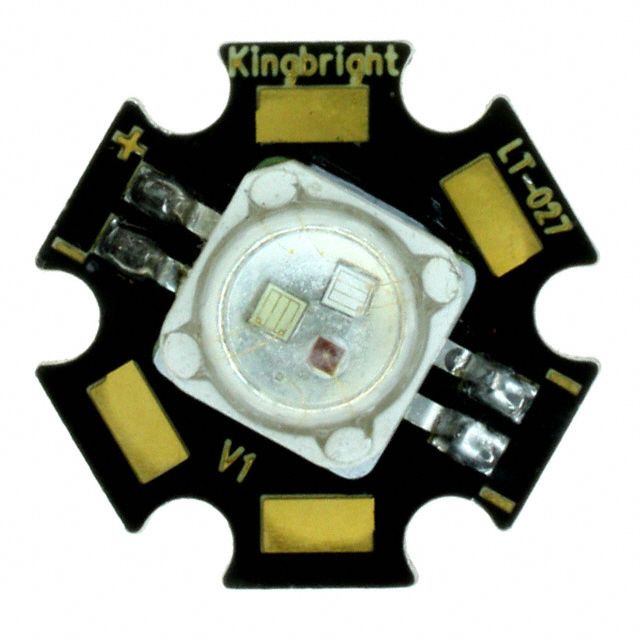

Kingbright
Manufacturer : Kingbright
Packaging : Tape & Reel (TR)
Series : AAD1-9090
Part Status : Active
Color : Red, Green, Blue (RGB)
Wavelength : 625nm Red, 530nm Green, 458nm Blue
Current - Test : 350mA Red, 350mA Green, 350mA Blue
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.3V Green, 3.2V Blue
Lumens/Watt @ Current - Test : 34 lm/W Red, 43 lm/W Green, 18 lm/W Blue
Current - Max : 350mA Red, 350mA Green, 350mA Blue
Flux @ Current/Temperature - Test : 30 lm Red, 50 lm Green, 20 lm Blue
Temperature - Test : 25°C
Viewing Angle : 135°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : -
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.267" (6.78mm)
0
100 in stock

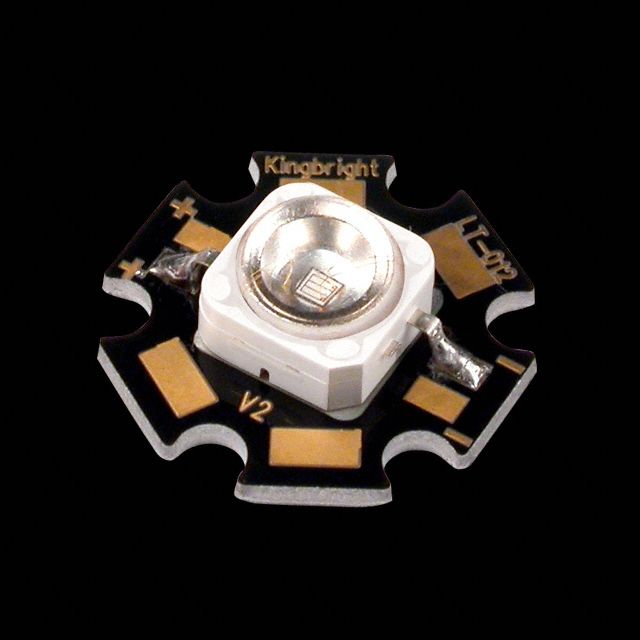

Kingbright
Manufacturer : Kingbright
Packaging : Tube
Series : Xpower
Part Status : Obsolete
Type : LED Module
Color : Red, Green, Blue (RGB)
CCT (K) : -
Wavelength : 625nm, 530nm, 458nm
Configuration : Starboard
Flux @ Current/Temperature - Test : -
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.3V Green, 3.2V Blue
Lumens/Watt @ Current - Test : -
Current - Max : 350mA
CRI (Color Rendering Index) : -
Viewing Angle : 135°
Features : -
Size / Dimension : 19.75mm L x 19.05mm W
Height : 8.30mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Kingbright
Manufacturer : Kingbright
Packaging : Tape & Reel (TR)
Series : AAD1-9090
Part Status : Active
Color : Blue
Wavelength : 460nm (Typ)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 3.9V
Lumens/Watt @ Current - Test : 11 lm/W
Current - Max : 700mA
Flux @ Current/Temperature - Test : 29 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing Exposed Pad
Supplier Device Package : -
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.267" (6.78mm)
0
100 in stock
Kingbright
Manufacturer : Kingbright
Packaging : Tube
Series : Xpower
Part Status : Active
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 460nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 20 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.9V
Lumens/Watt @ Current - Test : 7 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : 135°
Features : -
Size / Dimension : 19.75mm L x 19.05mm W
Height : 8.30mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Kingbright
Manufacturer : Kingbright
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : AAD1-9090
Part Status : Active
Color : Red
Wavelength : 625nm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 40 lm/W
Current - Max : 350mA
Flux @ Current/Temperature - Test : 35 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing Exposed Pad
Supplier Device Package : -
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.267" (6.78mm)
0
100 in stock
Kingbright
Manufacturer : Kingbright
Packaging : Tube
Series : Xpower
Part Status : Active
Type : LED Module
Color : Orange-Red
CCT (K) : -
Wavelength : 625nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 30 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : 34 lm/W
Current - Max : 350mA
CRI (Color Rendering Index) : -
Viewing Angle : 135°
Features : -
Size / Dimension : 19.75mm L x 19.05mm W
Height : 8.30mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
Kingbright
Manufacturer : Kingbright
Packaging : Tape & Reel (TR)
Series : AAD1-9090
Part Status : Active
Color : Red
Wavelength : 623nm (Typ)
Current - Test : 500mA
Voltage - Forward (Vf) (Typ) : 2.7V
Lumens/Watt @ Current - Test : 37 lm/W
Current - Max : 500mA
Flux @ Current/Temperature - Test : 50 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing Exposed Pad
Supplier Device Package : -
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.267" (6.78mm)
0
100 in stock
