Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

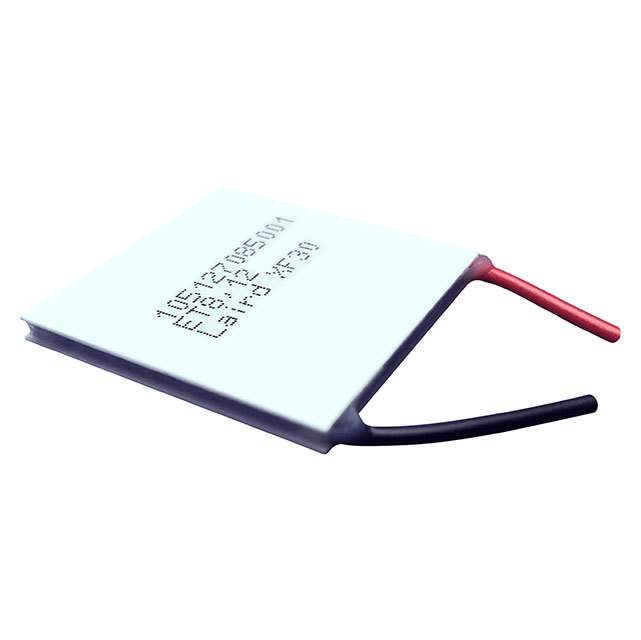

105127085001 105127085001

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
40 in stock

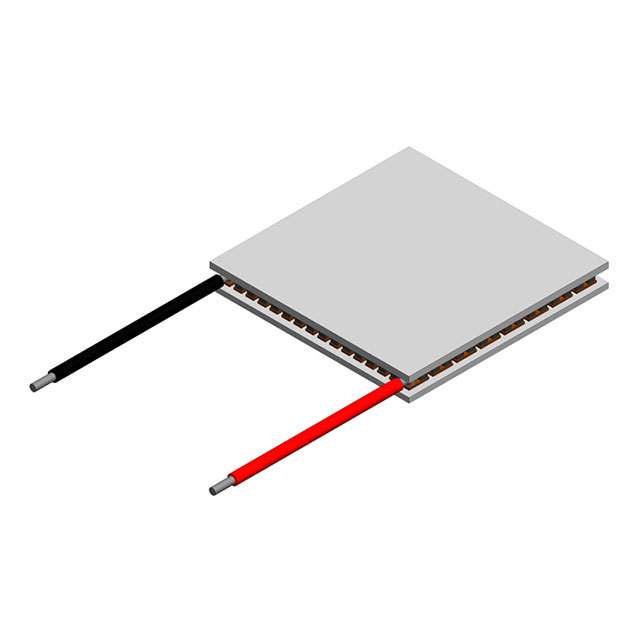

108127040402 108127040402

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Power-Cycling
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 3.20mm
Qmax @ Th : 33.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 14.4V
Resistance : 3.36 Ohms
Operating Temperature : 120°C
Features : Lead Wires, Sealed - Silicone RTV
0
187 in stock

108127060001 108127060001

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Power-Cycling
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.81mm
Qmax @ Th : 51.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.25 Ohms
Operating Temperature : 120°C
Features : Lead Wires, Sealed - Silicone RTV
0
167 in stock

108127086001 108127086001

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Power-Cycling
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.33mm
Qmax @ Th : 72.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.55 Ohms
Operating Temperature : 120°C
Features : Lead Wires, Sealed - Silicone RTV
0
11 in stock

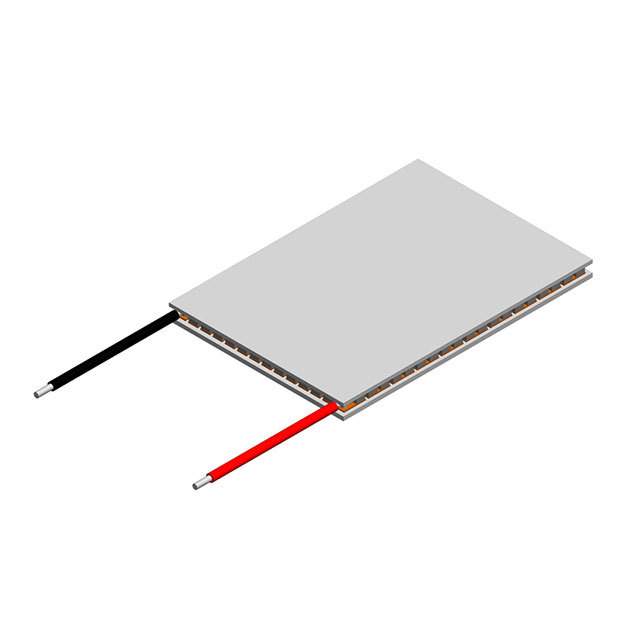

108139120001 108139120001

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Power-Cycling
Part Status : Active
Outline L x W x H : 50.00mm x 35.00mm x 3.00mm
Qmax @ Th : 117.1W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 12.3A
Voltage - Max : 15.5V
Resistance : 1.17 Ohms
Operating Temperature : 120°C
Features : Lead Wires, Sealed - Silicone RTV
0
190 in stock

108161050002 108161050002

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Power-Cycling
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.71mm
Qmax @ Th : 53.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 4.8A
Voltage - Max : 18.3V
Resistance : 3.40 Ohms
Operating Temperature : 120°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock

108161070002 108161070002

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Power-Cycling
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.30mm
Qmax @ Th : 76.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 7.0A
Voltage - Max : 18.3V
Resistance : 2.43 Ohms
Operating Temperature : 120°C
Features : Lead Wires, Sealed - Silicone RTV
0
114 in stock

1104.00 1104.00

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Product Type : Active, Heat Exchanger
Power - Cooling : 3000W
Current : 1.8A
Voltage : 230VAC
Flow Rate : 1.06GPM (4.0LPM)
Power Input : -
Thermal Resistance @ GPM : -
Fluid Capacity : 8500ML (287.4 oz)
Connection Type : -
Weight : 53 lbs (24kg)
Dimensions - Overall : 17.72" L x 10.63" W x 15.75" H (450.0mm x 270.0mm x 400.0mm)
Ratings : -
Features : Temperature Control
0
100 in stock

1109.00 1109.00

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Product Type : Active, Heat Exchanger
Power - Cooling : 5000W
Current : 1.1A
Voltage : 230VAC
Flow Rate : -
Power Input : -
Thermal Resistance @ GPM : -
Fluid Capacity : 8500ML (287.4 oz)
Connection Type : -
Weight : 53 lbs (24kg)
Dimensions - Overall : 17.72" L x 11.81" W x 14.57" H (450.0mm x 300.0mm x 370.0mm)
Ratings : -
Features : Temperature Control
0
100 in stock

1155.00 1155.00

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Product Type : -
Power - Cooling : -
Current : -
Voltage : -
Flow Rate : -
Power Input : -
Thermal Resistance @ GPM : -
Fluid Capacity : -
Connection Type : -
Weight : -
Dimensions - Overall : -
Ratings : -
Features : -
0
100 in stock

12321902.70 12321902.70

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Type : -
Function : -
Motor Type : -
Voltage - Rated : -
RPM : -
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
1 in stock

1264.00 1264.00

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Product Type : -
Power - Cooling : -
Current : -
Voltage : -
Flow Rate : -
Power Input : -
Thermal Resistance @ GPM : -
Fluid Capacity : -
Connection Type : -
Weight : -
Dimensions - Overall : -
Ratings : -
Features : -
0
100 in stock
