Laird
- WE MAKE TECHNOLOGY WORKLaird is a global leader in solving your electromagnetic interference challenges and providing state-of-the-art wireless communication and smart system solutions. Laird products are engineered with unparalleled innovation and precision and are supplied to major companies across the world, equipping them with the technology needed to improve their business and contribute to the progress of the modern world. They meet the needs of a variety of industries and applications, delivering transformational solutions for a constantly changing digital society.
PROTECT - Keep heat and electromagnetic interference at bay with high quality performance materials.
CONNECT - Stay wired at all times with Laird's highly reliable power products and industrial communications systems.
DESIGN - Design custom parts and solutions or build your entire concept from prototype to production.
Part Number
Manufacturer
Description
Unit Price
In Stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging

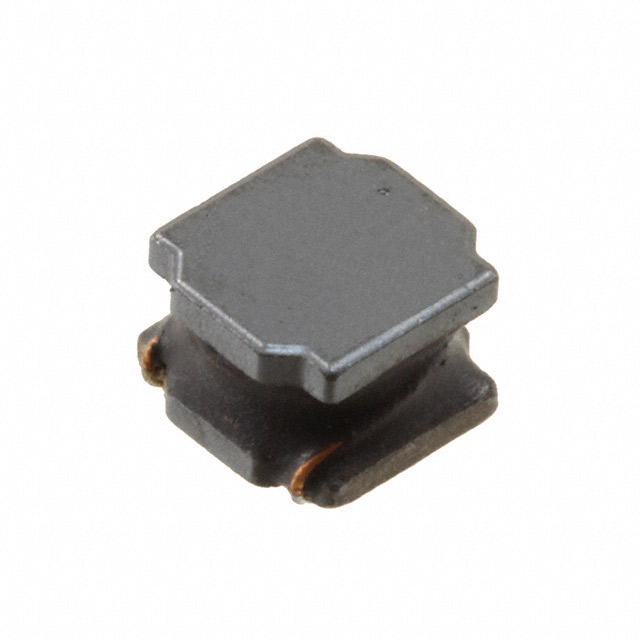

Series : TYS4030
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 1.6A
Current - Saturation : 2.75A
Shielding : Shielded
DC Resistance (DCR) : 117 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 24MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
7973 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging

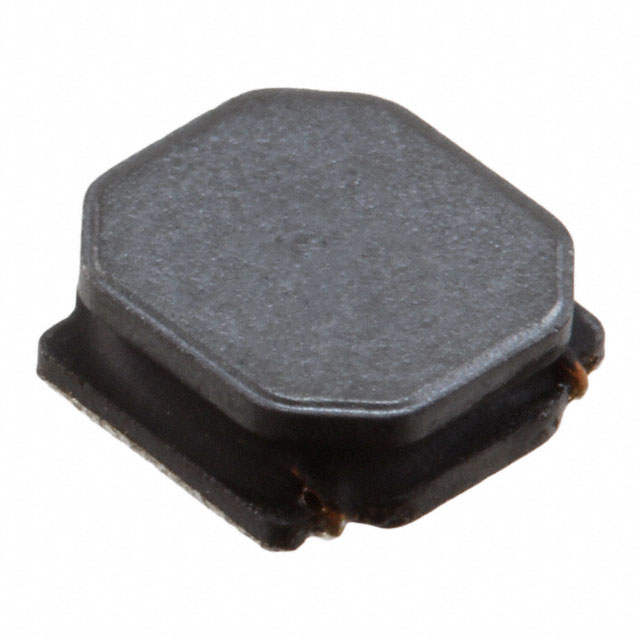

Series : TYS5020
Part Status : Active
Type : -
Material - Core : -
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.1A
Current - Saturation : 1.15A
Shielding : Shielded
DC Resistance (DCR) : 226 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 14MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 2020 (5050 Metric)
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
518 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5020
Part Status : Active
Type : -
Material - Core : -
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 2.9A
Current - Saturation : 3.2A
Shielding : Shielded
DC Resistance (DCR) : 32 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 57MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 2020 (5050 Metric)
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
10140 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 10µH
Tolerance : ±20%
Current Rating : 2.1A
Current - Saturation : 2.35A
Shielding : Shielded
DC Resistance (DCR) : 64 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 18MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
9854 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 100µH
Tolerance : ±20%
Current Rating : 700mA
Current - Saturation : 750mA
Shielding : Shielded
DC Resistance (DCR) : 560 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 4.7MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
6256 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 15µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : 2A
Shielding : Shielded
DC Resistance (DCR) : 86 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 13MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
14449 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging

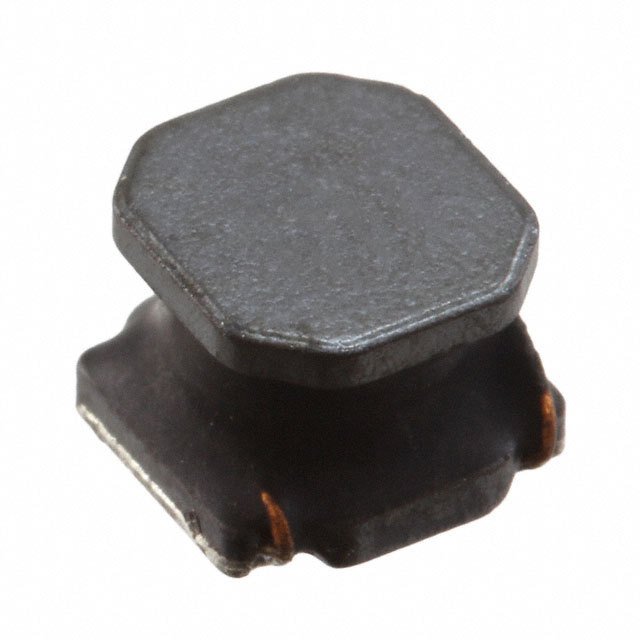

Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.5A
Current - Saturation : 1.6A
Shielding : Shielded
DC Resistance (DCR) : 129 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 11MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
12836 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 3.8A
Current - Saturation : 4.9A
Shielding : Shielded
DC Resistance (DCR) : 19 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
337682 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 47µH
Tolerance : ±20%
Current Rating : 1A
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 272 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 6.7MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
63841 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 3A
Current - Saturation : 3.5A
Shielding : Shielded
DC Resistance (DCR) : 30 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 28MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
45814 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 68µH
Tolerance : ±20%
Current Rating : 800mA
Current - Saturation : 900mA
Shielding : Shielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 5.7MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
1593 in stock
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TYS5040
Part Status : Active
Type : -
Material - Core : -
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 2.5A
Current - Saturation : 2.9A
Shielding : Shielded
DC Resistance (DCR) : 43 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 21MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
34928 in stock
