LEDdynamics, Inc.
- LEDdynamics is a custom engineering company specializing in the design and integration of LED technology for end-user and OEM applications.
Over the past 20 years, the world has seen tremendous advancements in the fields of computing, telecommunications, and biotechnology, but the same technology that Thomas Edison popularized in 1879 is still in use today to bring us the most essential tool we have ... light!
LEDdynamics is changing the nature of illumination.
Part Number
Manufacturer
Description
Unit Price
In Stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Packaging : -
Series : Star K2TM
Part Status : Obsolete
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 470nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 35 lm (Typ)
Current - Test : 1.5A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : 1.5A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : 21.00mm L x 19.80mm W
Height : 7.60mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Packaging : -
Series : Star K2TM
Part Status : Obsolete
Type : LED Module
Color : Red
CCT (K) : -
Wavelength : 627nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 75 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : 700mA
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : 21.00mm L x 19.80mm W
Height : 7.60mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Packaging : -
Series : Star K2TM
Part Status : Obsolete
Type : LED Module
Color : Green
CCT (K) : -
Wavelength : 530nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 130 lm (Typ)
Current - Test : 1.5A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : 1.5A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : 21.00mm L x 19.80mm W
Height : 7.60mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Packaging : -
Series : Star K2TM
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 140 lm (Typ)
Current - Test : 1.5A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : 1.5A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : 21.00mm L x 19.80mm W
Height : 7.60mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

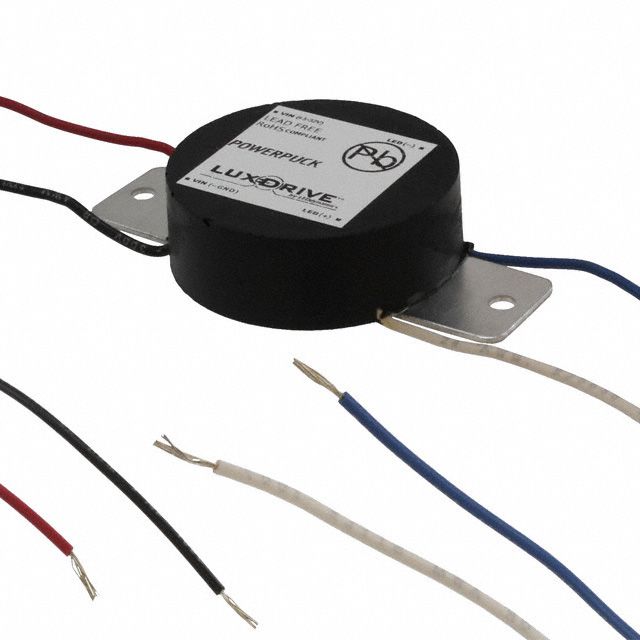

LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Series : PowerPuck; 2008B
Part Status : Active
Type : Constant Current
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 5V
Voltage - Input (Max) : 32V
Voltage - Output : 32V (Max)
Current - Output (Max) : 1A
Power (Watts) : 32W
Voltage - Isolation : -
Dimming : -
Features : SCP
Ratings : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Termination Style : Wire Leads
Size / Dimension : 1.50" Dia x 0.50" H (38.1mm x 12.7mm)
0
100 in stock

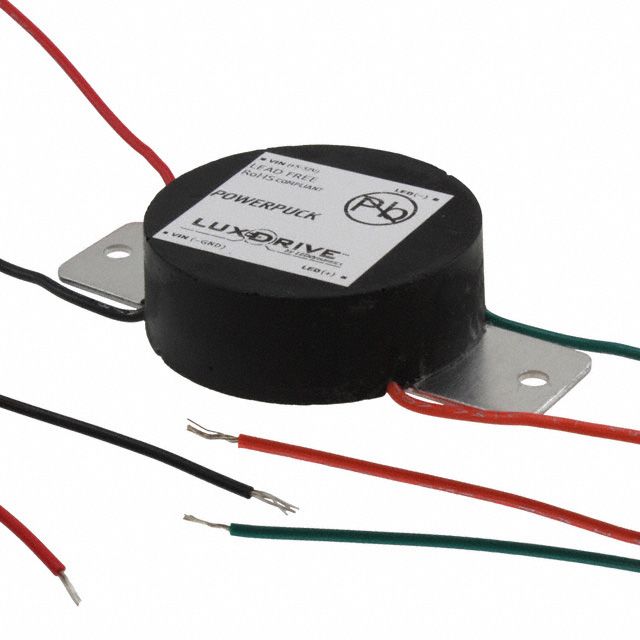

LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Series : PowerPuck; 2008B
Part Status : Active
Type : Constant Current
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 5V
Voltage - Input (Max) : 32V
Voltage - Output : 32V (Max)
Current - Output (Max) : 350mA
Power (Watts) : 11W
Voltage - Isolation : -
Dimming : -
Features : SCP
Ratings : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Termination Style : Wire Leads
Size / Dimension : 1.50" Dia x 0.50" H (38.1mm x 12.7mm)
0
100 in stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Series : PowerPuck; 2008B
Part Status : Active
Type : Constant Current
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 5V
Voltage - Input (Max) : 32V
Voltage - Output : 32V (Max)
Current - Output (Max) : 700mA
Power (Watts) : 22W
Voltage - Isolation : -
Dimming : -
Features : SCP
Ratings : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Termination Style : Wire Leads
Size / Dimension : 1.50" Dia x 0.50" H (38.1mm x 12.7mm)
0
100 in stock

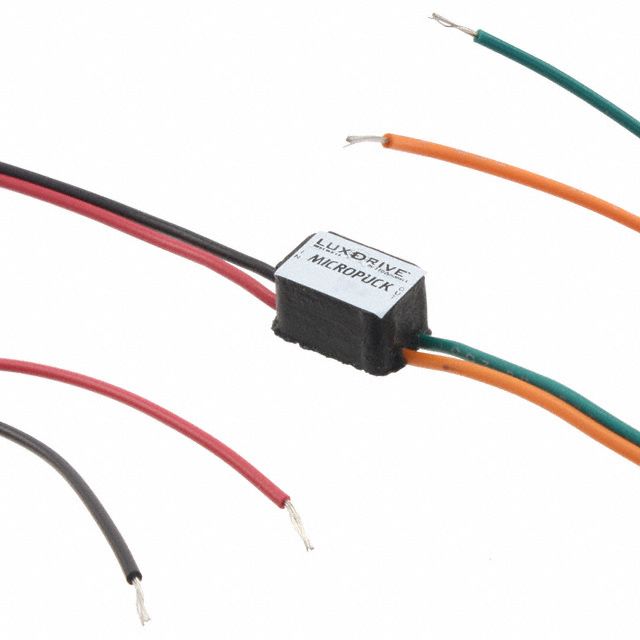

LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Series : MicroPuck 2009
Part Status : Active
Type : Constant Current
Topology : Boost
Number of Outputs : 1
Voltage - Input (Min) : 0.8V
Voltage - Input (Max) : 3V
Voltage - Output : 8V
Current - Output (Max) : 350mA
Power (Watts) : 1.5W
Voltage - Isolation : -
Dimming : -
Features : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 80%
Termination Style : Wire Leads
Size / Dimension : 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm)
0
13 in stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Series : MicroPuck 2009
Part Status : Active
Type : Constant Current
Topology : Boost
Number of Outputs : 1
Voltage - Input (Min) : 0.8V
Voltage - Input (Max) : 3V
Voltage - Output : 8V
Current - Output (Max) : 400mA
Power (Watts) : 1.5W
Voltage - Isolation : -
Dimming : -
Features : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 80%
Termination Style : Wire Leads
Size / Dimension : 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm)
0
100 in stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Series : MicroPuck 2009
Part Status : Active
Type : Constant Current
Topology : Boost
Number of Outputs : 1
Voltage - Input (Min) : 0.8V
Voltage - Input (Max) : 3V
Voltage - Output : 8V
Current - Output (Max) : 500mA
Power (Watts) : 1.5W
Voltage - Isolation : -
Dimming : -
Features : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 80%
Termination Style : Wire Leads
Size / Dimension : 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm)
0
18 in stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Series : BuckPuck™3021
Part Status : Active
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 7VAC
Voltage - Input (Max) : 24VAC
Voltage - Output : 32V (Max)
Current - Output (Max) : 1A
Power (Watts) : 32W
Dimming : Analog
Features : Remote On/Off, SCP
Operating Temperature : -40°C ~ 80°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 7-SIP Module, 6 Leads
Size / Dimension : 0.83" L x 0.83" W x 0.43" H (21.0mm x 21.0mm x 11.0mm)
0
13 in stock
LEDdynamics, Inc.
Manufacturer : LEDdynamics Inc.
Series : BuckPuck™3021
Part Status : Active
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 7VAC
Voltage - Input (Max) : 24VAC
Voltage - Output : 32V (Max)
Current - Output (Max) : 350mA
Power (Watts) : 11W
Dimming : Analog
Features : Remote On/Off, SCP
Operating Temperature : -40°C ~ 80°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 7-SIP Module, 6 Leads
Size / Dimension : 0.83" L x 0.83" W x 0.43" H (21.0mm x 21.0mm x 11.0mm)
0
16 in stock
