- Lite-On started producing LED lamps in 1975 and has steadily grown into one of the world's largest optoelectronics manufacturers by providing customers with both visible and infrared product solutions. High volume capacities for commodity items and application specific products, combined with strong R&D and vertical integration, have proven to be key distinguishing factors in Lite-On's success.
Part Number
Manufacturer
Description
Unit Price
In Stock
LTW-5630AZK40
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 26 lm (22 lm ~ 30 lm)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : 147 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 26 lm (22 lm ~ 30 lm)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : 147 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
100 in stock
LTW-5630AZK50
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 26 lm (22 lm ~ 30 lm)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : 147 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 26 lm (22 lm ~ 30 lm)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : 147 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
100 in stock
LTW-5630AZK57
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 26 lm (22 lm ~ 30 lm)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : 147 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 26 lm (22 lm ~ 30 lm)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : 147 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
100 in stock
LTW-5630AZK65
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 26 lm (22 lm ~ 30 lm)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : 147 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 26 lm (22 lm ~ 30 lm)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : 147 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
100 in stock

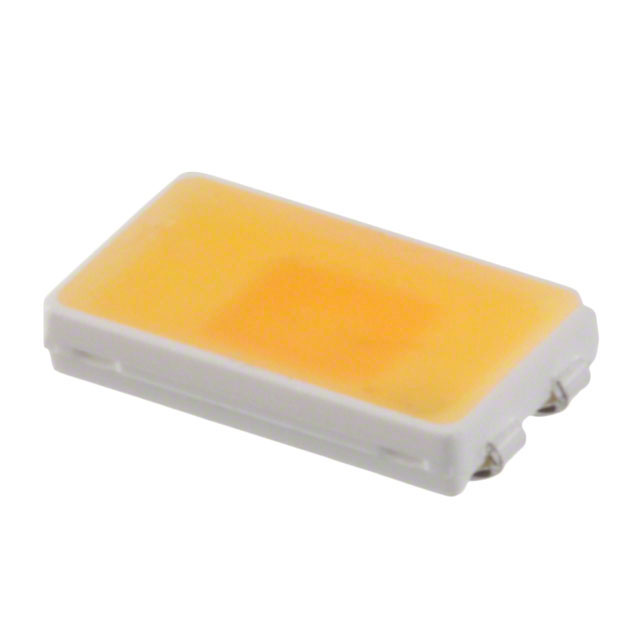

LTW-5630AZL27
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Discontinued at
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 50 lm (41 lm ~ 59 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 133 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Discontinued at
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 50 lm (41 lm ~ 59 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 133 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
2629 in stock
LTW-5630AZL30
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Active
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 52 lm (43 lm ~ 61 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 138 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Active
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 52 lm (43 lm ~ 61 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 138 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
22940 in stock
LTW-5630AZL35
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Active
Color : White, Warm
CCT (K) : 3500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 53 lm (44 lm ~ 62 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 141 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Active
Color : White, Warm
CCT (K) : 3500K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 53 lm (44 lm ~ 62 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 141 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
4833 in stock

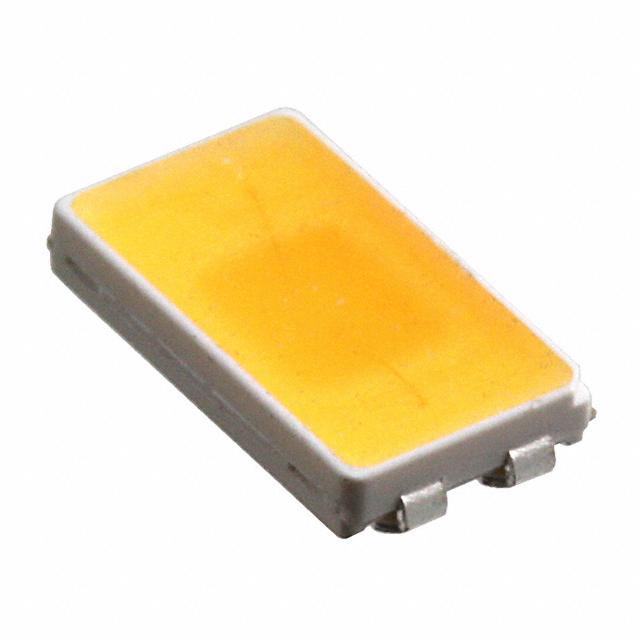

LTW-5630AZL40
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Active
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 53 lm (44 lm ~ 62 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 141 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Active
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 53 lm (44 lm ~ 62 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 141 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
102840 in stock
LTW-5630AZL50
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Active
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 55 lm (46 lm ~ 64 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 146 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AZL
Part Status : Active
Color : White, Cool
CCT (K) : 5000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 55 lm (46 lm ~ 64 lm)
Current - Test : 120mA
Voltage - Forward (Vf) (Typ) : 3.13V
Lumens/Watt @ Current - Test : 146 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 200mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
37518 in stock
LTW-5630SZN27
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : SZN
Part Status : Obsolete
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 56 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 24.8V
Lumens/Watt @ Current - Test : 113 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 30mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Tape & Reel (TR)
Series : SZN
Part Status : Obsolete
Color : White, Warm
CCT (K) : 2700K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 56 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 24.8V
Lumens/Watt @ Current - Test : 113 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 30mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
100 in stock
LTW-5630SZN30
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : SZN
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 60 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 24.8V
Lumens/Watt @ Current - Test : 121 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 30mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Tape & Reel (TR)
Series : SZN
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 60 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 24.8V
Lumens/Watt @ Current - Test : 121 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 30mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
100 in stock
LTW-5630SZN40
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : SZN
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 62 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 24.8V
Lumens/Watt @ Current - Test : 125 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 30mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
Packaging : Tape & Reel (TR)
Series : SZN
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 62 lm (Typ)
Current - Test : 20mA
Voltage - Forward (Vf) (Typ) : 24.8V
Lumens/Watt @ Current - Test : 125 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 30mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : 5630
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
