- Lumex, Inc. for 30 years, Lumex has been a global leader in the optoelectronics industry, with the broadest range of high efficiency, high performance LEDs and LCDs in the industry. With thousands of standard products and a focus on semi-custom and custom designs, Lumex is a valuable resource for quality and innovation. Lumex's optical range encompasses a wide spectrum including UV, visible and infrared wavelengths. Lumex's team of Technical Design Specialists are experts in collaboratively developing effective, smart solutions from the most complex design dilemmas.
Lumex has a global footprint with the worldwide headquarters outside Chicago and the Asian headquarters in Taiwan. With manufacturing capabilities in the United States, China, Taiwan and Thailand, Lumex is able to support over 23 end markets with more than 80,000 customers both directly and through our distribution channel partners. Over the last 30 years, the name Lumex has become synonymous with quality and performance around the world.
Part Number
Manufacturer
Description
Unit Price
In Stock

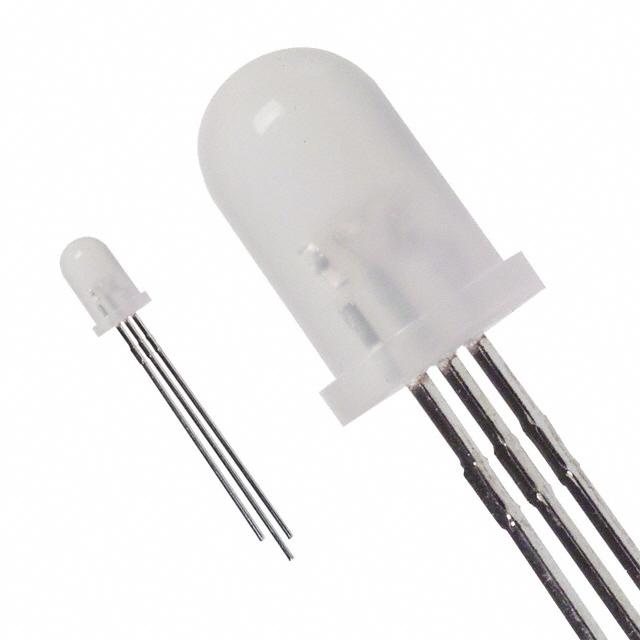

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Color : Green, Red
Configuration : Common Cathode
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 20mcd Green, 20mcd Red
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.1V Green, 2.1V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 565nm Green, 635nm Red
Features : -
Package / Case : Radial - 3 Leads
Supplier Device Package : T-1 3/4
Size / Dimension : -
Height (Max) : 8.60mm
0
13551 in stock

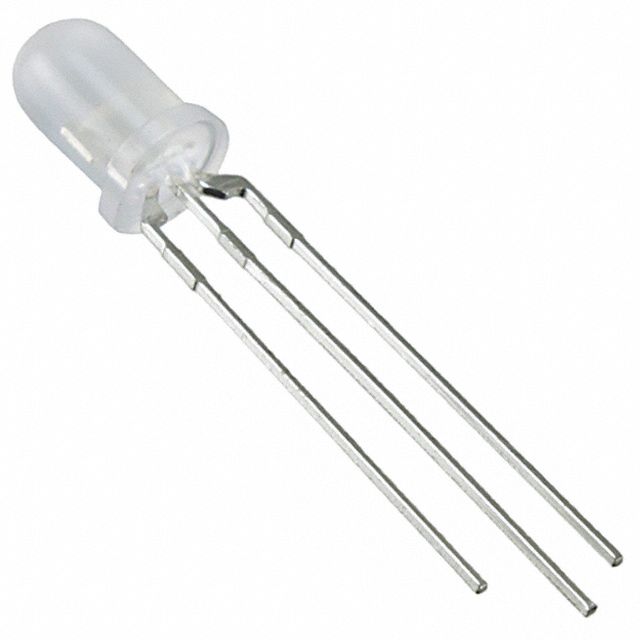

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Color : Green, Red
Configuration : Common Anode
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 20mcd Green, 20mcd Red
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.1V Green, 2.1V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 565nm Green, 635nm Red
Features : -
Package / Case : Radial - 3 Leads
Supplier Device Package : T-1 3/4
Size / Dimension : -
Height (Max) : 8.60mm
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Color : Green, Red, Yellow
Configuration : Common Cathode
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 65mcd Green, 700mcd Red, 450mcd Yellow
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.2V Green, 2V Red, 2.1V Yellow
Current - Test : 20mA Green, 20mA Red, 20mA Yellow
Viewing Angle : 50°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 565nm Green, 636nm Red, 585nm Yellow
Features : -
Package / Case : Radial
Supplier Device Package : T-1 3/4
Size / Dimension : -
Height (Max) : 8.60mm
0
100 in stock

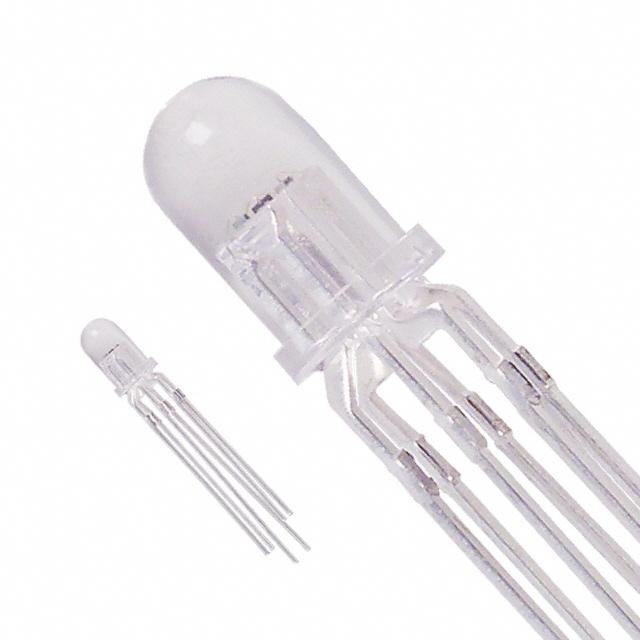

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : -
Series : -
Part Status : Active
Color : Red, Green, Blue (RGB)
Configuration : Common Cathode
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 800mcd Red, 700mcd Green, 800mcd Blue
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2V Red, 3.5V Green, 3.5V Blue
Current - Test : 20mA Red, 20mA Green, 20mA Blue
Viewing Angle : 50°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 636nm Red, 525nm Green, 470nm Blue
Features : -
Package / Case : Radial
Supplier Device Package : T-1 3/4
Size / Dimension : 5.00mm Dia
Height (Max) : 8.60mm
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Color : Green, Red
Configuration : Common Cathode
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 25mcd Green, 6mcd Red
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.2V Green, 2V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 565nm Green, 700nm Red
Features : -
Package / Case : Radial - 3 Leads
Supplier Device Package : T-1 3/4
Size / Dimension : -
Height (Max) : 11.00mm
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Color : Green, Red
Configuration : Common Cathode
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 45mcd Green, 55mcd Red
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.2V Green, 2V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 565nm Green, 635nm Red
Features : -
Package / Case : Radial - 3 Leads
Supplier Device Package : T-1 3/4
Size / Dimension : -
Height (Max) : 11.00mm
0
16354 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : -
Series : -
Part Status : Active
Color : Green, Red
Configuration : Independent
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 45mcd Green, 55mcd Red
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.2V Green, 2V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 565nm Green, 635nm Red
Features : -
Package / Case : Radial
Supplier Device Package : T-1 3/4
Size / Dimension : 5.00mm Dia
Height (Max) : 8.60mm
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Color : Green, Red
Configuration : Common Anode
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 6mcd Green, 6mcd Red
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.2V Green, 2V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 565nm Green, 635nm Red
Features : -
Package / Case : Radial - 3 Leads
Supplier Device Package : T-1 3/4
Size / Dimension : -
Height (Max) : 11.00mm
0
100 in stock

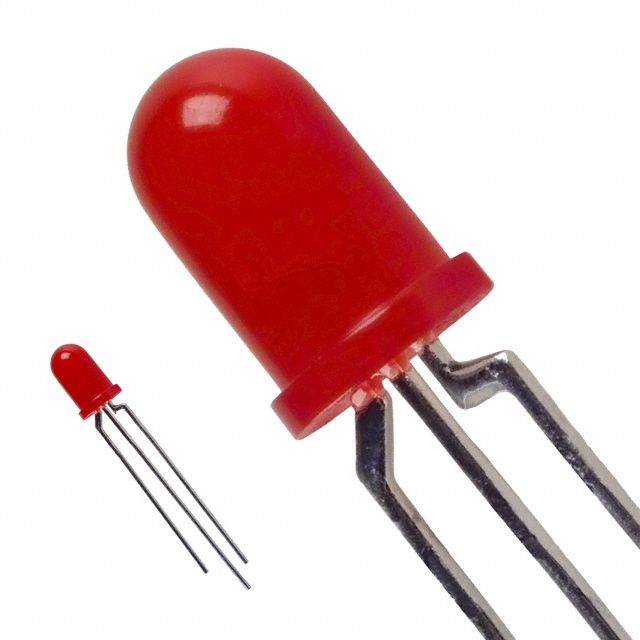

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Color : Red
Configuration : Standard
Lens Color : Red
Lens Transparency : Diffused
Millicandela Rating : 0.01mcd
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : -
Current - Test : 10.5mA
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 660nm
Features : -
Package / Case : Radial - 3 Leads
Supplier Device Package : T-1 3/4
Size / Dimension : -
Height (Max) : 11.00mm
0
1469 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Color : Red, Green, Blue (RGB)
Configuration : Common Cathode
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 600mcd Red, 450mcd Green, 150mcd Blue
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 1.9V Red, 2.1V Green, 3.65V Blue
Current - Test : 20mA Red, 20mA Green, 20mA Blue
Viewing Angle : 30°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 636nm Red, 574nm Green, 470nm Blue
Features : -
Package / Case : Radial - 6 Leads
Supplier Device Package : T-1 3/4
Size / Dimension : -
Height (Max) : 11.00mm
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : -
Series : -
Part Status : Active
Color : Green, Orange
Configuration : Independent
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 20mcd Green, 900mcd Orange
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.2V Green, 2V Orange
Current - Test : 20mA Green, 20mA Orange
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 555nm Green, 610nm Orange
Features : -
Package / Case : Radial
Supplier Device Package : T-1 3/4
Size / Dimension : 5.00mm Dia
Height (Max) : 8.60mm
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Packaging : -
Series : -
Part Status : Active
Color : Green, Yellow
Configuration : Independent
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 200mcd Green, 400mcd Yellow
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 2.2V Green, 2V Yellow
Current - Test : 20mA Green, 20mA Yellow
Viewing Angle : 60°
Mounting Type : Through Hole
Wavelength - Dominant : -
Wavelength - Peak : 574nm Green, 590nm Yellow
Features : -
Package / Case : Radial
Supplier Device Package : T-1 3/4
Size / Dimension : 5.00mm Dia
Height (Max) : 8.60mm
0
4691 in stock
