Makeblock
- Makeblock Co., Ltd is a robotics startup from Shenzhen established in 2013. Its main brand Makeblock, founded in 2011, is a leading DIY robotics construction and STEM education platform for makers, hobbyists, STEM learners, and educators. Makeblock empowers people to turn ideas into reality by providing STEM Kits, Tech Kits, DIY Kits, a building block platform of over 500 mechanical parts and easy-to-use electronic modules, graphical programming software, and online and offline courses.
Part Number
Manufacturer
Description
Unit Price
In Stock
Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 9VDC
RPM : 185 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.984" Dia (25.00mm)
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Wire Leads with Connector
Features : -
Gear Reduction Ratio : 45
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : 0°C ~ 50°C
0
100 in stock

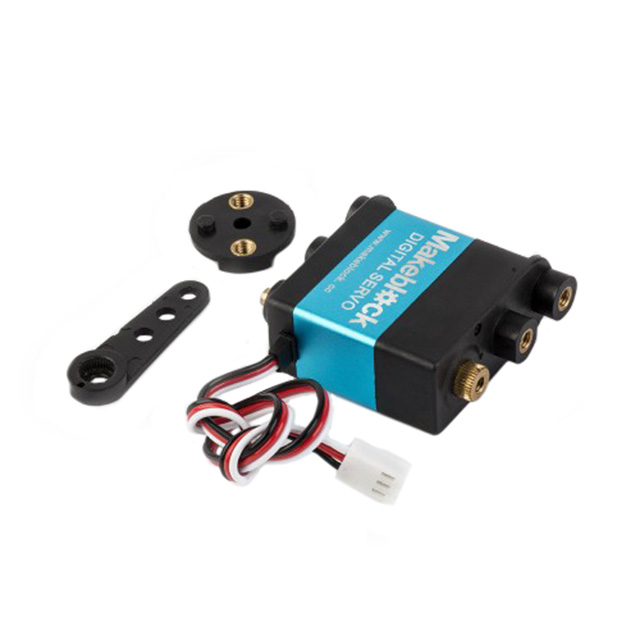

Makeblock
Manufacturer : Makeblock Co., LTD.
Series : MEDS150
Part Status : Active
Type : DC Motor
Function : Servomotor, RC (Hobby)
Motor Type : -
Voltage - Rated : 6VDC
RPM : -
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Rectangular - 1.838" x 2.055" (46.68mm x 52.20mm)
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
11 in stock

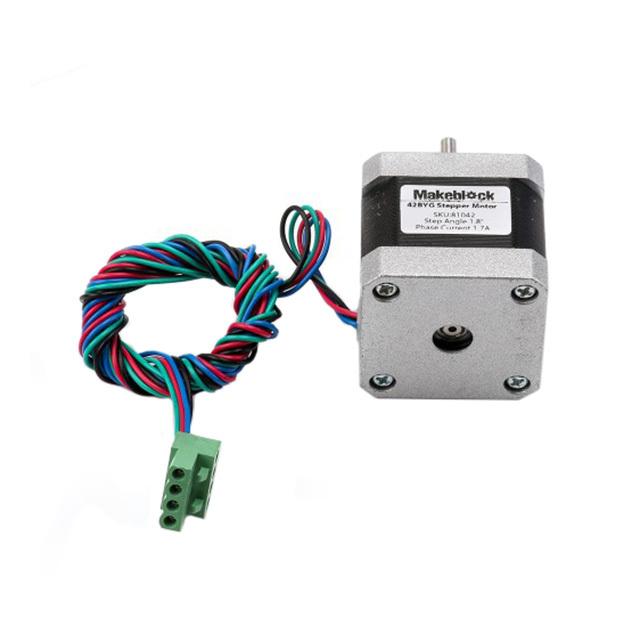

Makeblock
Manufacturer : Makeblock Co., LTD.
Series : 42BYG
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : 12VDC
Current Rating : 1.7A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 56.3 / 400
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
0
58 in stock

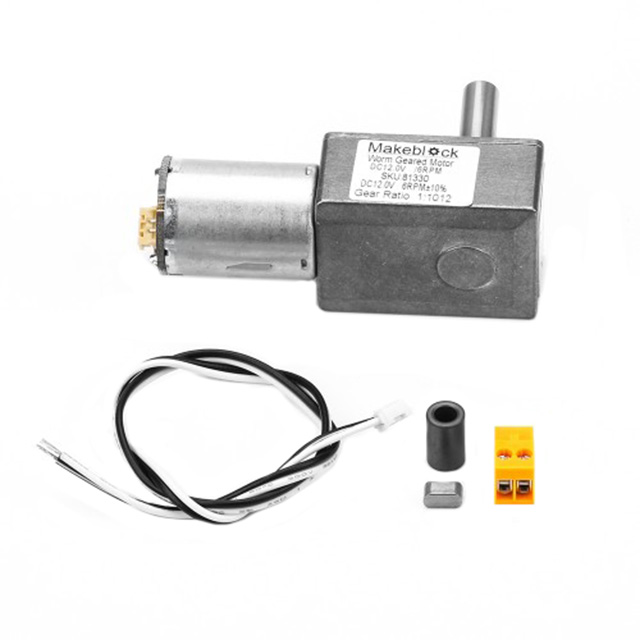

Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 6 RPM
Torque - Rated (oz-in / mNm) : 138.87 / 980.45
Power - Rated : -
Encoder Type : -
Size / Dimension : Rectangular - 0.988" x 3.024" (25.10mm x 76.80mm)
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.299" (33.00mm)
Termination Style : Wire Leads with Connector
Features : Key
Gear Reduction Ratio : 1012
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
33 in stock

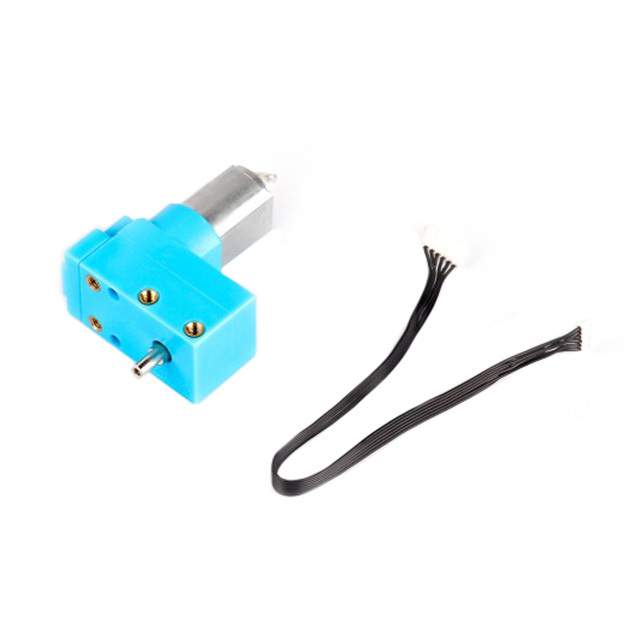

Makeblock
Manufacturer : Makeblock Co., LTD.
Series : 180
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : 7.4VDC
RPM : 350 RPM
Torque - Rated (oz-in / mNm) : 11.11 / 78.45
Power - Rated : 3.7W
Encoder Type : -
Size / Dimension : Rectangular - 2.571" x 0.945" (65.30mm x 24.00mm)
Diameter - Shaft : 0.354" (9.00mm)
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Connector
Features : -
Gear Reduction Ratio : 39.6
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
25 in stock
Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Technology : Electromechanical
Type : Open Frame (Pull)
Duty Cycle : -
Voltage - Rated : 12VDC
Stroke Length : 0.236" (6.00mm)
Power (Watts) : -
DC Resistance (DCR) : 6.6 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 1.181" L x 0.630" W x 0.551" H (30.00mm x 16.00mm x 14.00mm)
Diameter - Shaft : 0.236" (6.00mm)
Shaft Detail : Clevis
0
100 in stock

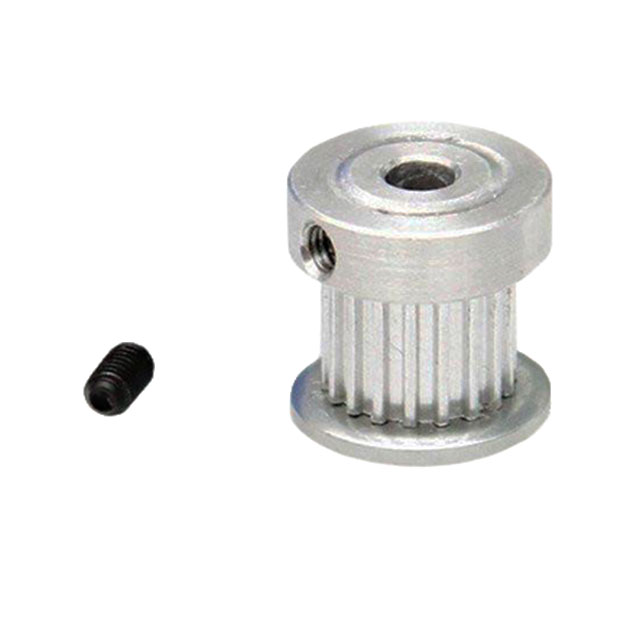

Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Type : Pulley
Specifications : 18 Teeth
0
100 in stock

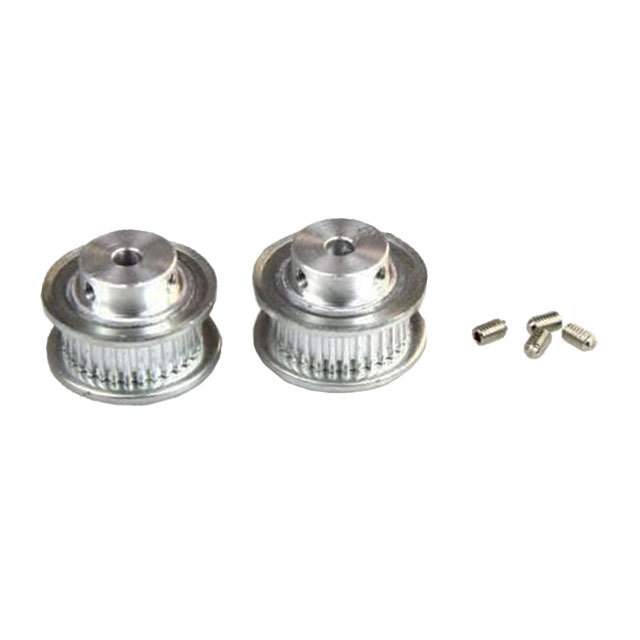

Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Type : Pulley
Specifications : 32 Teeth
0
100 in stock
Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Type : Pulley
Specifications : 90 Teeth
0
100 in stock
Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Type : Linkage
Specifications : 3.150" (80.00mm) Length
0
100 in stock
Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Type : Linkage
Specifications : 6.299" (160.00mm) Length
0
100 in stock

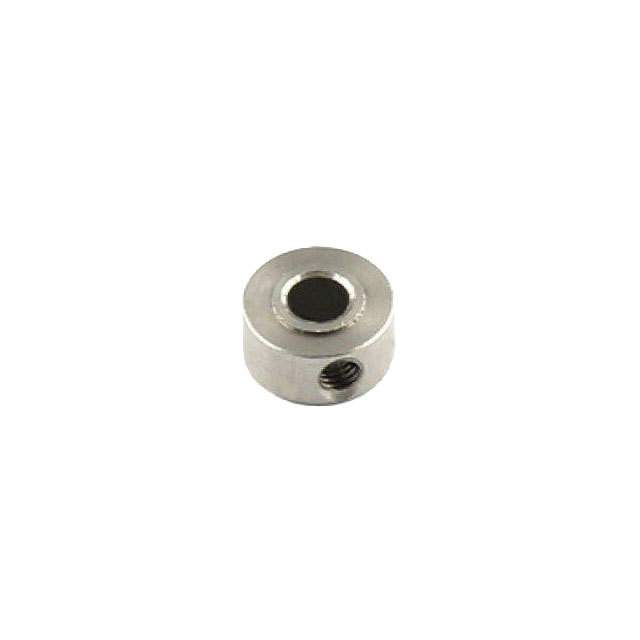

Makeblock
Manufacturer : Makeblock Co., LTD.
Series : -
Part Status : Active
Type : Shaft Collar
Specifications : 0.161" (4.10mm) Inner Diameter
0
100 in stock
