MEAN WELL
- MEAN WELL is one of the leading standard switching power supply manufacturers in the world having more than 8,000 standard off-the-shelf models for a complete range of power supply solutions. Specializing in design, manufacturing and marketing of AC-DC switching power supplies, DC-DC converters, DC-AC inverters, and adapters/battery chargers for global markets. MEAN WELL upholds the idea of “your reliable power partner” and is devoted to offering the best power supply product and service. MEAN WELL is now able to provide fast, localized services around the world with its global distribution network fostered by continuous effort and hard work.
Part Number
Manufacturer
Description
Unit Price
In Stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-25
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 11 ~ 36 V
Current - Output (Max) : 700mA
Power (Watts) : 25W
Voltage - Isolation : 3kV
Dimming : -
Features : OVP, SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 83%
Termination Style : Wire Leads
Size / Dimension : 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
0
20 in stock

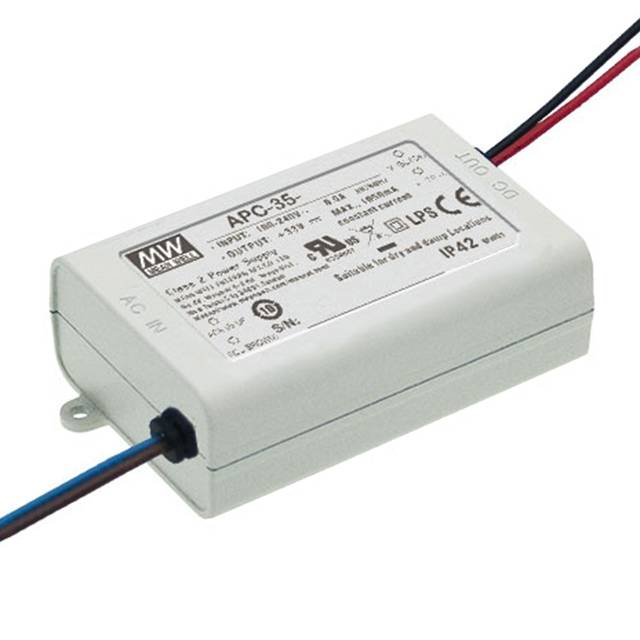

MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-35
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 11 ~ 33 V
Current - Output (Max) : 1.05A
Power (Watts) : 35W
Voltage - Isolation : 3kV
Dimming : -
Features : OVP, SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 84%
Termination Style : Wire Leads
Size / Dimension : 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
0
64 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-35
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 28 ~ 100 V
Current - Output (Max) : 350mA
Power (Watts) : 35W
Voltage - Isolation : 3kV
Dimming : -
Features : OVP, SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 84%
Termination Style : Wire Leads
Size / Dimension : 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
0
63 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-35
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 25 ~ 70 V
Current - Output (Max) : 500mA
Power (Watts) : 35W
Voltage - Isolation : 3kV
Dimming : -
Features : OVP, SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 84%
Termination Style : Wire Leads
Size / Dimension : 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
0
19 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-35
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 15 ~ 50 V
Current - Output (Max) : 700mA
Power (Watts) : 35W
Voltage - Isolation : 3kV
Dimming : -
Features : OVP, SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 84%
Termination Style : Wire Leads
Size / Dimension : 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
0
114 in stock

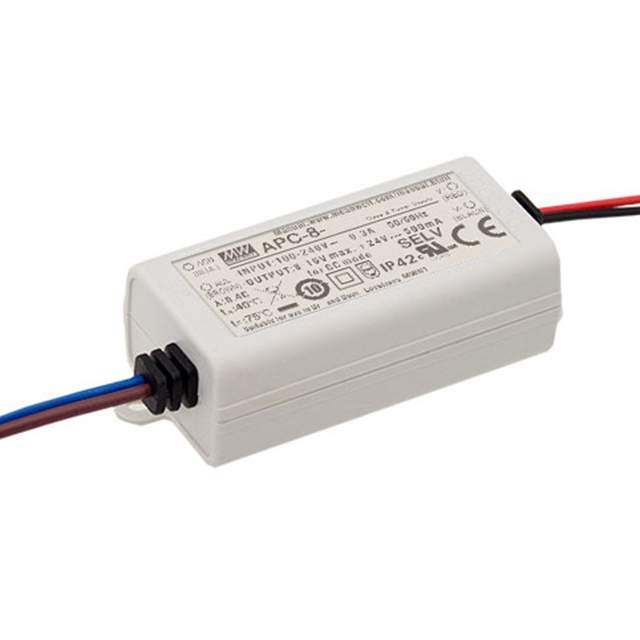

MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-8
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 16 ~ 32 V
Current - Output (Max) : 250mA
Power (Watts) : 8W
Voltage - Isolation : 3.75kV
Dimming : -
Features : SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 82.5%
Termination Style : Wire Leads
Size / Dimension : 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm)
0
230 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-8
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 11 ~ 23 V
Current - Output (Max) : 350mA
Power (Watts) : 8W
Voltage - Isolation : 3.75kV
Dimming : -
Features : SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 81.5%
Termination Style : Wire Leads
Size / Dimension : 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm)
0
24 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-8
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 8 ~ 16 V
Current - Output (Max) : 500mA
Power (Watts) : 8W
Voltage - Isolation : 3.75kV
Dimming : -
Features : SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 81%
Termination Style : Wire Leads
Size / Dimension : 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm)
0
48 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-8
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 6 ~ 11 V
Current - Output (Max) : 700mA
Power (Watts) : 8W
Voltage - Isolation : 3.75kV
Dimming : -
Features : SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 80%
Termination Style : Wire Leads
Size / Dimension : 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm)
0
277 in stock

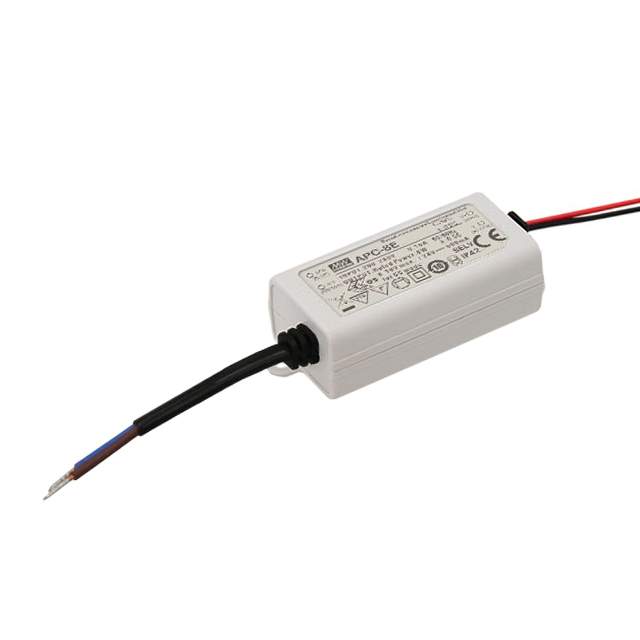

MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-8E
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 180VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 16 ~ 32 V
Current - Output (Max) : 250mA
Power (Watts) : 8W
Voltage - Isolation : 3.75kV
Dimming : -
Features : SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 81.5%
Termination Style : Wire Leads
Size / Dimension : 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm)
0
177 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-8E
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 180VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 11 ~ 23 V
Current - Output (Max) : 350mA
Power (Watts) : 8W
Voltage - Isolation : 3.75kV
Dimming : -
Features : SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 80.5%
Termination Style : Wire Leads
Size / Dimension : 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm)
0
52 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : APC-8E
Part Status : Active
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 180VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 8 ~ 16 V
Current - Output (Max) : 500mA
Power (Watts) : 8W
Voltage - Isolation : 3.75kV
Dimming : -
Features : SCP
Ratings : IP42
Operating Temperature : -30°C ~ 70°C
Efficiency : 79%
Termination Style : Wire Leads
Size / Dimension : 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm)
0
63 in stock
