Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

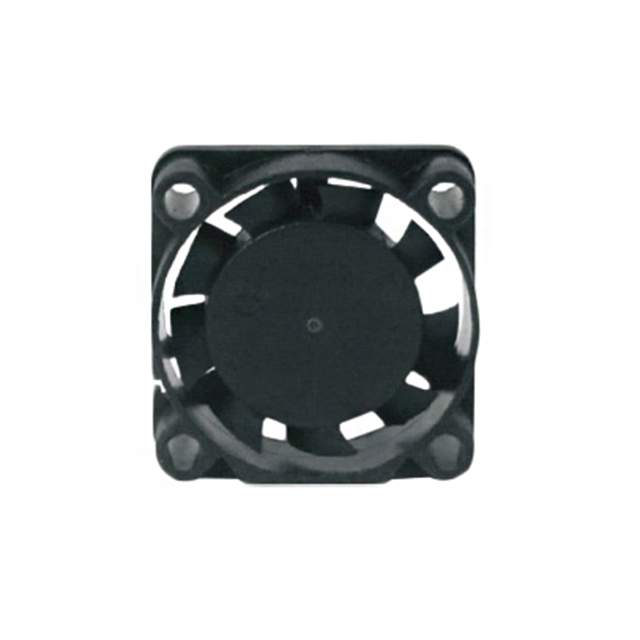

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MS2507
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 7.40mm
Air Flow : 1.6 CFM (0.045m鲁/min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB(A)
Power (Watts) : -
RPM : 10000 RPM
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.011 lb (4.99g)
0
88 in stock

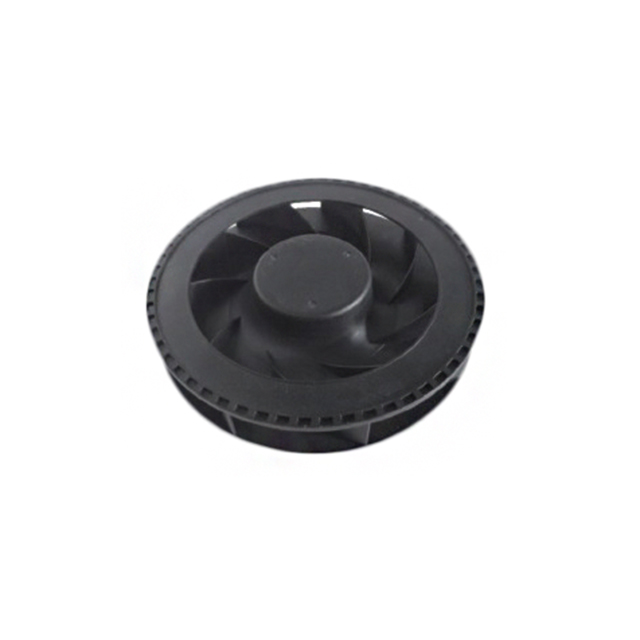

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI1225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 120mm Dia
Width : 25.00mm
Air Flow : 63.0 CFM (1.76m鲁/min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart
Noise : 54.0 dB(A)
Power (Watts) : -
RPM : 3500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.356 lb (161.48g)
0
64 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI1380
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 133mm Dia
Width : 80.00mm
Air Flow : 177.1 CFM (4.96m鲁/min)
Static Pressure : 1.780 in H2O (443.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 66.0 dB(A)
Power (Watts) : -
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
6 in stock

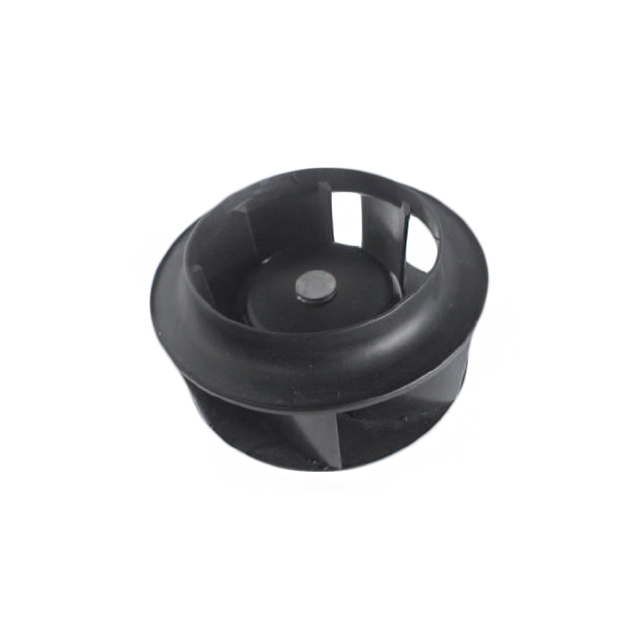

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI1380
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 133mm Dia
Width : 80.00mm
Air Flow : 177.1 CFM (4.96m鲁/min)
Static Pressure : 1.780 in H2O (443.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 66.0 dB(A)
Power (Watts) : -
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI1769
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 175mm Dia
Width : 69.00mm
Air Flow : 345.0 CFM (9.66m鲁/min)
Static Pressure : 1.800 in H2O (448.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 72.0 dB(A)
Power (Watts) : -
RPM : 4000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 2.9 lbs (1.3kg)
0
6 in stock

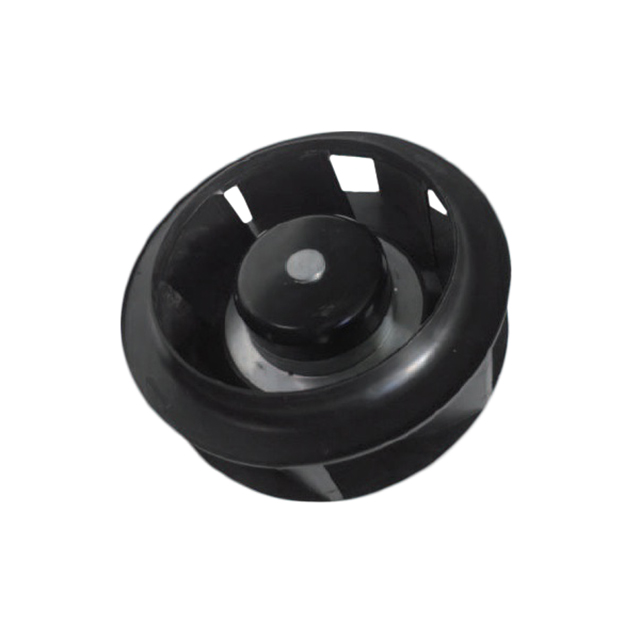

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI1769
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 175mm Dia
Width : 69.00mm
Air Flow : 345.0 CFM (9.66m鲁/min)
Static Pressure : 1.800 in H2O (448.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 72.0 dB(A)
Power (Watts) : -
RPM : 4000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 2.9 lbs (1.3kg)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI1967
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 190mm Dia
Width : 67.00mm
Air Flow : 358.0 CFM (10.02m鲁/min)
Static Pressure : 1.830 in H2O (455.8 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 71.0 dB(A)
Power (Watts) : -
RPM : 3000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 2.9 lbs (1.3kg)
0
6 in stock

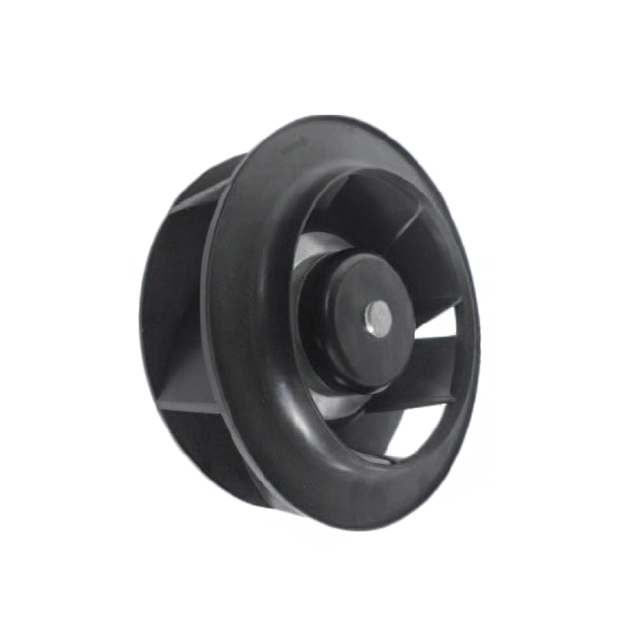

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI1967
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 190mm Dia
Width : 67.00mm
Air Flow : 358.0 CFM (10.02m鲁/min)
Static Pressure : 1.830 in H2O (455.8 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 71.0 dB(A)
Power (Watts) : -
RPM : 3000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 2.9 lbs (1.3kg)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI2577
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 250mm Dia
Width : 77.30mm
Air Flow : 716.0 CFM (20.05m鲁/min)
Static Pressure : 3.365 in H2O (838.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 76.0 dB(A)
Power (Watts) : -
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 4.5 lbs (2kg)
0
8 in stock

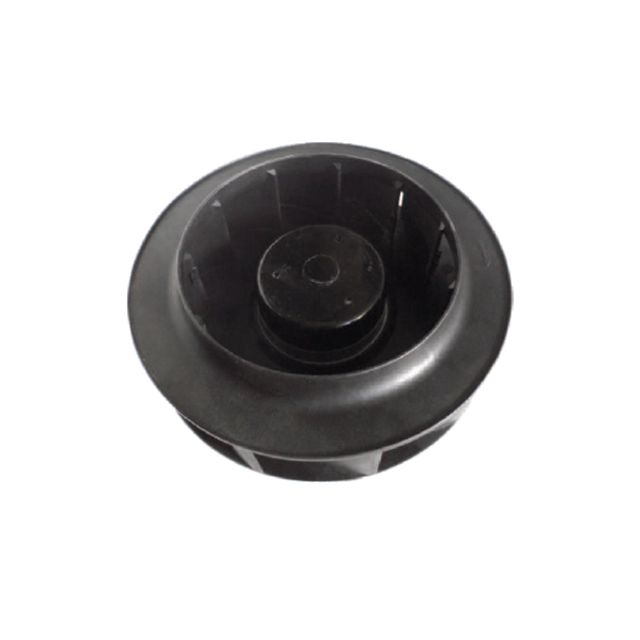

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI2577
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 250mm Dia
Width : 77.30mm
Air Flow : 716.0 CFM (20.05m鲁/min)
Static Pressure : 3.365 in H2O (838.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 76.0 dB(A)
Power (Watts) : -
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 4.5 lbs (2kg)
0
8 in stock

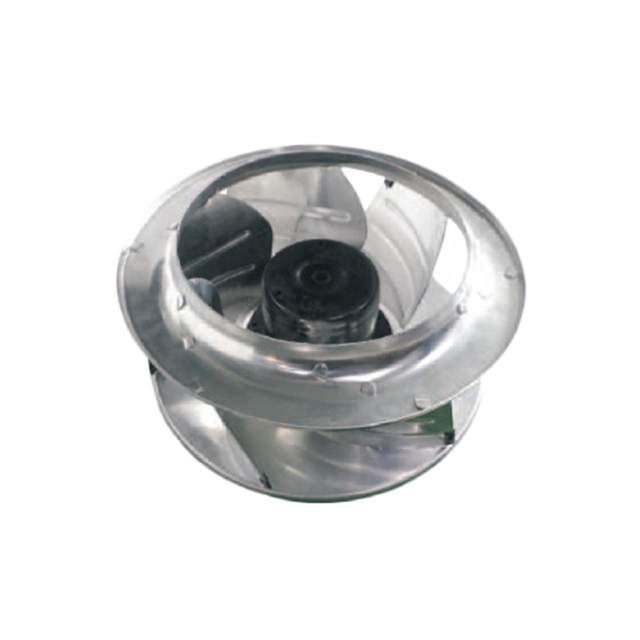

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MSI3116
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 315mm Dia
Width : 161.0mm
Air Flow : 1675.0 CFM (46.90m鲁/min)
Static Pressure : 3.150 in H2O (784.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Auto Restart, Speed Sensor (Tach)
Noise : 76.0 dB(A)
Power (Watts) : -
RPM : 2100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 6.6 lbs (3kg)
0
4 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : -
Part Status : Active
Type : Fan Tray
Voltage - Input : 100 ~ 240VAC
Specifications : -
Size / Dimension : -
0
10 in stock
