- METZ CONNECT is a medium-sized, family-run German company founded in 1976. Around the world, their products guarantee secure and reliable connections for a smooth flow of information – from the printed circuit board to the infrastructure environment. METZ CONNECT is known for its expertise in all aspects of the manufacturing process including in-house molding, stamping and assembly operations. METZ CONNECT designs and manufactures connector assembly equipment in-house to assure the highest quality and reliability of finished products. The full product line covers a wide range across multiple applications and industries. Products include PCB mount terminal blocks and board-to-board connectors, RJ-45 plugs and receptacles, patch panels, copper and fiber optic cables, and intelligent DIN rail mount I/O devices. These products are used in security and access controls, HVAC, irrigation systems, industrial automation, lighting controls, A/V equipment, industrial controls, building automation applications, and more.

Part Number
Manufacturer
Description
Unit Price
In Stock

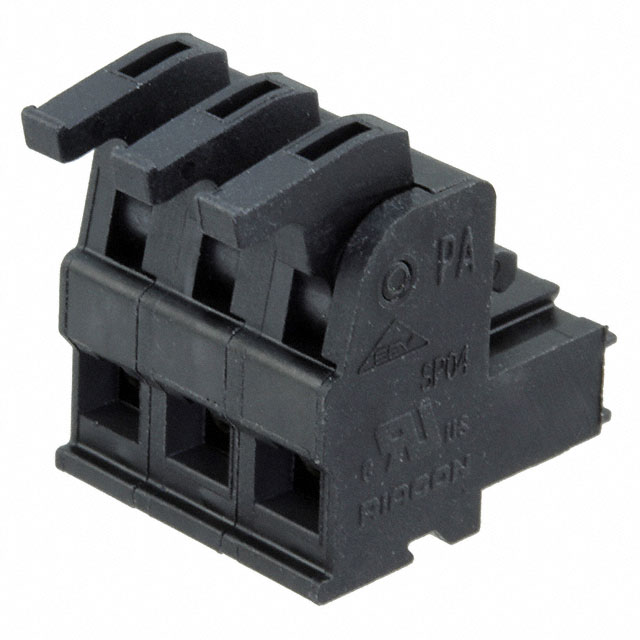

ASP0450322 ASP0450322

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 3
Positions Per Level : 3
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1.5mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : Tin
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
442 in stock

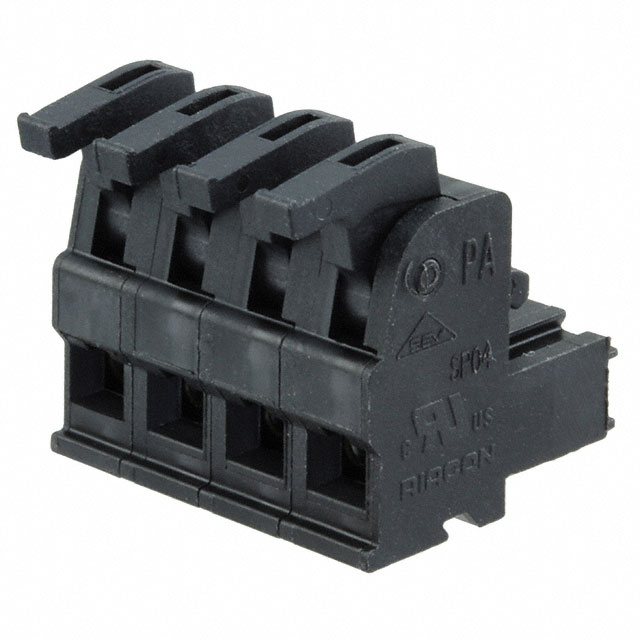

ASP0450422 ASP0450422

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 4
Positions Per Level : 4
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1.5mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : Tin
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
348 in stock

ASP0450522 ASP0450522

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 5
Positions Per Level : 5
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1.5mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : Tin
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
200 in stock

ASP0450622 ASP0450622

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 6
Positions Per Level : 6
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1.5mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : Tin
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
212 in stock

ASP0450822 ASP0450822

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 8
Positions Per Level : 8
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1.5mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : Tin
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
100 in stock

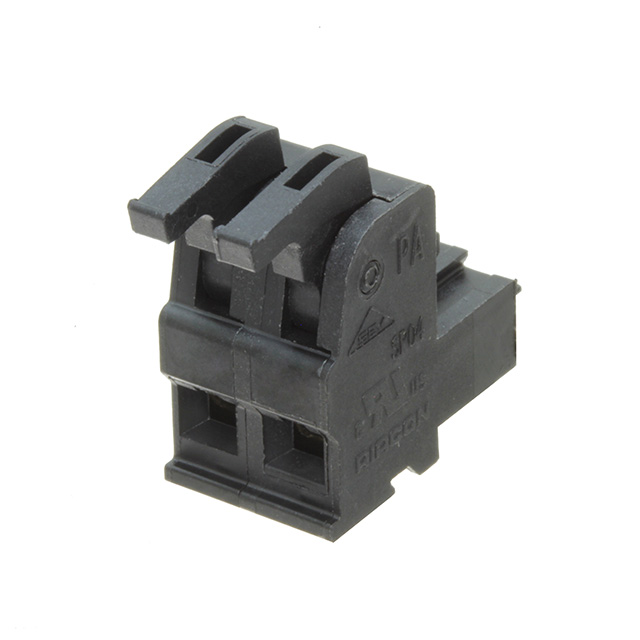

ASP0460222 ASP0460222

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 2
Positions Per Level : 2
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : -
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
1424 in stock

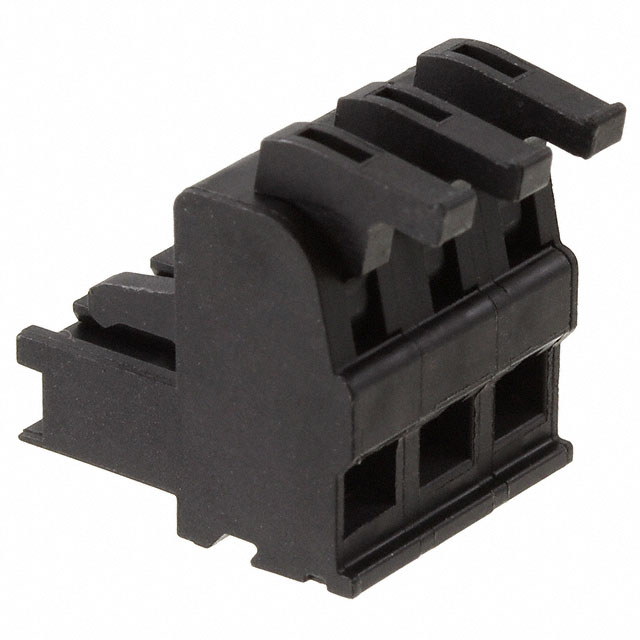

ASP0460322 ASP0460322

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 3
Positions Per Level : 3
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : -
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
415 in stock

ASP0460422 ASP0460422

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 4
Positions Per Level : 4
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : -
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
100 in stock

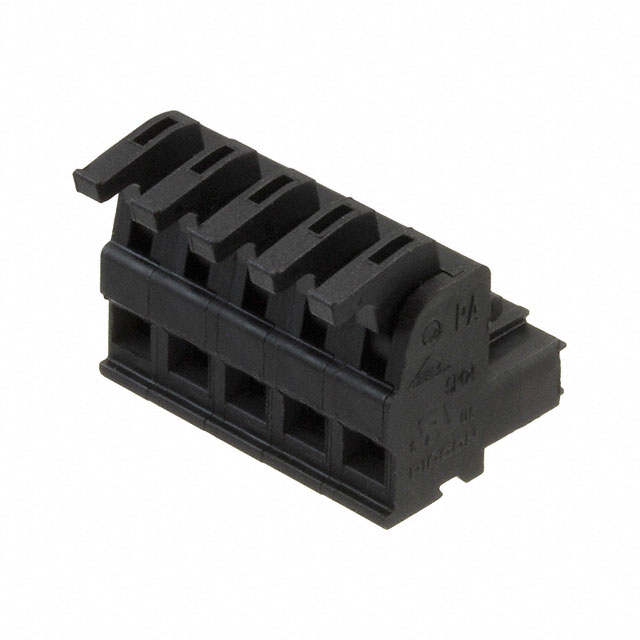

ASP0460522 ASP0460522

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 5
Positions Per Level : 5
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : -
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
200 in stock

ASP0460622 ASP0460622

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 6
Positions Per Level : 6
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : -
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
383 in stock

ASP0460822 ASP0460822

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 8
Positions Per Level : 8
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1mm²
Color : Black
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : -
Features : Lever Actuated, Retention Latches (Non-Wire Side)
0
100 in stock

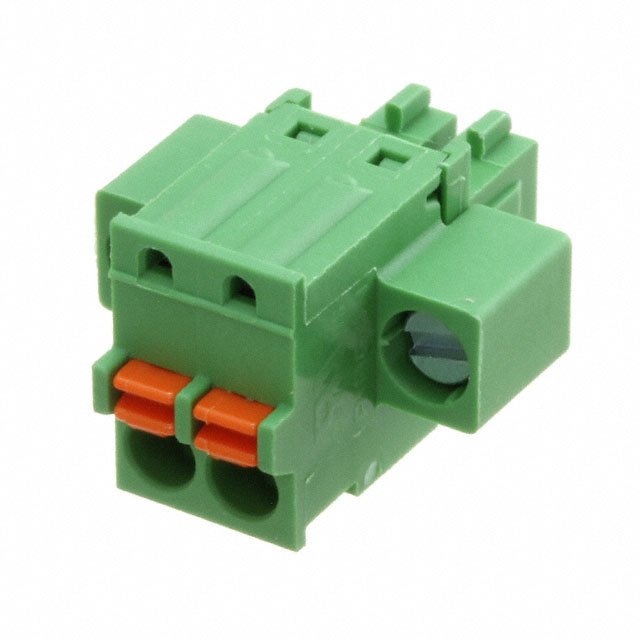

ASP0840206 ASP0840206

METZ CONNECT
Manufacturer : METZ CONNECT USA Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 2
Positions Per Level : 2
Number of Levels : 1
Pitch : 0.150" (3.81mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Spring Cage, Tension Clamp
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 8A
Voltage - UL : 150V
Wire Gauge or Range - AWG : 16-28 AWG
Wire Gauge or Range - mm² : 0.08-1.5mm²
Color : Green
Operating Temperature : -40°C ~ 105°C
Contact Mating Finish : Tin
Features : Mating Flange
0
499 in stock
