Micro Commercial Components (MCC)

- Founded in 1998, Micro Commercial Components Corp. (MCC) is a supplier of high-quality discrete semiconductors to the consumer markets. MCC's products include diodes, rectifiers, transistors, MOSFETs, voltage regulators and protection devices.


Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of 6A10-TP

6A10-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 6A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 6A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 1000V
Capacitance @ Vr, F : 150pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 125°C

0

23632 in stock

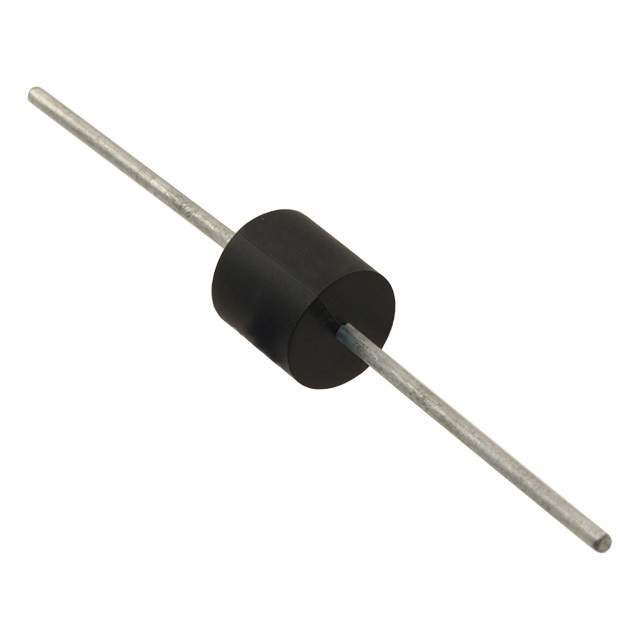

Picture of 6A1-TP

6A1-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 6A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 6A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 125°C

0

646 in stock

Picture of 6A2-TP

6A2-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 6A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 6A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : 150pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 125°C

0

1797 in stock

Picture of 6A4-TP

6A4-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 6A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 6A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : 150pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 125°C

0

17974 in stock

Picture of 6A6-TP

6A6-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 6A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 6A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : 150pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 125°C

0

3915 in stock

Picture of 6A8-TP

6A8-TP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 6A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 6A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 800V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 125°C

0

195 in stock

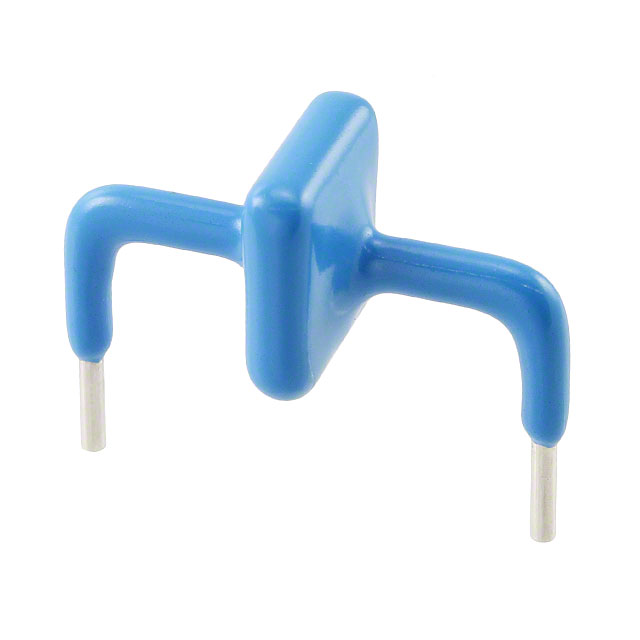

Picture of AK10-058C-BP

AK10-058C-BP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Bulk
Series : AK
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 58V
Voltage - Breakdown (Min) : 64V
Voltage - Clamping (Max) @ Ipp : 110V
Current - Peak Pulse (10/1000µs) : 10000A (10kA) (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package : AK

0

217 in stock

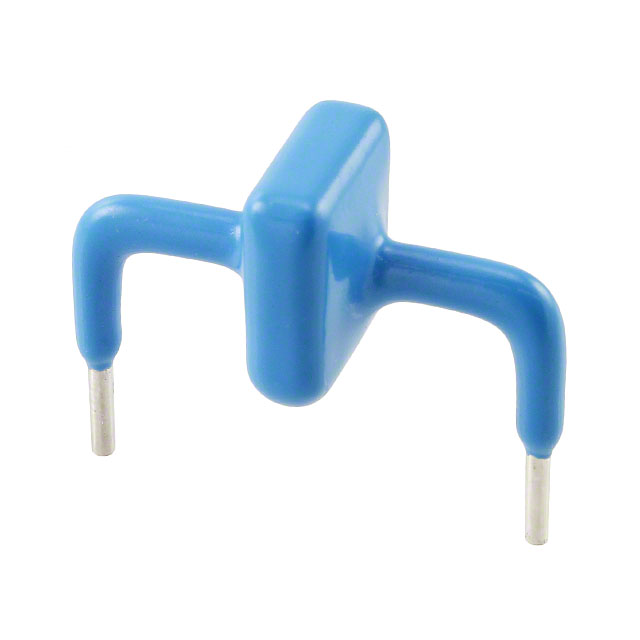

Picture of AK10-076C-BP

AK10-076C-BP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Bulk
Series : AK
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 76V
Voltage - Breakdown (Min) : 83V
Voltage - Clamping (Max) @ Ipp : 135V
Current - Peak Pulse (10/1000µs) : 10000A (10kA) (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package : AK

0

45 in stock

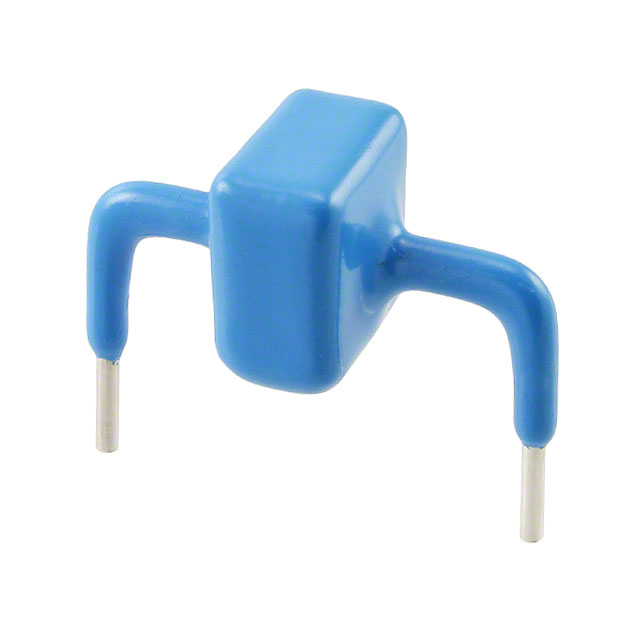

Picture of AK10-190C-BP

AK10-190C-BP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Bulk
Series : AK
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 190V
Voltage - Breakdown (Min) : 200V
Voltage - Clamping (Max) @ Ipp : 290V
Current - Peak Pulse (10/1000µs) : 10000A (10kA) (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package : AK

0

188 in stock

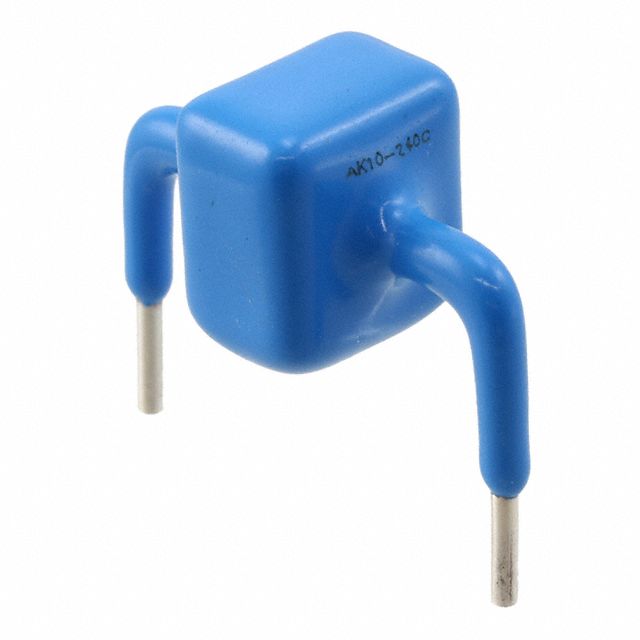

Picture of AK10-240C-BP

AK10-240C-BP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Bulk
Series : AK
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 240V
Voltage - Breakdown (Min) : 250V
Voltage - Clamping (Max) @ Ipp : 340V
Current - Peak Pulse (10/1000µs) : 10000A (10kA) (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package : AK

0

44 in stock

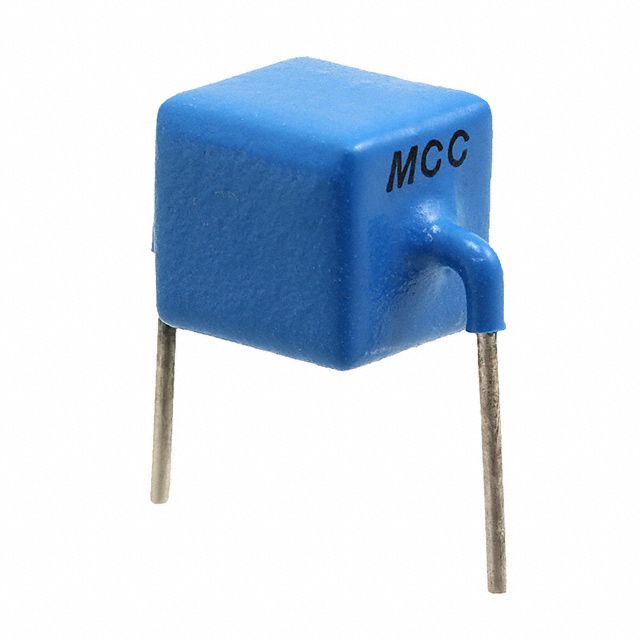

Picture of AK10-380C-BP

AK10-380C-BP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Bulk
Series : AK
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 380V
Voltage - Breakdown (Min) : 401V
Voltage - Clamping (Max) @ Ipp : 520V
Current - Peak Pulse (10/1000µs) : 10000A (10kA) (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package : AK

0

58 in stock

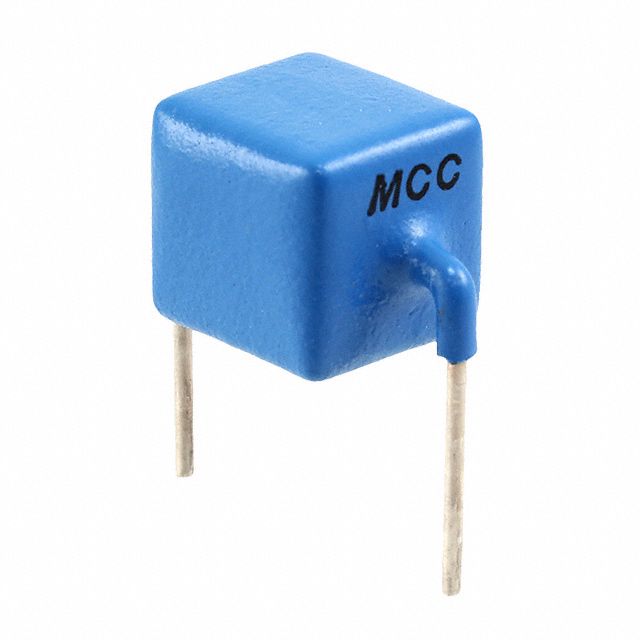

Picture of AK10-430C-BP

AK10-430C-BP

Micro Commercial Components (MCC)

Manufacturer : Micro Commercial Co
Packaging : Bulk
Series : AK
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 430V
Voltage - Breakdown (Min) : 440V
Voltage - Clamping (Max) @ Ipp : 625V
Current - Peak Pulse (10/1000µs) : 10000A (10kA) (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package : AK

0

150 in stock
