Mill-Max Mfg. Corp.

- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.


Part Number

Manufacturer

Description

Unit Price

In Stock

0678-0-15-15-32-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 678
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.180" (4.57mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

19945 in stock

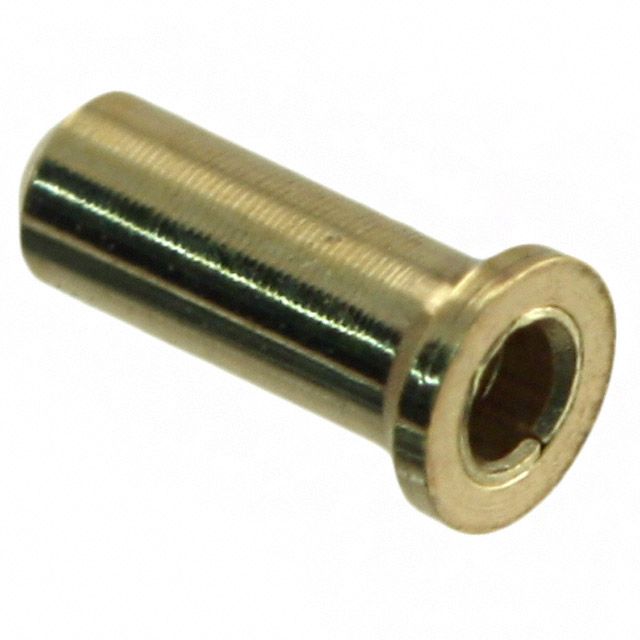

0680-0-15-15-32-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 680
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.138" (3.51mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.051" (1.30mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.120" (3.05mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

27329 in stock

0700-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Series : 0700
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.158" (4.01mm)
Length - Below Flange : 0.259" (6.58mm)
Length - Overall : 0.417" (10.59mm)
Mounting Type : Through Hole
Termination : Press-Fit, Barbed
Flange Diameter : 0.072" (1.83mm)
Diameter - Turret Head : 0.053" (1.35mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.057" (1.45mm)
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Insulation : Non-Insulated

5210 in stock

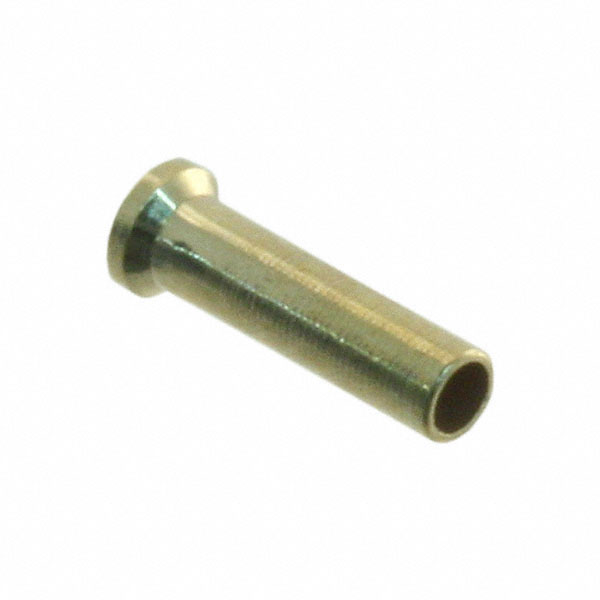

0707-0-15-15-12-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 707
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.200" (5.08mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.051" (1.30mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1188 in stock

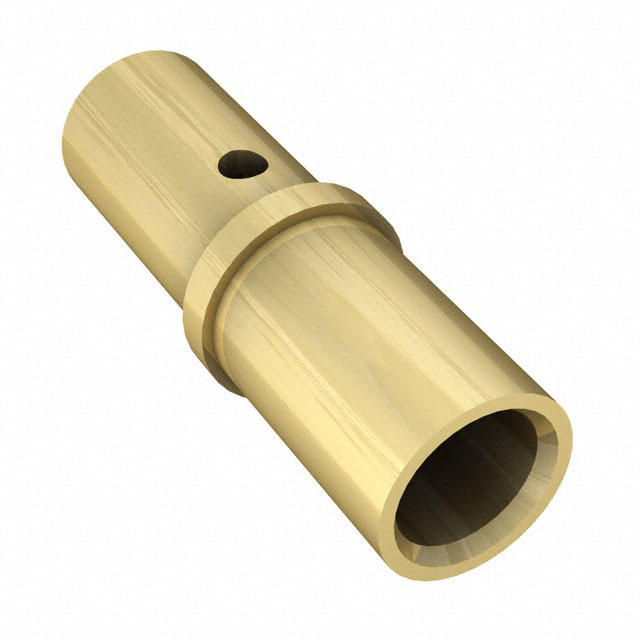

0712-0-33-15-08-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 712
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : -
Flange Diameter : 0.180" (4.57mm)
Tail Diameter : -
Socket Depth : 0.210" (5.33mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

466 in stock

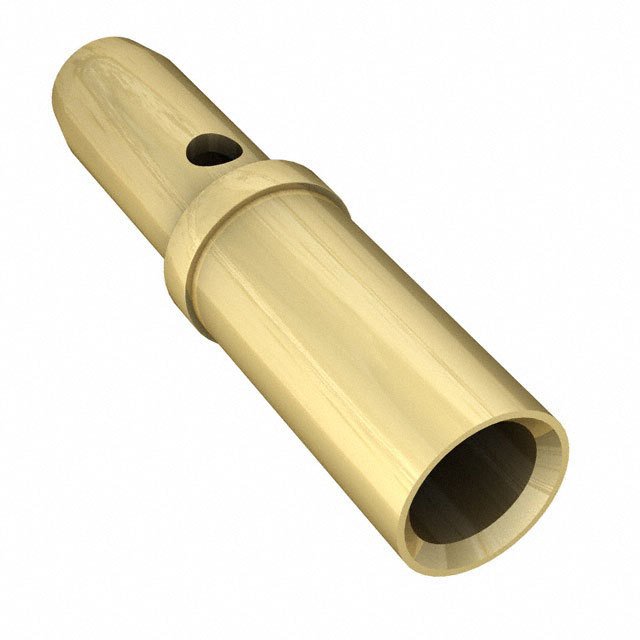

0714-0-33-15-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 714
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : -
Flange Diameter : 0.132" (3.35mm)
Tail Diameter : -
Socket Depth : 0.214" (5.44mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

177 in stock

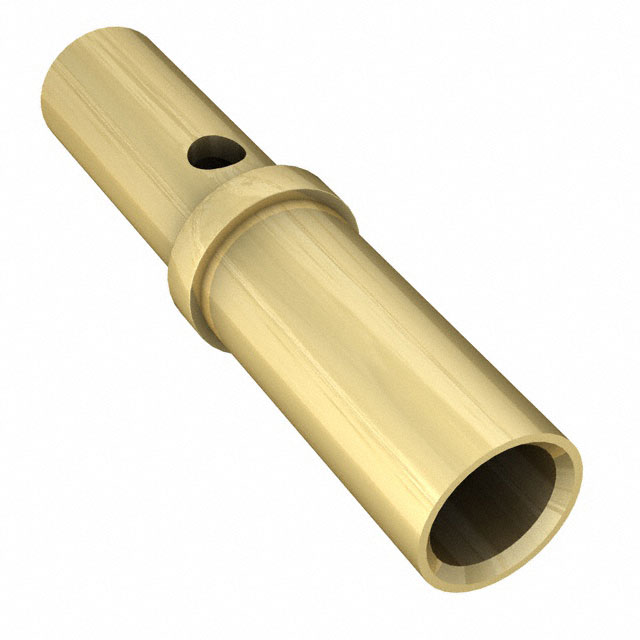

0716-0-33-15-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 716
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : -
Flange Diameter : 0.129" (3.28mm)
Tail Diameter : -
Socket Depth : 0.214" (5.44mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

7592 in stock

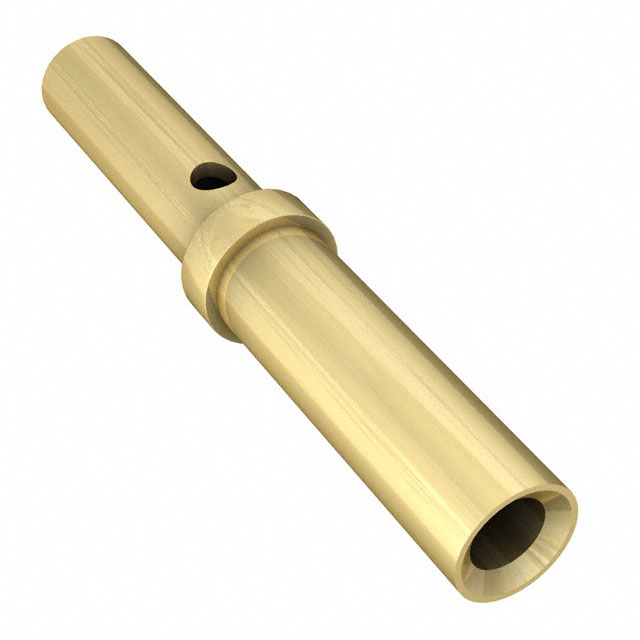

0720-0-33-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 720
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : -
Flange Diameter : 0.093" (2.36mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1512 in stock

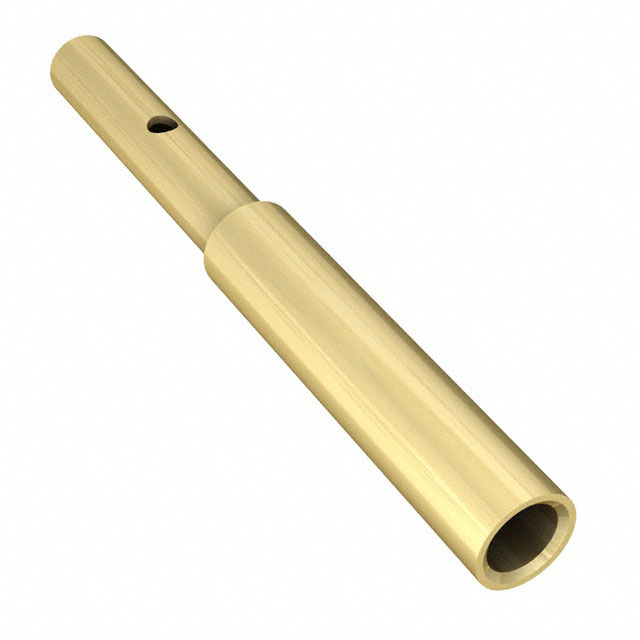

0722-0-33-15-47-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 722
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1287 in stock

0740-0-18-80-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 740
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.425" (10.80mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.084" (2.13mm)
Tail Diameter : -
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

636 in stock

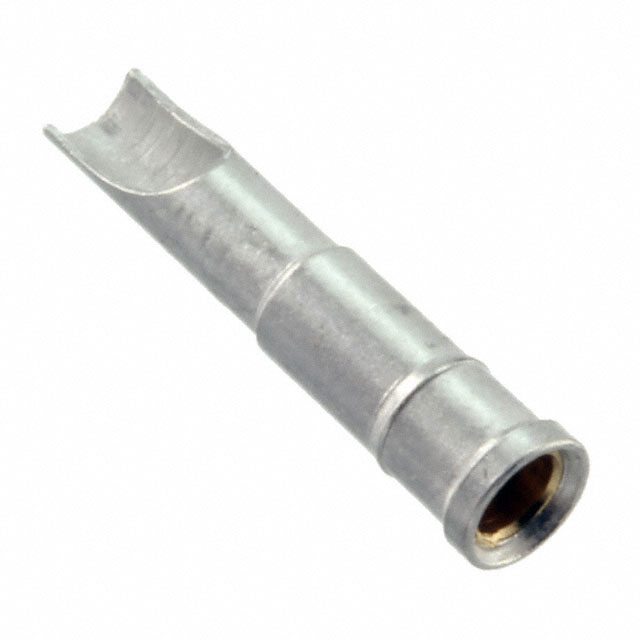

0760-0-18-80-13-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 760
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.520" (13.21mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.119" (3.02mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

3226 in stock

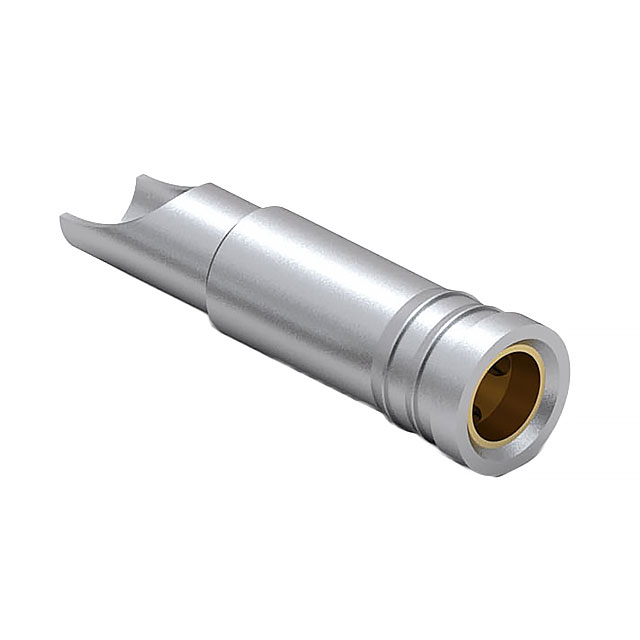

0778-0-18-80-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0778
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.585" (14.86mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.143" (3.63mm)
Flange Diameter : 0.156" (3.96mm)
Tail Diameter : -
Socket Depth : 0.275" (6.99mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

47 in stock
