Mill-Max Mfg. Corp.
- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 0997
Part Status : Active
Material : Brass Alloy
Plating : Gold
Plating - Thickness : 20µin (0.51µm)
Mounting Type : Surface Mount
0
1693 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 0997
Part Status : Active
Material : Brass Alloy
Plating : Gold
Plating - Thickness : 20µin (0.51µm)
Mounting Type : Surface Mount
0
6316 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1001
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.070" (1.77mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.146" (3.71mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
900 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1010
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : -
Length - Above Flange : 0.663" (16.84mm)
Length - Below Flange : -
Length - Overall : 0.693" (17.60mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit, Wire Wrap
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
3420 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 101
Part Status : Active
Type : DIP, 0.4" (10.16mm) Row Spacing
Number of Positions or Pins (Grid) : 22 (2 x 11)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
486 in stock

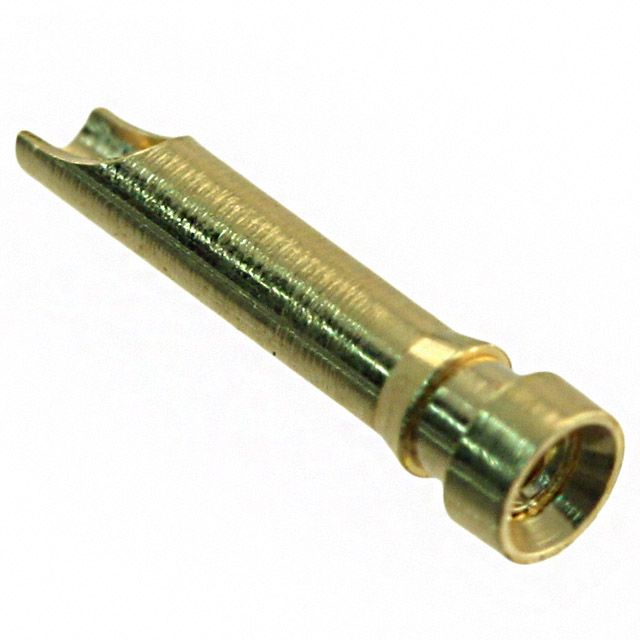

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1024
Part Status : Active
Tail Type : Solder Cup
Termination : Press-Fit
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
44492 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1024
Part Status : Active
Tail Type : Solder Cup
Termination : Press-Fit
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1000 in stock

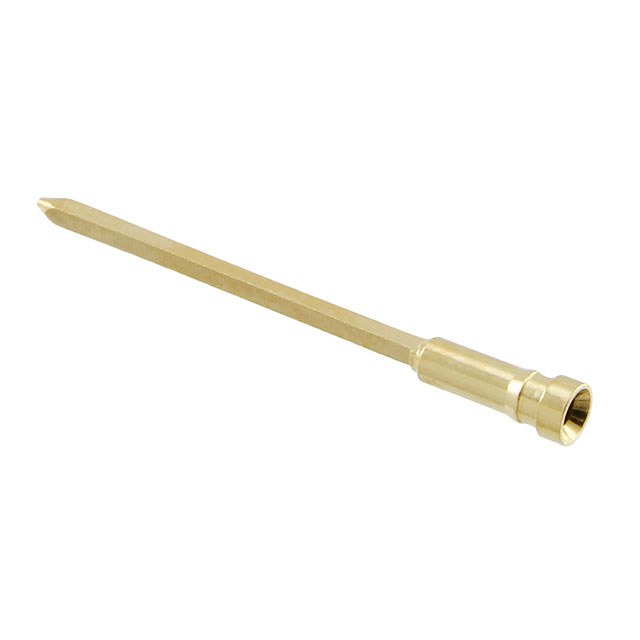

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1030
Part Status : Active
Tail Type : Wire Wrap
Termination : Press-Fit
Length - Overall : 0.693" (17.60mm)
Accepts Pin Diameter : -
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.025" (0.64mm) Square
Socket Depth : 0.162" (4.12mm)
Contact Material : Brass Alloy
Contact Finish : Unplated
Contact Finish Thickness : -
0
32 in stock

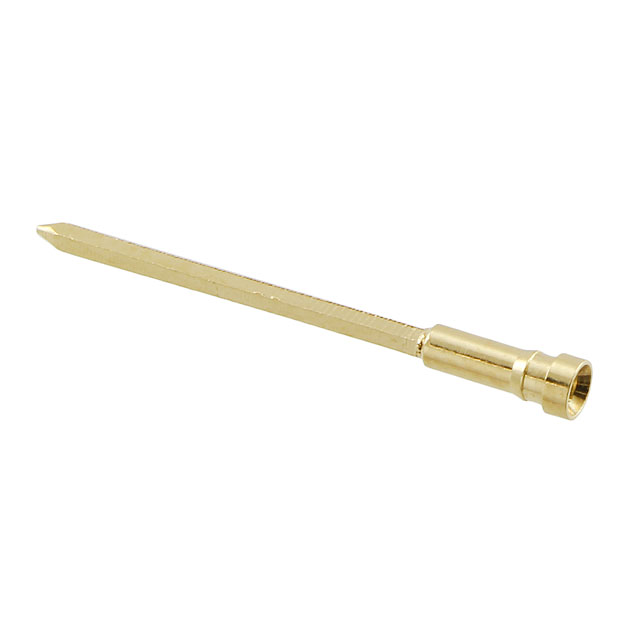

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1030
Part Status : Active
Tail Type : Wire Wrap
Termination : Press-Fit
Length - Overall : 0.693" (17.60mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.025" (0.64mm) Square
Socket Depth : 0.162" (4.12mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
513 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1031
Part Status : Active
Tail Type : Wire Wrap
Termination : Press-Fit
Length - Overall : 0.553" (14.05mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.025" (0.64mm) Square
Socket Depth : 0.162" (4.12mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1000 in stock

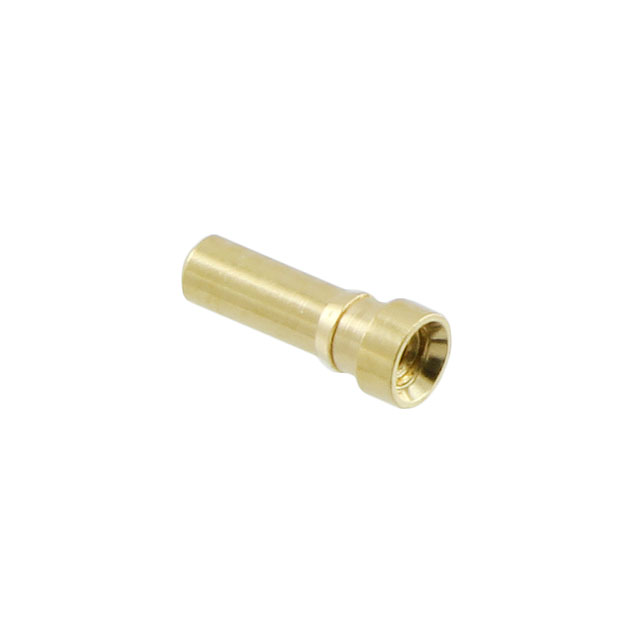

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1033
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.203" (5.16mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.203" (5.16mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2160 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1067
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.340" (8.64mm)
Length - Below Flange : -
Length - Overall : 0.371" (9.42mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.055" (1.40mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
3724 in stock
