Mill-Max Mfg. Corp.
- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock
851-47-006-10-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.161" (4.10mm)
Contact Length - Post : 0.099" (2.51mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.161" (4.10mm)
Contact Length - Post : 0.099" (2.51mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
186 in stock

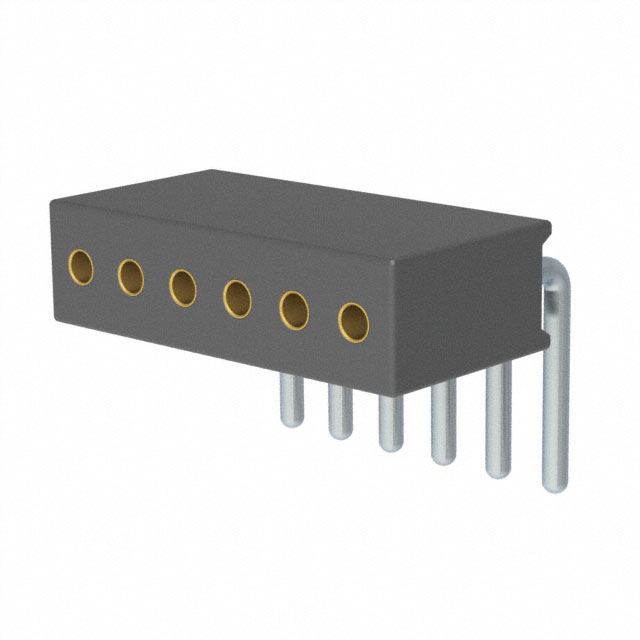

851-47-006-20-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
379 in stock
851-47-008-10-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.161" (4.10mm)
Contact Length - Post : 0.099" (2.51mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.161" (4.10mm)
Contact Length - Post : 0.099" (2.51mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
172 in stock

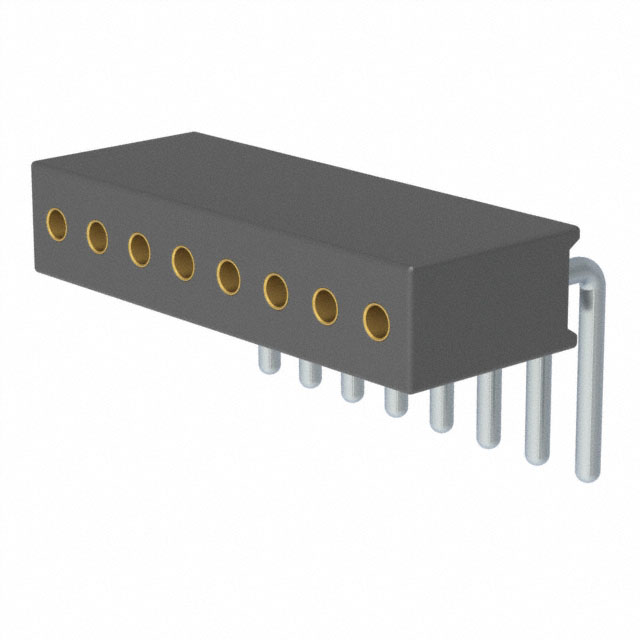

851-47-008-20-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
131 in stock

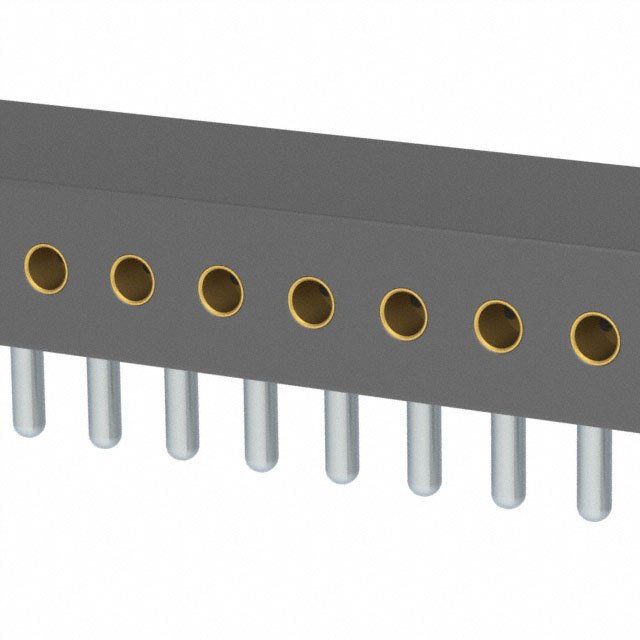

851-47-010-20-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
115 in stock

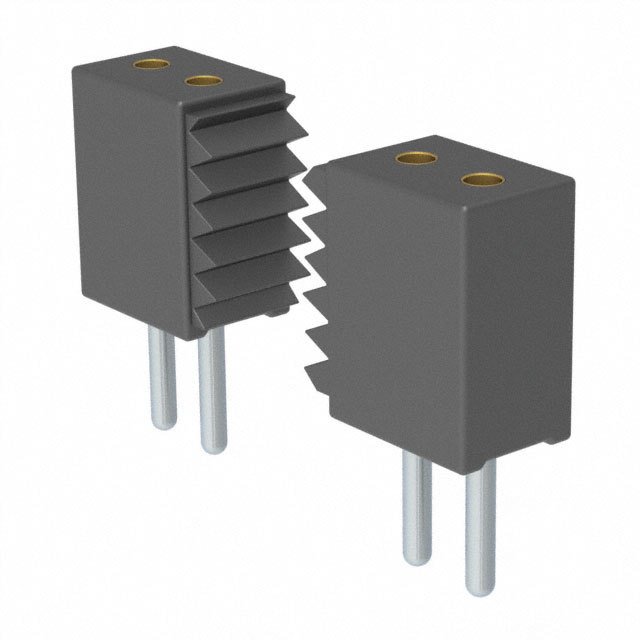

851-47-050-10-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.161" (4.10mm)
Contact Length - Post : 0.099" (2.51mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.161" (4.10mm)
Contact Length - Post : 0.099" (2.51mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
171 in stock
851-47-050-20-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
45 in stock

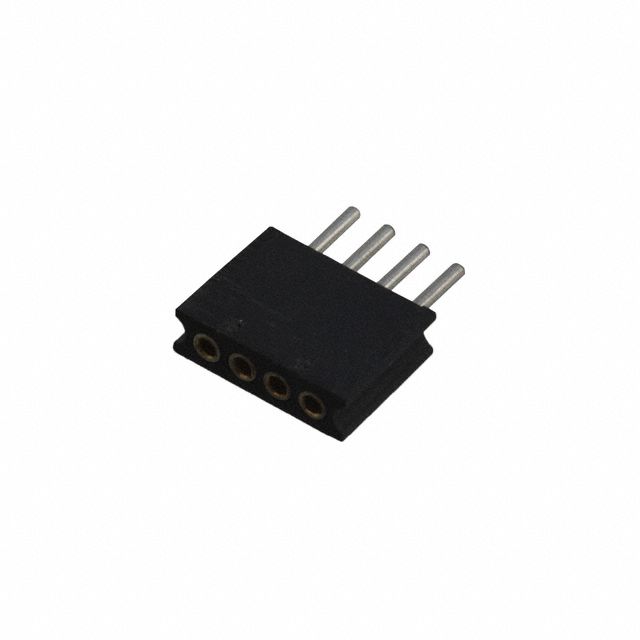

851-93-004-10-002000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.115" (2.92mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.115" (2.92mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
761 in stock

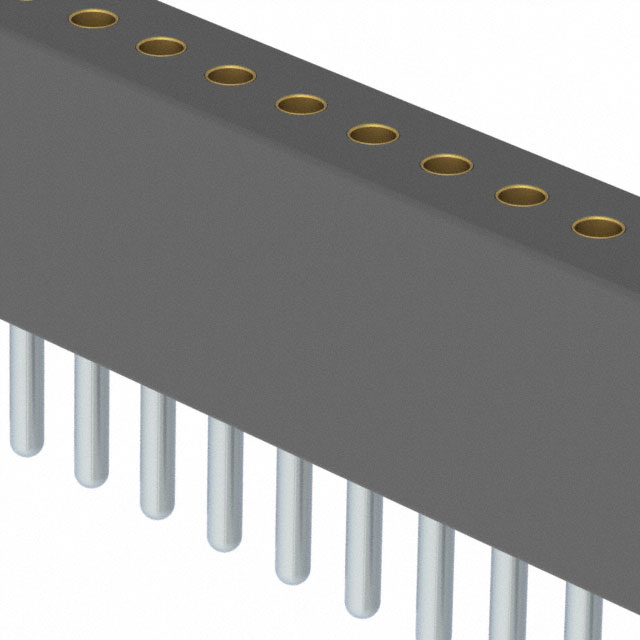

851-93-050-10-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.161" (4.10mm)
Contact Length - Post : 0.099" (2.51mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.161" (4.10mm)
Contact Length - Post : 0.099" (2.51mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
1031 in stock
851-93-050-20-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
Packaging : Bulk
Series : 851
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.087" (2.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -
0
91 in stock

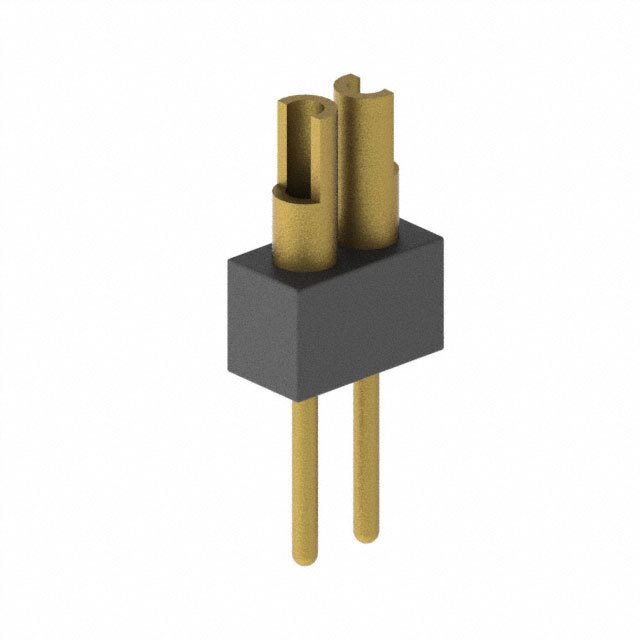

852-10-002-10-003000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 852
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 2
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.075" (1.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : 852
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 2
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.075" (1.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
496 in stock

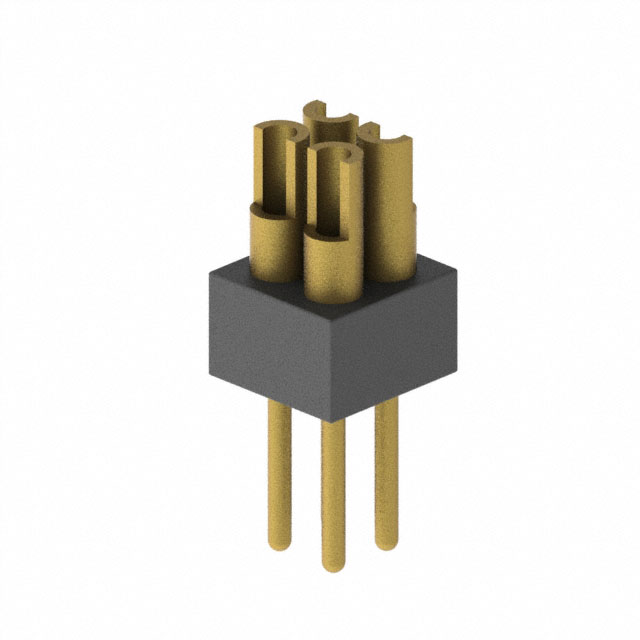

852-10-004-10-003000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 852
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.075" (1.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : 852
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.100" (2.54mm)
Contact Length - Post : 0.122" (3.10mm)
Overall Contact Length : 0.303" (7.70mm)
Insulation Height : 0.075" (1.90mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polyamide (PA46), Nylon 4/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
394 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
