Murata Power Solutions
- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Series : DMS-20
Part Status : Obsolete
Accessory Type : Adapter Plate
For Use With/Related Products : DMS-20 Series
Specifications : -
Includes : -
0
100 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Series : DMS-30/40
Part Status : Obsolete
Accessory Type : Adapter Plate
For Use With/Related Products : DMS-30/40 Series
Specifications : -
Includes : -
0
100 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.8µH
Tolerance : ±30%
Current Rating : 3.1A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 52 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.179" (4.55mm)
0
6202 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4600
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68µH
Tolerance : ±20%
Current Rating : 1.05A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 360 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.179" (4.55mm)
0
19901 in stock

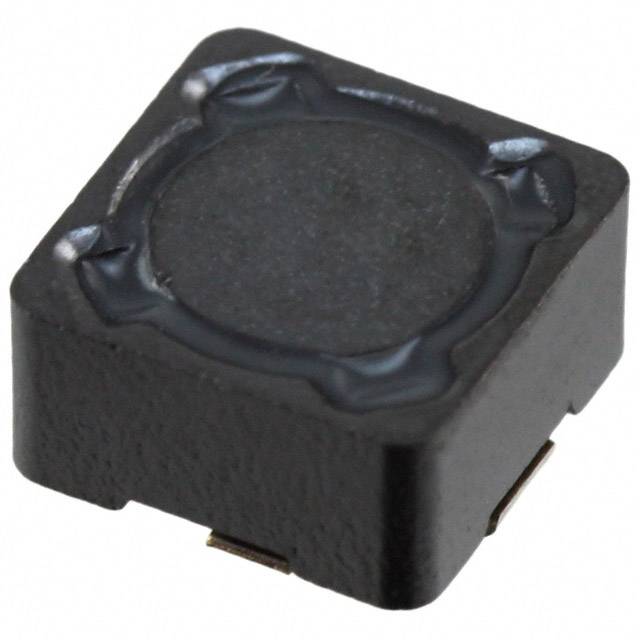

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4600
Part Status : Discontinued at
Type : Wirewound
Material - Core : -
Inductance : 680µH
Tolerance : ±20%
Current Rating : 320mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3.9 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.179" (4.55mm)
0
880 in stock

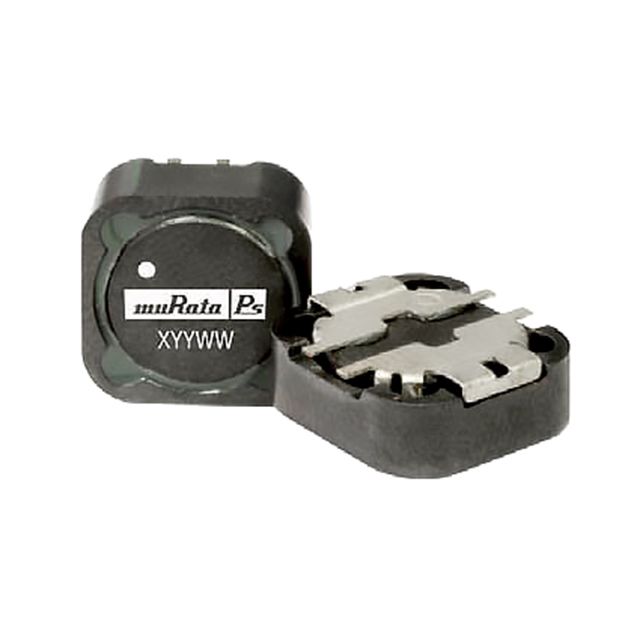

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4700
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : -
Current Rating : 3.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 70.2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
750 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 4700S
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : ±20%
Current Rating : 3.8A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 32.3 mOhm Max
Q @ Freq : 22 @ 1MHz
Frequency - Self Resonant : 22MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 4700S
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 100µH
Tolerance : ±20%
Current Rating : 1.3A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 267 mOhm Max
Q @ Freq : 20 @ 800kHz
Frequency - Self Resonant : 8MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock

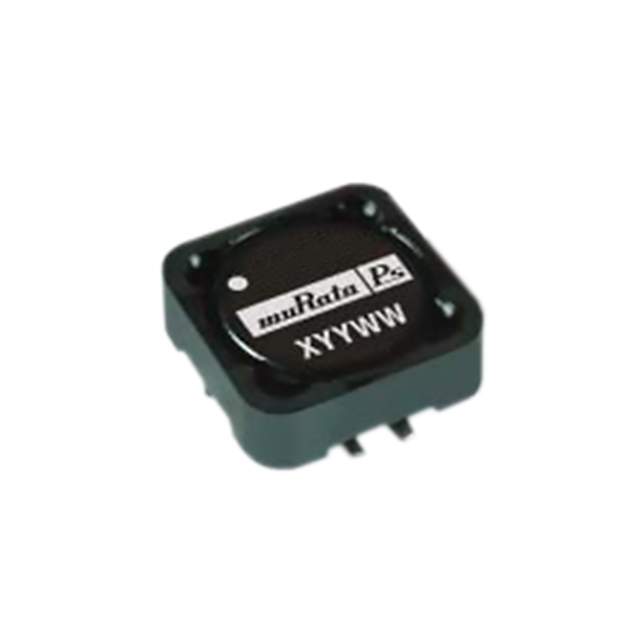

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4700
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1µH
Tolerance : -
Current Rating : 9.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 8.9 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
750 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 4700S
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 22µH
Tolerance : ±20%
Current Rating : 2.7A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 62.9 mOhm Max
Q @ Freq : 29 @ 1MHz
Frequency - Self Resonant : 14MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
750 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 4700S
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 220µH
Tolerance : ±20%
Current Rating : 800mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 629 mOhm Max
Q @ Freq : 20 @ 800kHz
Frequency - Self Resonant : 6MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 4700S
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 33µH
Tolerance : ±20%
Current Rating : 2.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 91.1 mOhm Max
Q @ Freq : 23 @ 1MHz
Frequency - Self Resonant : 13MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1500 in stock
