Murata Power Solutions

- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.

Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.

Part Number
Manufacturer
Description
Unit Price
In Stock

49102SC 49102SC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1mH
Tolerance : ±20%
Current Rating : 500mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.5 Ohm Max
Q @ Freq : 26 @ 800kHz
Frequency - Self Resonant : 3MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
1405 in stock

49150SC 49150SC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 15µH
Tolerance : ±20%
Current Rating : 4.4A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 27 mOhm Max
Q @ Freq : 44 @ 1MHz
Frequency - Self Resonant : 16MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
980 in stock

49151C 49151C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 150µH
Tolerance : -
Current Rating : 1.15A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 529 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock

49151SC 49151SC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 150µH
Tolerance : ±20%
Current Rating : 1.3A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 250 mOhm Max
Q @ Freq : 35 @ 800kHz
Frequency - Self Resonant : 5MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock

491R0SC 491R0SC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1µH
Tolerance : ±30%
Current Rating : 11.8A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 5 mOhm Max
Q @ Freq : 32 @ 1MHz
Frequency - Self Resonant : 91MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock

49221C 49221C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 220µH
Tolerance : -
Current Rating : 950mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 805 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock

49330C 49330C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 33µH
Tolerance : -
Current Rating : 2.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 128 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
425 in stock

49330SC 49330SC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 33µH
Tolerance : ±20%
Current Rating : 2.9A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 60 mOhm Max
Q @ Freq : 51 @ 1MHz
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
455 in stock

49331SC 49331SC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 330µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 33 @ 800kHz
Frequency - Self Resonant : 4MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock

49470SC 49470SC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 47µH
Tolerance : ±20%
Current Rating : 2.3A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : 52 @ 1MHz
Frequency - Self Resonant : 9MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock

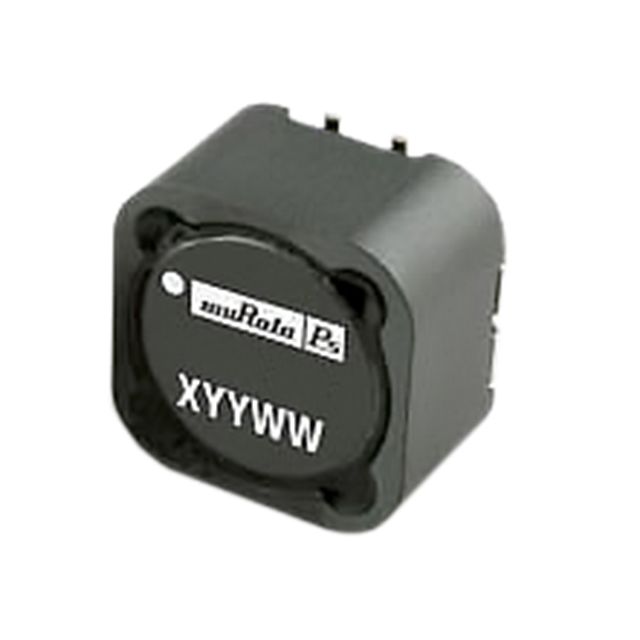

494R7C 494R7C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : -
Current Rating : 6.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 17.1 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
455 in stock

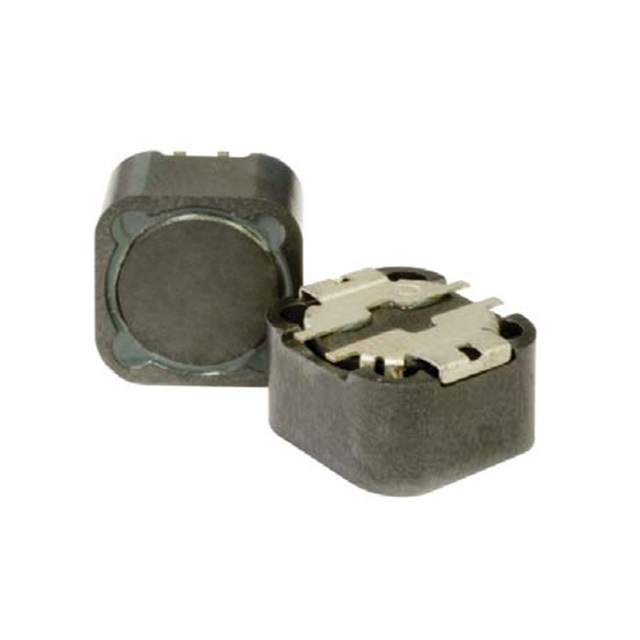

494R7SC 494R7SC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4900S
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 7.7A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 12 mOhm Max
Q @ Freq : 42 @ 1MHz
Frequency - Self Resonant : 32MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, 4 Lead
Supplier Device Package : -
Size / Dimension : 0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
500 in stock
