- Since our founding in 1948, we at Nihon Dempa Kogyo Co., Ltd. (NDK) have operated under a philosophy of “contributing to social prosperity and world peace through our service to customers.”

NDK’s quartz crystal devices provide an accurate and superior oscillation source that is absolutely essential to crystal components. As the era of the ubiquitous networked society unfolds, the Company’s crystal devices are being utilized in diverse applications, ranging from mobile communications and fixed radio communications to office automation, audiovisual, and automotive electronics equipment.

With its lineup of high-precision, high-reliability, compact crystal devices that anticipate the next generation of customer needs today, NDK has grown to become the leading company among quartz crystal device manufacturers in the world. Under the banner of “quality, cost, and speed,” NDK aims to establish itself as the industry’s technology leader and the most trusted customer brand.

NDK will continue to provide high-value-added products and high-quality service to its customers throughout the world, increase its enterprise value, and live up to the expectations of its stakeholders, including shareholders, customers, and local communities.

Part Number
Manufacturer
Description
Unit Price
In Stock

NX2520SA-30.000000MHZ NX2520SA-30.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 30MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
12320 in stock

NX2520SA-32.000000MHZ NX2520SA-32.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 32MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
240557 in stock

NX2520SA-44.000000MHZ NX2520SA-44.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 44MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
1623 in stock

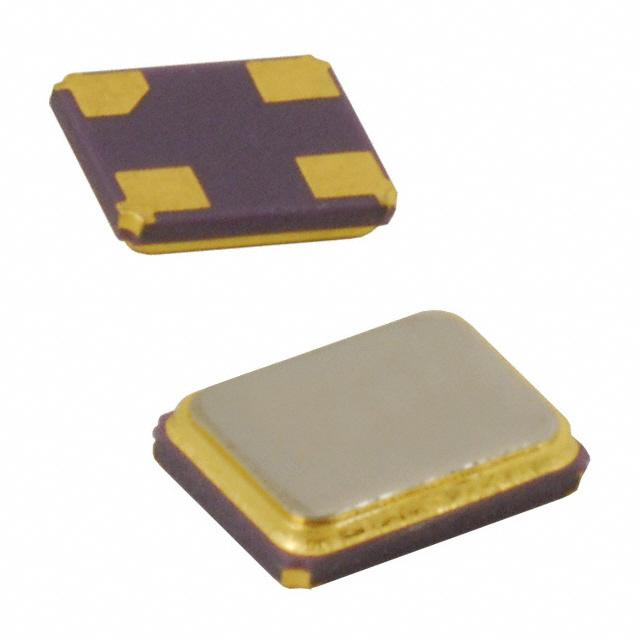

NX2520SA-48.000000MHZ NX2520SA-48.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 48MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
25882 in stock

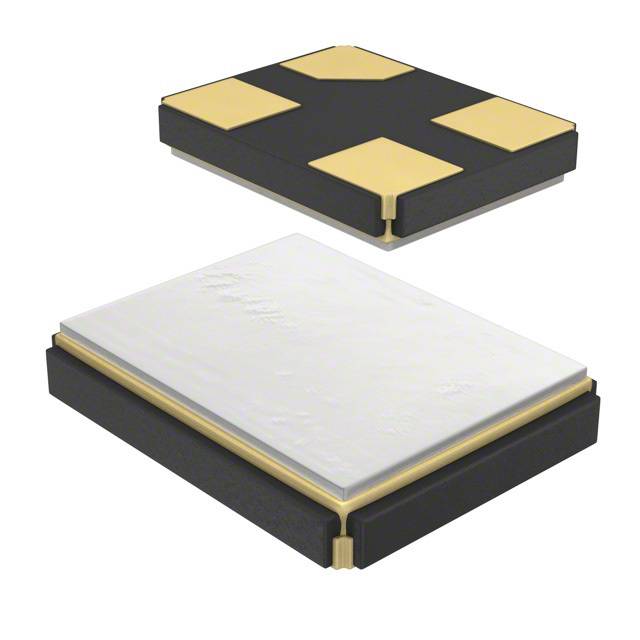

NX2520SD-24MHZ-EXS00A-CS06352 NX2520SD-24MHZ-EXS00A-CS06352

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SD
Part Status : Active
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±15ppm
Frequency Tolerance : ±15ppm
Load Capacitance : 12pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -30°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.022" (0.55mm)
0
3674 in stock

NX2520SG-19.2M-EXS00A-CS04340 NX2520SG-19.2M-EXS00A-CS04340

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SG
Part Status : Active
Type : MHz Crystal
Frequency : 19.2MHz
Frequency Stability : ±12ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 7pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -30°C ~ 105°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
9328 in stock

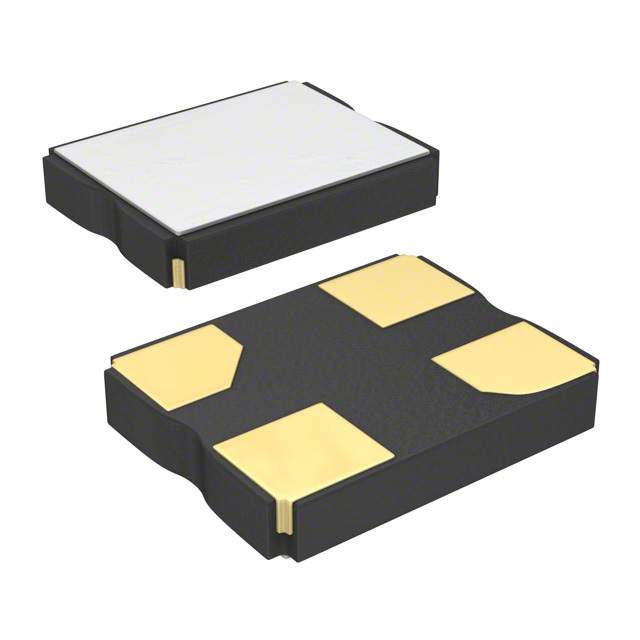

NX2520SG-19.2M-STD-CTX-1 NX2520SG-19.2M-STD-CTX-1

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SG
Part Status : Active
Type : MHz Crystal
Frequency : 19.2MHz
Frequency Stability : ±12ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 7pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -30°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
7168 in stock

NX3215SA-32.768K-EXS00A-MU00003 NX3215SA-32.768K-EXS00A-MU00003

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX3215SA
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±20ppm
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : 90 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
113 in stock

NX3215SA-32.768KHZ-EXS00A-MU00523 NX3215SA-32.768KHZ-EXS00A-MU00523

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX3215SA
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : -
Load Capacitance : 7pF
ESR (Equivalent Series Resistance) : -
Operating Mode : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
1998 in stock

NX3215SA-32.768KHZ-EXS00A-MU00525 NX3215SA-32.768KHZ-EXS00A-MU00525

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX3215SA
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : -
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : -
Operating Mode : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
4946 in stock

NX3215SA-32.768KHZ-EXS00A-MU00526 NX3215SA-32.768KHZ-EXS00A-MU00526

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX3215SA
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : -
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : -
Operating Mode : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
3000 in stock

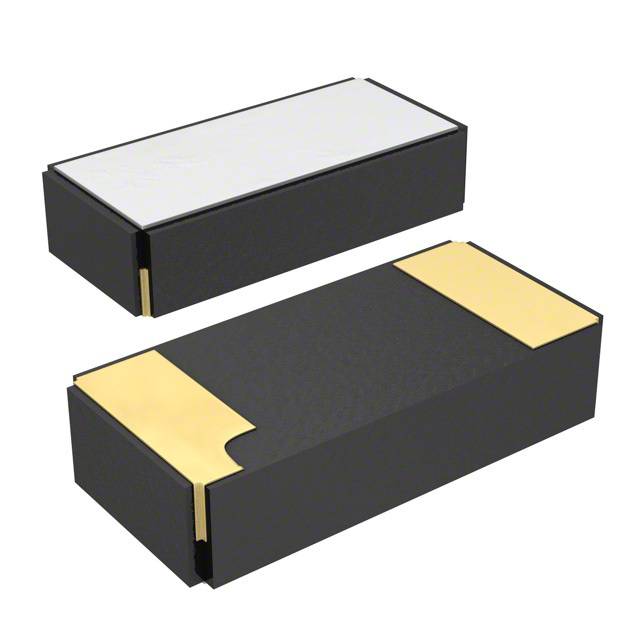

NX3215SA-32.768KHZ-EXS00A-MU00529 NX3215SA-32.768KHZ-EXS00A-MU00529

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX3215SA
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : -
Load Capacitance : 7pF
ESR (Equivalent Series Resistance) : -
Operating Mode : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
2950 in stock
