NDK

- Since our founding in 1948, we at Nihon Dempa Kogyo Co., Ltd. (NDK) have operated under a philosophy of “contributing to social prosperity and world peace through our service to customers.”

NDK’s quartz crystal devices provide an accurate and superior oscillation source that is absolutely essential to crystal components. As the era of the ubiquitous networked society unfolds, the Company’s crystal devices are being utilized in diverse applications, ranging from mobile communications and fixed radio communications to office automation, audiovisual, and automotive electronics equipment.

With its lineup of high-precision, high-reliability, compact crystal devices that anticipate the next generation of customer needs today, NDK has grown to become the leading company among quartz crystal device manufacturers in the world. Under the banner of “quality, cost, and speed,” NDK aims to establish itself as the industry’s technology leader and the most trusted customer brand.

NDK will continue to provide high-value-added products and high-quality service to its customers throughout the world, increase its enterprise value, and live up to the expectations of its stakeholders, including shareholders, customers, and local communities.

Part Number
Manufacturer
Description
Unit Price
In Stock

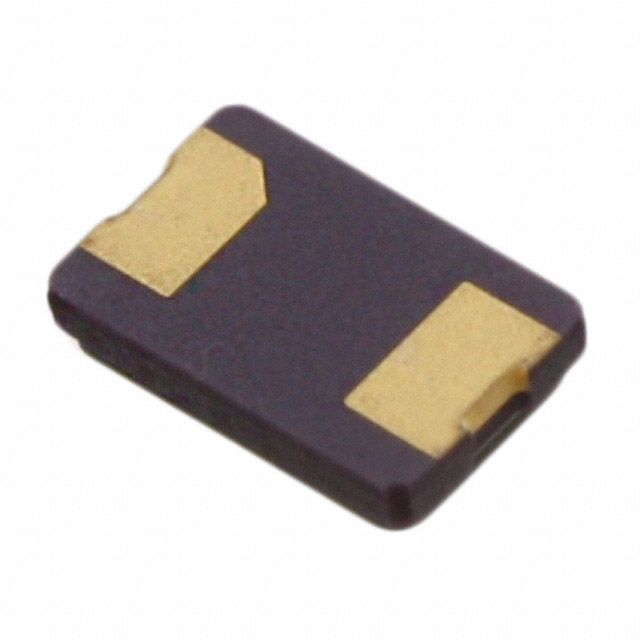

NX5032GB-16MHZ-STD-CSK-5 NX5032GB-16MHZ-STD-CSK-5

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX5032GB
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
1376 in stock

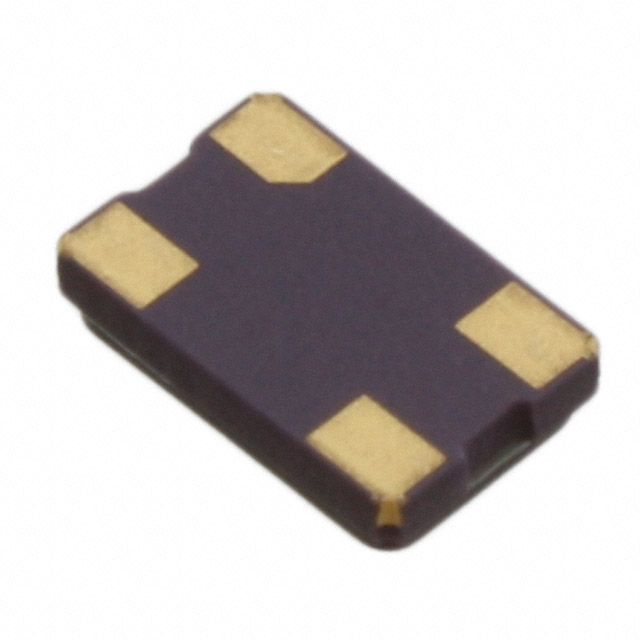

NX5032GC-12MHZ-STD-CSK-6 NX5032GC-12MHZ-STD-CSK-6

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX5032GC
Part Status : Active
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±15ppm
Frequency Tolerance : ±15ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 75°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
9873 in stock

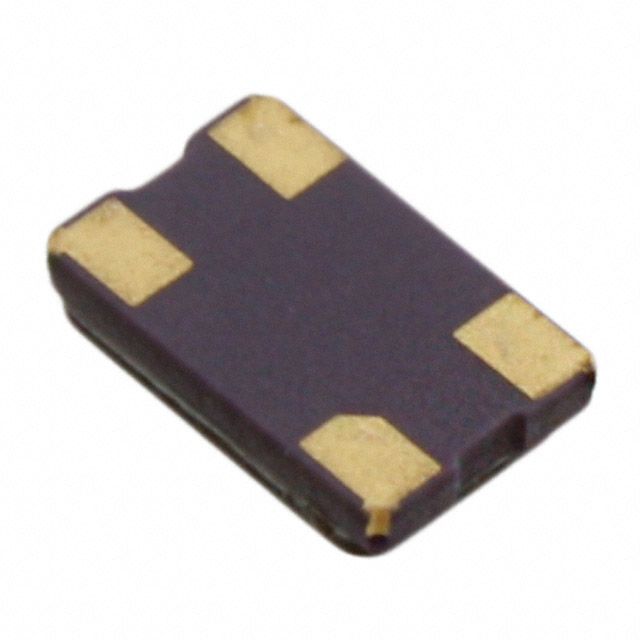

NX5032GC-16MHZ-STD-CSK-6 NX5032GC-16MHZ-STD-CSK-6

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX5032GC
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±15ppm
Frequency Tolerance : ±15ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 75°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
1131 in stock

NX8045GB-10.000000MHZ NX8045GB-10.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 10MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
15397 in stock

NX8045GB-12.000000MHZ NX8045GB-12.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
26758 in stock

NX8045GB-12.288000MHZ NX8045GB-12.288000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 12.288MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
1230 in stock

NX8045GB-12M-STD-CSF-4 NX8045GB-12M-STD-CSF-4

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
618 in stock

NX8045GB-13.560000MHZ NX8045GB-13.560000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 13.56MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
453 in stock

NX8045GB-14.318180MHZ NX8045GB-14.318180MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 14.31818MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
1731 in stock

NX8045GB-16.934400MHZ NX8045GB-16.934400MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 16.9344MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
2964 in stock

NX8045GB-18.432000MHZ NX8045GB-18.432000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 18.432MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
2567 in stock

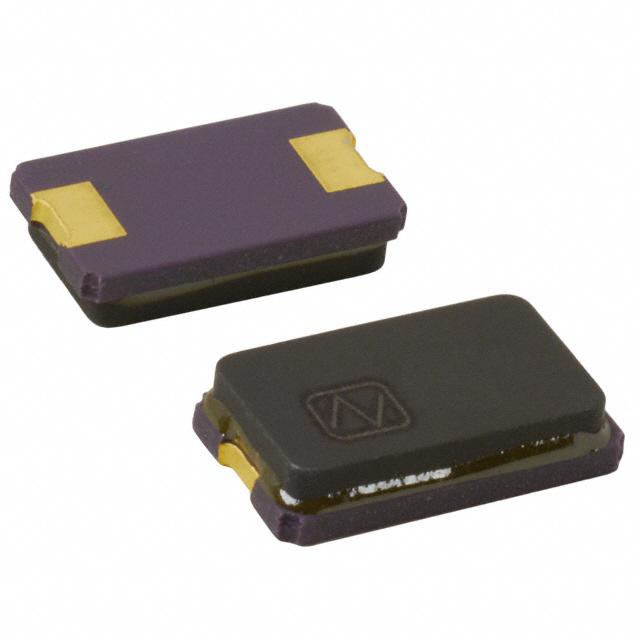

NX8045GB-20.000000MHZ NX8045GB-20.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
4459 in stock
