Newhaven Display, Intl.

- Newhaven Display provides the North American marketplace with cost effective high quality display devices ranging from LCD to VFD. In addition to our vast standard part offerings, we develop custom designs for all industries. We pride ourselves on first-rate customer support and development assistance.

All products are stocked at our Elgin, Illinois USA warehouse. Marketing is done through a nationwide network of independent sales representatives and stocking distributors. All displays are manufactured at our partner factories located in Mainland China and Taiwan locations. These are state-of-the-art facilities with over 12 years of experience with QS-9000, ISO-9001 and ISO-14001 certifications.


Part Number

Manufacturer

Description

Unit Price

In Stock

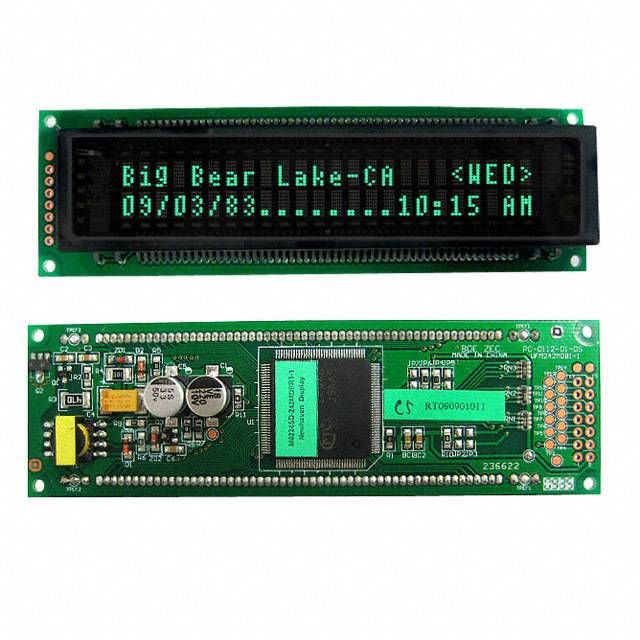

M0224SD-242MDBR1-1

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Outline L x W x H : 118.00mm x 36.00mm x 16.50mm
Viewing Area : 84.20mm L x 11.50mm W
Display Format : 24 x 2
Display Type : Character
Format : 5 x 8 Dots
Voltage - Supply : 4.5 V ~ 5.5 V
Character Size : 5.29mm H x 2.10mm W
Number of Dots : -
Interface : Parallel
Operating Temperature : -20°C ~ 70°C

100 in stock

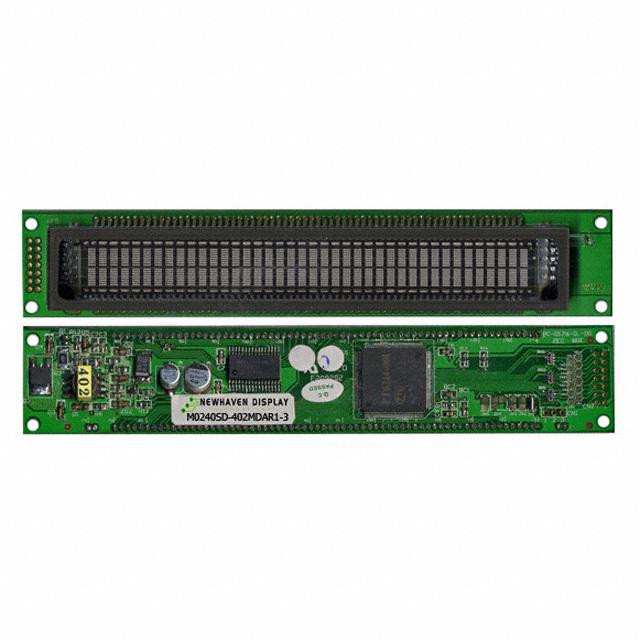

M0240SD-402MDAR1-3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Outline L x W x H : 182.00mm x 33.50mm x 17.60mm
Viewing Area : 134.75mm L x 11.50mm W
Display Format : 40 x 2
Display Type : Character
Format : 5 x 8 Dots
Voltage - Supply : 4.5 V ~ 5.5 V
Character Size : 5.34mm H x 2.10mm W
Number of Dots : -
Interface : Parallel
Operating Temperature : -20°C ~ 70°C

100 in stock

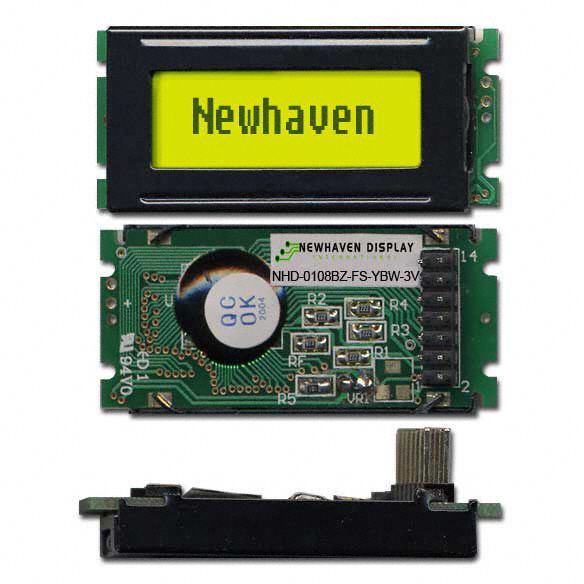

NHD-0108BZ-FS-YBW-3V

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : -
Outline L x W x H : 53.00mm x 24.20mm x 9.80mm
Viewing Area : 35.00mm L x 12.60mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 5V
Dot Size : -
Interface : -
Operating Temperature : -20°C ~ 70°C
Text Color : Gray
Background Color : Green

100 in stock

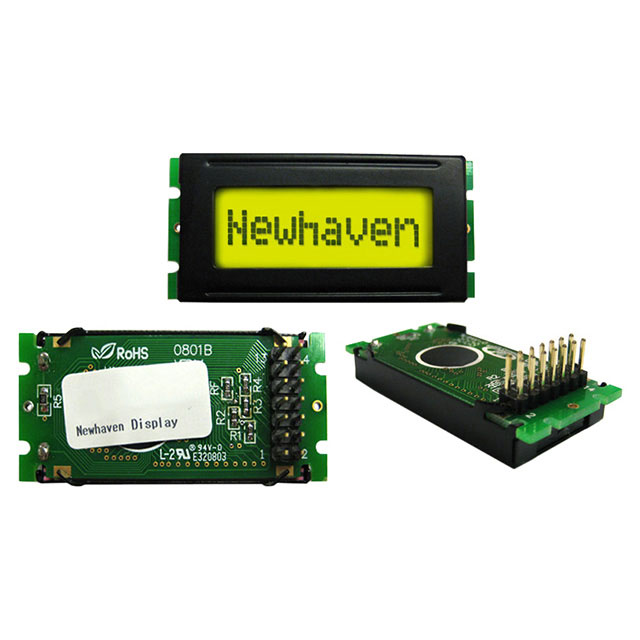

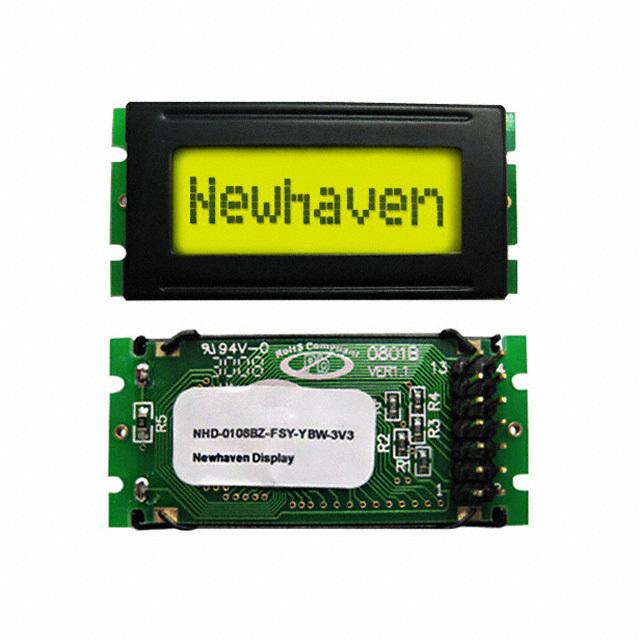

NHD-0108BZ-FSY-YBW-33V3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 7.10mm H x 3.40mm W
Outline L x W x H : 53.00mm x 24.20mm x 11.00mm
Viewing Area : 35.00mm L x 12.60mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 3.3V
Dot Size : 0.60mm W x 0.80mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

135 in stock

NHD-0108BZ-FSY-YBW-3V3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 7.10mm H x 3.40mm W
Outline L x W x H : 53.00mm x 24.20mm x 11.00mm
Viewing Area : 35.00mm L x 12.60mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 2.7 V ~ 3.3 V
Dot Size : 0.60mm W x 0.80mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Gray
Background Color : Green

100 in stock

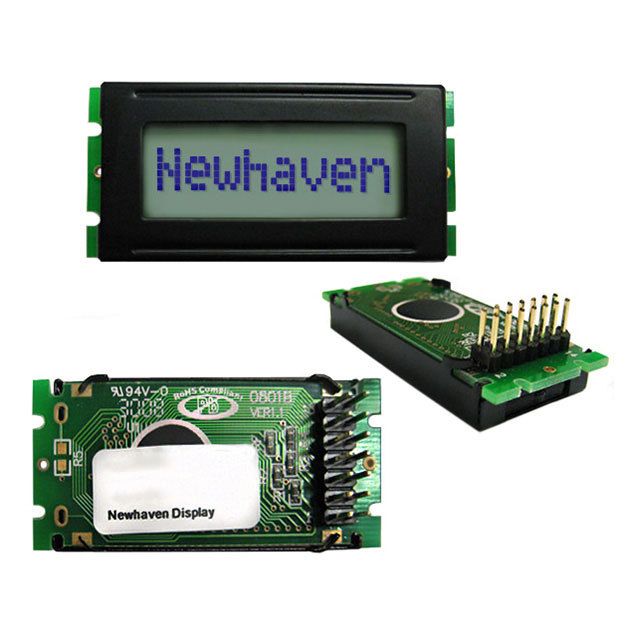

NHD-0108BZ-RN-GBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Reflective
Character Size : 7.10mm H x 3.40mm W
Outline L x W x H : 53.00mm x 24.20mm x 11.00mm
Viewing Area : 35.00mm L x 12.60mm W
Backlight : Without Backlight
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.60mm W x 0.80mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Gray

452 in stock

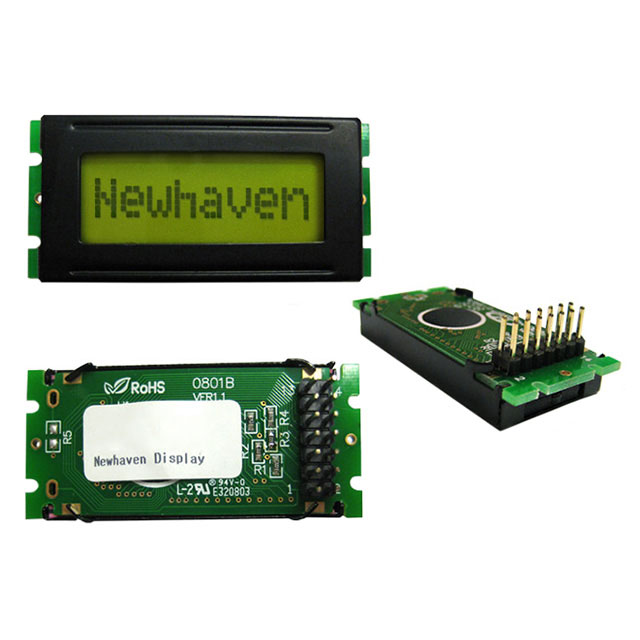

NHD-0108BZ-RN-YBW-33V

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Reflective
Character Size : 7.10mm H x 3.40mm W
Outline L x W x H : 53.00mm x 24.20mm x 11.00mm
Viewing Area : 35.00mm L x 12.60mm W
Backlight : Without Backlight
Voltage - Supply : 3.3V
Dot Size : 0.60mm W x 0.80mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

742 in stock

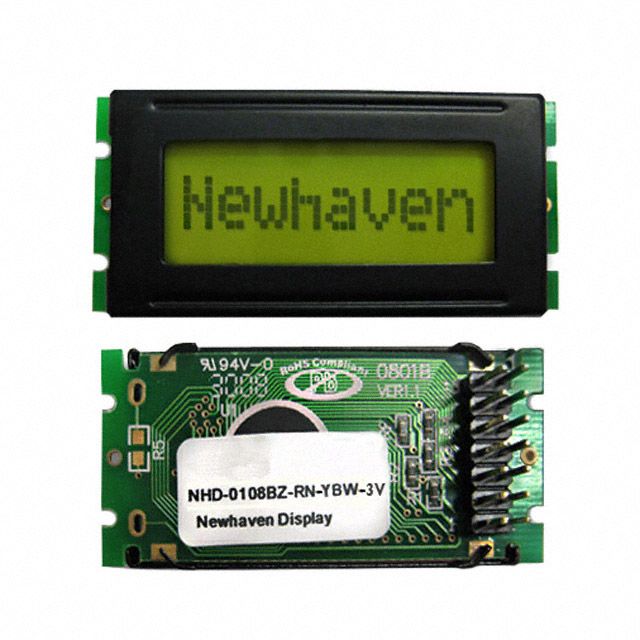

NHD-0108BZ-RN-YBW-3V

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Reflective
Character Size : 7.10mm H x 3.40mm W
Outline L x W x H : 53.00mm x 24.20mm x 11.00mm
Viewing Area : 35.00mm L x 12.60mm W
Backlight : Without Backlight
Voltage - Supply : 2.7 V ~ 3.3 V
Dot Size : 0.60mm W x 0.80mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Gray
Background Color : Green

100 in stock

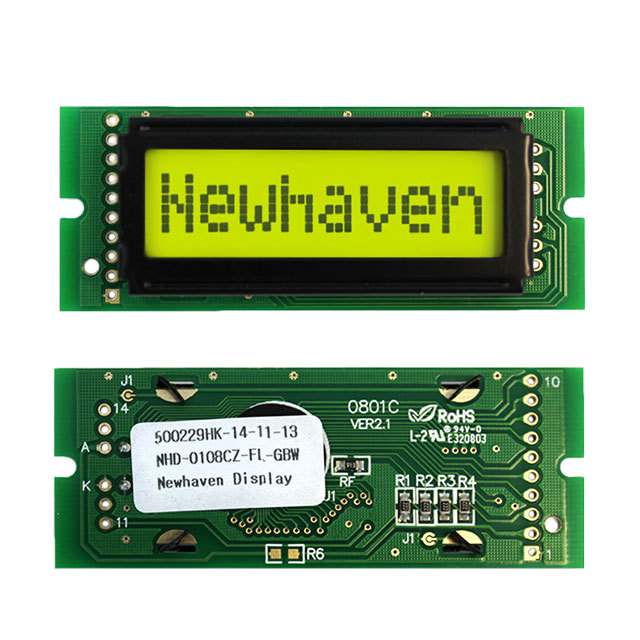

NHD-0108CZ-FL-GBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 7.71mm H x 4.20mm W
Outline L x W x H : 69.00mm x 27.00mm x 13.00mm
Viewing Area : 45.20mm L x 13.80mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.80mm W x 0.92mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

380 in stock

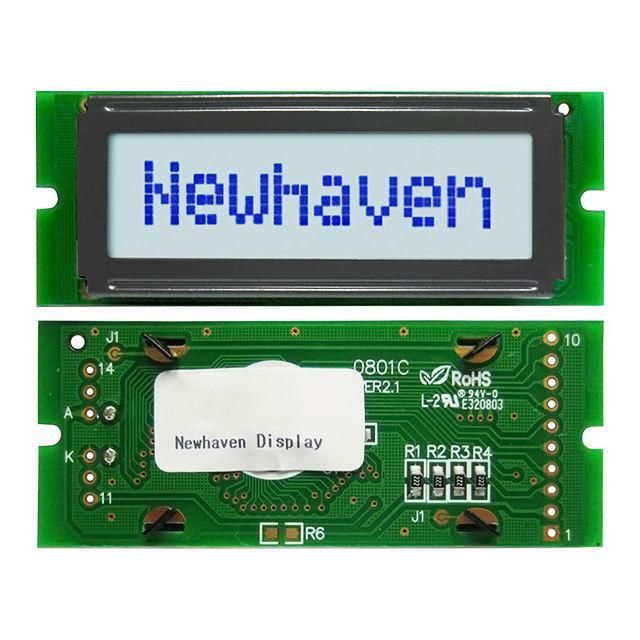

NHD-0108CZ-FSW-GBW-33V3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 7.71mm H x 4.20mm W
Outline L x W x H : 69.00mm x 27.00mm x 13.00mm
Viewing Area : 45.00mm L x 13.50mm W
Backlight : LED - White
Voltage - Supply : 3.3V
Dot Size : 0.80mm W x 0.92mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Gray

42 in stock

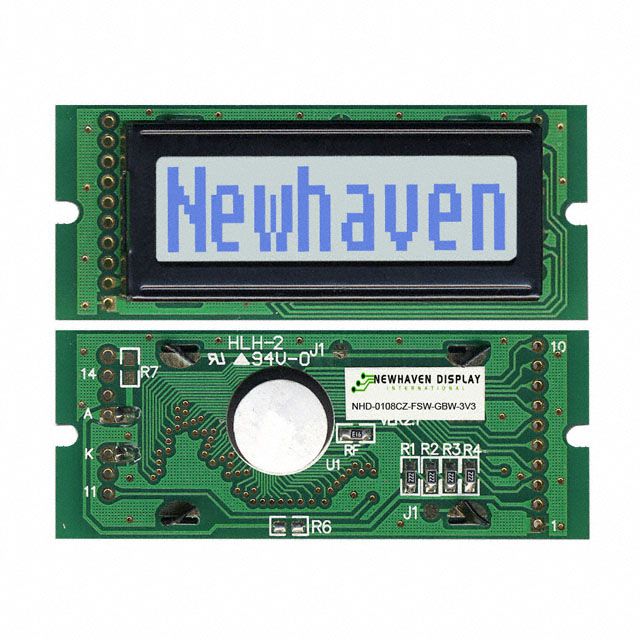

NHD-0108CZ-FSW-GBW-3V3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 7.71mm H x 4.20mm W
Outline L x W x H : 69.00mm x 27.00mm x 13.00mm
Viewing Area : 45.20mm L x 13.80mm W
Backlight : LED - White
Voltage - Supply : 3.3V
Dot Size : 0.80mm W x 0.92mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Gray

100 in stock

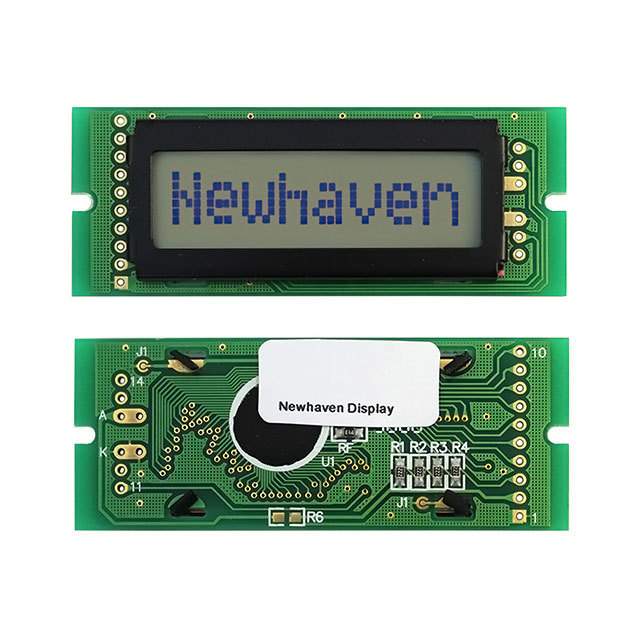

NHD-0108CZ-RN-GBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 8
Display Format : 8 x 1
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Reflective
Character Size : 7.71mm H x 4.20mm W
Outline L x W x H : 69.00mm x 27.00mm x 8.50mm
Viewing Area : 45.20mm L x 13.80mm W
Backlight : Without Backlight
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.80mm W x 0.92mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Gray

51 in stock
