Nichicon
- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.
In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.
Part Number
Manufacturer
Description
Unit Price
In Stock

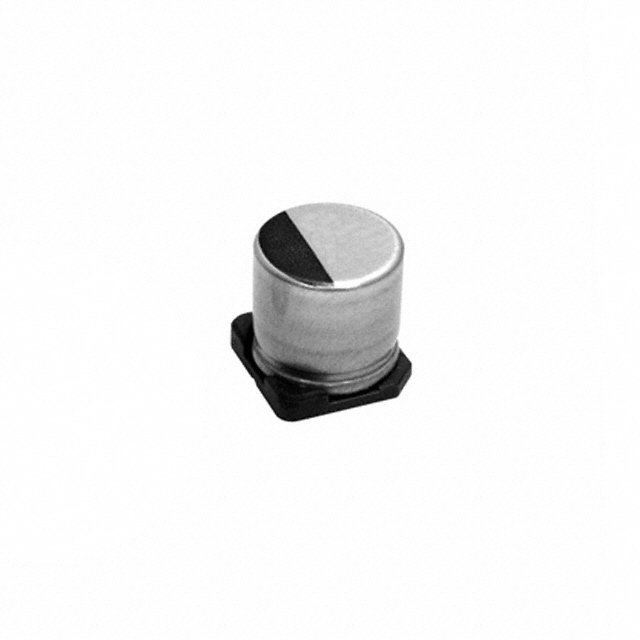

Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 200 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 700mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
3996 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 4.52A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
400 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Discontinued at
Type : Polymer
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 17 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 4.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 23 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
699 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 23 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.217" (5.50mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
115 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1945 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 23 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
15501 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 200 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 700mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
817 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 22 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1292 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 4.2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
6670 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1251 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCF
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 4.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
997 in stock
