Nichicon

- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.

In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.


Part Number

Manufacturer

Description

Unit Price

In Stock

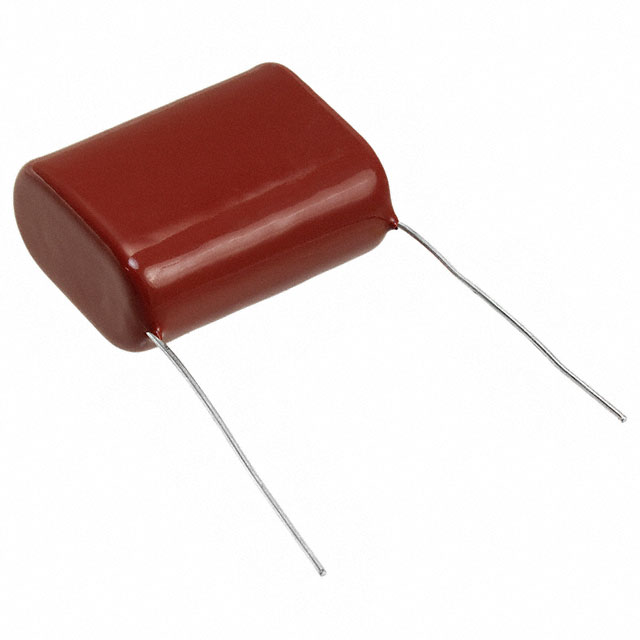

EXH2E905HRPT

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EXH
Part Status : Active
Capacitance : 9µF
Tolerance : -5%, +10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.417" L x 0.650" W (36.00mm x 16.50mm)
Height - Seated (Max) : 1.161" (29.50mm)
Termination : PC Pins
Lead Spacing : 1.280" (32.50mm)
Applications : Motor Run
Ratings : -
Features : -

100 in stock

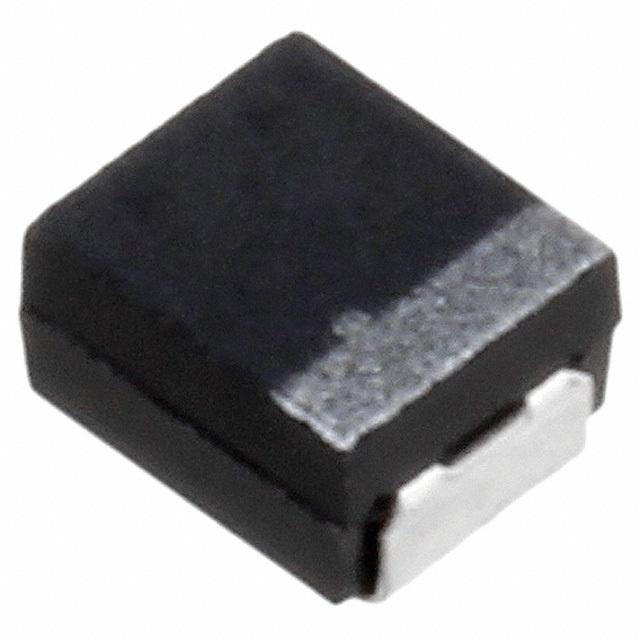

F931A226MBA

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : F93
Part Status : Discontinued at
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 10V
Type : Molded
ESR (Equivalent Series Resistance) : 1.9 Ohm
Operating Temperature : -55°C ~ 125°C
Lifetime @ Temp. : -
Mounting Type : Surface Mount
Package / Case : 1411 (3528 Metric)
Size / Dimension : 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) : 0.083" (2.10mm)
Lead Spacing : -
Manufacturer Size Code : B
Ratings : -
Features : General Purpose
Failure Rate : -

1168 in stock

GYA1E101MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

13 in stock

GYA1E221MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 27 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

100 in stock

GYA1E331MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

439 in stock

GYA1E560MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 900mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

674 in stock

GYA1H101MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

119 in stock

GYA1H220MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 750mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

910 in stock

GYA1H330MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

415 in stock

GYA1H680MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.25A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

111 in stock

GYA1J100MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 120 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 700mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

963 in stock

GYA1J220MCQ1GS

Nichicon

Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : GYA
Part Status : Active
Type : Hybrid
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 900mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

798 in stock
