Nichicon

- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.

In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.


Part Number

Manufacturer

Description

Unit Price

In Stock

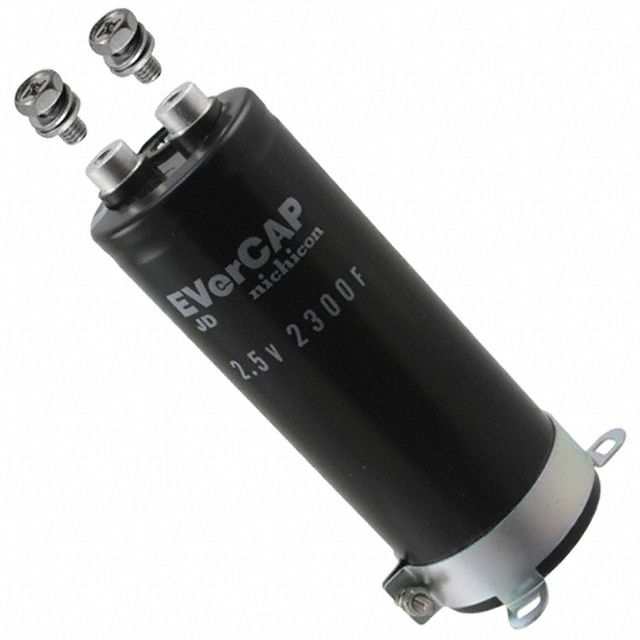

JJD0E238MSEFBB

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Active
Capacitance : 2300F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 4 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 5.433" (138.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

JJD0E238MSEFBN

Nichicon

100 in stock

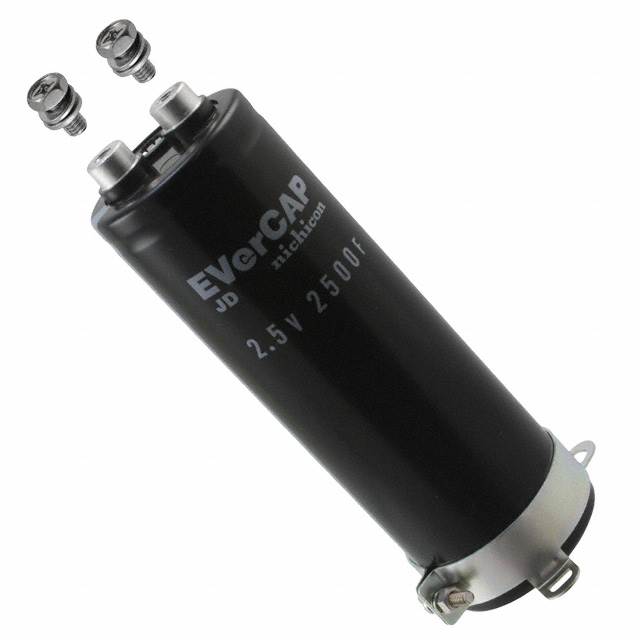

JJD0E258MSEF

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Active
Capacitance : 2500F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 3.5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 6.024" (153.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

JJD0E258MSEFBB

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Active
Capacitance : 2500F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 3.5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 5.709" (145.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

JJD0E258MSEFBN

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Active
Capacitance : 2500F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 3.5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 5.709" (145.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

JJD0E408MSEG

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Not For New Designs
Capacitance : 4000F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 2.2 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.126" (28.60mm)
Size / Dimension : 2.500" Dia (63.50mm)
Height - Seated (Max) : 6.024" (153.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

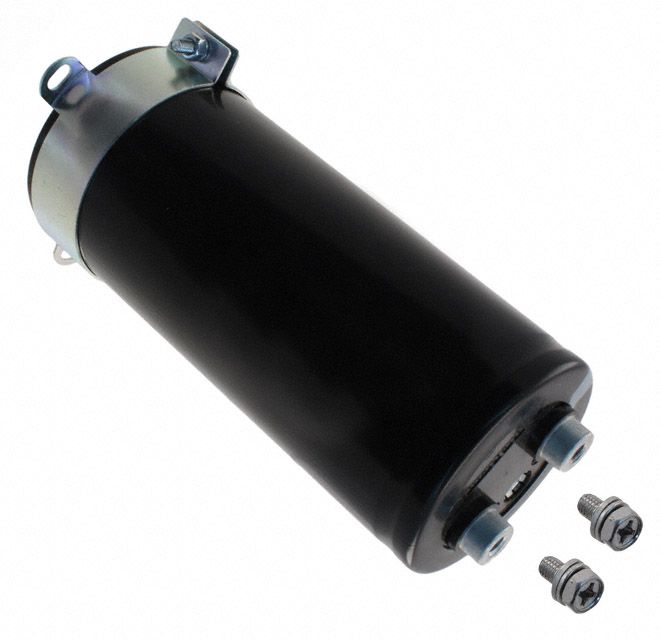

JJD0E408MSEGBB

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Active
Capacitance : 4000F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 2.2 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.126" (28.60mm)
Size / Dimension : 2.500" Dia (63.50mm)
Height - Seated (Max) : 6.024" (153.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

JJD0E408MSEGBN

Nichicon

100 in stock

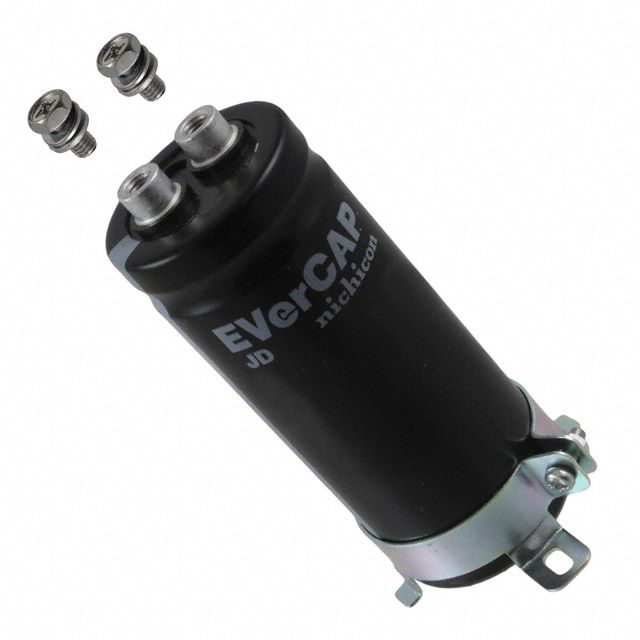

JJD0E607MSEC

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Active
Capacitance : 600F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.500" (12.70mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 3.465" (88.00mm)
Operating Temperature : -25°C ~ 60°C

5 in stock

JJD0E607MSECBN

Nichicon

100 in stock

JJD0E608MSEH

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Not For New Designs
Capacitance : 6000F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 2.2 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.252" (31.80mm)
Size / Dimension : 3.000" Dia (76.20mm)
Height - Seated (Max) : 6.614" (168.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

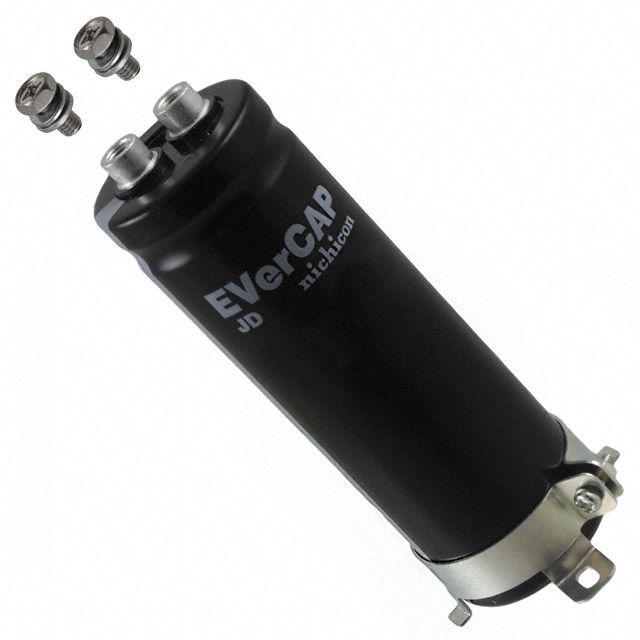

JJD0E807MSEC

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JJD
Part Status : Active
Capacitance : 800F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.500" (12.70mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 4.252" (108.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock
