NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.


Part Number

Manufacturer

Description

Unit Price

In Stock

2004KL-01W-B40-B00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 2004KL
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 8.1 CFM (0.227m鲁/min)
Static Pressure : 0.104 in H2O (26.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.5 dB
Power (Watts) : 800mW
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)

869 in stock

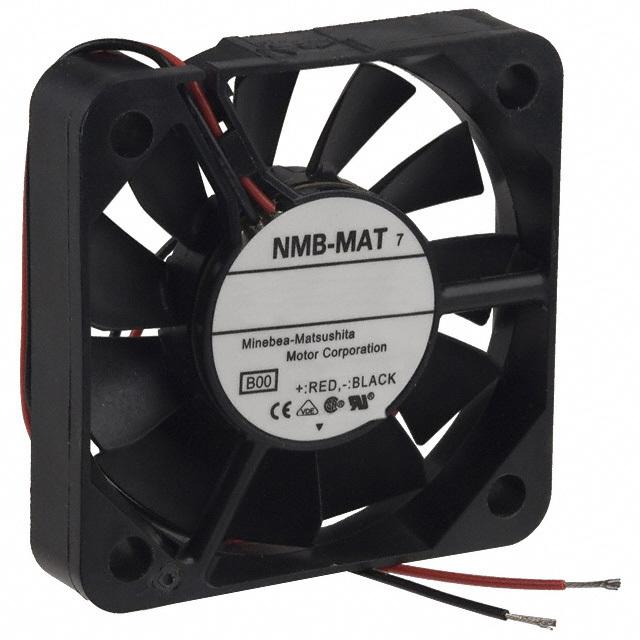

2004KL-01W-B50-B00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 2004KL
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 10.2 CFM (0.286m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB
Power (Watts) : 1.50W
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)

541 in stock

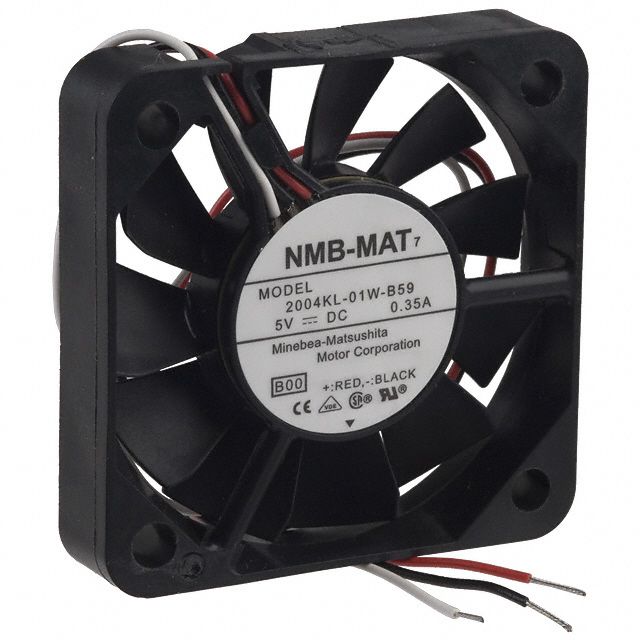

2004KL-01W-B59-B00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 2004KL
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 10.2 CFM (0.286m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 34.0 dB
Power (Watts) : 1.50W
RPM : 5500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)

1686 in stock

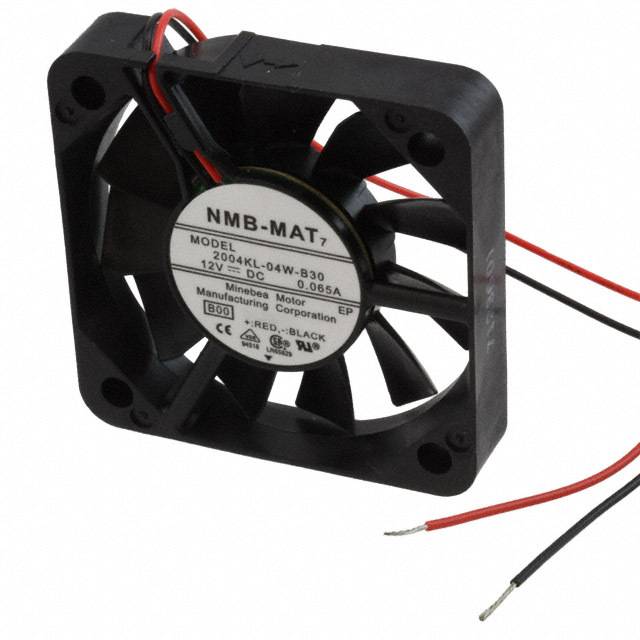

2004KL-04W-B30-B00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 2004KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 6.4 CFM (0.179m鲁/min)
Static Pressure : 0.064 in H2O (16.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 23.0 dB
Power (Watts) : 480mW
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)

127 in stock

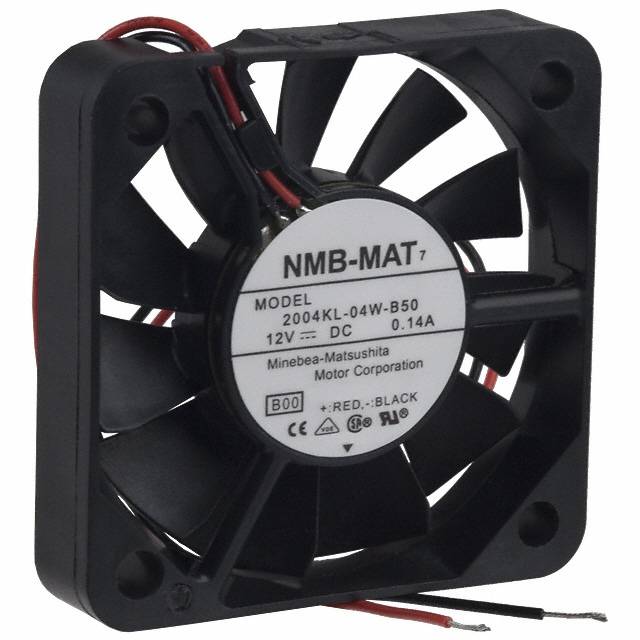

2004KL-04W-B50-B00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 2004KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 10.2 CFM (0.286m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB
Power (Watts) : 1.20W
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)

947 in stock

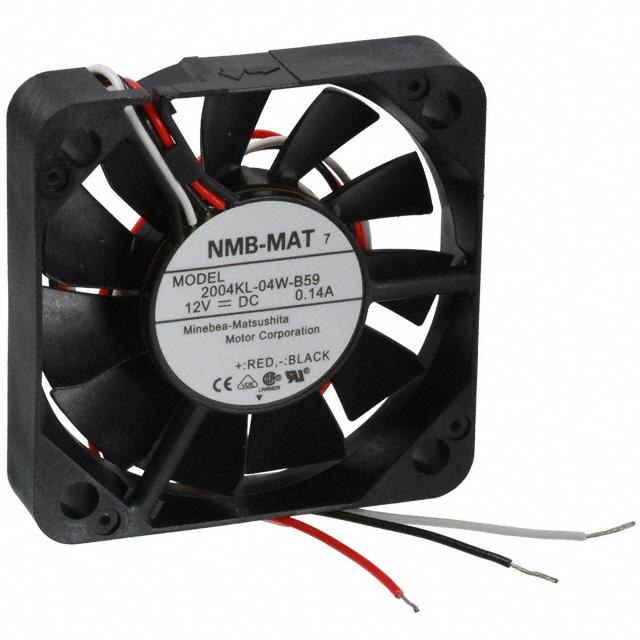

2004KL-04W-B59-B00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 2004KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 10.2 CFM (0.286m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 34.0 dB
Power (Watts) : 1.20W
RPM : 5500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)

286 in stock

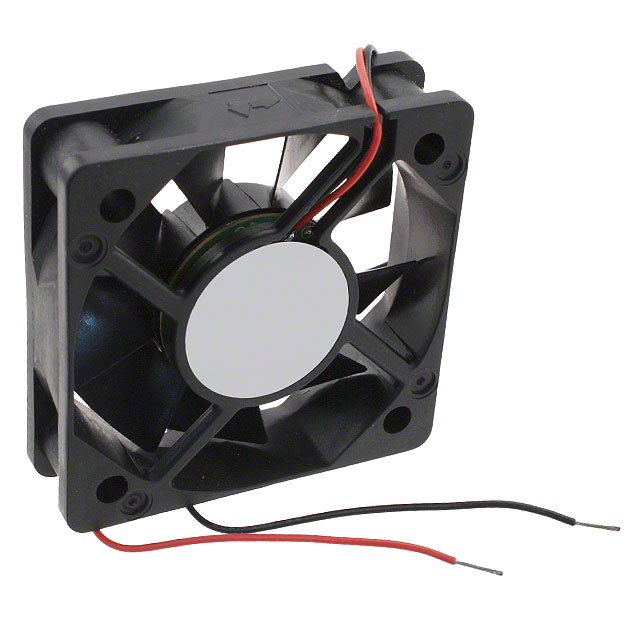

2106KL-04W-B50-L00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 2106KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 52mm L x 52mm H
Width : 15.00mm
Air Flow : 14.1 CFM (0.395m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB
Power (Watts) : 1.56W
RPM : 4900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.055 lb (24.95g)

493 in stock

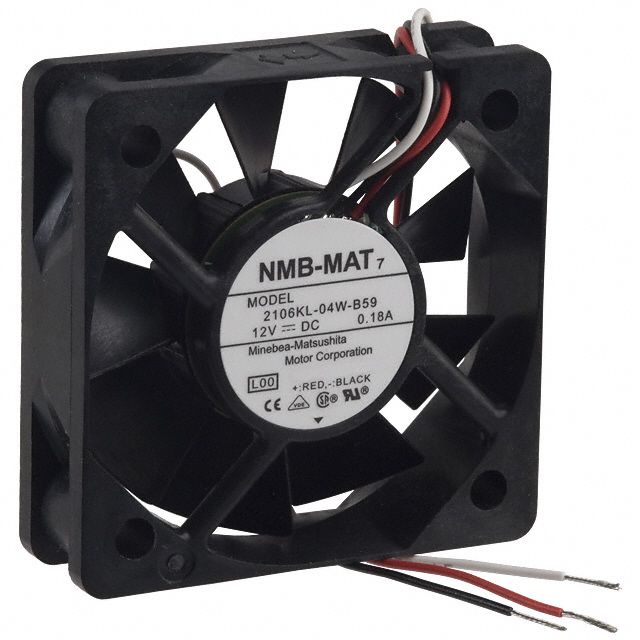

2106KL-04W-B59-L00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 2106KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 52mm L x 52mm H
Width : 15.00mm
Air Flow : 14.1 CFM (0.395m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 30.0 dB
Power (Watts) : 1.56W
RPM : 4900 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.055 lb (24.95g)

454 in stock

23KM-K041BT03CA

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Obsolete
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 36VDC
Current Rating : -
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 169.53 / 1197
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.453" (11.50mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 1 Ohms
Features : Flatted Shaft

100 in stock

23KM-K044-00V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 127.47 / 900
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 850 mOhms
Features : Flatted Shaft

9 in stock

23KM-K044-99V

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 127.47 / 900
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 850 mOhms
Features : Flatted Shaft

100 in stock

23KM-K044B

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2.2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 141.63 / 1000
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.7 Ohms
Features : Round Shaft

100 in stock
