NMB Technologies Corp.
- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.
From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.
As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.
At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.
Part Number
Manufacturer
Description
Unit Price
In Stock

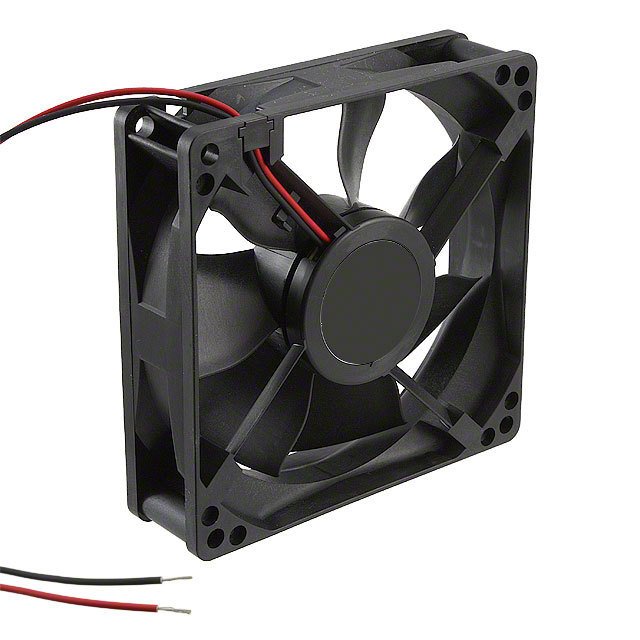

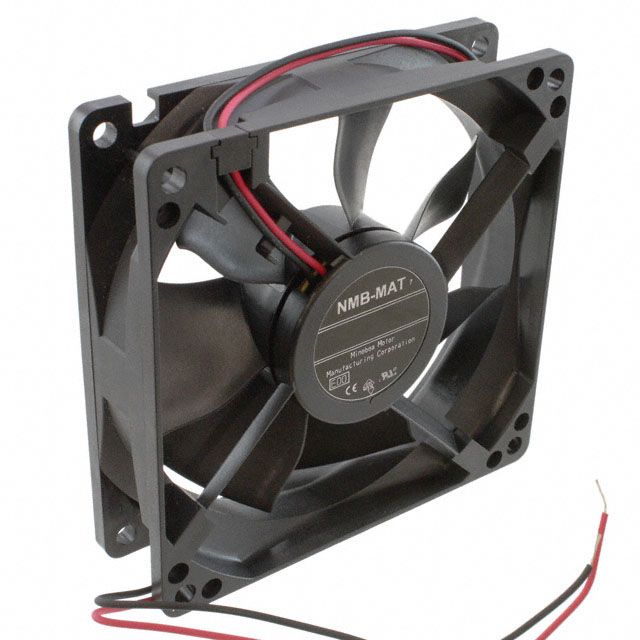

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09225SA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 48.4 CFM (1.35m鲁/min)
Static Pressure : 0.154 in H2O (38.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 1.56W
RPM : 2750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UR, VDE
Weight : 0.209 lb (94.8g)
0
35 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09225SA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 48.4 CFM (1.35m鲁/min)
Static Pressure : 0.154 in H2O (38.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 1.56W
RPM : 2750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UR, VDE
Weight : 0.209 lb (94.8g)
0
408 in stock

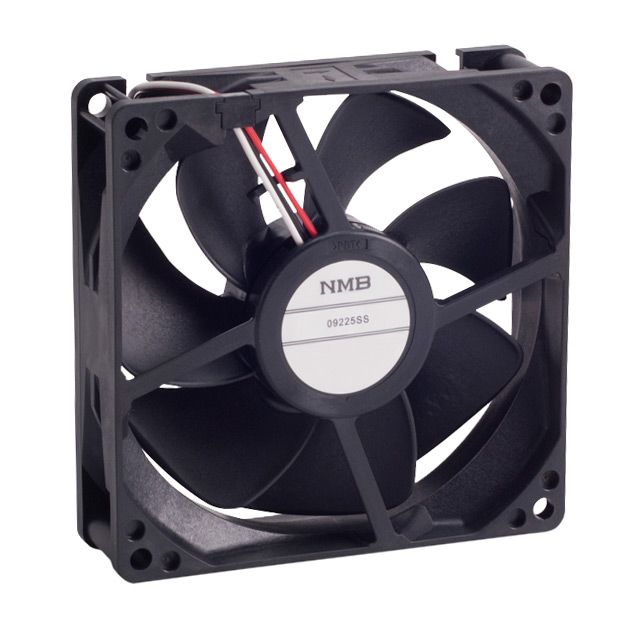

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09225SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 65.0 CFM (1.82m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 40.0 dB
Power (Watts) : 3.36W
RPM : 3900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : -
0
13 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09225SS
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 65.0 CFM (1.82m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 40.0 dB
Power (Watts) : 3.36W
RPM : 3900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : -
0
171 in stock

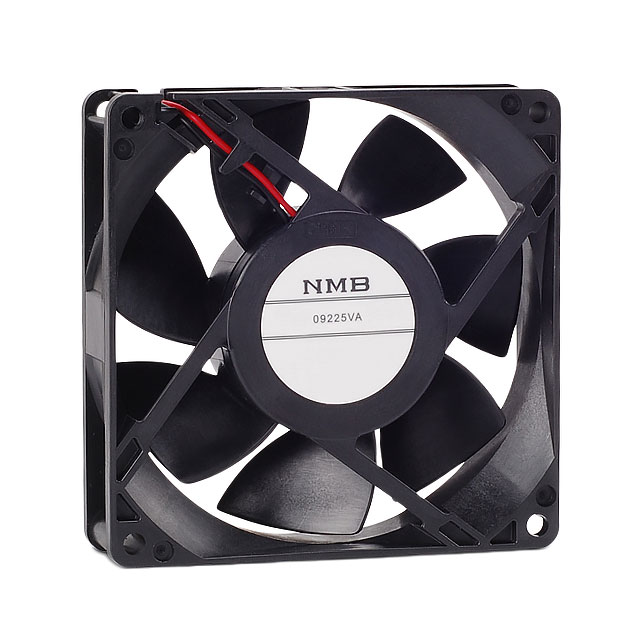

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09225VA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 96.4 CFM (2.70m鲁/min)
Static Pressure : 0.602 in H2O (149.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 51.0 dB(A)
Power (Watts) : 8.64W
RPM : 5600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UR, VDE
Weight : 0.298 lb (135.17g)
0
108 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09225VA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 96.4 CFM (2.70m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : 8.64W
RPM : 5600 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.331 lb (150.14g)
0
81 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09225VA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 96.4 CFM (2.70m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : 9.12W
RPM : 6200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.331 lb (150.14g)
0
298 in stock

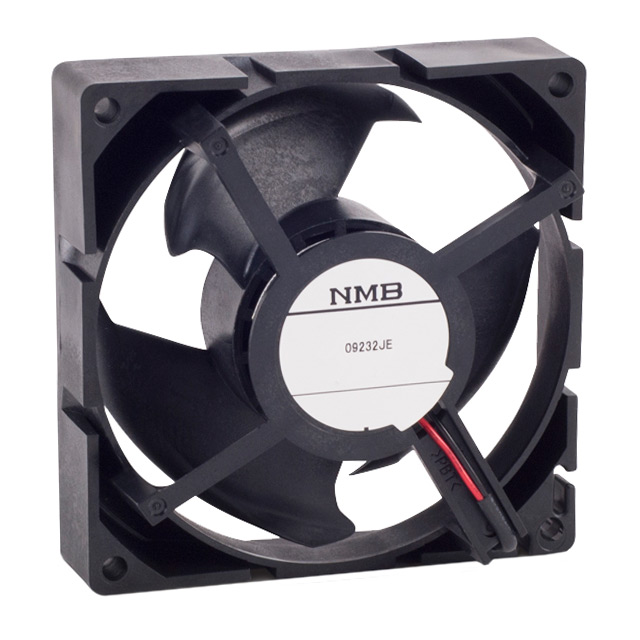

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09232JE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 32.00mm
Air Flow : 43.8 CFM (1.23m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.5 dB
Power (Watts) : 1.56W
RPM : 3350 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 104°F (-40 ~ 40°C)
Approvals : -
Weight : -
0
84 in stock

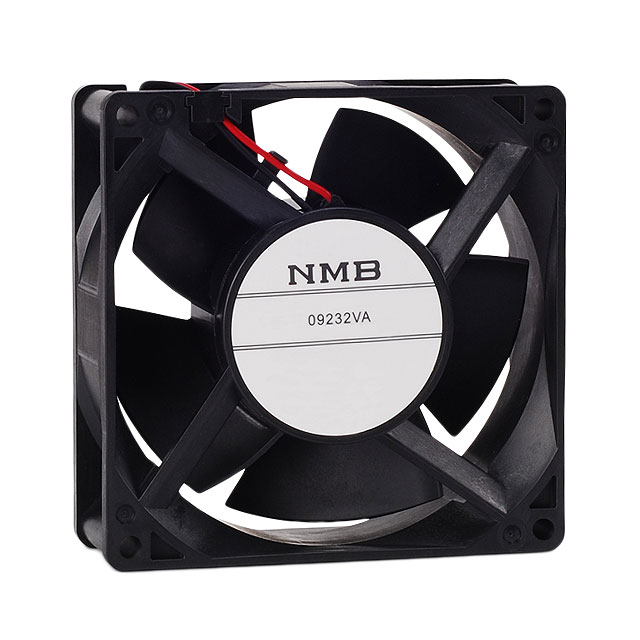

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09232VA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 32.00mm
Air Flow : 105.9 CFM (2.97m鲁/min)
Static Pressure : 1.100 in H2O (274.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 12.00W
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.485 lb (219.99g)
0
98 in stock

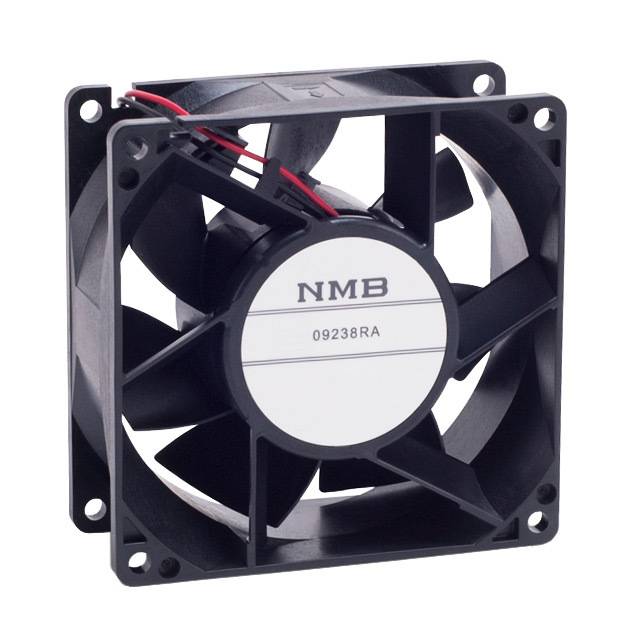

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09238RA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.40mm
Air Flow : 141.3 CFM (3.96m鲁/min)
Static Pressure : 1.040 in H2O (258.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 61.0 dB
Power (Watts) : 22.08W
RPM : 6700 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : -
0
102 in stock

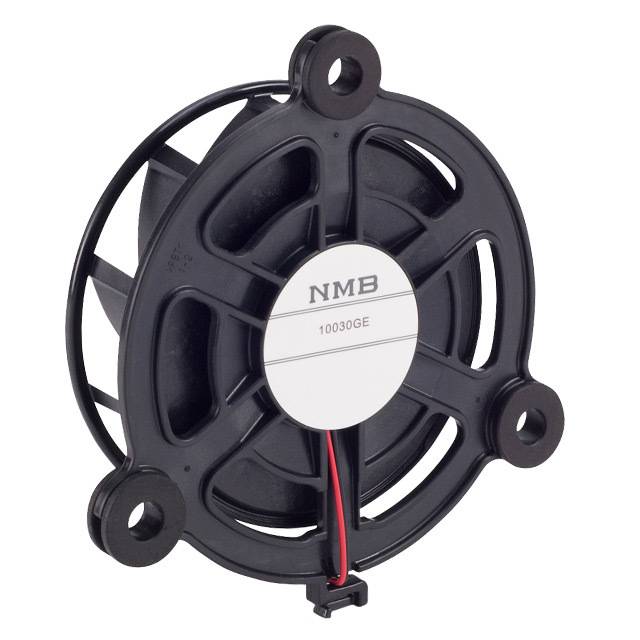

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 10030GE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 100mm Dia
Width : 30.00mm
Air Flow : 37.1 CFM (1.04m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 35.5 dB
Power (Watts) : 1.80W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 104°F (-40 ~ 40°C)
Approvals : -
Weight : -
0
80 in stock

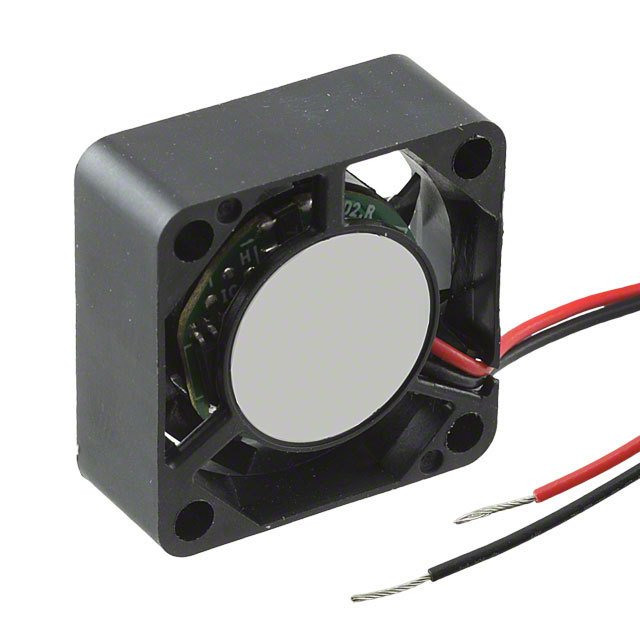

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 1004KL
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 1.6 CFM (0.045m鲁/min)
Static Pressure : 0.127 in H2O (31.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.0 dB
Power (Watts) : 425mW
RPM : 9000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.017 lb (7.71g)
0
779 in stock
