NMB Technologies Corp.
- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.
From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.
As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.
At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.
Part Number
Manufacturer
Description
Unit Price
In Stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : GT
Part Status : Active
Type : Hybrid Gear Motor
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 1440
Step Angle : 0.25°
Accuracy : -
Torque - Holding (oz-in / mNm) : 354.07 / 2500
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 1.260" (32.00mm)
Mounting Hole Spacing : 1.949" (49.50mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 5.8 Ohms
Features : Flatted Shaft
0
100 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : GT
Part Status : Active
Type : Hybrid Gear Motor
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 2000
Step Angle : 0.18°
Accuracy : -
Torque - Holding (oz-in / mNm) : 141.63 / 1000
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.1 Ohms
Features : Flatted Shaft
0
100 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : GT
Part Status : Active
Type : Hybrid Gear Motor
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 2000
Step Angle : 0.18°
Accuracy : -
Torque - Holding (oz-in / mNm) : 424.93 / 3000
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 1.260" (32.00mm)
Mounting Hole Spacing : 1.949" (49.50mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 5.8 Ohms
Features : Flatted Shaft
0
100 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : GT
Part Status : Active
Type : Hybrid Gear Motor
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 4000
Step Angle : 0.09°
Accuracy : -
Torque - Holding (oz-in / mNm) : 212.44 / 1500
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.1 Ohms
Features : Flatted Shaft
0
100 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : GT
Part Status : Active
Type : Hybrid Gear Motor
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 4000
Step Angle : 0.09°
Accuracy : -
Torque - Holding (oz-in / mNm) : 495.75 / 3500
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 1.260" (32.00mm)
Mounting Hole Spacing : 1.949" (49.50mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 5.8 Ohms
Features : Flatted Shaft
0
100 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : GT
Part Status : Active
Type : Hybrid Gear Motor
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 6000
Step Angle : 0.06°
Accuracy : -
Torque - Holding (oz-in / mNm) : 212.44 / 1500
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.236" (6.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.1 Ohms
Features : Flatted Shaft
0
100 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : GT
Part Status : Active
Type : Hybrid Gear Motor
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 6000
Step Angle : 0.06°
Accuracy : -
Torque - Holding (oz-in / mNm) : 566.57 / 4000
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 1.260" (32.00mm)
Mounting Hole Spacing : 1.949" (49.50mm)
Termination Style : Wire Leads
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 5.8 Ohms
Features : Flatted Shaft
0
100 in stock

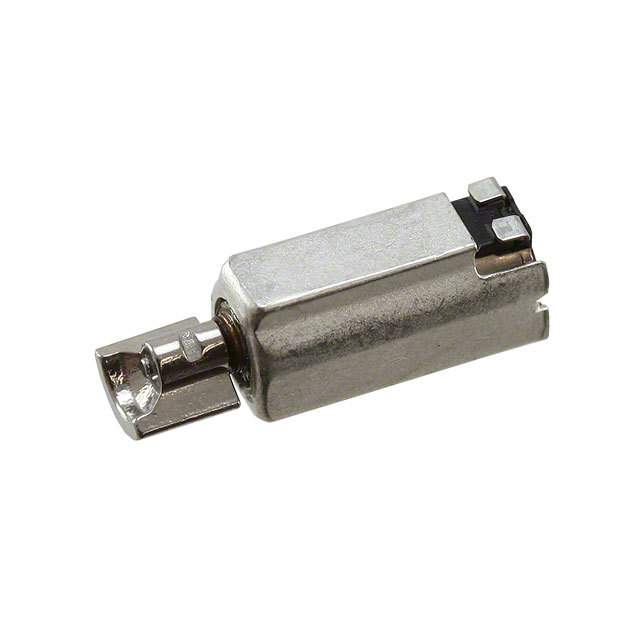

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : KHN4NX
Part Status : Obsolete
Type : DC Motor
Function : Vibration, ERM
Motor Type : -
Voltage - Rated : 1.3VDC
RPM : 9500 RPM
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.191" Dia (4.85mm)
Diameter - Shaft : 0.177" (4.50mm)
Length - Shaft and Bearing : 0.185" (4.70mm)
Mounting Hole Spacing : -
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock

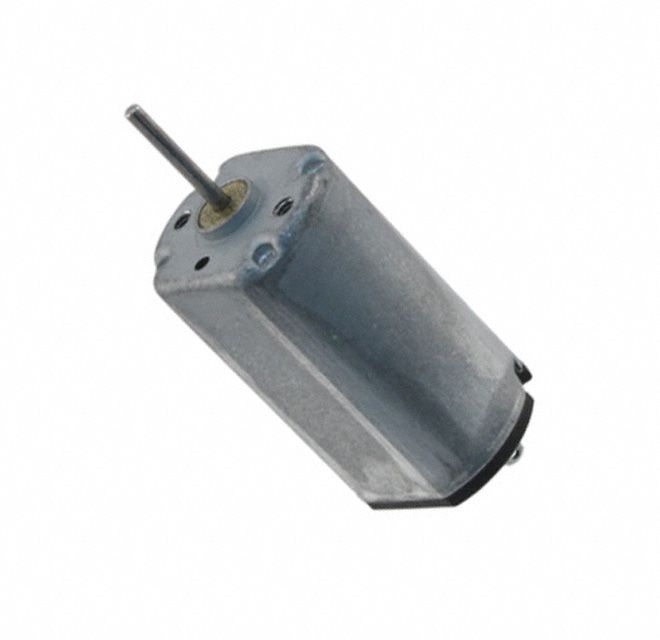

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : M1N10
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 5VDC
RPM : 13850 RPM
Torque - Rated (oz-in / mNm) : 0.04 / 0.30
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.472" Dia (12.00mm)
Diameter - Shaft : 0.039" (1.00mm)
Length - Shaft and Bearing : 0.366" (9.30mm)
Mounting Hole Spacing : 0.335" (8.50mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
2664 in stock

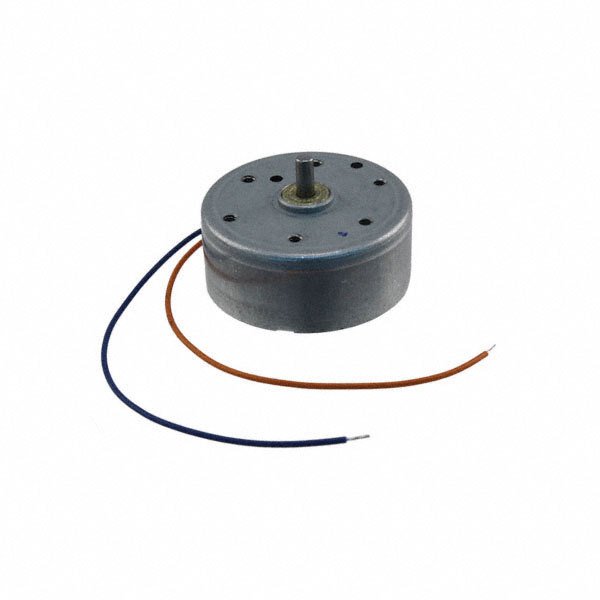

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : MDN2B
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 2VDC
RPM : 2753 RPM
Torque - Rated (oz-in / mNm) : 0.06 / 0.39
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.945" Dia (24.00mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.217" (5.50mm)
Mounting Hole Spacing : 0.650" (16.50mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock

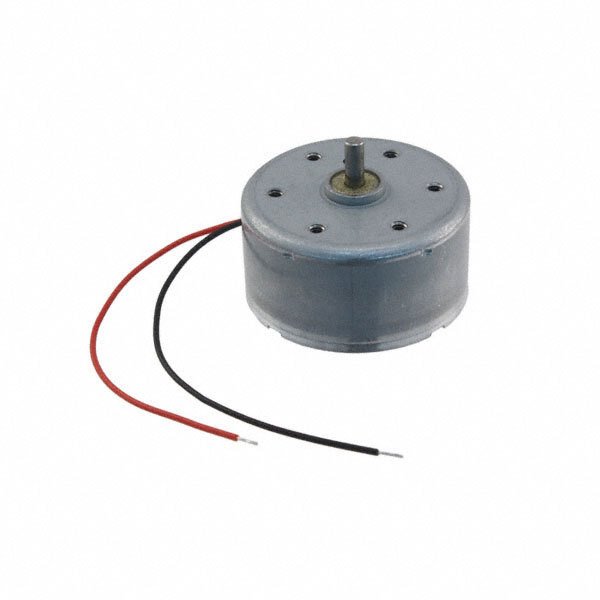

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : MDN3
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 2VDC
RPM : 1458 RPM
Torque - Rated (oz-in / mNm) : 0.06 / 0.39
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 0.945" Dia (24.00mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.236" (6.00mm)
Mounting Hole Spacing : 0.650" (16.50mm)
Termination Style : Wire Leads
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock

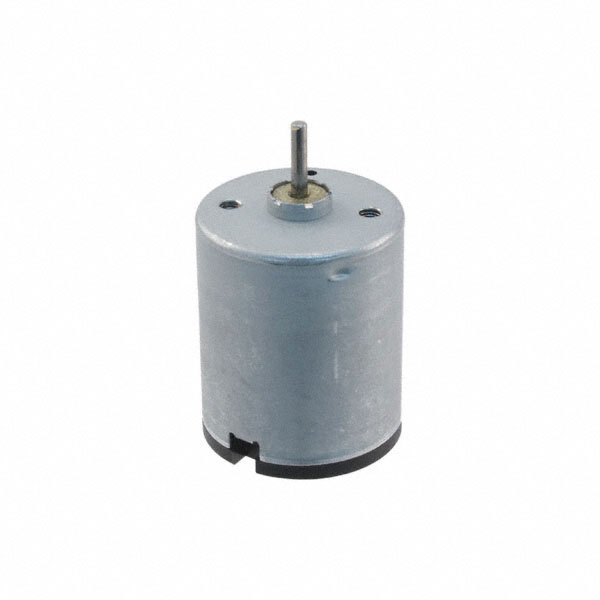

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : MXN12
Part Status : Obsolete
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 2922 RPM
Torque - Rated (oz-in / mNm) : 0.21 / 1.47
Power - Rated : -
Encoder Type : -
Size / Dimension : Round - 1.004" Dia (25.50mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 0.670" (17.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
100 in stock
