NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.


Part Number

Manufacturer

Description

Unit Price

In Stock

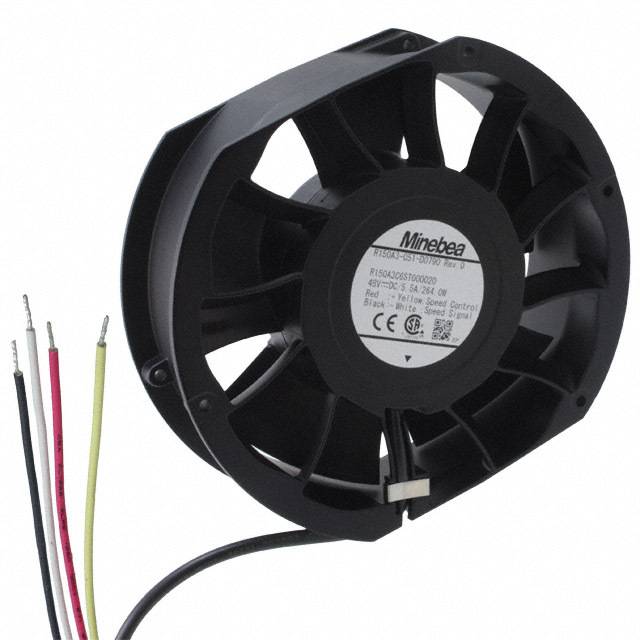

R150A3-051-D0790

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : R150
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172.7mm L x 150mm H
Width : 50.00mm
Air Flow : 544.0 CFM (15.23m鲁/min)
Static Pressure : 6.210 in H2O (1546.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 85.0 dB
Power (Watts) : 196.8W
RPM : 9300 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 2.3 lbs (1kg)

12 in stock

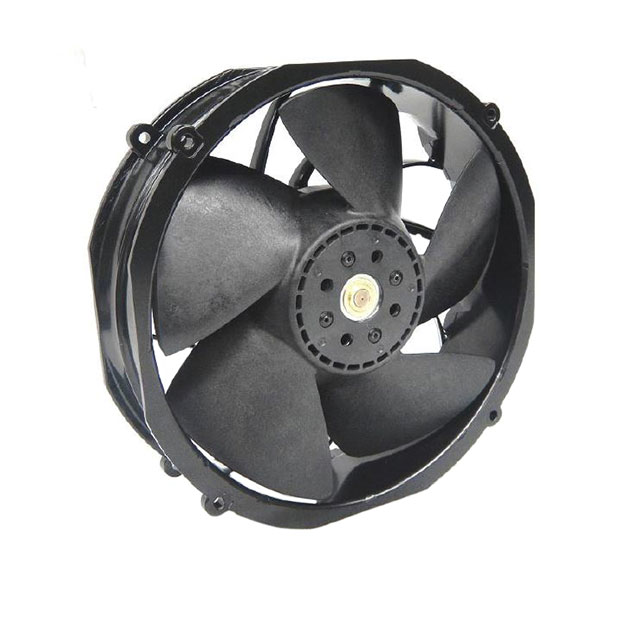

R200A0-051-D0760

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : R200
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 208mm Dia
Width : 51.00mm
Air Flow : 783.0 CFM (21.92m鲁/min)
Static Pressure : 4.120 in H2O (1028.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 74.0 dB(A)
Power (Watts) : 139.0W
RPM : 6500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 2.6 lbs (1.2kg)

29 in stock

R200A4-051-D0550

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : R200
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 208mm Dia
Width : 51.00mm
Air Flow : 590.0 CFM (16.52m鲁/min)
Static Pressure : 3.320 in H2O (828.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 67.0 dB
Power (Watts) : 67.0W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 158°F (-30 ~ 70°C)
Approvals : -
Weight : 2.6 lbs (1.2kg)

25 in stock

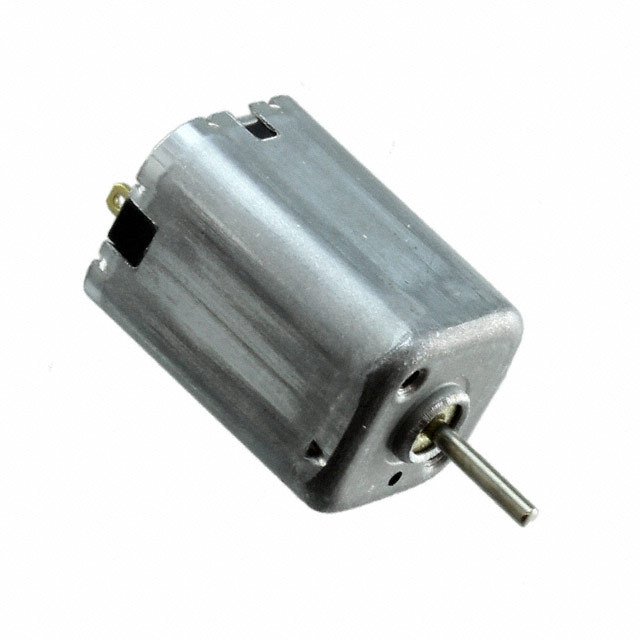

SE10G0UTMAF

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 4VDC
RPM : 11100 RPM
Torque - Rated (oz-in / mNm) : 0.07 / 0.49
Power - Rated : -
Encoder Type : -
Size / Dimension : Square - 0.394" x 0.394" (10.00mm x 10.00mm)
Diameter - Shaft : 0.039" (1.00mm)
Length - Shaft and Bearing : 0.335" (8.50mm)
Mounting Hole Spacing : 0.315" (8.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -

346 in stock

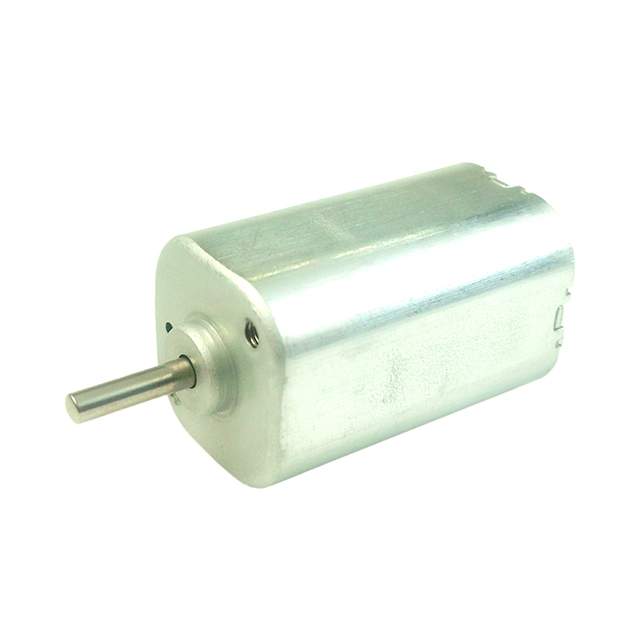

SE15K1BTYJ

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 6700 RPM
Torque - Rated (oz-in / mNm) : 0.354 / 2.5
Power - Rated : -
Encoder Type : -
Size / Dimension : Square - 0.591" x 0.591" (15.00mm x 15.00mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.390" (9.90mm)
Mounting Hole Spacing : 0.512" (13.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -

203 in stock

SE18JIETYC

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 12VDC
RPM : 4050 RPM
Torque - Rated (oz-in / mNm) : 0.71 / 5
Power - Rated : -
Encoder Type : -
Size / Dimension : Square - 0.717" x 0.717" (18.20mm x 18.20mm)
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.390" (9.90mm)
Mounting Hole Spacing : 0.551" (14.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -

523 in stock

SE24P2CTCE

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 7770 RPM
Torque - Rated (oz-in / mNm) : 2.83 / 20
Power - Rated : -
Encoder Type : -
Size / Dimension : Square - 0.945" x 0.945" (24.00mm x 24.00mm)
Diameter - Shaft : 0.098" (2.50mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -

201 in stock

SE30R2NTCD

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 5300 RPM
Torque - Rated (oz-in / mNm) : 9.91 / 70
Power - Rated : -
Encoder Type : -
Size / Dimension : Square - 1.181" x 1.181" (30.00mm x 30.00mm)
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.512" (13.00mm)
Mounting Hole Spacing : 0.866" (22.00mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -

182 in stock

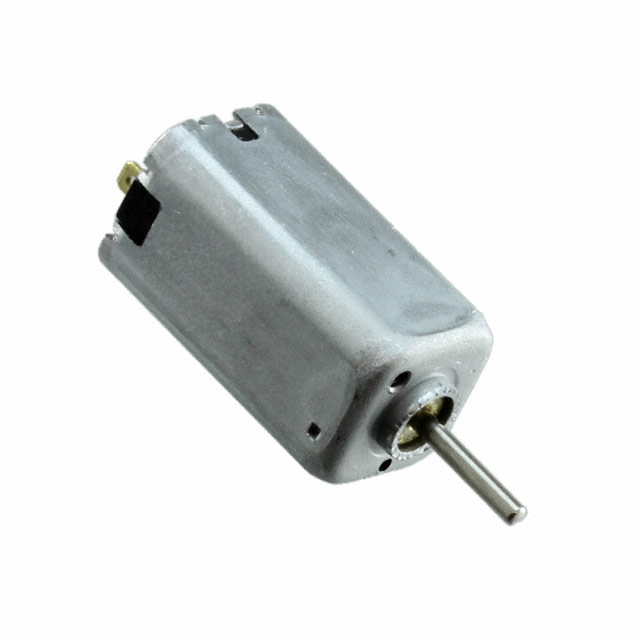

SE8G0NTMCA

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 4.5VDC
RPM : 12500 RPM
Torque - Rated (oz-in / mNm) : 0.03 / 0.2
Power - Rated : -
Encoder Type : -
Size / Dimension : Square - 0.315" x 0.315" (8.00mm x 8.00mm)
Diameter - Shaft : 0.039" (1.00mm)
Length - Shaft and Bearing : 0.354" (9.00mm)
Mounting Hole Spacing : 0.252" (6.40mm)
Termination Style : Connector
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -

448 in stock

SM3.4-20

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 3VDC
Current Rating : -
Steps per Revolution : 20
Step Angle : 18°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.134" Dia (3.40mm)
NEMA Frame Size : -
Diameter - Shaft : 0.024" (0.60mm)
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Through Hole
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 25 Ohms
Features : Round Shaft

100 in stock

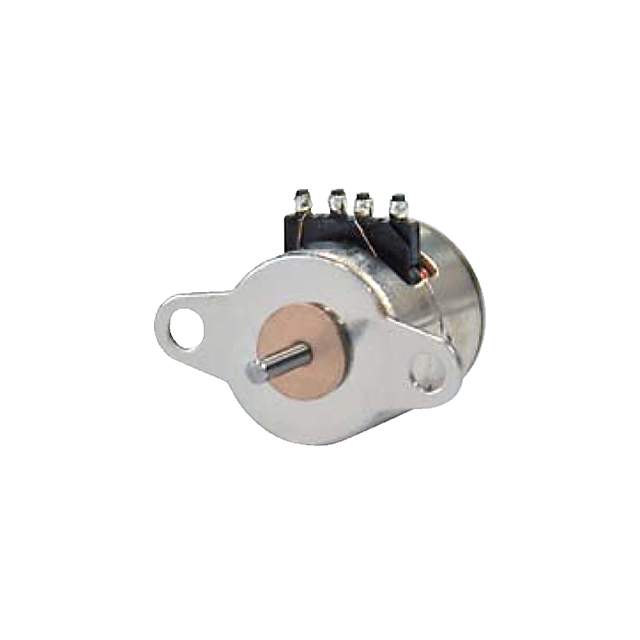

SM8-F20-HHE0

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : -
Steps per Revolution : 20
Step Angle : 18°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.315" Dia (8.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.039" (1.00mm)
Length - Shaft and Bearing : -
Mounting Hole Spacing : 0.433" (11.00mm)
Termination Style : Through Hole
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 21 Ohms
Features : Round Shaft

153 in stock

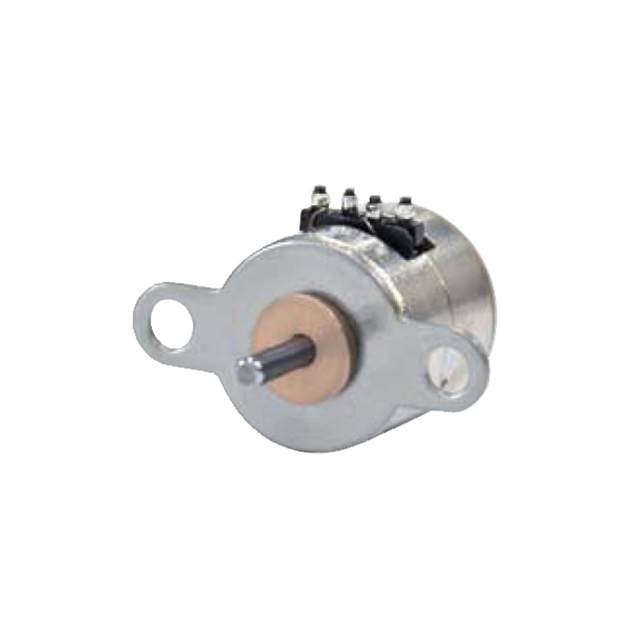

SMC10-F20-HHD9

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : -
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : -
Steps per Revolution : 20
Step Angle : 18°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.394" Dia (10.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : -
Mounting Hole Spacing : 0.551" (14.00mm)
Termination Style : Through Hole
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 21.5 Ohms
Features : Round Shaft

111 in stock
