Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock
Orion Fans
Manufacturer : Orion Fans
Series : OAB18055
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 182mm Dia
Width : 55.00mm
Air Flow : 290.0 CFM (8.12m鲁/min)
Static Pressure : 1.400 in H2O (348.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : 67.0 dB
Power (Watts) : 78.0W
RPM : 2800 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : -
Weight : 2.7 lbs (1.2kg)
0
4 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OAB18055
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 182mm Dia
Width : 55.00mm
Air Flow : 290.0 CFM (8.12m鲁/min)
Static Pressure : 1.400 in H2O (348.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : 67.0 dB
Power (Watts) : 78.0W
RPM : 2800 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : -
Weight : 2.7 lbs (1.2kg)
0
6 in stock

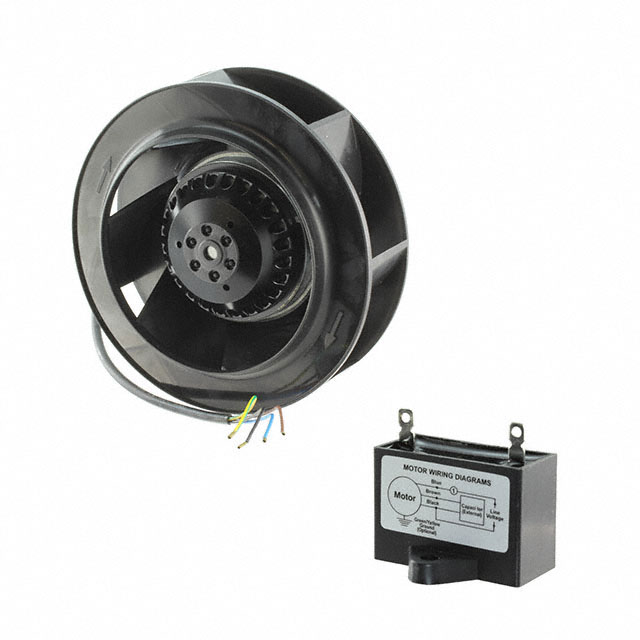

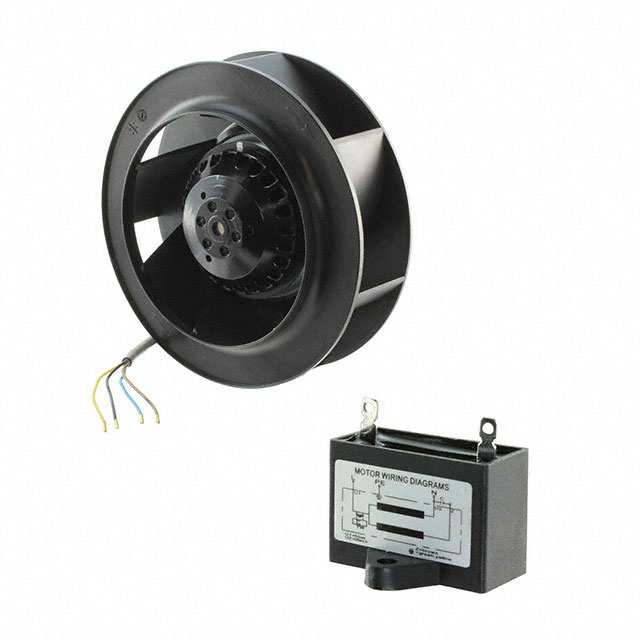

Orion Fans
Manufacturer : Orion Fans
Series : OAB190
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Round - 190mm Dia
Width : 70.00mm
Air Flow : 370.0 CFM (10.36m鲁/min)
Static Pressure : 1.200 in H2O (298.9 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 63.0 dB
Power (Watts) : 65.0W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OAB190
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 190mm Dia
Width : 70.00mm
Air Flow : 370.0 CFM (10.36m鲁/min)
Static Pressure : 1.200 in H2O (298.9 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 63.0 dB
Power (Watts) : 72.0W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock

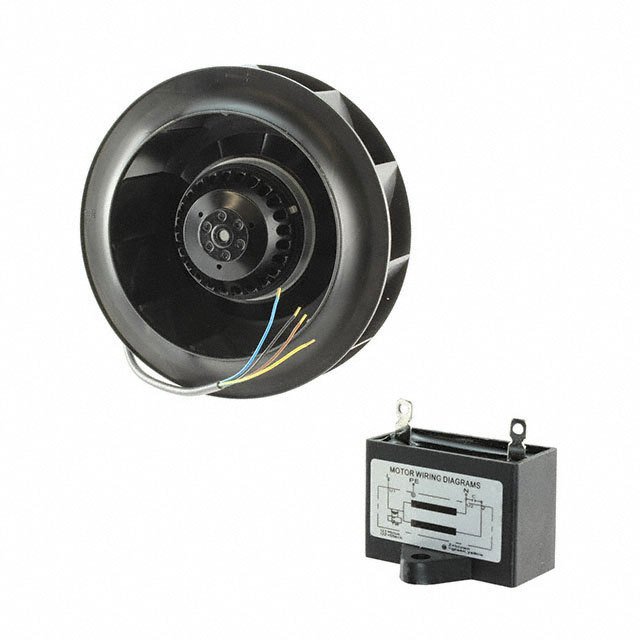

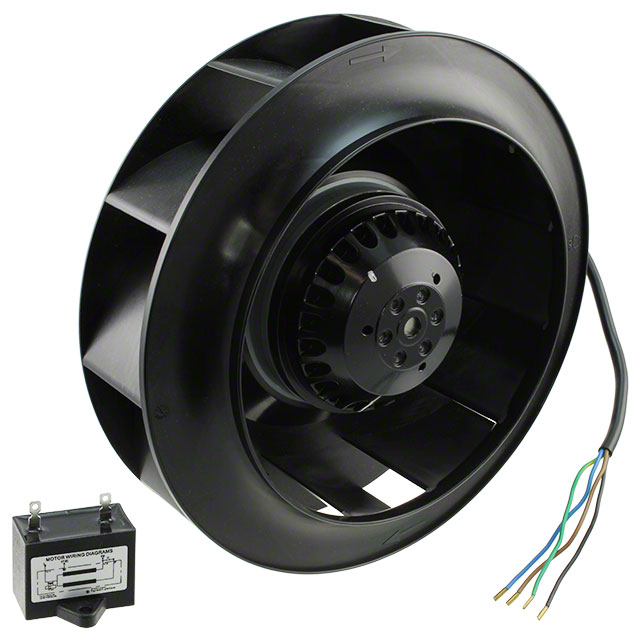

Orion Fans
Manufacturer : Orion Fans
Series : OAB220
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 223mm Dia
Width : 71.00mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 1.500 in H2O (373.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 70.0 dB
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OAB220
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 223mm Dia
Width : 71.00mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 1.500 in H2O (373.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 70.0 dB
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
10 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OAB22569
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 255mm Dia
Width : 69.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 2.305 in H2O (574.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : 72.0 dB
Power (Watts) : 125W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : -
Weight : 5.1 lbs (2.3kg)
0
8 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OAB22569
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 255mm Dia
Width : 69.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 2.305 in H2O (574.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : 72.0 dB
Power (Watts) : 125W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : -
Weight : 5.1 lbs (2.3kg)
0
8 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
8 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
8 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OAB225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 160W
RPM : 2950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 32 ~ 113°F (0 ~ 45°C)
Approvals : -
Weight : -
0
194 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OAB225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 157W
RPM : 2950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 32 ~ 113°F (0 ~ 45°C)
Approvals : -
Weight : -
0
15 in stock
