Orion Fans

- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.


Part Number

Manufacturer

Description

Unit Price

In Stock

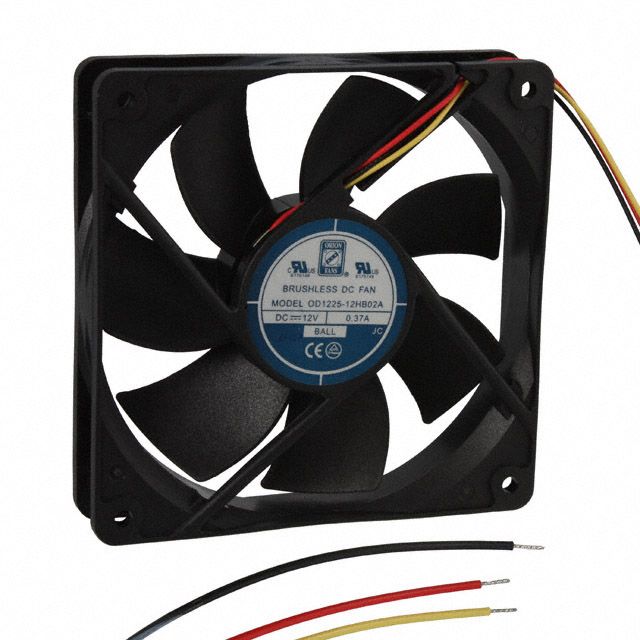

OD1225-12HB02A

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 89.0 CFM (2.49m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 39.0 dB
Power (Watts) : 5.00W
RPM : 2200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

97 in stock

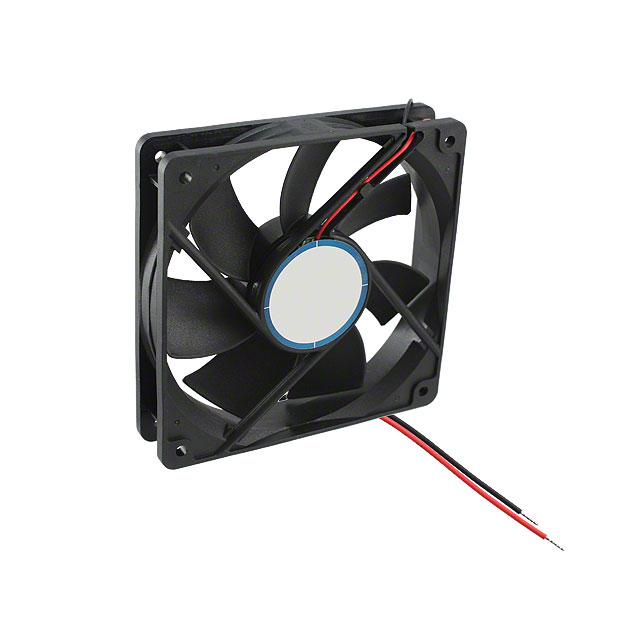

OD1225-12HSS

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 85.0 CFM (2.38m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 5.30W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

121 in stock

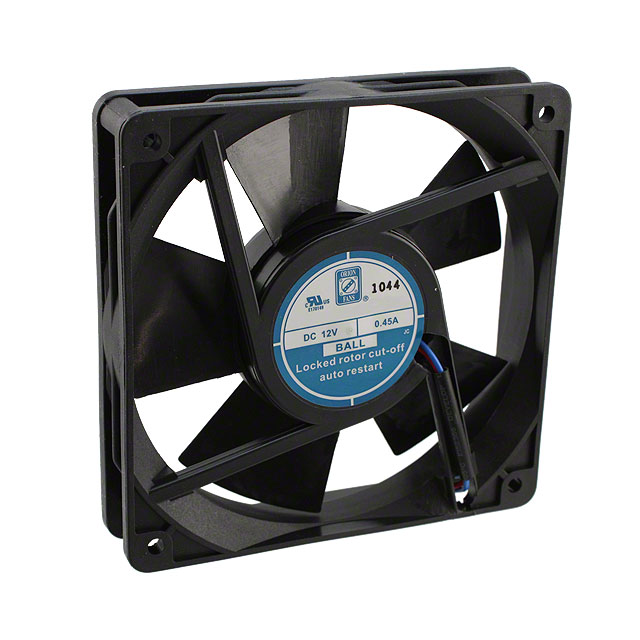

OD1225-12HTB

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 89.0 CFM (2.49m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 5.00W
RPM : 2200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

26 in stock

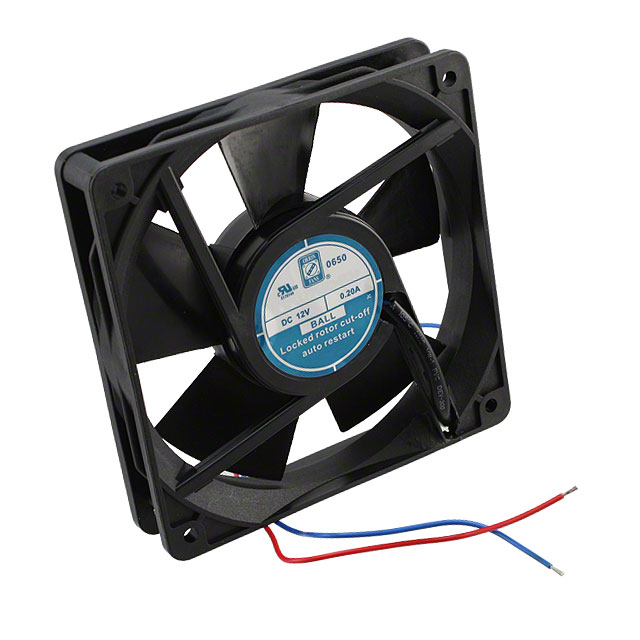

OD1225-12LB

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 72.0 CFM (2.02m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB
Power (Watts) : 3.00W
RPM : 1800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

224 in stock

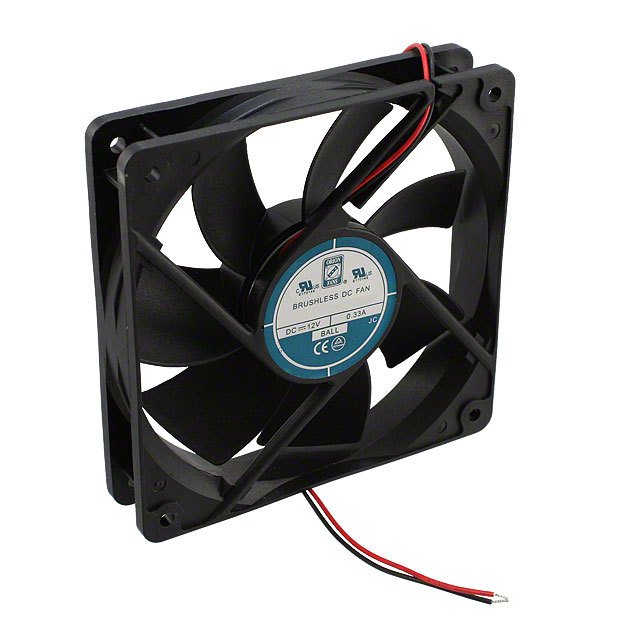

OD1225-12MB

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 83.0 CFM (2.32m鲁/min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB
Power (Watts) : 4.00W
RPM : 2050 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

31 in stock

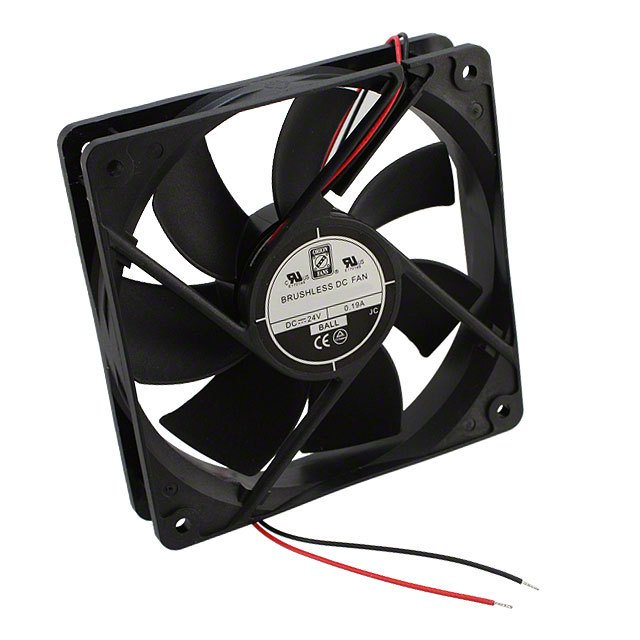

OD1225-24HB

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 89.0 CFM (2.49m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 5.00W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

195 in stock

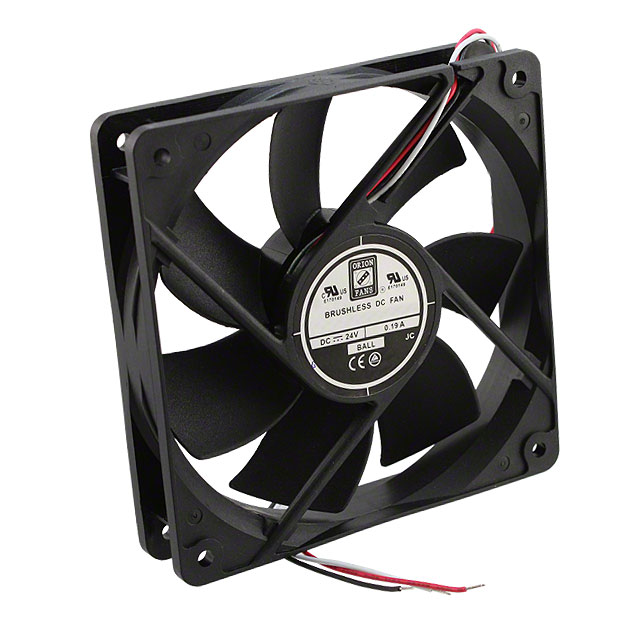

OD1225-24HB01A

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 89.0 CFM (2.49m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 39.0 dB
Power (Watts) : 5.00W
RPM : 2200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

22 in stock

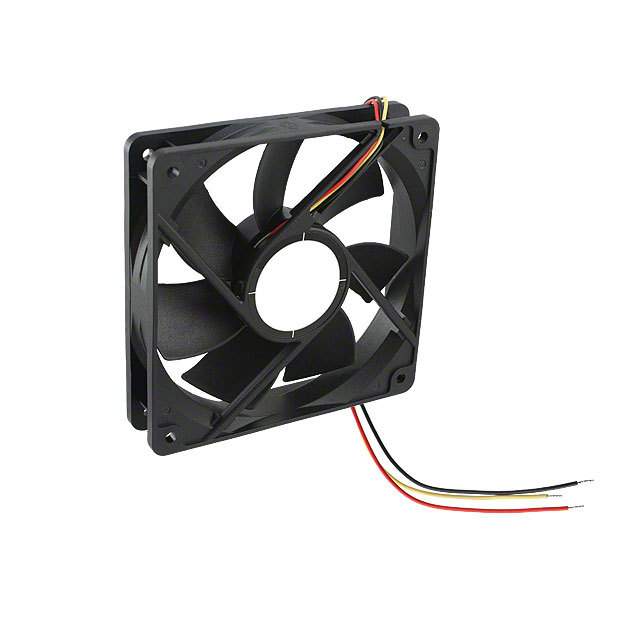

OD1225-24HB02A

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 89.0 CFM (2.49m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 39.0 dB
Power (Watts) : 5.00W
RPM : 2200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

94 in stock

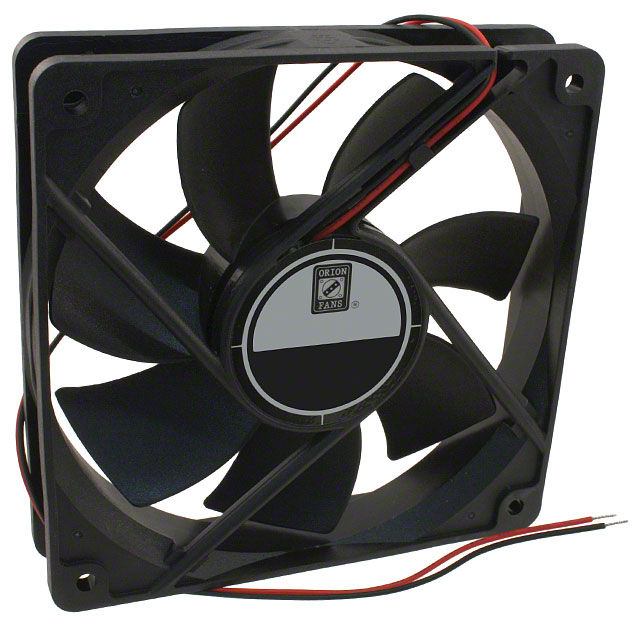

OD1225-24HSS

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 85.0 CFM (2.38m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 5.80W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

277 in stock

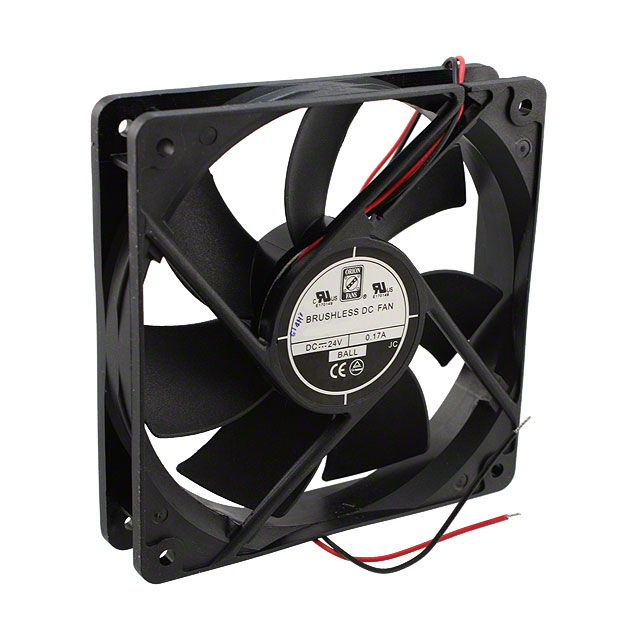

OD1225-24MB

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 83.0 CFM (2.32m鲁/min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB
Power (Watts) : 4.00W
RPM : 2050 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

202 in stock

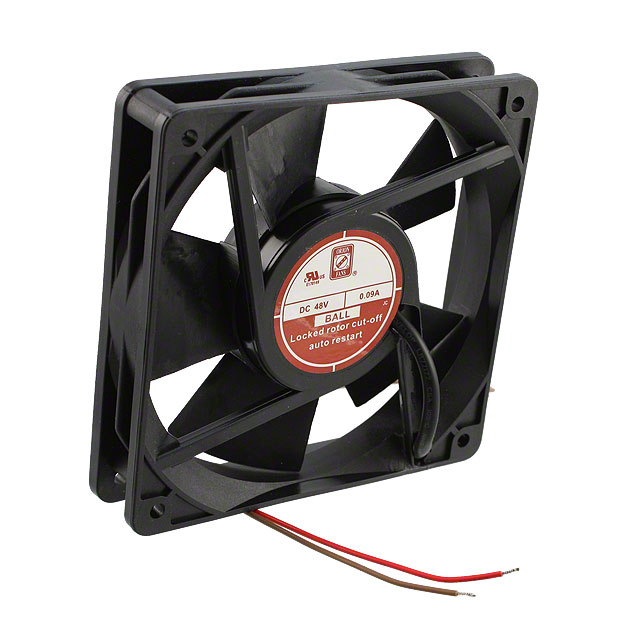

OD1225-48HB

Orion Fans

Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 86.0 CFM (2.41m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 5.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

220 in stock

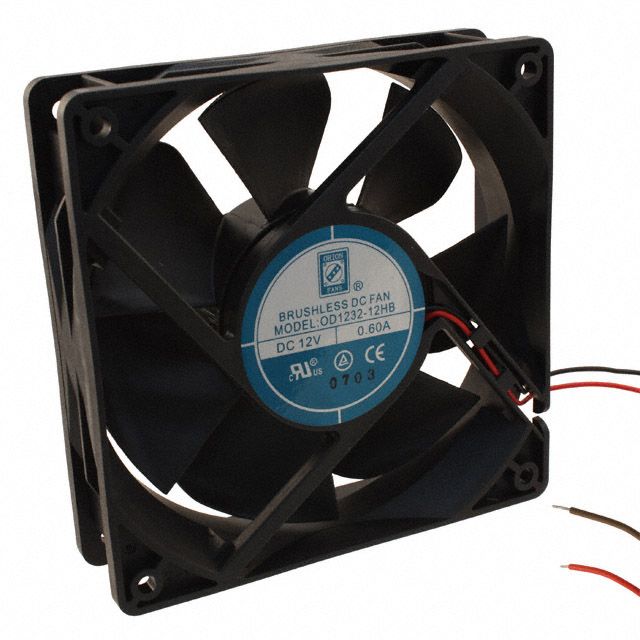

OD1232-12HB

Orion Fans

Manufacturer : Orion Fans
Series : OD1232
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 120.0 CFM (3.36m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : -
RPM : 3750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -

252 in stock
