- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.


Part Number

Manufacturer

Description

Unit Price

In Stock

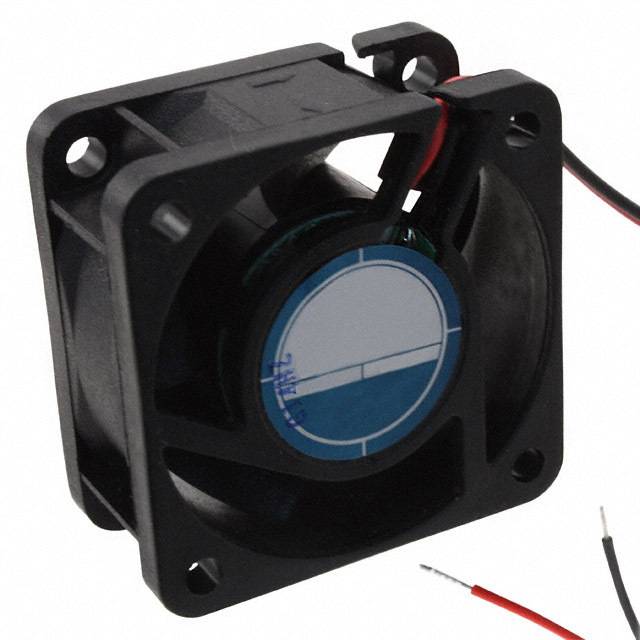

OD4020-24HB

Orion Fans

Manufacturer : Orion Fans
Series : OD4020
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 9.0 CFM (0.252m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : -
RPM : 7800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -

793 in stock

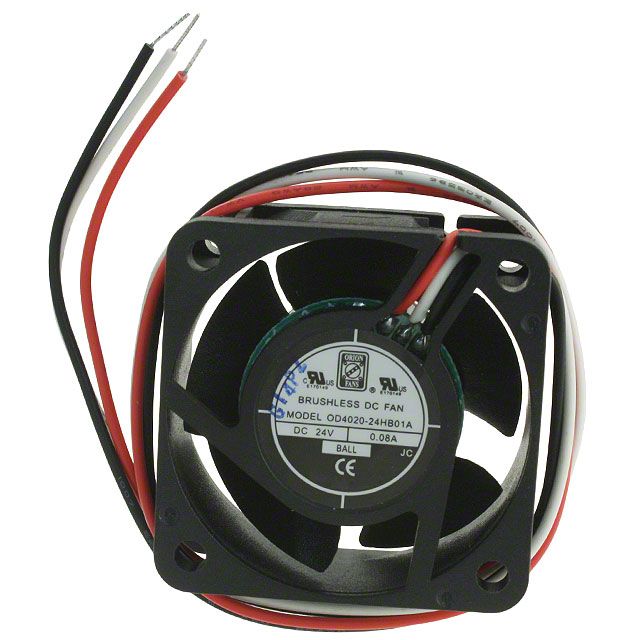

OD4020-24HB01A

Orion Fans

Manufacturer : Orion Fans
Series : OD4020
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 9.0 CFM (0.252m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB
Power (Watts) : -
RPM : 7800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -

453 in stock

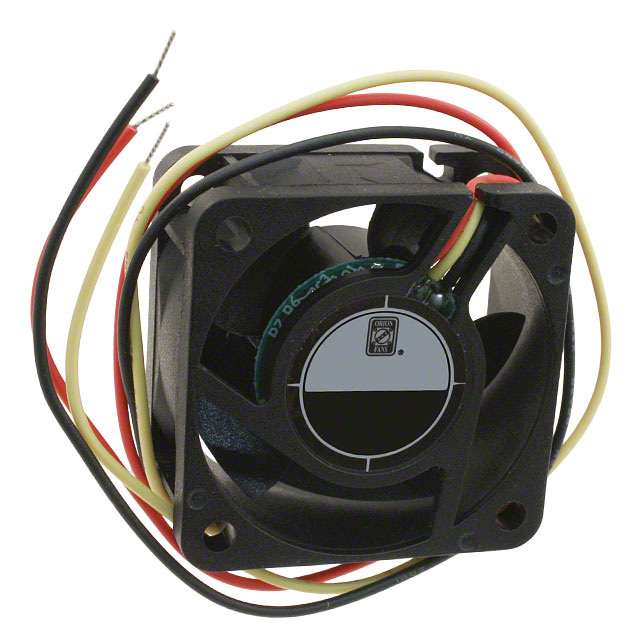

OD4020-24HB02A

Orion Fans

Manufacturer : Orion Fans
Series : OD4020
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 9.0 CFM (0.252m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 32.0 dB
Power (Watts) : -
RPM : 7800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -

338 in stock

OD4020-24HSS

Orion Fans

Manufacturer : Orion Fans
Series : OD4020
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 9.0 CFM (0.252m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 1.70W
RPM : 7800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

1200 in stock

OD4020-24LB

Orion Fans

Manufacturer : Orion Fans
Series : OD4020
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 7.0 CFM (0.196m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB
Power (Watts) : -
RPM : 6200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -

223 in stock

OD4020-24MB

Orion Fans

Manufacturer : Orion Fans
Series : OD4020
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.0 CFM (0.224m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : -
RPM : 6900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -

652 in stock

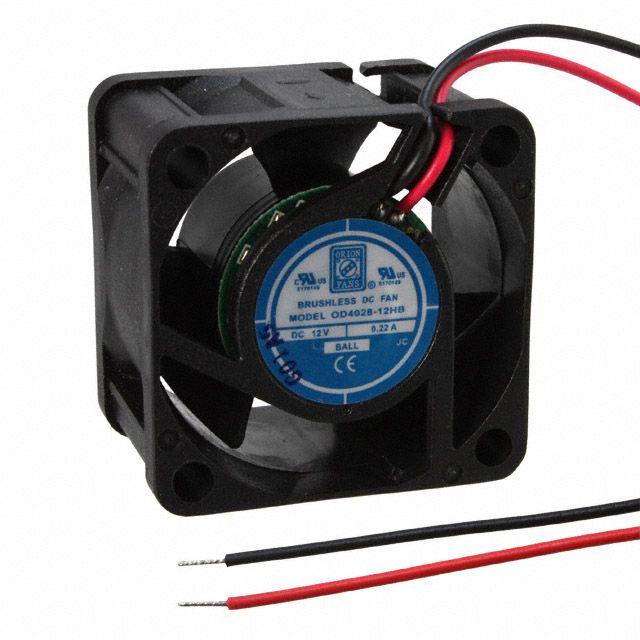

OD4028-12HB

Orion Fans

Manufacturer : Orion Fans
Series : OD4028
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 12.0 CFM (0.336m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : -
RPM : 8800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -

34 in stock

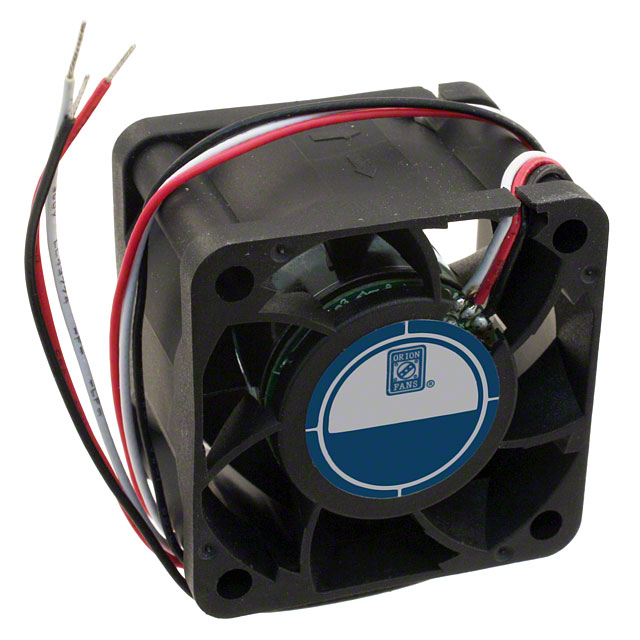

OD4028-12HBXC01A

Orion Fans

Manufacturer : Orion Fans
Series : OD4028
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 26.5 CFM (0.742m鲁/min)
Static Pressure : 1.600 in H2O (398.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 57.0 dB
Power (Watts) : 9.50W
RPM : 16000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -

64 in stock

OD5010-05LB

Orion Fans

Manufacturer : Orion Fans
Series : OD5010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.50mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : cURus
Weight : -

99 in stock

OD5010-05MB

Orion Fans

79 in stock

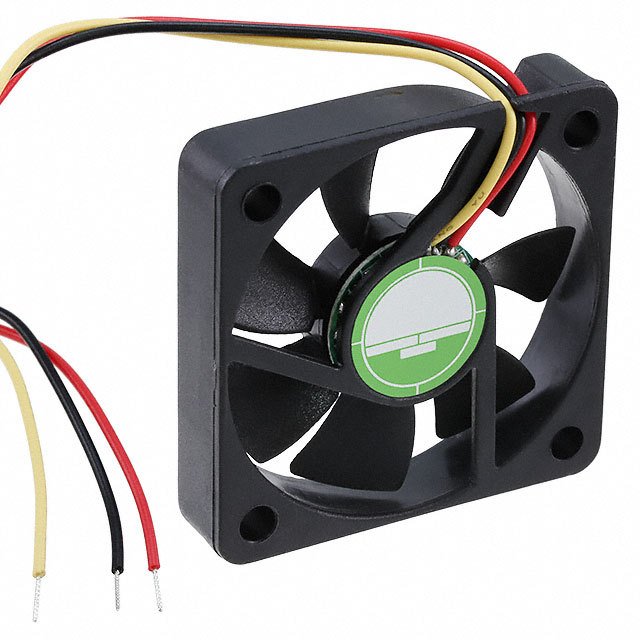

OD5010-05MB02A

Orion Fans

Manufacturer : Orion Fans
Series : OD5010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.50mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cURus
Weight : -

156 in stock

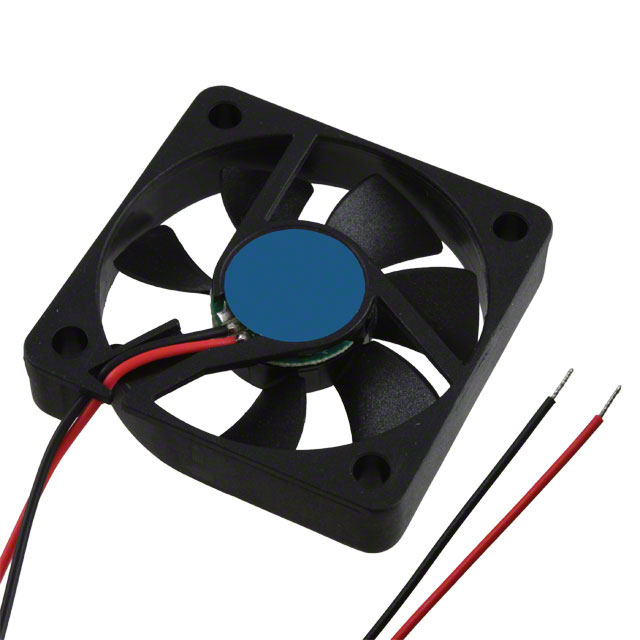

OD5010-12HB

Orion Fans

Manufacturer : Orion Fans
Series : OD5010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.50mm
Air Flow : 11.2 CFM (0.314m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB
Power (Watts) : 1.10W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus
Weight : -

409 in stock
