Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
165 in stock

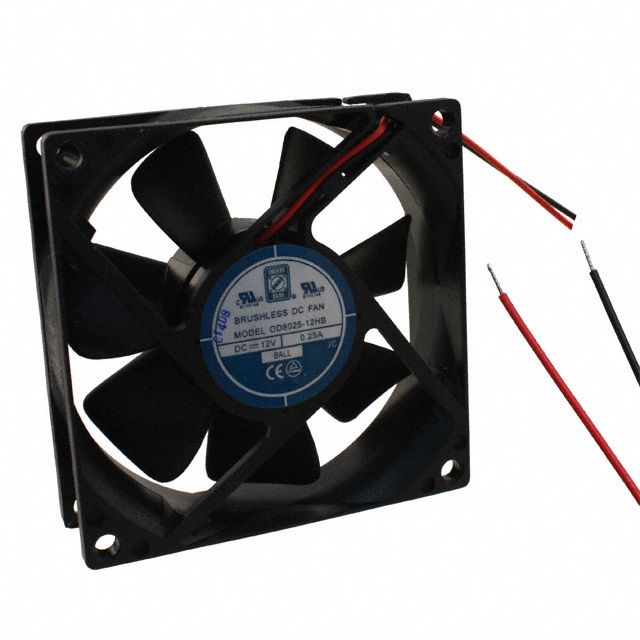

Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
66 in stock

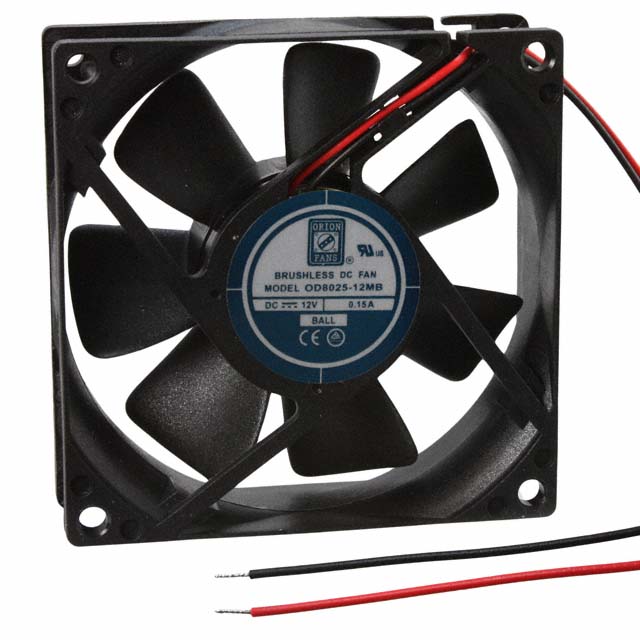

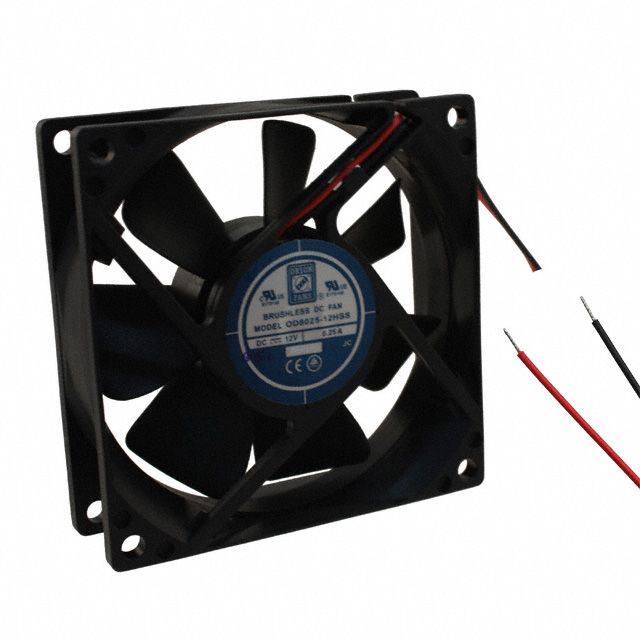

Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB
Power (Watts) : 2.90W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
806 in stock

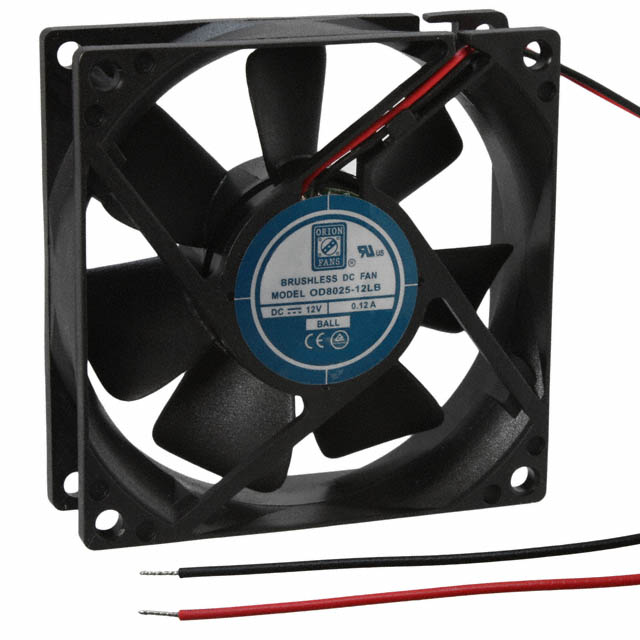

Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.0 CFM (0.728m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB
Power (Watts) : 600mW
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
98 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 31.0 CFM (0.868m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB
Power (Watts) : 0.96W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1683 in stock

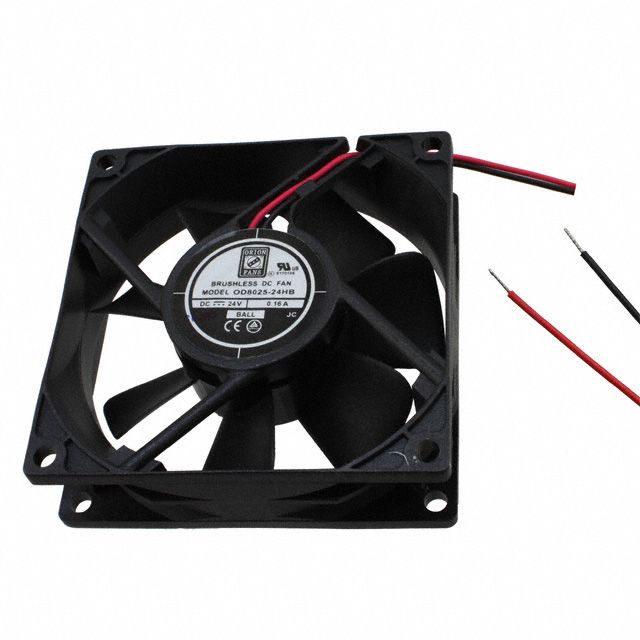

Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1012 in stock

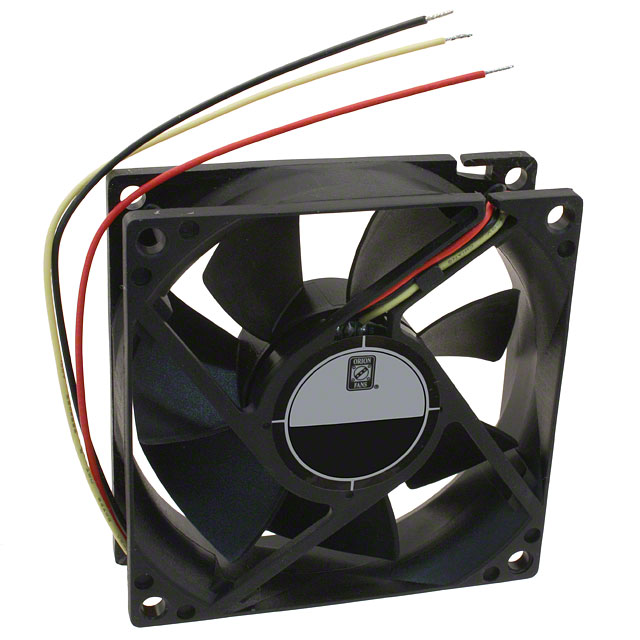

Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
241 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1549 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB
Power (Watts) : 2.40W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
820 in stock

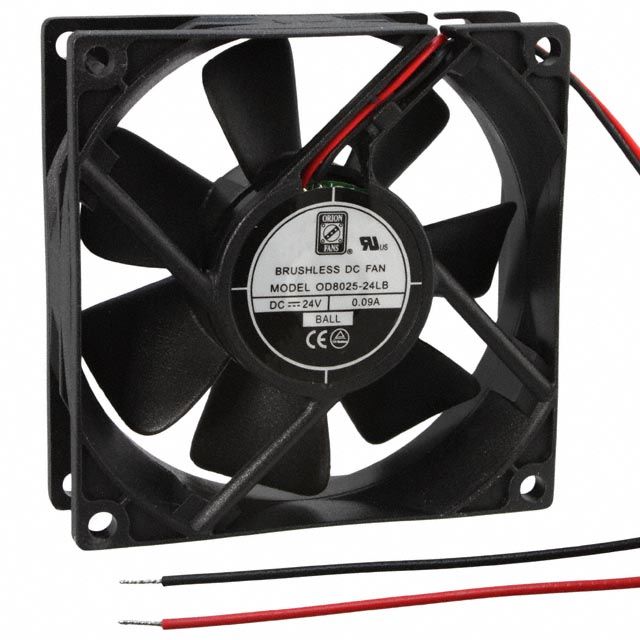

Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.0 CFM (0.728m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB
Power (Watts) : 960mW
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1111 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 31.0 CFM (0.868m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB
Power (Watts) : 0.960W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1074 in stock

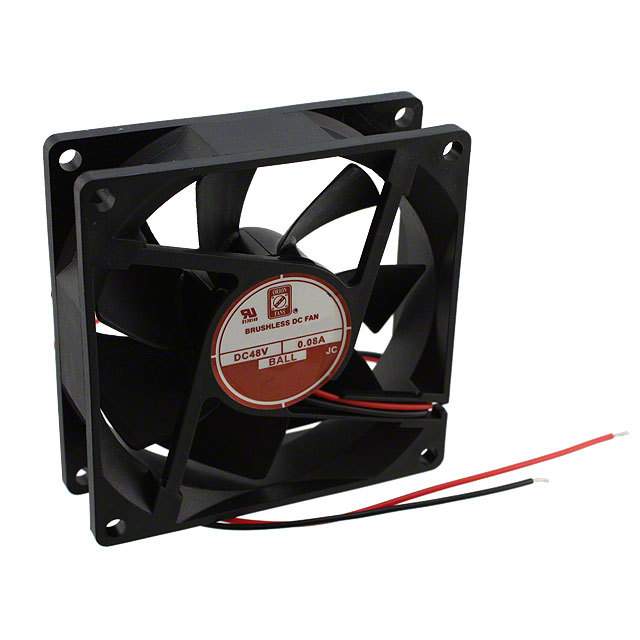

Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 3.80W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus
Weight : -
0
409 in stock
