PHIHONG USA
- Phihong is one of the leading power adapter companies in the world. Together with our distribution partners, we serve telecom, datacom, personal electronics, power tools, LED lighting, security, medical and industrial markets and top global electronics OEMs such as Motorola, Cisco, Panasonic, Sony, Acer, Hewlett Packard, Sanyo, Toshiba and many others.
Part Number
Manufacturer
Description
Unit Price
In Stock

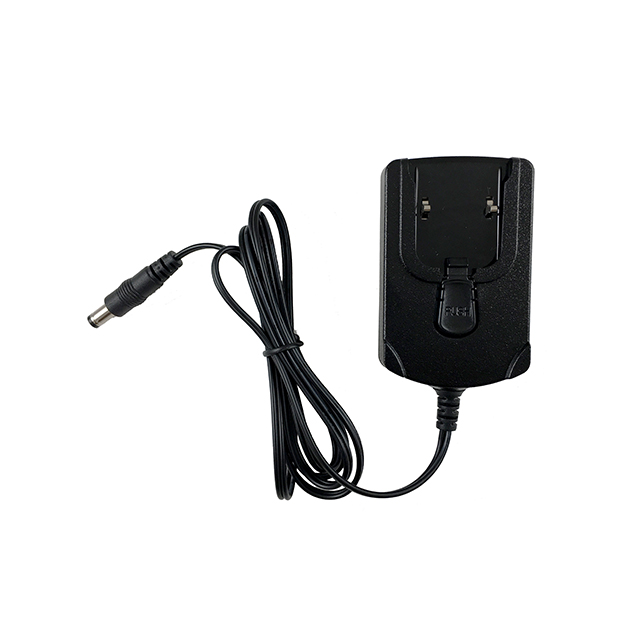

PHIHONG USA
Manufacturer : Phihong USA
Series : PSM10R (10W)
Part Status : Active
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 2A
Power (Watts) : 10W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Size / Dimension : 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm)
Approvals : CB, CE, cULus
0
468 in stock

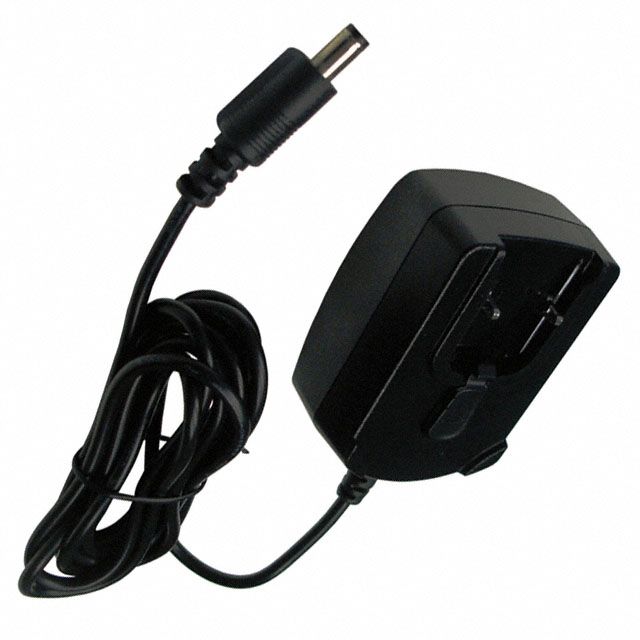

PHIHONG USA
Manufacturer : Phihong USA
Series : PSM11R (10W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 2A
Power (Watts) : 10W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level IV
Operating Temperature : 0°C ~ 50°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm)
Approvals : CE, C-Tick, cULus, GS
0
100 in stock
PHIHONG USA
Manufacturer : Phihong USA
Series : PSM11R (10W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 9V
Current - Output (Max) : 1.1A
Power (Watts) : 9.9W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 50°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm)
Approvals : CE, C-Tick, cULus, GS
0
100 in stock
PHIHONG USA
Manufacturer : Phihong USA
Series : PSM11R (10W)
Part Status : Obsolete
Region Utilized : International
Form : Wall Mount
Input Type : Multi-Blade (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 830mA
Power (Watts) : 10W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 50°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm)
Approvals : CE, C-Tick, cULus, GS
0
100 in stock

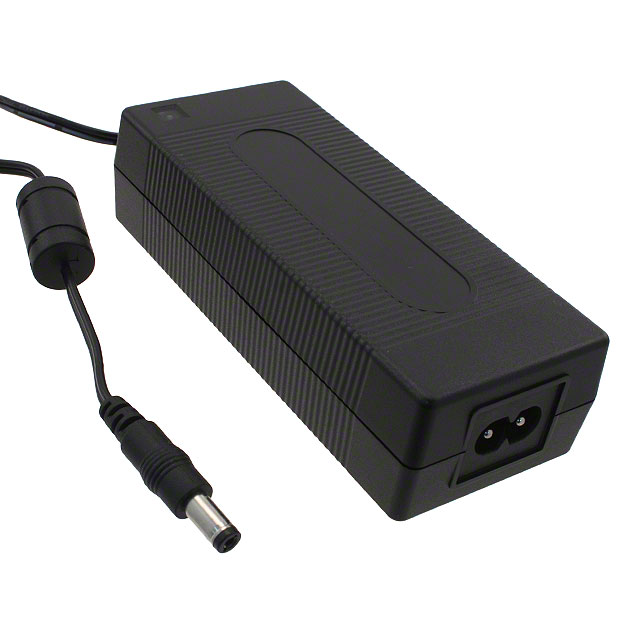

PHIHONG USA
Manufacturer : Phihong USA
Series : PSM36W (36W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 89 ~ 270 VAC
Voltage - Output : 12V
Current - Output (Max) : 3A
Power (Watts) : 36W
No Load Power Consumption : 30mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.2mm
Size / Dimension : 4.72" L x 1.98" W x 1.24" H (120.0mm x 50.4mm x 31.4mm)
Approvals : CB, CE, cULus, cURus, TUV
0
61 in stock

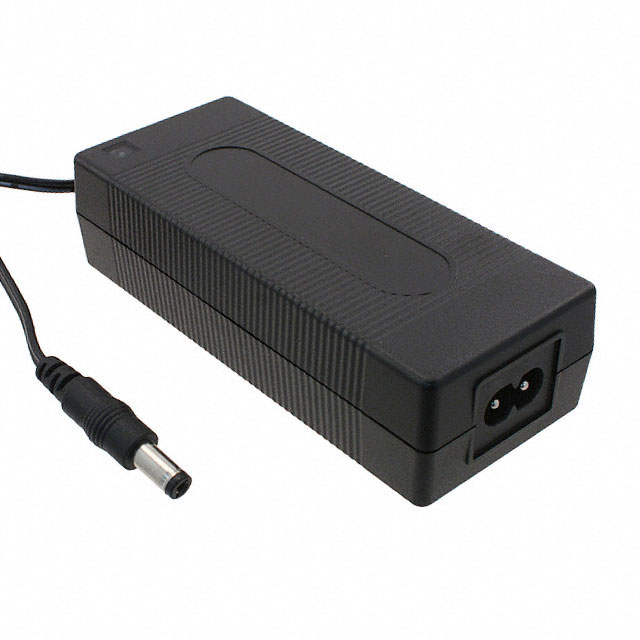

PHIHONG USA
Manufacturer : Phihong USA
Series : PSM36W (36W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 89 ~ 270 VAC
Voltage - Output : 12V
Current - Output (Max) : 3A
Power (Watts) : 36W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level V
Operating Temperature : 0°C ~ 45°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.2mm
Size / Dimension : 4.72" L x 1.98" W x 1.27" H (120.0mm x 50.0mm x 31.5mm)
Approvals : CE, cULus
0
219 in stock

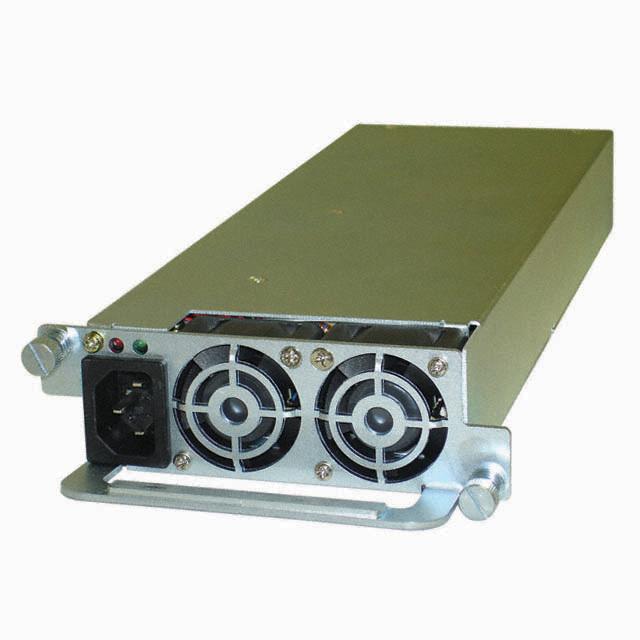

PHIHONG USA
Manufacturer : Phihong USA
Series : PSM500 (500W)
Part Status : Active
Type : Front End
Number of Outputs : 2
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 50V
Voltage - Output 2 : 12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A, 1.5A
Power (Watts) : 500W
Applications : ITE (Commercial)
Voltage - Isolation : 4.242kV
Efficiency : 83%
Operating Temperature : 0°C ~ 50°C
Features : Hot Swappable, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input
Mounting Type : Rack Mount
Size / Dimension : 13.00" L x 5.24" W x 1.61" H (330.0mm x 133.0mm x 41.0mm)
0
100 in stock
PHIHONG USA
Manufacturer : Phihong USA
Series : PSM500 (500W)
Part Status : Active
Type : Front End
Number of Outputs : 2
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 56V
Voltage - Output 2 : 12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A, 1.5A
Power (Watts) : 500W (522W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 4.242kV
Efficiency : 83%
Operating Temperature : 0°C ~ 50°C
Features : Hot Swappable, Load Sharing, PFC, Standby Output, Universal Input
Mounting Type : Rack Mount
Size / Dimension : 13.00" L x 5.24" W x 1.61" H (330.0mm x 133.0mm x 41.0mm)
0
6 in stock

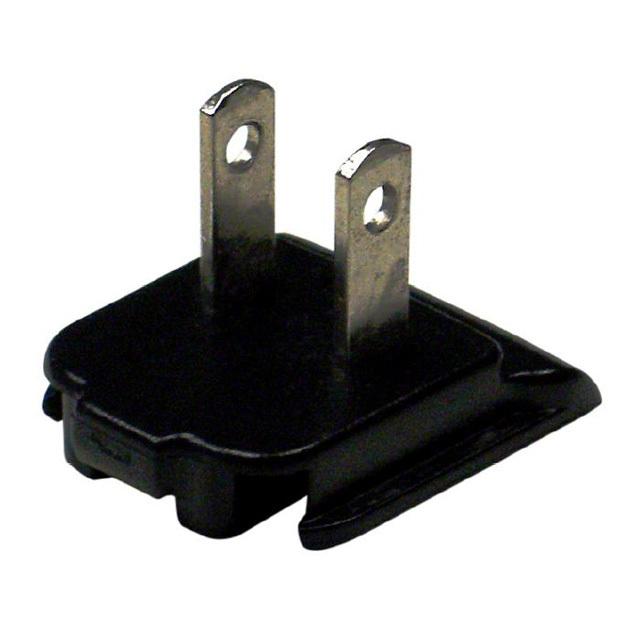

PHIHONG USA
Manufacturer : Phihong USA
Series : -
Part Status : Active
Accessory Type : Input Plug, United States
For Use With/Related Products : R Series Wall Adapters
0
8623 in stock
PHIHONG USA
Manufacturer : Phihong USA
Series : -
Part Status : Active
Accessory Type : Input Plug, United States
For Use With/Related Products : Wall Adapter (Multi Plug)
0
173 in stock
PHIHONG USA
Manufacturer : Phihong USA
Series : -
Part Status : Active
Accessory Type : Input Plug, Brazil
For Use With/Related Products : R Series Wall Adapters
0
368 in stock

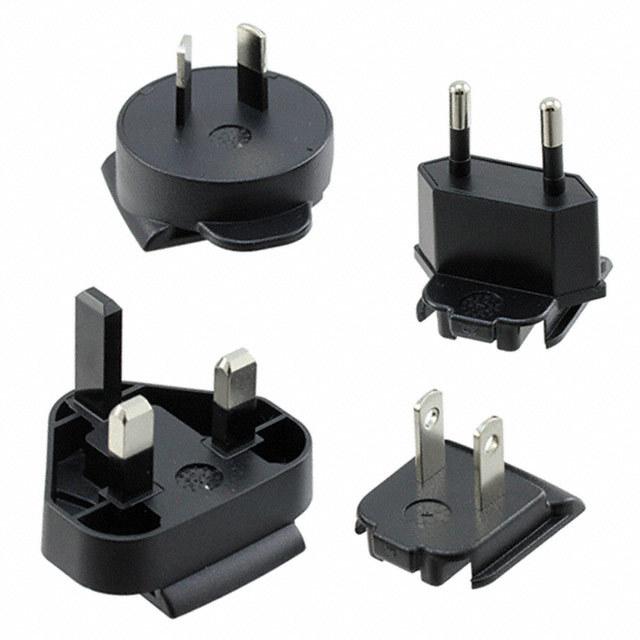

PHIHONG USA
Manufacturer : Phihong USA
Series : -
Part Status : Active
Accessory Type : Interchangeable Blade Kit
For Use With/Related Products : R Series Wall Adapters
0
8828 in stock
