- For more than 45 years, Pontiac Coil has been an integral part of our customers' success, delivering smart, time-saving manufacturing solutions - always one step ahead of our competitors. By focusing on the specific needs of each customer and then designing for both effectiveness and manufacturing efficiency, Pontiac Coil delivers innovative products that are more reliable, more efficient and less costly.

With facilities located throughout North America and Europe, we have become a key player in the electrical coil, solenoid and electrical/mechanical manufacturing field.

Part Number
Manufacturer
Description
Unit Price
In Stock

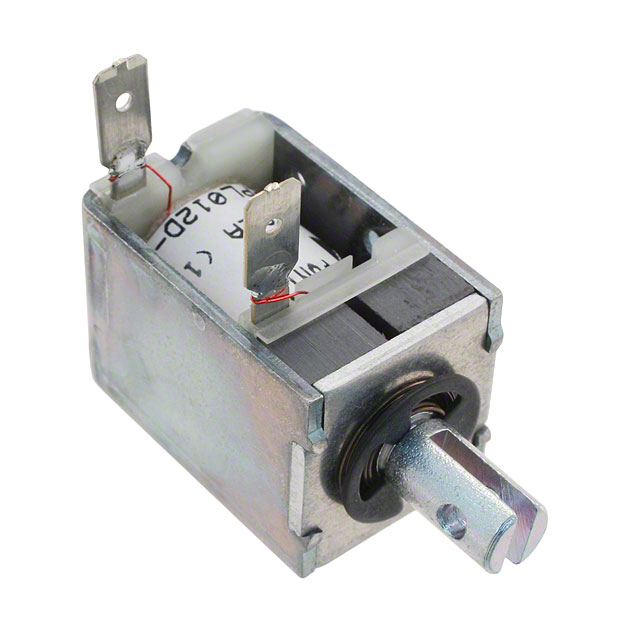

G0402A G0402A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 12VDC
Stroke Length : 0.250" (6.35mm)
Power (Watts) : 9W
DC Resistance (DCR) : 16 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
35 in stock

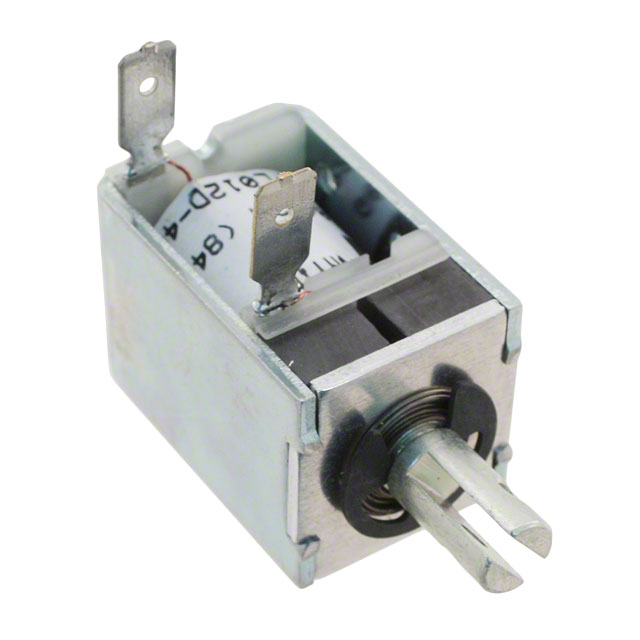

G0403A G0403A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Pulse
Voltage - Rated : 12VDC
Stroke Length : 0.250" (6.35mm)
Power (Watts) : 40W
DC Resistance (DCR) : 3.6 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
648 in stock

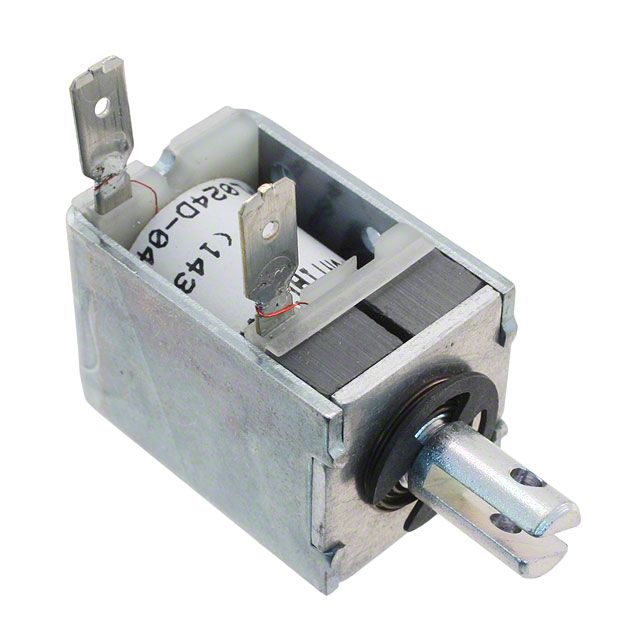

G0404A G0404A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Continuous
Voltage - Rated : 24VDC
Stroke Length : 0.250" (6.35mm)
Power (Watts) : 4W
DC Resistance (DCR) : 144 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
58 in stock

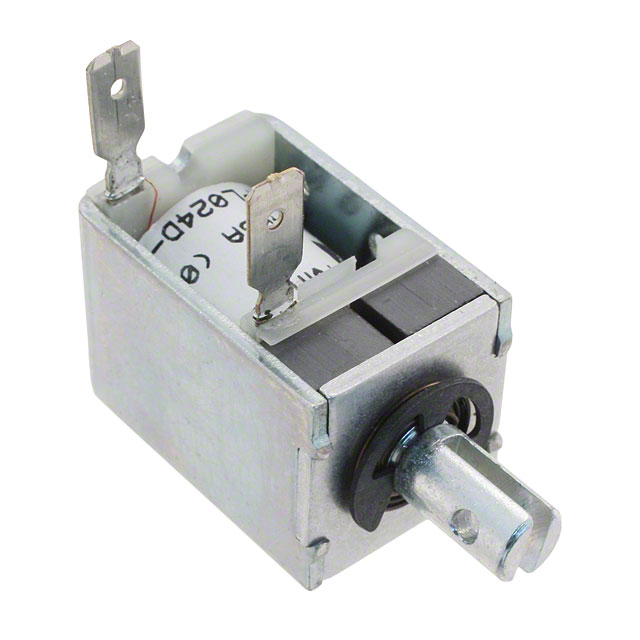

G0405A G0405A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-22
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 24VDC
Stroke Length : 0.250" (6.35mm)
Power (Watts) : 9W
DC Resistance (DCR) : 64 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm)
Size / Dimension : 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft : 0.250" (6.35mm)
Shaft Detail : Clevis
0
100 in stock

G0411A G0411A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-82
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Continuous
Voltage - Rated : 12VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 7W
DC Resistance (DCR) : 20 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm)
Size / Dimension : 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)
Diameter - Shaft : 0.438" (11.13mm)
Shaft Detail : Clevis
0
100 in stock

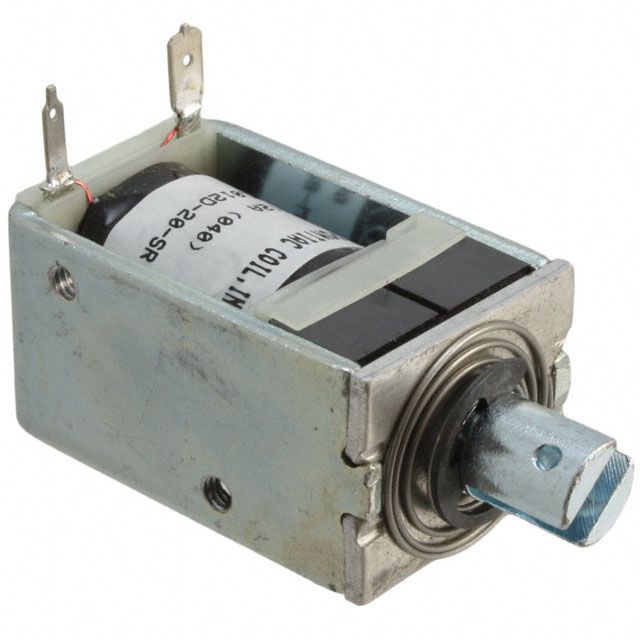

G0412A G0412A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-82
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 12VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 20W
DC Resistance (DCR) : 7.5 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm)
Size / Dimension : 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)
Diameter - Shaft : 0.438" (11.13mm)
Shaft Detail : Clevis
0
100 in stock

G0413A G0413A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-82
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Pulse
Voltage - Rated : 12VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 70W
DC Resistance (DCR) : 2 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm)
Size / Dimension : 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)
Diameter - Shaft : 0.438" (11.13mm)
Shaft Detail : Clevis
0
28 in stock

G0414A G0414A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-82
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Continuous
Voltage - Rated : 24VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 7W
DC Resistance (DCR) : 82 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm)
Size / Dimension : 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)
Diameter - Shaft : 0.438" (11.13mm)
Shaft Detail : Clevis
0
63 in stock

G0415A G0415A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-82
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Intermittent
Voltage - Rated : 24VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 20W
DC Resistance (DCR) : 29 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm)
Size / Dimension : 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)
Diameter - Shaft : 0.438" (11.13mm)
Shaft Detail : Clevis
0
100 in stock

G0416A G0416A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : M-82
Part Status : Active
Technology : Electromechanical
Type : Open Frame Latching (Pull)
Duty Cycle : Pulse
Voltage - Rated : 24VDC
Stroke Length : 0.750" (19.05mm)
Power (Watts) : 70W
DC Resistance (DCR) : 8.2 Ohm
Bushing Thread : -
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm)
Size / Dimension : 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)
Diameter - Shaft : 0.438" (11.13mm)
Shaft Detail : Clevis
0
100 in stock

H0901A H0901A

Pontiac Coil, Inc.
Manufacturer : Pontiac Coil Inc.
Series : -
Part Status : Active
Technology : -
Type : -
Duty Cycle : -
Voltage - Rated : -
Stroke Length : -
Power (Watts) : -
DC Resistance (DCR) : -
Bushing Thread : -
Mounting Type : -
Termination Style : -
Size / Dimension : -
Diameter - Shaft : -
Shaft Detail : -
0
9 in stock
