- Portescap is a motion control business group. Portescap specializes in advanced servo and step drive technologies to develop the highest performance and most cost-effective motion control solutions available. Portescap products include: Electromagnetic Brakes and Clutches, High Performance Servo and Step Motors, Encoders and Resolvers, Miniature Servo and Step Motors, and High Precision Gearboxes.
Portescap is unique among miniature motor manufacturers with their escap® brand precision ironless DC and brushless DC motors, and DMM disc magnet step motors. Our products are used successfully around the world in thousands of applications from medical devices to scientific instruments to factory automation equipment.
We also provide motion control solutions to a broad spectrum of industrial and commercial markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
Portescap
Manufacturer : Portescap
Series : 35L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 190mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 64 Ohms
Features : Round Shaft
0
695 in stock
Portescap
Manufacturer : Portescap
Series : 35M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 400mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 2.6 / 18.35
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 12.5 Ohms
Features : Round Shaft
0
21 in stock
Portescap
Manufacturer : Portescap
Series : 35M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 170mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 2.6 / 18.35
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 72 Ohms
Features : Round Shaft
0
58 in stock

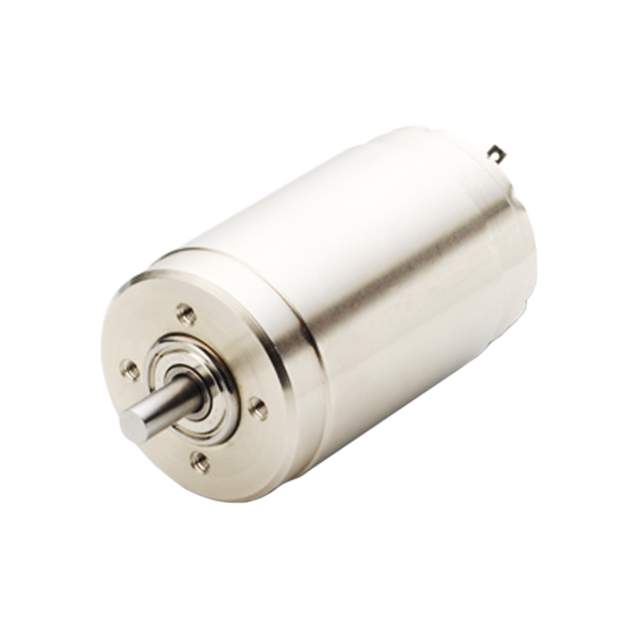

Portescap
Manufacturer : Portescap
Series : 35NT2R32
Part Status : Active
Type : DC Motor
Function : Standard
Motor Type : Brushed
Voltage - Rated : 24VDC
RPM : 9000 RPM
Torque - Rated (oz-in / mNm) : 7.94 / 56
Power - Rated : 37W
Encoder Type : -
Size / Dimension : Round - 1.378" Dia (35.00mm)
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.492" (12.50mm)
Mounting Hole Spacing : 0.866" (22.00mm)
Termination Style : Solder Tab
Features : -
Gear Reduction Ratio : -
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -30°C ~ 85°C
0
39 in stock
Portescap
Manufacturer : Portescap
Series : 42L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 960mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 15.1 / 106
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 5.2 Ohms
Features : Round Shaft
0
33 in stock
Portescap
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
0
463 in stock
Portescap
Manufacturer : Portescap
Series : 42M-Z
Part Status : Obsolete
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 2400
Step Angle : 0.15°
Accuracy : -
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.188" (4.77mm)
Length - Shaft and Bearing : 0.500" (12.70mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
0
100 in stock
Portescap
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
0
74 in stock
Portescap
Manufacturer : Portescap
Series : 42M-R
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 12VDC
Current Rating : 550mA
Steps per Revolution : 480
Step Angle : 0.75°
Accuracy : -
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.093" (2.36mm)
Length - Shaft and Bearing : 0.469" (11.92mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
0
215 in stock
Portescap
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 230mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 52.4 Ohms
Features : Round Shaft
0
462 in stock

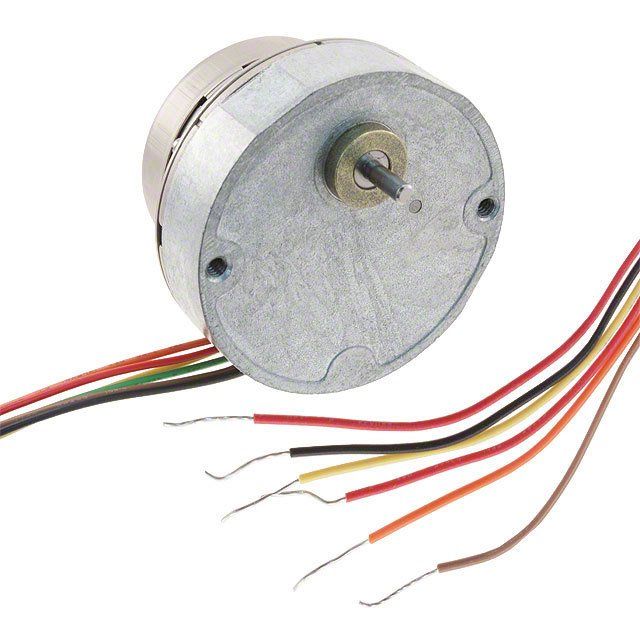

Portescap
Manufacturer : Portescap
Series : 42M-R
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 230mA
Steps per Revolution : 480
Step Angle : 0.75°
Accuracy : -
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.093" (2.36mm)
Length - Shaft and Bearing : 0.469" (11.92mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 52.4 Ohms
Features : Round Shaft
0
53 in stock
Portescap
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 400mA
Steps per Revolution : 100
Step Angle : 3.6°
Accuracy : ±11%
Torque - Holding (oz-in / mNm) : 7 / 49.4
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 12.5 Ohms
Features : Round Shaft
0
183 in stock
