Powerex, Inc.
- Powerex turns ideas into cost-effective products and is a leading supplier of discrete, modular and integrated high power semiconductor solutions, supporting many markets, including: AC and DC Motor Controls, Aircraft, Alternative Energy (WIND, Photovoltaic), Communications, Electrical, Industrial Heating, Medical Power Supplies, Transportation, UPS, Vehicles, and Welding.
Part Number
Manufacturer
Description
Unit Price
In Stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 100A (Tc)
Rds On (Max) @ Id, Vgs : 25 mOhm @ 100A, 20V
Vgs(th) (Max) @ Id : 5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs : 500nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 10200pF @ 800V
Power - Max : 900W
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 100A
Rds On (Max) @ Id, Vgs : 17 mOhm @ 100A, 15V
Vgs(th) (Max) @ Id : 1.6V @ 34mA
Gate Charge (Qg) (Max) @ Vgs : 330nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds : 8200pF @ 10V
Power - Max : 520W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 100A
Rds On (Max) @ Id, Vgs : 17 mOhm @ 100A, 15V
Vgs(th) (Max) @ Id : 1.6V @ 34mA
Gate Charge (Qg) (Max) @ Vgs : 330nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds : 8200pF @ 10V
Power - Max : 415W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : -
Series : *
Part Status : Active
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : -
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1400V
Current - Average Rectified (Io) : 150A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 7µs
Current - Reverse Leakage @ Vr : 30mA @ 1400V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AA, DO-8, Stud
Supplier Device Package : DO-205AA (DO-8)
Operating Temperature - Junction : -65°C ~ 200°C
0
100 in stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : -
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 1400V
Current - Average Rectified (Io) : 150A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 7µs
Current - Reverse Leakage @ Vr : 30mA @ 1400V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AA, DO-8, Stud
Supplier Device Package : DO-205AA (DO-8)
Operating Temperature - Junction : -65°C ~ 200°C
0
100 in stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 100A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 300ns
Current - Reverse Leakage @ Vr : 45mA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : TO-209AC, TO-94-4, Stud
Supplier Device Package : TO-94
Operating Temperature - Junction : -40°C ~ 150°C
0
21 in stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 100A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 300ns
Current - Reverse Leakage @ Vr : 45mA @ 1200V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : TO-209AC, TO-94-4, Stud
Supplier Device Package : TO-94
Operating Temperature - Junction : -40°C ~ 150°C
0
100 in stock
Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 100A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 300ns
Current - Reverse Leakage @ Vr : 45mA @ 1200V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : TO-209AC, TO-94-4, Stud
Supplier Device Package : TO-94
Operating Temperature - Junction : -40°C ~ 150°C
0
100 in stock

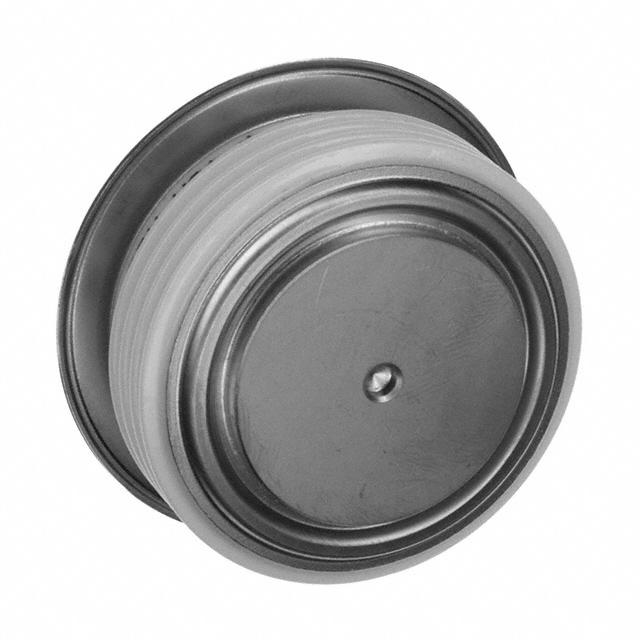

Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 2200A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1500A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 15µs
Current - Reverse Leakage @ Vr : 150mA @ 1200V
Capacitance @ Vr, F : -
Mounting Type : Chassis Mount
Package / Case : DO-200AB, B-PUK
Supplier Device Package : DO-200AB, B-PUK
Operating Temperature - Junction : -
0
5 in stock

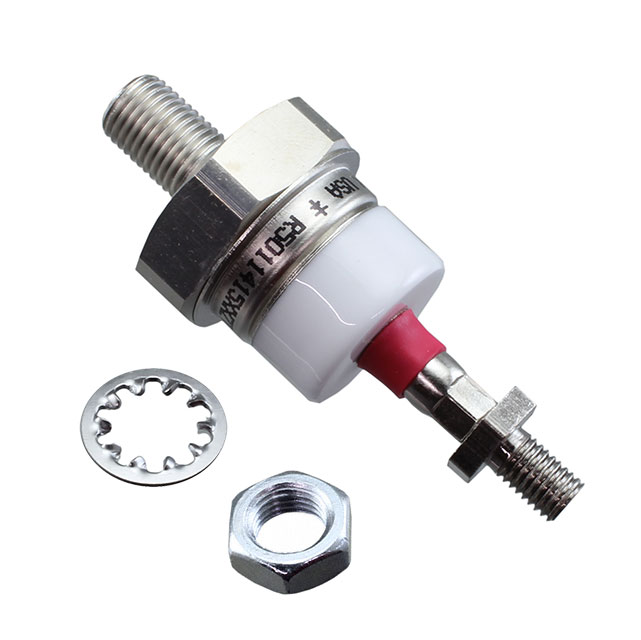

Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 150mA
Voltage - On State (Vtm) (Max) : 1.55V
Current - On State (It (AV)) (Max) : 175A
Current - On State (It (RMS)) (Max) : 275A
Current - Hold (Ih) (Max) : -
Current - Off State (Max) : 25mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 5000A, 5500A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis, Stud Mount
Package / Case : TO-209AB, TO-93-4, Stud
Supplier Device Package : -
0
12 in stock

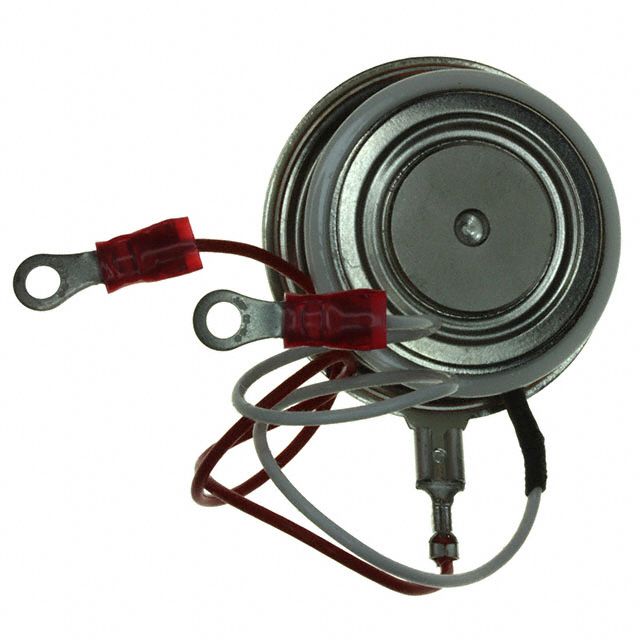

Powerex, Inc.
Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Structure : Single
Number of SCRs, Diodes : 1 SCR
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 300A
Current - On State (It (RMS)) (Max) : 470A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 5000A, 5500A
Current - Hold (Ih) (Max) : -
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount, 8" Wire Lead
Package / Case : TO-200AB, A-PUK
0
31 in stock
