- Samsung Semiconductor's business aims to achieve excellence as a long life, energy saving and eco-friendly light source supplier in displays and lighting applications. Samsung's advanced semiconductor manufacturing expertise serves as a strong foundation to deliver state-of-the-art LED devices. Samsung offers LED based lighting solutions in the form of back light units in display panels, exterior and dashboard lighting in automotives, lighting packages and engines with and without integrated optics, and drivers.
Part Number
Manufacturer
Description
Unit Price
In Stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : -
Series : LT-VB22F
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 7816 lm (7035 lm ~ 8600 lm)
Current - Test : 1.12A
Temperature - Test : 65°C
Voltage - Forward (Vf) (Typ) : 48.8V
Lumens/Watt @ Current - Test : 143 lm/W
Current - Max : 1.62A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 1120.00mm L x 18.00mm W
Height : 5.50mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
360 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : -
Series : *
Part Status : Active
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
110 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : -
Series : LT-VB24F
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 15632 lm (14070 lm ~ 17195 lm)
Current - Test : 2.24A
Temperature - Test : 65°C
Voltage - Forward (Vf) (Typ) : 48.8V
Lumens/Watt @ Current - Test : 143 lm/W
Current - Max : 3.24A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 1200.00mm L x 39.80mm W
Height : 5.50mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
159 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray

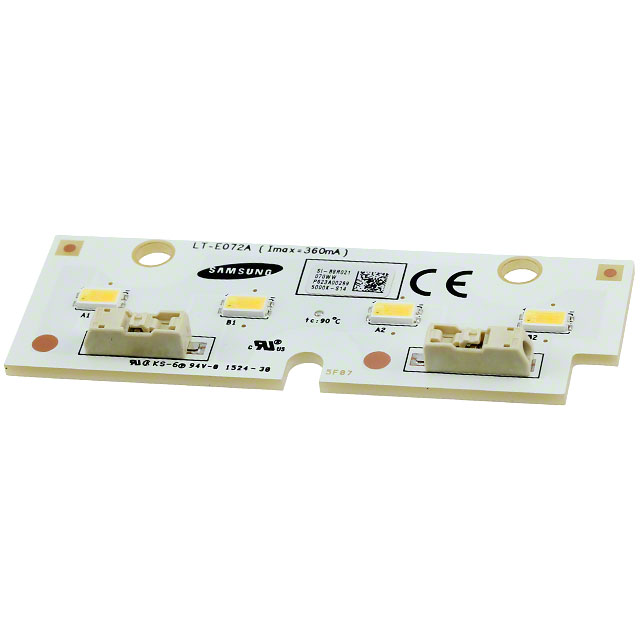

Series : LT-E072A
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 240 lm (220 lm ~ 260 lm)
Current - Test : 300mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 6.3V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 360mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 70.00mm L x 24.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Box
Series : LT-H072A
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 370 lm (Typ)
Current - Test : 300mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 9.45V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 360mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 70.00mm L x 24.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray

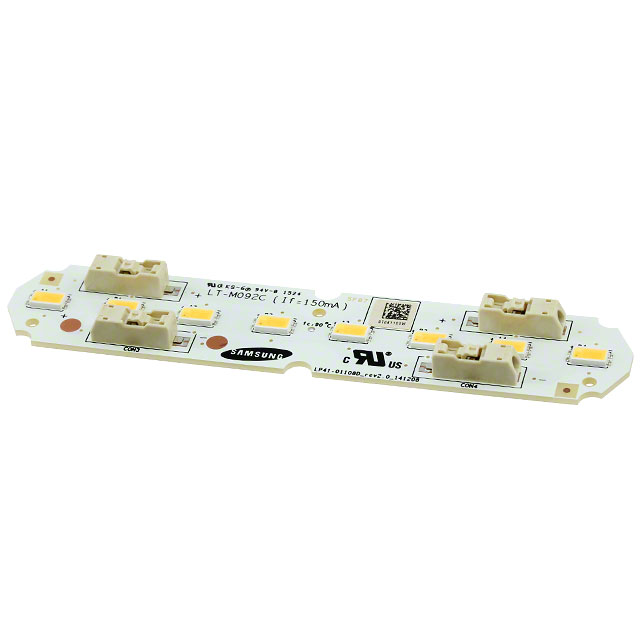

Series : LT-M092C
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 356 lm (Typ)
Current - Test : 110mA
Temperature - Test : 55°C
Voltage - Forward (Vf) (Typ) : 24V
Lumens/Watt @ Current - Test : 135 lm/W
Current - Max : 150mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 91.00mm L x 18.00mm W
Height : 5.20mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : -
Series : LT-Q282A
Part Status : Active
Type : LED Engine
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 975 lm (Typ)
Current - Test : 450mA
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 11V
Lumens/Watt @ Current - Test : 197 lm/W
Current - Max : -
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 275.00mm L x 18.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
163 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : LT-M272A
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 721 lm (Typ)
Current - Test : 450mA
Temperature - Test : 55°C
Voltage - Forward (Vf) (Typ) : 12V
Lumens/Watt @ Current - Test : 134 lm/W
Current - Max : 450mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 275.00mm L x 18.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : LT-H282D
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 980 lm (Typ)
Current - Test : 240mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 22.5V
Lumens/Watt @ Current - Test : 181 lm/W
Current - Max : -
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : With Connector
Size / Dimension : 275.00mm L x 18.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
218 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : LT-M282A_G2
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 800 lm (Typ)
Current - Test : 450mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 12.4V
Lumens/Watt @ Current - Test : 143 lm/W
Current - Max : 540mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 275.00mm L x 18.00mm W
Height : 4.40mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
1285 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : LT-E282A
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 715 lm (Typ)
Current - Test : 300mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 18.7V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 360mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : With Connector
Size / Dimension : 280.00mm L x 24.00mm W
Height : 5.80mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Samsung Semiconductor
Manufacturer : Samsung Semiconductor, Inc.
Packaging : Tray
Series : LT-V282A
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 746 lm (Typ)
Current - Test : 450mA
Temperature - Test : 50°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 132 lm/W
Current - Max : 540mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 275.00mm L x 18.00mm W
Height : 5.50mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
448 in stock
