Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock
SCM1243MF
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 15A
Current - Peak Output : 30A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : 125°C (TJ)
Features : Auto Restart, Bootstrap Circuit
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Through Hole
Package / Case : 33-PowerDIP (1.307", 33.20mm) Exposed Pad
Supplier Device Package : 33-PowerDIP LF2552
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 15A
Current - Peak Output : 30A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : 125°C (TJ)
Features : Auto Restart, Bootstrap Circuit
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Through Hole
Package / Case : 33-PowerDIP (1.307", 33.20mm) Exposed Pad
Supplier Device Package : 33-PowerDIP LF2552
0
254 in stock
SI-3010KD-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 27V
Voltage - Output (Min/Fixed) : 1.1V
Voltage - Output (Max) : 16V
Voltage Dropout (Max) : 0.6V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 600µA
Current - Supply (Max) : -
PSRR : 75dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -30°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package : TO-263-5
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 27V
Voltage - Output (Min/Fixed) : 1.1V
Voltage - Output (Max) : 16V
Voltage Dropout (Max) : 0.6V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 600µA
Current - Supply (Max) : -
PSRR : 75dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -30°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package : TO-263-5
0
244 in stock
SI-3010KF
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Obsolete
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 27V
Voltage - Output (Min/Fixed) : 1.1V
Voltage - Output (Max) : 16V
Voltage Dropout (Max) : 0.5V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 600µA
Current - Supply (Max) : -
PSRR : 75dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -30°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-220-5 Full Pack (Formed Leads)
Supplier Device Package : TO-220F-5
Packaging : Tube
Series : -
Part Status : Obsolete
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 27V
Voltage - Output (Min/Fixed) : 1.1V
Voltage - Output (Max) : 16V
Voltage Dropout (Max) : 0.5V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 600µA
Current - Supply (Max) : -
PSRR : 75dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -30°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-220-5 Full Pack (Formed Leads)
Supplier Device Package : TO-220F-5
0
858 in stock
SI-3010LLSL-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 3.6V
Voltage - Output (Min/Fixed) : 1V
Voltage - Output (Max) : 3.3V
Voltage Dropout (Max) : 0.3V @ 1A
Current - Output : 1.5A
Current - Quiescent (Iq) : 1µA
Current - Supply (Max) : 800µA
PSRR : 60dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 3.6V
Voltage - Output (Min/Fixed) : 1V
Voltage - Output (Max) : 3.3V
Voltage Dropout (Max) : 0.3V @ 1A
Current - Output : 1.5A
Current - Quiescent (Iq) : 1µA
Current - Supply (Max) : 800µA
PSRR : 60dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
934 in stock

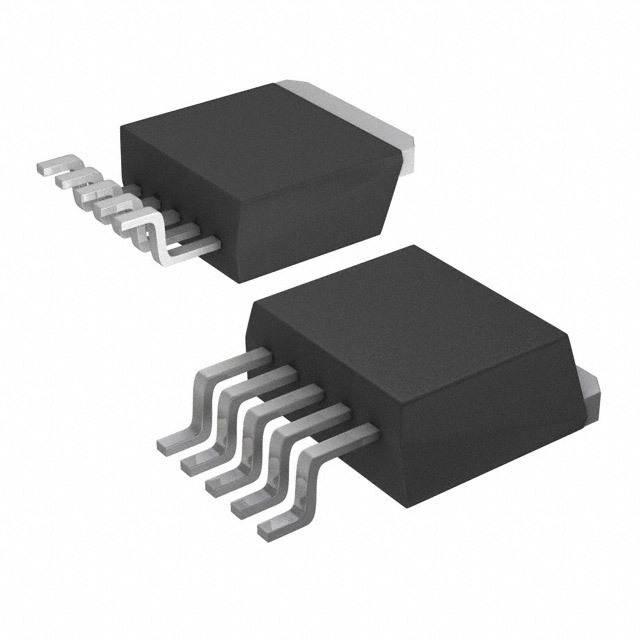

SI-3011ZD-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 6V
Voltage - Output (Min/Fixed) : 1.2V
Voltage - Output (Max) : 5V
Voltage Dropout (Max) : 0.6V @ 3A
Current - Output : 3A
Current - Quiescent (Iq) : 1.5mA
Current - Supply (Max) : -
PSRR : 60dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package : TO-263-5
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 6V
Voltage - Output (Min/Fixed) : 1.2V
Voltage - Output (Max) : 5V
Voltage Dropout (Max) : 0.6V @ 3A
Current - Output : 3A
Current - Quiescent (Iq) : 1.5mA
Current - Supply (Max) : -
PSRR : 60dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package : TO-263-5
0
530 in stock
SI-3011ZF-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 6V
Voltage - Output (Min/Fixed) : 1.2V
Voltage - Output (Max) : 5V
Voltage Dropout (Max) : 0.7V @ 3A
Current - Output : 3A
Current - Quiescent (Iq) : 1µA
Current - Supply (Max) : 1.5mA
PSRR : 60dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : TO-220-5 Full Pack (Formed Leads)
Supplier Device Package : TO-220-5
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 6V
Voltage - Output (Min/Fixed) : 1.2V
Voltage - Output (Max) : 5V
Voltage Dropout (Max) : 0.7V @ 3A
Current - Output : 3A
Current - Quiescent (Iq) : 1µA
Current - Supply (Max) : 1.5mA
PSRR : 60dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : TO-220-5 Full Pack (Formed Leads)
Supplier Device Package : TO-220-5
0
787 in stock
SI-3012KS-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 17V
Voltage - Output (Min/Fixed) : 1.5V
Voltage - Output (Max) : 5V
Voltage Dropout (Max) : 0.6V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 350µA
Current - Supply (Max) : -
PSRR : 55dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 17V
Voltage - Output (Min/Fixed) : 1.5V
Voltage - Output (Max) : 5V
Voltage Dropout (Max) : 0.6V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 350µA
Current - Supply (Max) : -
PSRR : 55dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
547 in stock
SI-3012LU-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 17V
Voltage - Output (Min/Fixed) : 1.5V
Voltage - Output (Max) : 15V
Voltage Dropout (Max) : 0.5V @ 250mA
Current - Output : 250mA
Current - Quiescent (Iq) : 150µA
Current - Supply (Max) : -
PSRR : 55dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : SOT-89-5/6
Supplier Device Package : SOT-89-5
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Adjustable
Number of Regulators : 1
Voltage - Input (Max) : 17V
Voltage - Output (Min/Fixed) : 1.5V
Voltage - Output (Max) : 15V
Voltage Dropout (Max) : 0.5V @ 250mA
Current - Output : 250mA
Current - Quiescent (Iq) : 150µA
Current - Supply (Max) : -
PSRR : 55dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : SOT-89-5/6
Supplier Device Package : SOT-89-5
0
757 in stock
SI-3018LSA-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 3.5V
Voltage - Output (Min/Fixed) : 1.8V
Voltage - Output (Max) : -
Voltage Dropout (Max) : 1.2V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 2.5mA
Current - Supply (Max) : -
PSRR : 60dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 3.5V
Voltage - Output (Min/Fixed) : 1.8V
Voltage - Output (Max) : -
Voltage Dropout (Max) : 1.2V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 2.5mA
Current - Supply (Max) : -
PSRR : 60dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
987 in stock
SI-3025KS-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 17V
Voltage - Output (Min/Fixed) : 2.5V
Voltage - Output (Max) : -
Voltage Dropout (Max) : 0.6V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 350µA
Current - Supply (Max) : -
PSRR : 55dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 17V
Voltage - Output (Min/Fixed) : 2.5V
Voltage - Output (Max) : -
Voltage Dropout (Max) : 0.6V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 350µA
Current - Supply (Max) : -
PSRR : 55dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
985 in stock
SI-3025LSA-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 3.5V
Voltage - Output (Min/Fixed) : 2.5V
Voltage - Output (Max) : -
Voltage Dropout (Max) : 0.8V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 2.5mA
Current - Supply (Max) : -
PSRR : 57dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 3.5V
Voltage - Output (Min/Fixed) : 2.5V
Voltage - Output (Max) : -
Voltage Dropout (Max) : 0.8V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 2.5mA
Current - Supply (Max) : -
PSRR : 57dB (100Hz ~ 120Hz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -20°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
1000 in stock
SI-3033KS-TL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 17V
Voltage - Output (Min/Fixed) : 3.3V
Voltage - Output (Max) : -
Voltage Dropout (Max) : 0.6V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 350µA
Current - Supply (Max) : -
PSRR : 55dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 17V
Voltage - Output (Min/Fixed) : 3.3V
Voltage - Output (Max) : -
Voltage Dropout (Max) : 0.6V @ 1A
Current - Output : 1A
Current - Quiescent (Iq) : 350µA
Current - Supply (Max) : -
PSRR : 55dB (100Hz ~ 120Hz)
Control Features : -
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
923 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
